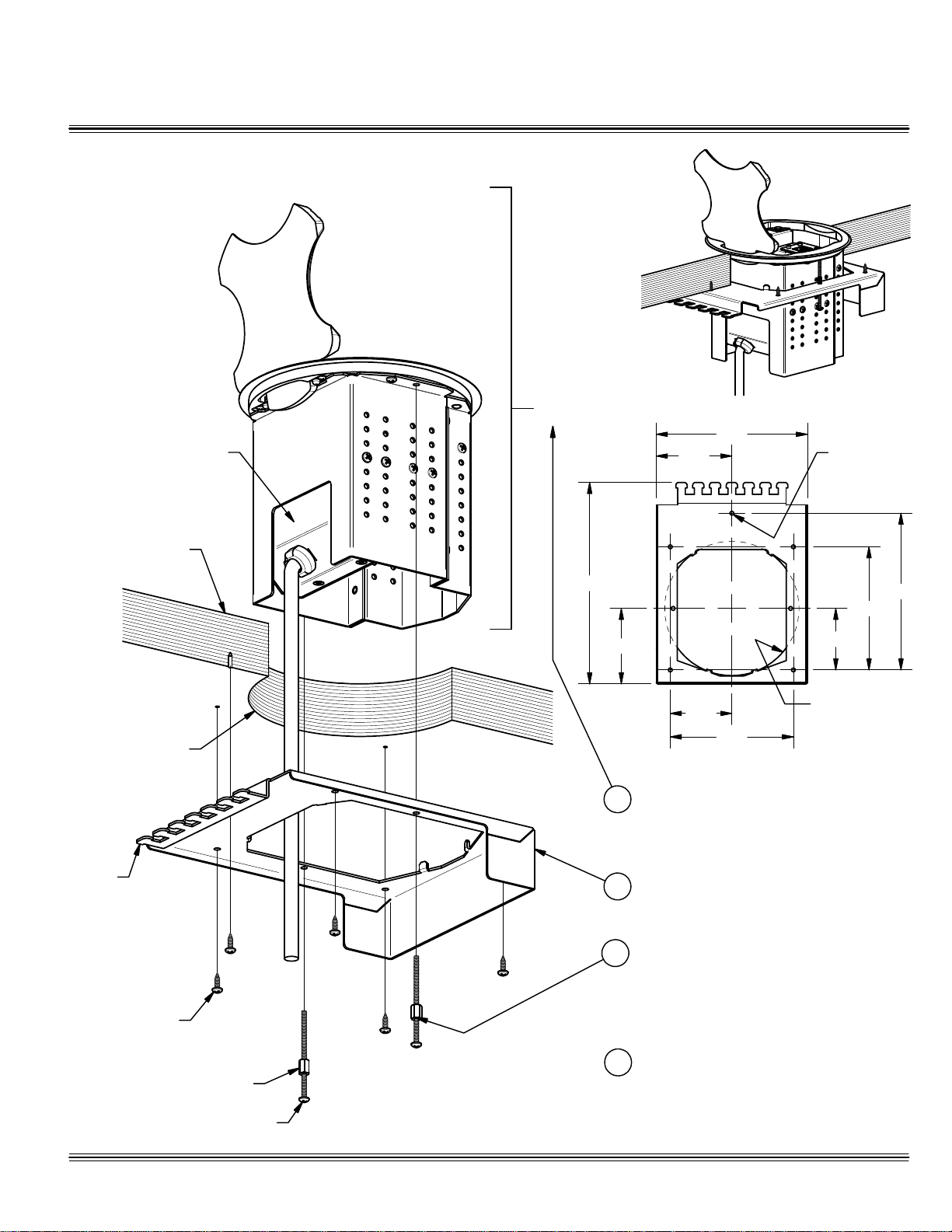

ASSEMBLED VIEW
UNDERSIDE VIEW OF SHROUD
T6 SUB-ASS'Y
INSTALL DESIRED BRACKETS INTO THE
'T6' SUB-ASS'Y. DROP THE SUB-ASS'Y
INTO THE HOLE IN THE TABLE
(COVER ORIENTATION IS PRE-SET
BY THE SHROUD INSTALLATION).
INSTALL CLAMP SHROUD TO UNDERSIDE
OF TABLE HOLE WITH (5) WOOD SCREWS
AS SHOWN. ORIENT PER DESIRED
COVER SWING DIRECTION.
PASS THE DESIRED-LENGTH (2) LONG
SCREWS THRU THE SHROUD AND THREAD
INTO THE SUB-ASS'Y. TURN THE 3/8"-LONG
CLAMP NUTS UP SNUG AGAINST THE
SHROUD BASEPLATE TO PULL THE
SUB-ASS'Y DOWN COMPLETELY INTO
PLACE IN THE PRE-CUT 6.00" DIA. HOLE.
MAKE ELECTRICAL CONNECTIONS AS
REQUIRED AND TIE-WRAP CABLES TO
TIE-TABS. IF USING CABLE PULL BRACKET
(T6-LB-CP), ENSURE CONNECTORS IN THE
SUB-ASS'Y CAN BE PULLED OUT 3'-0"
PRIOR TO SECURING CABLES TO TIE TABS.
T6 INSTALLATION
INSTRUCTIONS
2.75
5.50 7.00
3.37
9.00
6.75
3.38
2.75
5.50
(5) #6 / #8
MOUNTING
SCREW
HOLES
6.00" DIA. THRU
HOLE IN TABLE
2
1
3
4
PRE-CUT 6.00" DIA.
HOLE IN TABLE
3/4" MIN. - 2-1/4" MAX.
TABLE THICKNESS
(7) CABLE
TIE TAB
(5) #6 / #8 x 1/2"
WOOD SCREW
(2) #6-32 x 2.00" or 2-1/2" or 3" LONG
PAN HEAD SCREW
(2) 3/8"-LONG
CLAMP NUTS
BRACKETS (SOLD
SEPARATELY) SHOWN
AS REFERENCE
