NAVY SUBMARINE

ELECTRIC FRYER

Installation, Operation, Service, and Parts Manual

NOTICE

IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS MANITOWOC

FOOD SERVICE EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART

PURCHASED DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICERS,

AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS

WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIATES WILL NOT BE

LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH

ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF

ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICER.

DANGER

Copper wire suitable for at least 167°F (75°C) must be used for power connections.

DANGER

The electrical power supply for this appliance must be the same as indicated on the

rating and serial number plate located on the inside of the fryer door.

DANGER

This appliance must be connected to the voltage and phase as specified on the rating

and serial number plate located on the inside of the fryer door.

DANGER

All wiring connections for this appliance must be made in accordance with the wiring

diagrams furnished with the equipment. Wiring diagrams are located on the inside of

the fryer door.

DANGER

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

WARNING

Do not use water jets to clean this equipment.

Navy Submarine Electric Fryers

Installation, Operation, Service, and Parts Manual

TABLE OF CONTENTS

Page

Chapter 1: Introduction 1-1

Chapter 2: Installation Instructions 2-1

Chapter 3: Operating Instructions 3-1

Chapter 4: Filtration Instructions 4-1

Chapter 5: Preventive Maintenance 5-1

Chapter 6: Operator Troubleshooting 6-1

Chapter 7: Service Procedures 7-1

Chapter 8: Parts List 8-1

1-1

NAVY SUBMARINE ELECTRIC FRYER

CHAPTER 1: INTRODUCTION

1.1 General

Read the instructions in this manual thoroughly before attempting to operate this equipment. This

manual covers the Frymaster Navy Submarine Electric Fryer, a 440V 14kW 3-phase fryer that has

been specifically configured for use aboard submarines of the U.S. Navy.

1.2 Safety Information

Before attempting to operate your unit, read the instructions in this manual thoroughly.

Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the

one below.

DANGER

Hot cooking oil causes severe burns. Never attempt to move a fryer containing hot

cooking oil/shortening or to transfer hot cooking oil/shortening from one container

to another.

CAUTION boxes contain information about actions or conditions that may cause or result in a

malfunction of your system.

WARNING boxes contain information about actions or conditions that may cause or result in

damage to your system, and which may cause your system to malfunction.

DANGER boxes contain information about actions or conditions that may cause or result in

injury to personnel, and which may cause damage to your system and/or cause your system to

malfunction.

Fryers in this series are equipped with two high-temperature detection features that shut off

power to the unit by means of an external shunt trip disconnect should the temperature

controls fail.

1.3 Controller Information

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC rules. While this device is a verified Class A device, it has been

shown to meet the Class B limits. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a shipboard environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications and other

electronic devices.

1-2

1.4 Shipping Damage Claim Procedure

What to do if this equipment arrives damaged:

Please note that this equipment was carefully inspected and packed by skilled personnel before

leaving the factory. The freight company assumes full responsibility for safe delivery upon

acceptance of the equipment.

1. File Claim for Damages Immediately—Regardless of extent of damage.

2. Visible Loss or Damage—Be sure this is noted on the freight bill or express receipt and is signed

by the person making the delivery.

3. Concealed Loss or Damage—If damage is unnoticed until equipment is unpacked, notify the

freight company or carrier immediately and file a concealed damage claim. This should be done

within 15 days of date of delivery. Be sure to retain container for inspection.

1.5 Service Information

For non-routine maintenance or repairs, or for service information, contact your local Frymaster

Authorized Servicer (FAS). A list of Frymaster Factory Authorized Servicers (FAS’s) is located on

the Frymaster website at www.frymaster.com. Service information may also be obtained by calling

the Frymaster Technical Services Department (1-800-551-8633). The following information will be

needed in order to assist you efficiently:

Model Number:

Serial Number:

Voltage:

Also be prepared to describe the specific problem.

RETAIN AND STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE USE.

2-1

NAVY SUBMARINE ELECTRIC FRYER

CHAPTER 2: INSTALLATION INSTRUCTIONS

2.1 General

Proper installation is essential for the safe, efficient, trouble-free operation of this appliance.

Any unauthorized alteration of this equipment will void the Frymaster warranty.

NOTICE

If this equipment is wired directly into the electrical power supply, a means for

disconnection from the supply having a contact separation of at least 3-mm in all

poles must be incorporated in the fixed wiring.

NOTICE

This equipment must be positioned so that the plug is accessible unless other

means for disconnection from the power supply (e.g., a circuit breaker) is provided.

NOTICE

If this appliance is permanently connected to fixed wiring, it must be connected by

means of copper wires having a temperature rating of not less than 167°F (75°C).

NOTICE

If the electrical power supply cord is damaged, it must be replaced by a

Frymaster/Dean Factory Authorized Servicer technician or a similarly qualified

person in order to avoid a hazard.

DANGER

This appliance must be connected to a power supply having the same voltage and

phase as specified on the rating plate located on the inside of the appliance door.

DANGER

All wiring connections for this appliance must be made in accordance with the

wiring diagram(s) furnished with the appliance. Refer to the wiring diagram affixed

to the inside of the appliance door when installing or servicing this equipment.

DANGER

The appliance area must be kept free and clear of combustible material at all times.

All installation and service on FRYMASTER equipment must be performed by qualified, certified,

licensed, and/or authorized installation or service personnel.

Service may be obtained by contacting a local Frymaster/DEAN Factory Authorized Servicer.

In the event of a power failure, the fryer will automatically shut down. If this occurs, turn the power

switch OFF. Do not attempt to start the fryer until power is restored.

2-2

A clearance of 6 inches (15cm) must be provided at both sides and back adjacent to combustible

construction. A minimum of 24 inches (61cm) should be provided at the front of the equipment for

servicing and proper operation.

Connections should be made by means of an approved, flexible-metallic or rubber-covered electrical

cable and quick-disconnect plug. The fryers may be installed with “hard-wired” connections, but

use of quick-disconnect plugs will facilitate service if required. Connections are made to the fryer

power input terminal block located in the contactor box in the bottom of the fryer.

DANGER

Observe the following precautions when connecting the fryer to an emergency cutoff

system:

●Be sure that each fryer is connected to a dedicated set of contacts in the

emergency cutoff system.

●Do not connect the contacts in series.

●Do not connect more than one fryer to each set of contacts.

●The contacts MUST be normally closed contacts that open in an emergency.

●The contacts CANNOT have an external voltage applied.

2.2 Power Requirements

MODEL VOLTAGE PHASE

WIRE

SERVICE MIN.

SIZE AWG

(mm2)

MPS PER LEG

L1 L2 L3

H14 (Submarine) 440 3 3 8 (10) 19 19 19

NOTICE

If this appliance is permanently connected to fixed wiring, it must be connected by

means of copper wires having a temperature rating of not less than 167°F (75°C).

DANGER

This appliance must be connected to a power supply having the same voltage and

phase as specified on the rating plate located on the inside of the appliance door.

DANGER

All wiring connections for this appliance must be made in accordance with the

wiring diagram furnished with the appliance. Refer to the wiring diagram affixed to

the inside of the appliance door when installing or servicing this equipment.

2-3

2.3 Installation

1. This equipment must be securely bolted to the deck.

2. Install deck studs for the specific fryer configuration in accordance with the diagram below.

25.00

22.00 1.37

1.50

12.00

25.06

15.00

FRONT

MOUNTING HOLES

Ø.375

4 PLACES

3. Position the fryer on the deck studs and secure with appropriate nuts and lock washers.

DANGER

No structural material on the fryer should be altered or removed to accommodate

placement of the fryer under a hood. Questions? Call the Frymaster/Dean Service

Hotline at 1-800-551-8633.

2.4 After Fryer is Anchored at the Frying Station

DANGER

Hot shortening can cause severe burns. Avoid contact. Under all circumstances, oil

must be removed from the fryer before attempting to move it to avoid oil spills, falls

and severe burns. This fryer may tip and cause personal injury if not secured in a

stationary position.

1. Close the frypot drain-valve and fill the frypot with water to the bottom oil level line.

2. Boil out the frypot in accordance with the instructions in Section 5.1.3 of this manual.

3. Drain, clean, and fill the frypot with cooking oil. (See Equipment Setup and Shutdown

Procedures in Chapter 3.)

3–1

NAVY SUBMARINE ELECTRIC FRYER

CHAPTER 3: OPERATING INSTRUCTIONS

3.1 Equipment Setup and Shutdown Procedures

Setup

DANGER

Never operate the appliance with an empty frypot. The frypot must be filled with

water or cooking oil/shortening before energizing the elements. Failure to do so will

result in irreparable damage to the elements and may cause a fire.

DANGER

Remove all drops of water from the frypot before filling with cooking oil or

shortening. Failure to do so will cause spattering of hot liquid when the oil or

shortening is heated to cooking temperature.

1. Fill the frypot with cooking oil to the bottom OIL LEVEL line located on the rear of the frypot.

This will allow for oil expansion as heat is applied. Do not fill cold oil any higher than the

bottom line; overflow may occur as heat expands the oil.

NOTE: If solid shortening is used, it should be pre-melted outside the frypot then transferred to

the frypot. If the solid shortening is not pre-melted, it must be packed down between the

elements into the bottom of the frypot.

DANGER

Never set a complete block of solid shortening on top of the heating elements.

When using solid shortening, always pre-melt the shortening before adding it to the

frypot. If the shortening is not pre-melted, it must be packed down into the bottom of

the frypot and between the elements, and the fryer must be started in the melt-cycle

mode.

Never cancel the melt-cycle mode when using solid shortening. Doing so will result

in damage to the elements and increase the potential for a flash fire.

2. If the fryer is not hard-wired into the power supply, ensure that the power cord is plugged into

the appropriate receptacle. Verify that the face of the plug is flush with the outlet plate, with no

portion of the prongs visible.

3. Ensure that the oil/shortening level is at the top OIL LEVEL line when the oil/shortening is at its

cooking temperature. It may be necessary to add oil/shortening to bring the level up to the

proper mark, after it has reached cooking temperature.

3–2

Shutdown

1. Turn the fryer off.

2. Filter the cooking oil/shortening and clean the fryers (See Chapters 4 and 5).

3. Place the frypot covers on the frypots.

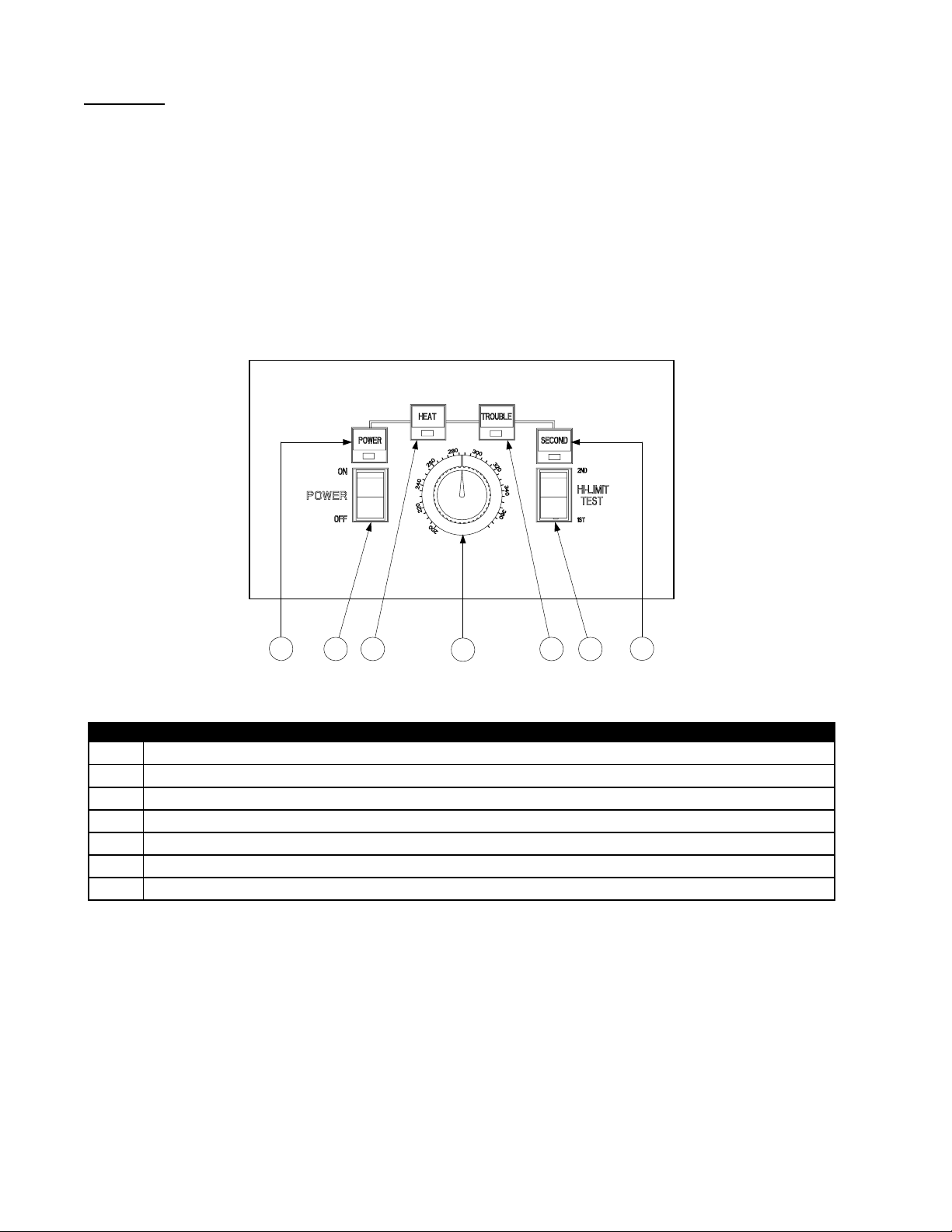

3.2 Operation of the Solid-State Analog Controller

Fryers configured for the U.S. Navy are equipped with solid-state analog controllers, illustrated

below.

1 3 4

2 7

U.S. Navy Solid-State Analog Controller

ITEM DESCRIPTION

1 Power Switch – Controls electrical power to fryer.

2 Power-On Light – Indicates when electrical power to fryer is ON.

3 Heating Mode Light – Indicates when heating element is ON.

4 Trouble Light – Indicates over high-limit or problem in heat control circuitry.

5 Thermostat Control Knob – Sets desired frying temperature.

6 Hi-Limit Test Switch – Tests high-limit thermostat.

7 Second Hi-Limit Test Light – Indicates fryer is in second high-limit test mode.

The analog controller is used to adjust and maintain oil at the temperature indicated by the

thermostat knob.

The fryer has two built-in high-limit protection features. If the temperature in the frypot reaches

approximately 410°F, the controller opens the heat relay circuit, turning the elements off. If the

temperature in the frypot reaches 450°F, a mechanical high-limit shuts off electrical power to the

fryer The operator should periodically test each of the high-limit protection features, using the

procedure at the end of this chapter, to verify that they are operating correctly.

The analog controller has no timing features. The operator must monitor shake and pull times.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frymaster Friteuse

Frymaster

Frymaster CF Manuel utilisateur

Frymaster

Frymaster FLYMASTER KSCFH18E Manuel utilisateur

Frymaster

Frymaster DECATHLON H55 Manuel utilisateur

Frymaster

Frymaster CM4-S(T) Manuel utilisateur

Frymaster

Frymaster FQE60U FilterQuick easyTouch Manuel utilisateur

Frymaster

Frymaster YSCFC24GSERIES YSCFC24GSERIES Mode d’emploi

Frymaster

Frymaster FilterQuick FQE30-T Manuel utilisateur

Frymaster

Frymaster BK1814 Series Manuel utilisateur

Frymaster

Frymaster FM-B Manuel utilisateur

Frymaster

Frymaster SR42G Manuel utilisateur

Frymaster

Frymaster Gen II LOV Manuel utilisateur

Frymaster

Frymaster Universal Holding Cabinet Manuel utilisateur

Frymaster

Frymaster PERFORMANCE PRO SERIES 45 Instructions de construction

Frymaster

Frymaster 1824/2424G Manuel utilisateur

Frymaster

Frymaster Pro Series Mode d’emploi

Frymaster

Frymaster 47 Series Mode d’emploi

Frymaster

Frymaster 8196321 Manuel utilisateur

Frymaster

Frymaster Pro H50-Series Instructions de construction

Frymaster

Frymaster SR42 Series, SR52 Series, SR62 Instructions d'installation et d'utilisation

Frymaster

Frymaster 35 Series Instructions de construction

Frymaster

Frymaster BIELA14-T Series Manuel utilisateur

Frymaster

Frymaster FPLHDC65 Series Manuel utilisateur

Frymaster

Frymaster H14 Series Manuel utilisateur

Frymaster

Frymaster FPD65 Series Manuel utilisateur

Manuels Friteuse populaires d'autres marques

Innsky

Innsky 55SA1US Manuel utilisateur

Falcon

Falcon G350/11 Guide de l'utilisateur

GoWISE USA

GoWISE USA GW22612 Manuel utilisateur

Wolf

Wolf IF15/S Manuel utilisateur

Electrolux

Electrolux Thermetic 9CHG583284 Guide rapide

Gourmia

Gourmia GAF799 Manuel utilisateur

DeLonghi

DeLonghi D677UX Manuel utilisateur

SEVERIN

SEVERIN DEEP FRYER - Guide de l'utilisateur

Toastmaster

Toastmaster TMFG18-NAT Manuel utilisateur

Domo

Domo DO465FR Manuel utilisateur

Henny Penny

Henny Penny PFG-691 Manuel utilisateur

Farberware

Farberware FBW FT 43721 B Manuel utilisateur

GERMANICA

GERMANICA GEAF5L3LD Manuel utilisateur

Roller Grill

Roller Grill MF 120 R Manuel d'utilisation

Philips

Philips HD9211 Manuel utilisateur

Linea 2000

Linea 2000 Domo DO536FR Manuel utilisateur

Lakeland

Lakeland 31796 Manuel utilisateur

Dash

Dash Tasti-Crisp DFAF755 Manuel utilisateur
