Frymaster FilterQuick FQE30-T Manuel utilisateur

FilterQuick™FQE30-T

Electric Fryer

Wiring Diagrams

This manual is updated as new information and models are released. Visit our website for the latest manual.

Part Number: FRY_D_8197464 11/2022

*8197464*

Original Instructions

FOR YOUR SAFETY

Do Not Store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

CAUTION

READ THE INSTRUCTIONS BEFORE USING THE FRYER.

Your Growth Is Our Goal

DANGER

Improper installation, adjustment, maintenance or service, and unauthorized alterations

or modifications can cause property damage, injury, or death. Read the installation,

operating, and service instructions thoroughly before installing or servicing this

equipment.

DANGER

This fryer has a power cord (three-phase) for each frypot. Prior to movement, testing,

maintenance and any repair on your Frymaster fryer; disconnect ALL electrical power cords

from the electrical power supply.

FILTERQUICK™ FQE30-T ELECTRIC FRYER

Table of Contents

SECTION 1: Wiring Diagrams

1.1 FQE30-T Domestic US, Non-CE Wiring....................................................................... 1-1

1.2 FQE30-T CE/Australia Wiring....................................................................................... 1-2

1.3 FQE30-T Simplified Communication Wiring.............................................................. 1-3

1.4 Contactor Box-Delta Configuration ........................................................................... 1-4

1.5 Contactor Box-WYE Configuration............................................................................. 1-5

1.6 Solid Shortening Melting Unit Wiring ........................................................................ 1-6

1.7 Basketlift Wiring ........................................................................................................... 1-7

1-1

FILTERQUICK™ FQE30-T ELECTRIC FRYER

SECTION 1: WIRING DIAGRAMS

1.1 FQE30-T Wiring Domestic US, Non-CE

8052140B

1-2

1.2 FQE30-T Wiring CE/Australia

8052197B

1-3

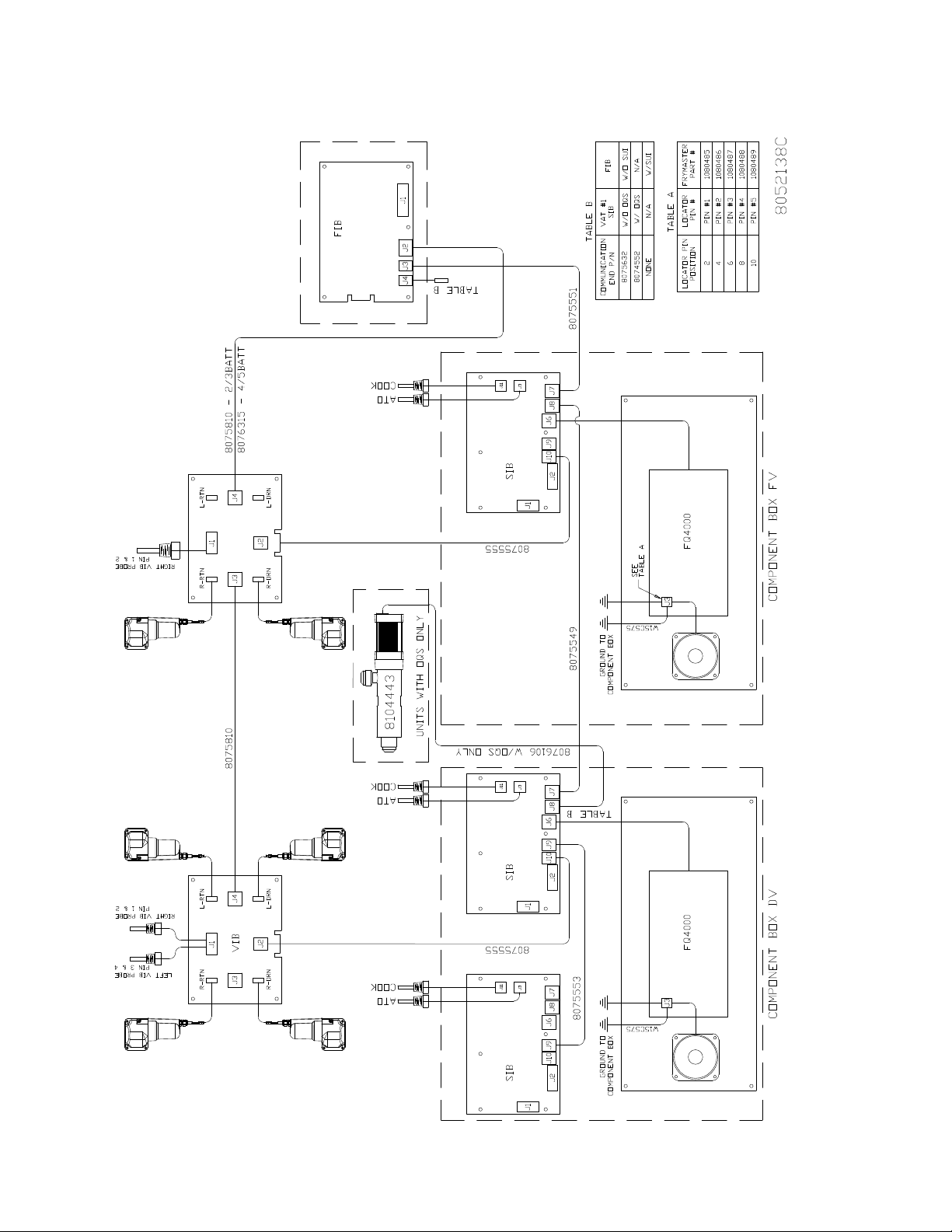

1.3 FQ30-T Simplified Communication Wiring

1-4

1.4 Contactor Box – Delta Configuration

FULL VAT

DUAL VAT

1-5

1.5 Contactor Box – WYE Configuration

FULL VAT

DUAL VAT

1-6

1.6 Solid Shortening Melting Unit Wiring

8052000H

1-7

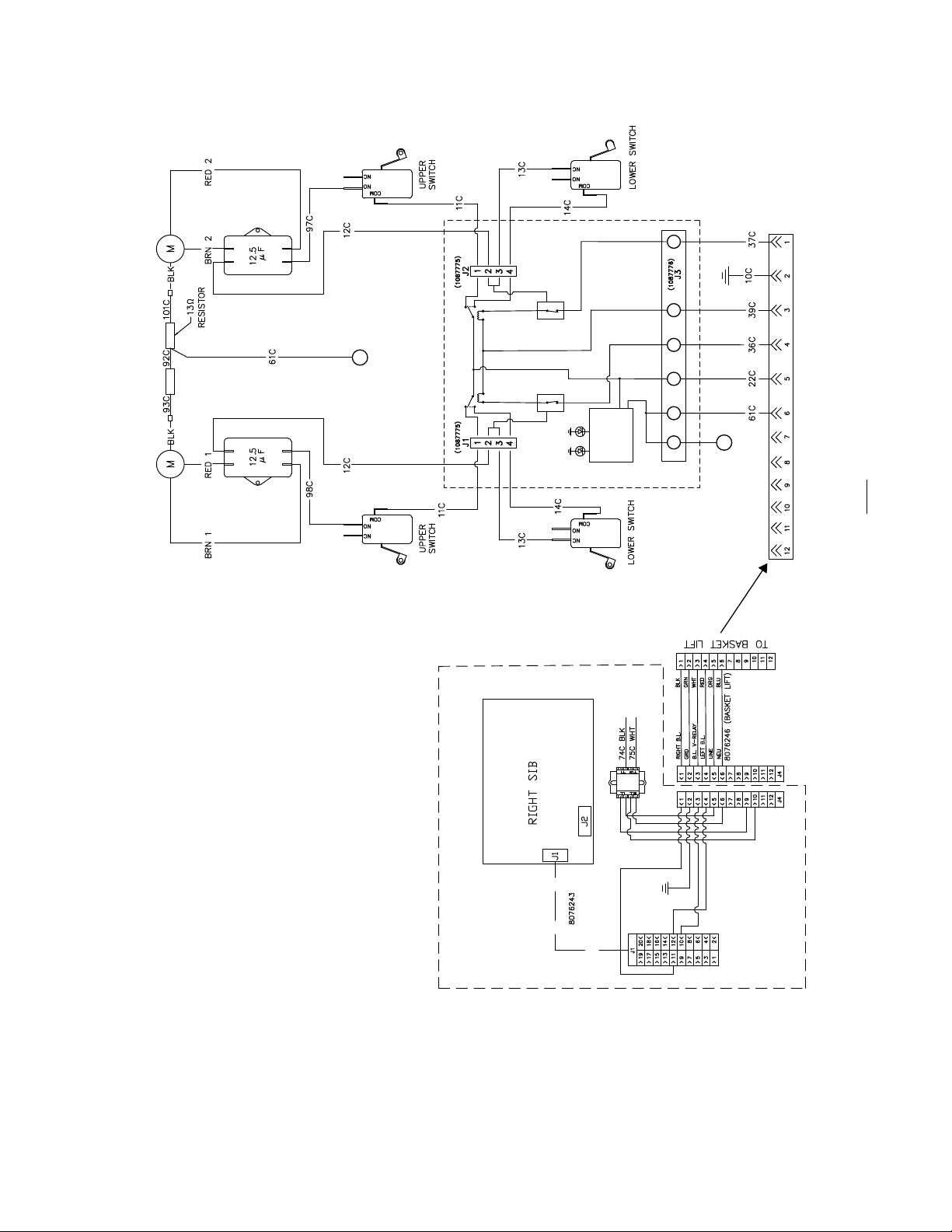

1.7 Basketlift Wiring Diagram

LEFT SIDE RIGHT SIDE

10 Sec. Delay

Power 12VSupply 5V

6 5 4 3

NEUTRAL LINE RIGHTLEFT 12VDC

10 Sec. Delay

CONTROL BOX

REFERENCES TO LEFT AND RIGHT ARE FROM THE FRONT OF THE FRYER

REVERSE BOARD
