Frigidaire PLHS237ZD Manuel utilisateur

Product No. PLHS237ZDB0

Series R134a Professio

Color stain/blk

Volts 115

Wiring Diagram 241526901

Owner's Guide 241572800

Market North America

Energy Guide 241538754

Service Data Sheet 240389618

N58L00001.eps N58FFCBBC1.eps N58RFCBBC7.eps N58BAAAAB1.eps

N58SKDLBC1.eps N58TAAAAB3.eps N58CAAAAC0.eps N58XEAAAA0.eps

N58YDAAACO.eps n58I115T.eps W241526901A.eps S241526901A.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995413597

04/07/22

(EN/SERVICE/KHB)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

PLHS237ZD

Publication No: 5995413597 PLHS237ZDB0

07/04 2

FREEZER DOOR

PLHS237ZDB0 Publication No: 5995413597

# Functional Parts 3 07/04

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 240390608 Gasket-frzr door, black, magnetic

4A 240367301 Bin-door, frzr-upper

4B 240359001 Bin-door

4C 240358401 Bin-door, frzr-dispenser

11 240554226 Door-frzr, stainless steel, complete assy

13A 240581906 Door Stop, black, frzr

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22A 240328204 Bearing-hinge, closer

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

* 240352102 Connector-water, straight

* 240470401 Connector-amp

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995413597 PLHS237ZDB0

07/04 4

REFRIGERATOR DOOR

PLHS237ZDB0 Publication No: 5995413597

# Functional Parts 5 07/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 240390607 Gasket-refr door, black, magnetic

4 240363702 Bin-door, 2-liter

7 240338303 Door, dairy, clear

12 240558802 Label-nameplate

13 240581905 Door Stop, black, ref

15 241534500 Door-refr, stainless, complete assy

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22 240328203 Bearing-hinge, closer

22B 240328404 Bearing-hinge, black, upper

27A 240396102 Retainer, tall bottle

49 240430313 Bin-door, gallon

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995413597 PLHS237ZDB0

07/04 6

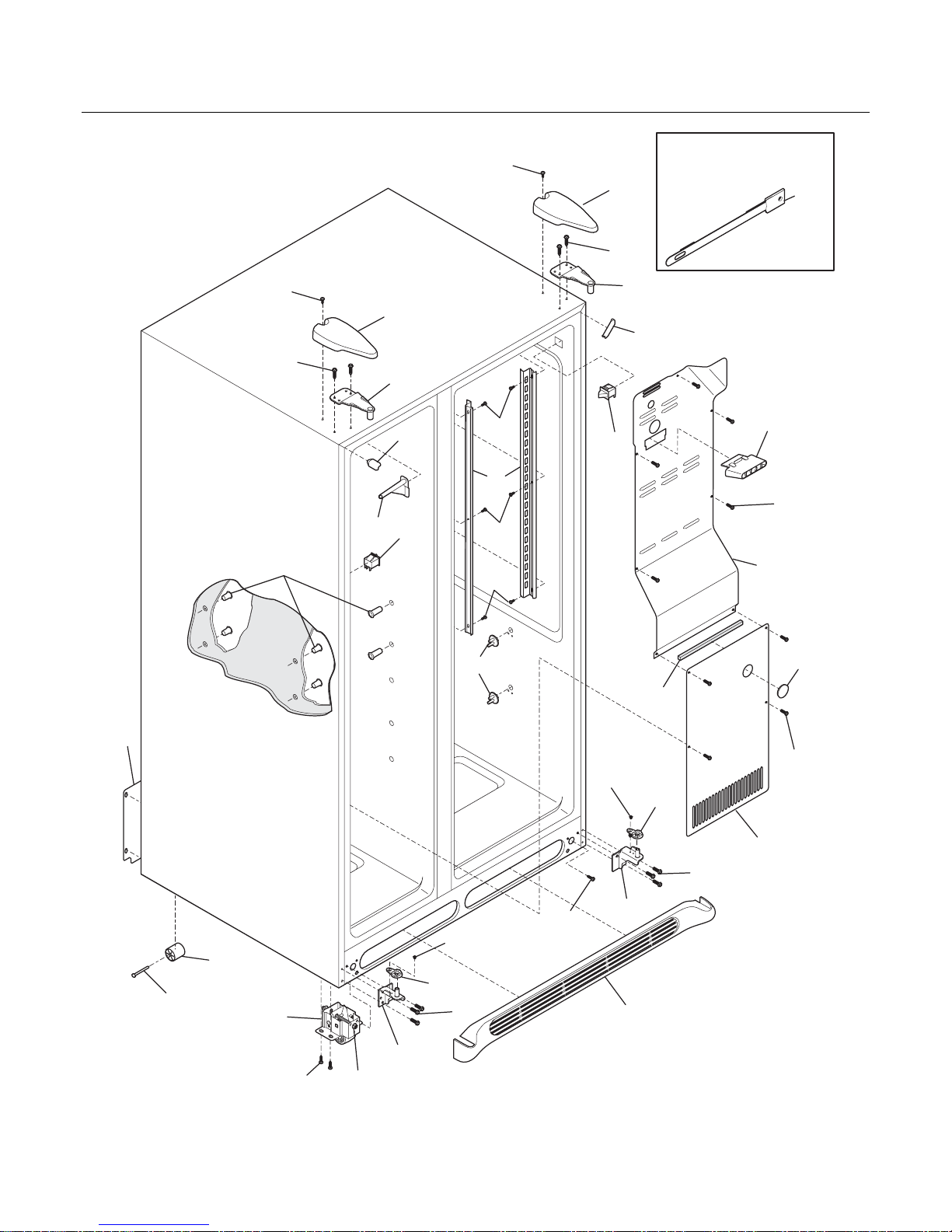

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB1

150

PLHS237ZDB0 Publication No: 5995413597

# Functional Parts 7 07/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435907 Cover-air duct

10A 240475906 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 # 240505801 Switch, light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419101 Bracket-lower hinge, ref

30A 240419102 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327201 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66 5304424968 Damper Cover Assy

66* 240518802 Pin-push, push-in, plastic

72 240324405 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 Cover, access, system compt, with label

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

Publication No: 5995413597 PLHS237ZDB0

07/04 8

SHELVES

120

122

121

11A

126

52A

109

51A

49B

101

N58SKDLBC1

100

25A

47A

15A

16A

26A

42A

123

24B

140

24B

136

PLHS237ZDB0 Publication No: 5995413597

# Functional Parts 9 07/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510603 Trim-basket

11 240350648 Shelf-freezer, glass, lower

11A 240350647 Shelf-freezer, glass, upper

15A 241555401 Light Bulb

16A 241513901 Socket-light

16A* 241537602 Harness-wiring

24 240355201 Shelf-"Spill-Safe", fixed, (1)

24B 240350103 Shelf-"Spill-Safe", sliding, (2)

25 240354502 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240354602 Cover-crisper pan, lower

26 240354717 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240351101 Control-humidity

27 240354818 Pan-crisper, lower

39 240367601 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

47 240350613 Insert-pan cover, glass

47A 240350614 Insert-pan cover, glass

49 240564301 Basket-sliding

49B 240530503 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

51A 240395502 Hanger-basket, RH

52 240343102 Hanger-basket, LH

52A 240395602 Hanger-basket, LH

62 240355518 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326301 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 241558901 Shelf-ice cream

121 241561001 Rail-ice cream shelf, LH

122 241561101 Rail-ice cream shelf, RH

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

136 240424501 Dispenser-can, white

140 240430501 Channel, wtr tube cover

Publication No: 5995413597 PLHS237ZDB0

07/04 10

CONTROLS
