Frigidaire GLHS68EESB0 Manuel utilisateur

N58L00001.eps N58FCFEFA2.eps N58RCCBBC5.eps N58BAAAAB2.eps

N58SKDJBD1.eps N58TCAAAB0.eps N58CAAAAC3.eps N58XEAAAA0.eps

N58YDAAAC0.eps N58I115T.eps W241622001.eps W241660401.eps S241622001.eps

S241660401.eps

Product No. GLHS68EESB0 GLHS68EESB3 GLHS68EESB5

Series R134a Gallery R134a Gallery R134a Gallery

Color stain/blk stain/blk stain/blk

Volts 115 115 115

Wiring Diagram 241622001 241660401 241660401

Owner's Guide 241622401 241622401 241622401

Market North America North America North America

Energy Guide 241649206 241649206 241649206

Service Data Sheet 240389620 240389623 240389623

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995439576

05/06/15

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

GLHS68EE

Publication No: 5995439576 GLHS68EE

06/05 2

FREEZER DOOR

22C

22A

21A

13A

N58FCFEFA2

21C

37 4C

GLHS68EE Publication No: 5995439576

# Functional Parts 3 06/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AGLHS68EES (GLHS68EESB0)

BGLHS68EES (GLHS68EESB3)

CGLHS68EES (GLHS68EESB5)

POS. NO PART NO. DESCRIPTION

1 # 240390606 A - - Gasket-frzr door, black, magnetic

1 # 241569806 - B C Gasket-frzr door, black, magnetic

4A 240334201 A B C Bin-door, frzr-upper

4B 240351601 A B C Bin-door

4C 240351701 A B C Bin-door, frzr-dispenser

5 241545005 A B C Bin-tilt out, tilt-out

11 241615109 A B - Door-frzr, stainless, complete assy

11 240554283 - - C Door-frzr, stainless, complete assy

13A 240581906 A B C Door Stop, black, frzr

18 240359108 A B C Handle-door, black, LH

21 218781100 A B C Screw, pan head, 8-18 x 0.625

21A 240598401 A B C Screw, 10-32 x 1/2

21C 240521302 A B C Screw, #8-18 x 3/4

22A 240328204 A B C Bearing-hinge(frz), black, closer

22C 240328404 A B C Bearing-hinge, black, upper

37 240359203 A B C Trim-handle, 30.13", black, lower

68 241525101 A B C Chute-ice

72 240421701 A B C Button-handle mtg, dovetail

73 218396700 A B C Block-handle mtg, dovetail

74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

* 240352102 A B C Connector-water, straight

* 240552102 A B C Harness-wiring, door

* 5303918256 A B C Dispenser heater kit

Publication No: 5995439576 GLHS68EE

06/05 4

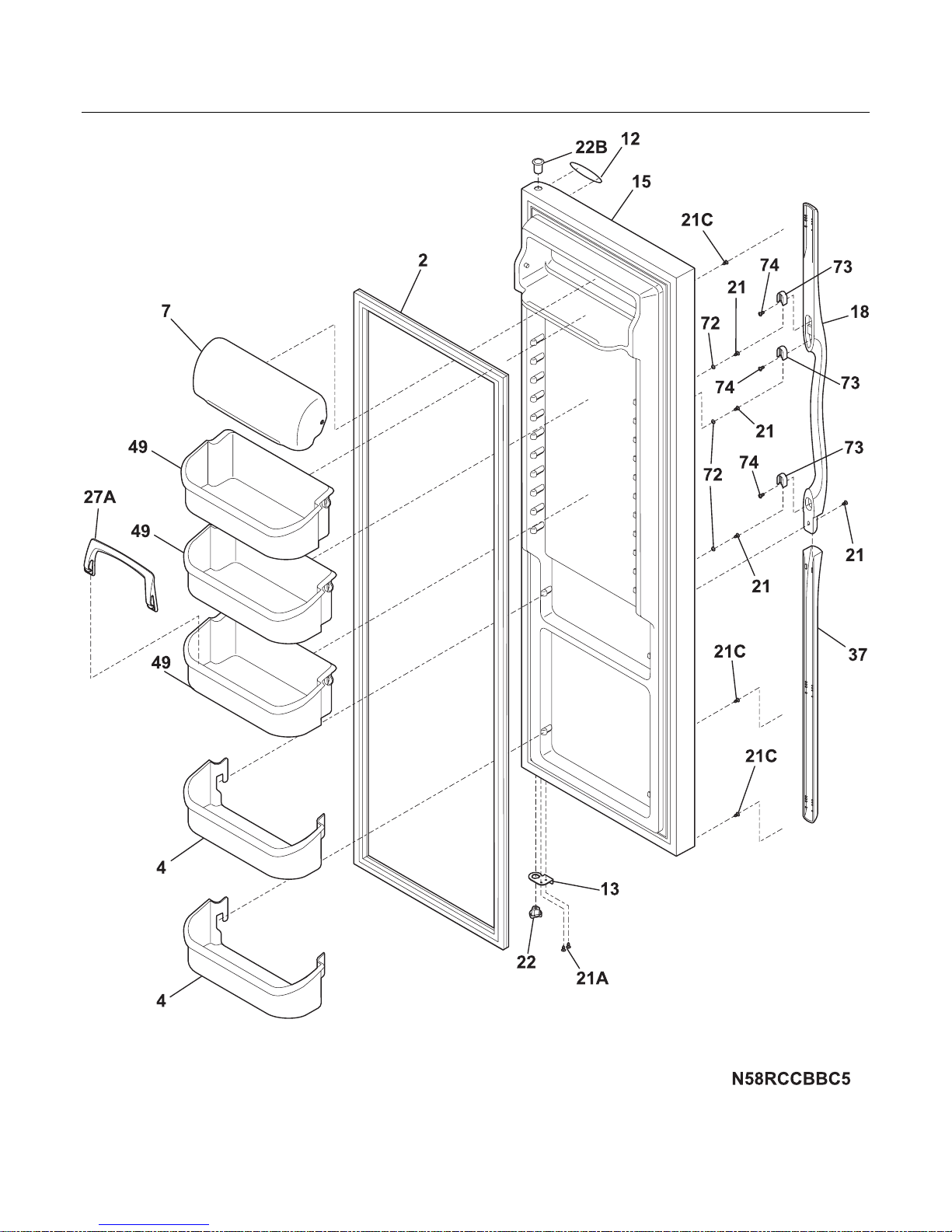

REFRIGERATOR DOOR

GLHS68EE Publication No: 5995439576

# Functional Parts 5 06/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AGLHS68EES (GLHS68EESB0)

BGLHS68EES (GLHS68EESB3)

CGLHS68EES (GLHS68EESB5)

POS. NO PART NO. DESCRIPTION

2 240390605 A - - Gasket-refr door, black, magnetic

2 # 241569805 - B C Gasket-refr door, black, magnetic

4 240323002 A B C Bin-door, pseudo, bottom

7 240326203 A B C Door-dairy

12 240449710 A B C Nameplate

13 240581905 A B C Door Stop, black, ref

15 241534537 A B - Door-refr, stainless, complete assy

15 241534513 - - C Door-refr, stainless, complete assy

18 240359103 A B C Handle-door, black, RH

21 218781100 A B C Screw, pan head, 8-18 x 0.625

21A 240598401 A B C Screw, 10-32 x 1/2

21C 240521302 A B C Screw, #8-18 x 3/4

22 240328203 A B C Bearing-hinge, black, closer

22B 240328404 A B C Bearing-hinge, black, upper

27A 240396102 A B C Retainer, tall bottle

37 240359203 A B C Trim-handle, 30.13", black, lower

49 240430311 A B C Bin-door, gallon

72 240421701 A B C Button-handle mtg, dovetail

73 218396700 A B C Block-handle mtg, dovetail

74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995439576 GLHS68EE

06/05 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB2

GLHS68EE Publication No: 5995439576

# Functional Parts 7 06/05

* Non-Illustrated Parts

CABINET

Model Index: AGLHS68EES (GLHS68EESB0)

BGLHS68EES (GLHS68EESB3)

CGLHS68EES (GLHS68EESB5)

POS. NO PART NO. DESCRIPTION

10 240435908 A B C Cover-air duct

10A 240475907 A B C Cover-evap coil, lower

11 5303208309 A B C Plug-hole, factory test

14 240505801 A B C Switch, light/lamp

14A 241547901 A B C Switch-light/lamp, frzr door

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B C Bracket-lower hinge, ref

30A 241603702 A B C Bracket-lower hinge

37 240337603 A B C Trim-cabinet corner, black, (2)

38 240327201 A B C Bracket-upper hinge

40 240327007 A B C Cover-upper hinge, black

41 241550801 A B C Grommet-shelf mtg, 1.40" long

41* 241550701 A B C Grommet-shelf mtg, .96" long

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, adjustable, front, (2)

45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B C Channel-shelf mtg, side, (2)

58 218781100 A B C Screw, pan head, 8-18 x 0.625

66 5304424968 A B C Damper Cover Assy

66* 240518802 A B C Pin-push, push-in, plastic

72 240324406 A B C Grille/Kickplate, black

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B C Cover access

90 218249808 A B C Seal-coil cover

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C Support, crisper cover, front, (4)

100* 240350802 A B C Support, crisper cover, rear, (4)

* 240396801 A B C Clamp, tube/wiring, nylon, black/natural

* 240479601 A B C Plug, button, cab liner holes, (2)

* 240481601 A B C Shim-lower hinge

* 5303305345 A B C Paint, touch-up, black

Publication No: 5995439576 GLHS68EE

06/05 8

SHELVES

11A

126

52A

109

51A

49B

101

N58SKDJBD1

100

25A

47A

15A

16A

26A

42A

123

24A

140

11C

24B

136

16 15

141

142

140A

120

122

121

GLHS68EE Publication No: 5995439576

# Functional Parts 9 06/05

* Non-Illustrated Parts

SHELVES

Model Index: AGLHS68EES (GLHS68EESB0)

BGLHS68EES (GLHS68EESB3)

CGLHS68EES (GLHS68EESB5)

POS. NO PART NO. DESCRIPTION

2 241510604 A B C Trim-basket

11 240350668 A B C Shelf-freezer, glass, lower

11A 240350667 A B C Shelf-freezer, glass, upper

11C 240324101 A B C Shelf-pizza

15 241552801 A B C Light Bulb

15A 241555401 A B C Light Bulb

16 240590401 A B C Socket-light

16A* 241537502 A B C Harness-wiring

16A# 241513901 A B C Socket-light

24 240355203 A B C Shelf-"Spill-Safe", fixed

24A 240355205 A B C Shelf-"Spill-Safe", fixed

24B 240350106 A B C Shelf-"Spill-Safe", cantilever, sliding

25 240350702 A B C Cover-crisper pan, upper

25* 240362101 A B C Clip-slide, cover-crisper

25A 240350902 A B C Cover-crisper pan, lower

26 240351020 A B C Pan-crisper, upper

26* 240349801 A B C Clip-slide, pan-crisper

26A 240362201 A B C Control-humidity

27 240351218 A B C Pan-crisper, lower

39 240367602 A B C Trim-shelf, front

42 240356501 A B C Track, meat pan hanger, RH

42A 240349701 A B C Hanger-meat pan, LH

42A* 240349901 A B C Block-meat pan rail, LH

42A* 240350001 A B C Spring-meat pan rail

47 240350602 A B C Insert-pan cover, glass

47A 240350603 A B C Insert-pan cover, glass

49 240564401 A B C Basket-sliding

49B 240530504 A B C Basket-sliding, upper, full

51 240343002 A B C Hanger-basket, RH

51A 240395502 A B C Hanger-basket, RH

52 240343102 A B C Hanger-basket, LH

52A 240395602 A B C Hanger-basket, LH

62 240342817 A B C Pan-meat

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B C Water Tank Assy, coiled tubing, front filter

100 240326302 A B C Cover-water tank

101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B C Base-crisper light socket

120 241559001 A B C Shelf-ice cream

121 241561001 A B C Rail-ice cream shelf, LH

122 241561201 A B C Rail-ice cream shelf, RH

123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438

126 241630701 A B C Channel, auger mtg, LH

126 241630702 A B C Channel, auger mtg, RH

136 240424501 A B C Dispenser-can, white

140 240430501 A B C Channel, wtr tube cover

140A 240430503 A B C Channel, wtr tube cover

141 240585404 A B C Bracket-light socket

142 240582701 A B C Shield-light, deli pan

Publication No: 5995439576 GLHS68EE

06/05 10

CONTROLS

149

139

138

198

199

137

200

151

150

21A 23

115

101

N58TCAAAB0
