Frigidaire FRT21S6A Manuel utilisateur

N05L00003.eps N05DCDBCA1.eps N05BBAABA17.eps N05SABAFI17.eps

N05CAAAAA25.eps 240398801.eps 240398601.eps

Product No. FRT21S6ABC FRT21S6AQC FRT21S6AWC

Series R134a R134a R134a

Color black bisque white

Volts 115 115 115

Wiring Diagram 240398801 240398801 240398801

Owner's Guide 241694400 241694400 241694400

Market North America North America North America

Service Data Sheet 240379018 240379018 240379018

Installation Instructions 240568301 240568301 240568301

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

THIS CATALOG SUPERCEDES

5995469672.

Publication No.

5995478277

06/11/02

(EN/SERVICE/KHB)

137

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21S6A

Publication No: 5995478277 FRT21S6A

11/06 2

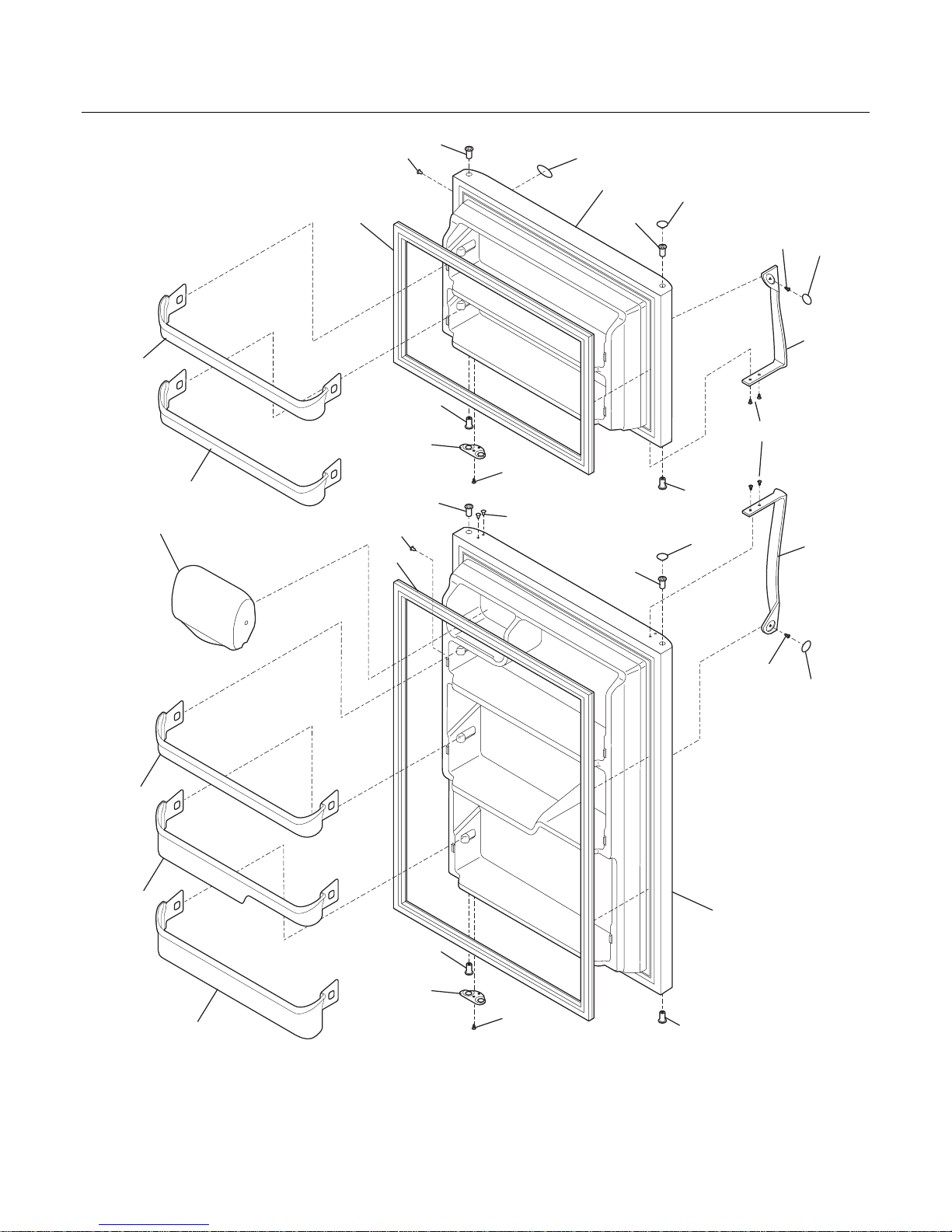

DOOR

48A

48B

13A

21C

N05DCDBCA1

21 14B

14B

18A

FRT21S6A Publication No: 5995478277

# Functional Parts 3 11/06

* Non-Illustrated Parts

DOOR

Model Index: AFRT21S6A (FRT21S6ABC)

BFRT21S6A (FRT21S6AQC)

CFRT21S6A (FRT21S6AWC)

POS. NO PART NO. DESCRIPTION

1 # 240514611 A - - Gasket, seal, black, frzr door, magnetic

1 # 240514607 - B C Gasket, seal, white, frzr door, magnetic

2 # 240514612 A - - Gasket, seal, black, refr door, magnetic

2 # 240514608 - B C Gasket, seal, white, refr door, magnetic

7 240337703 A B C Door-dairy, w/o graphics, clear

10 240381303 A - - Plug-button, black, hinge brg hole

10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - - C Plug-button, white, hinge brg hole, (2)

11 241798412 A - - Door-frzr, black, complete assy

11 241798406 - B - Door-frzr, bisque, complete assy

11 241798402 - - C Door-frzr, white, complete assy

12 240416304 A - - Nameplate, black

12 240416303 - B - Label-nameplate, bisque

12 240416301 - - C Label-nameplate, white

13 240312405 A - - Door Stop, black, refr

13 240312407 - B - Door Stop, bisque, ref

13 240312403 - - C Door Stop, white, ref

13A 240312406 A - - Door Stop, black, frzr

13A 240312408 - B - Door Stop, bisque, frzr

13A 240312404 - - C Door Stop, white, frzr

14 240494003 A - - Plug-button, black

14 240494002 - B - Plug-button, bisque

14 240494001 - - C Plug-button, white

14B 240383603 A - - Plug-button, black, door handle

14B 240383602 - B - Plug-button, bisque, door handle

14B 240383601 - - C Plug-button, white, door handle

15 241798512 A - - Door-refr, black, complete assy

15 241798506 - B - Door-refr, bisque, complete assy

15 241798502 - - C Door-refr, white, complete assy

18 240339203 A - - Handle-door, black, refr-LH/frzr-RH

18 240339204 - B - Handle-door, bisque, refr-LH/frzr-RH

18 240339201 - - C Handle-door, white, refr-LH/frzr-RH

18A 240339208 A - - Handle-door, black, refr-RH/frzr-LH

18A 240339209 - B - Handle-door, bisque, refr-RH/frzr-LH

18A 240339206 - - C Handle-door, white, refr-RH/frzr-LH

21 240383406 A B C Screw, truss hd quad, #10-16 x .500, zinc

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A - - Bearing-hinge, black

22 240527101 - B C Bearing-hinge, natural color

48 240338101 A B C Bin-door, pseudo, bottom

48A 240337901 A B C Bin-door, refr

48B 240338001 A B C Bin-door, pseudo, gallon, refr

49 240495804 A B C Bin-door, pseudo, frzr

Publication No: 5995478277 FRT21S6A

11/06 4

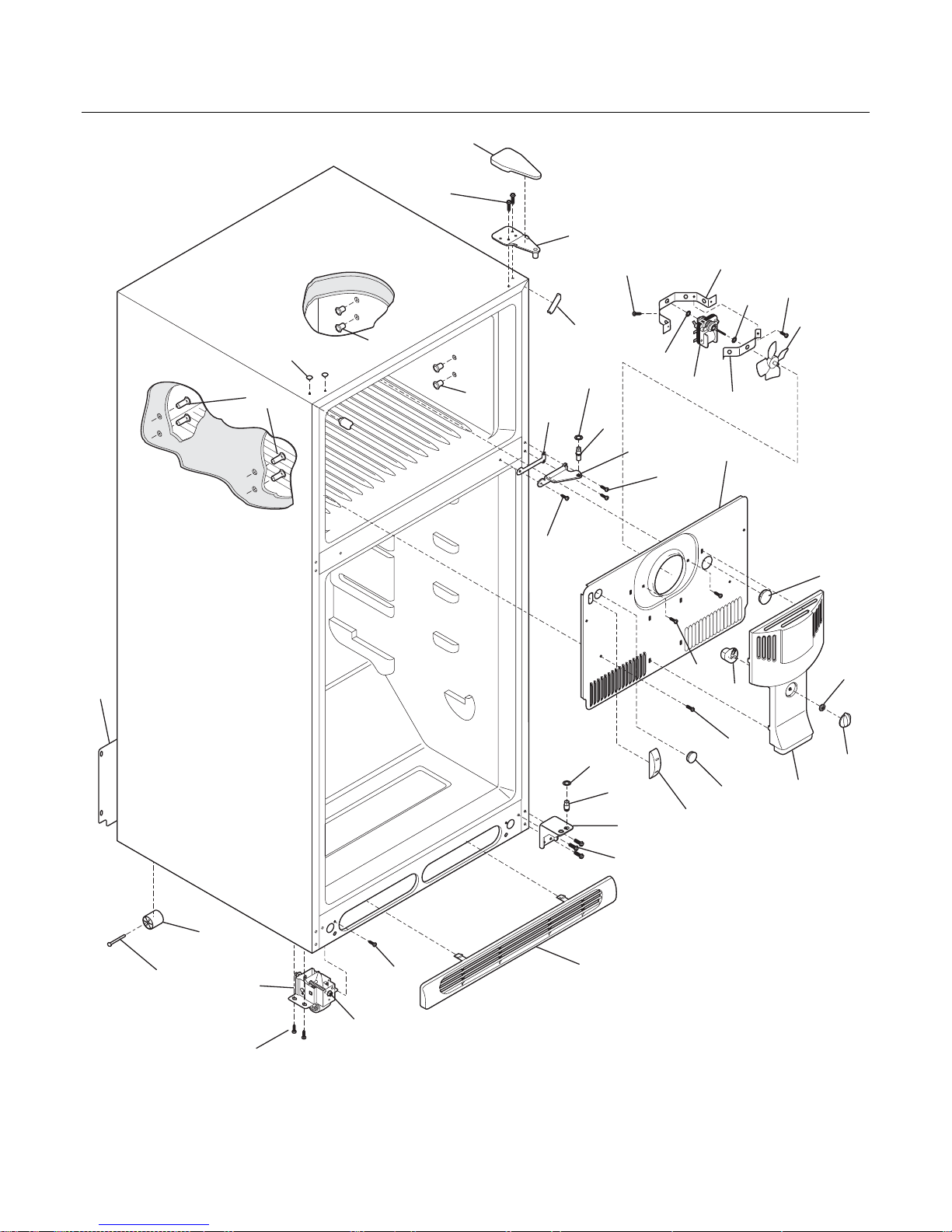

CABINET

12A

35A 36

N05BBAABA17

43 21C

21C

FRT21S6A Publication No: 5995478277

# Functional Parts 5 11/06

* Non-Illustrated Parts

CABINET

Model Index: AFRT21S6A (FRT21S6ABC)

BFRT21S6A (FRT21S6AQC)

CFRT21S6A (FRT21S6AWC)

POS. NO PART NO. DESCRIPTION

1 240355402 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303212803 A B C Nut

4 241523701 A B C Damper-fan cover

5 # 5308000010 A B C Fan Blade, red, evaporator fan

8 5300157666 A B C Bushing-motor mtg, (2)

9 5303292396 A B C Bracket-motor mtg, front

10 240313612 A B C Cover-evap coil, w/o light

10*# 240524701 A B C Wiring Harness, freezer section

10* 240568606 A B C Seal-coil cover

11 5303208309 A B C Plug-hole, factory test

12 241557601 A B C Plug-ice maker harness, rectangular

12A 240374401 A B C Plug-wtr inlet tube, round, 1"

12A* 241586701 A B C Plug-foam-wtr-inlet, round

13 # 240369702 A B C Motor-evap fan

14 5303292397 A B C Bracket-motor mtg, rear

14* 240433204 A B C Screw, hex washer head, 8-18 x 5/16

21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A - - Plug-button, black, upr hinge holes

22 215774919 - B - Plug-button, bisque, upr hinge holes

22 215774901 - - C Plug-button, white, upr hinge holes

28 240335502 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A - - Bracket-lower hinge, black

30 240314011 - B C Bracket-lower hinge, zinc

34 240311303 A B C Washer, hinge, nylon, (2)

35 240313803 A - - Bracket-ctr hinge, black

35 240313806 - B C Bracket-ctr hinge, zinc

35A 240336802 A B C Spacer-hinge, center

36 240516402 A B C Pin-center hinge

37 240337603 A - - Trim-cabinet corner, black, (2)

37 240337604 - B - Trim-cabinet corner, bisque, (2)

37 240337601 - - C Trim-cabinet corner, white, (2)

38 240313701 A B C Bracket-upper hinge

40 240354404 A - - Cover-upper hinge, black

40 240354403 - B - Cover-upper hinge, bisque

40 240354401 - - C Cover-upper hinge, white

41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335005 A B C Roller Assy, adjustable, front, (2)

56 240516502 A B C Pin-lower hinge

58 5304456287 A B C Screw, hex washer head, 8-15A x 0.500

59 240442707 A - - Screw-#10-32 X 3/4, black

59 240442706 - B C Screw-#10-32 X 3/4, zinc

72 240368207 A - - Grille/Kickplate, black

72 240368206 - B - Grille/Kickplate, bisque

72 240368205 - - C Grille/Kickplate, white

81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

Publication No: 5995478277 FRT21S6A

11/06 6

CABINET

12A

35A 36

N05BBAABA17

43 21C

21C

FRT21S6A Publication No: 5995478277

# Functional Parts 7 11/06

* Non-Illustrated Parts

CABINET

Model Index: AFRT21S6A (FRT21S6ABC)

BFRT21S6A (FRT21S6AQC)

CFRT21S6A (FRT21S6AWC)

POS. NO PART NO. DESCRIPTION

83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 A B C Cover-access, with label

89* 241500303 A B C Screw, hex washer head, 8-18AB x 0.500

92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 A B C Plug, button, cab liner holes

* 5303321321 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303321319 - - C Paint, touch-up, white

Publication No: 5995478277 FRT21S6A

11/06 8

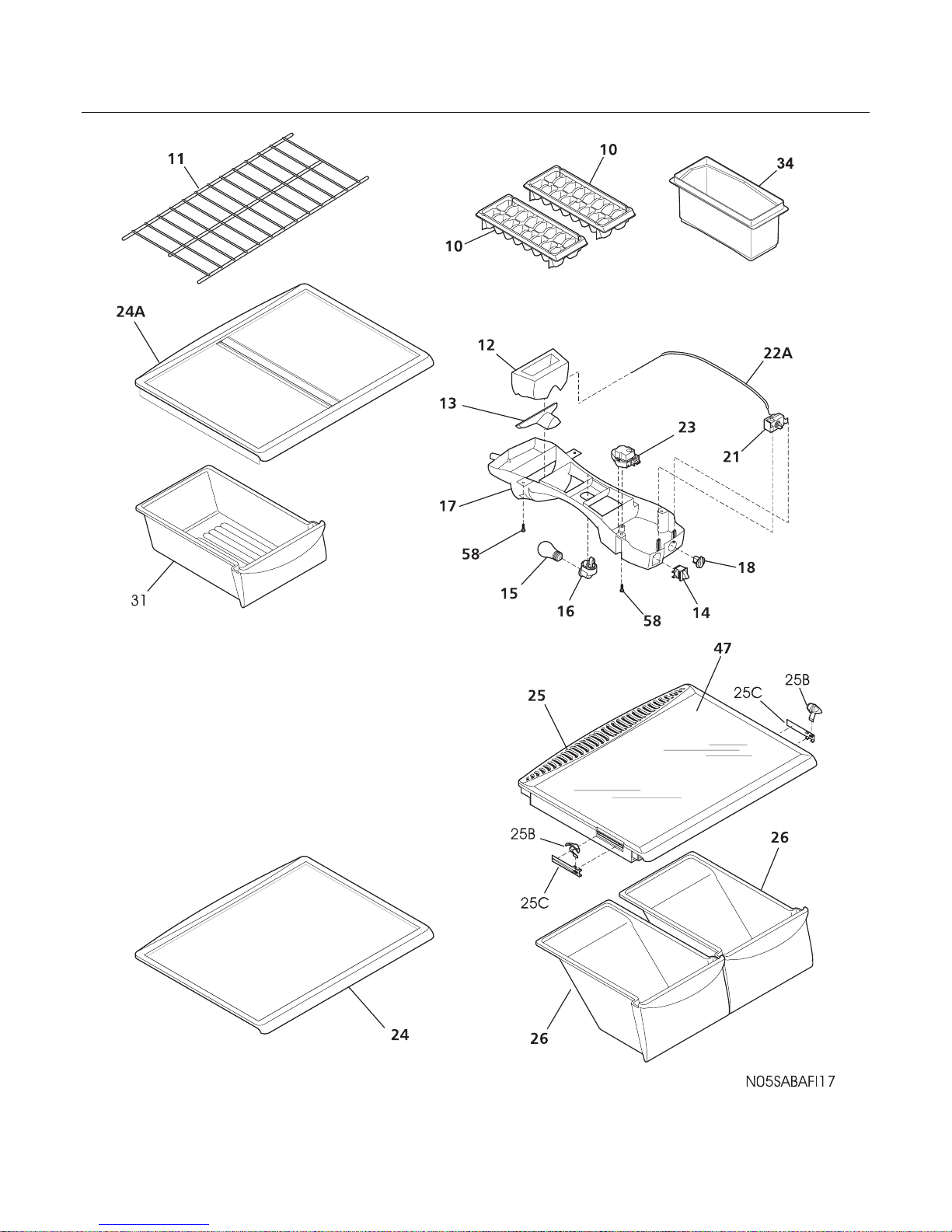

SHELVES

FRT21S6A Publication No: 5995478277

# Functional Parts 9 11/06

* Non-Illustrated Parts

SHELVES

Model Index: AFRT21S6A (FRT21S6ABC)

BFRT21S6A (FRT21S6AQC)

CFRT21S6A (FRT21S6AWC)

POS. NO PART NO. DESCRIPTION

10 215667501 A B C Tray, ice cube, plastic

11 240358006 A B C Shelf, freezer, full-width, wire

11* 5303299664 A B C Spacer, shelf

12 240545901 A B C Diffuser-air, top

13 240362601 A B C Diffuser, air, bottom

14 # 241554901 A B C Switch-light/lamp

15 240436702 A B C Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 # 241559801 A B C Socket-light

17 240368101 A B C Control Box

17*# 240388701 A B C Wiring Harness, control box

18 240360801 A B C Knob, temp control

21 # 5304445058 A B C Control-temperature

22A 240468201 A B C Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 A B C Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438

24 240358909 A B C Shelf-"Spill-Safe", sliding

24A 240358910 A B C Shelf-"Spill-Safe", sliding, meat pan track

25 240364718 A B C Cover-crisper pan

25B 241613501 A B C Control-humidity, RH

25C 241613502 A B C Control-humidity, LH

26 240343803 A B C Pan, crisper, (2)

31 240530803 A B C Pan-meat, w/o graphics, clear

34 240385201 A B C Container, ice bin

47 240350654 A B C Insert-pan cover, glass

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995478277 FRT21S6A

11/06 10

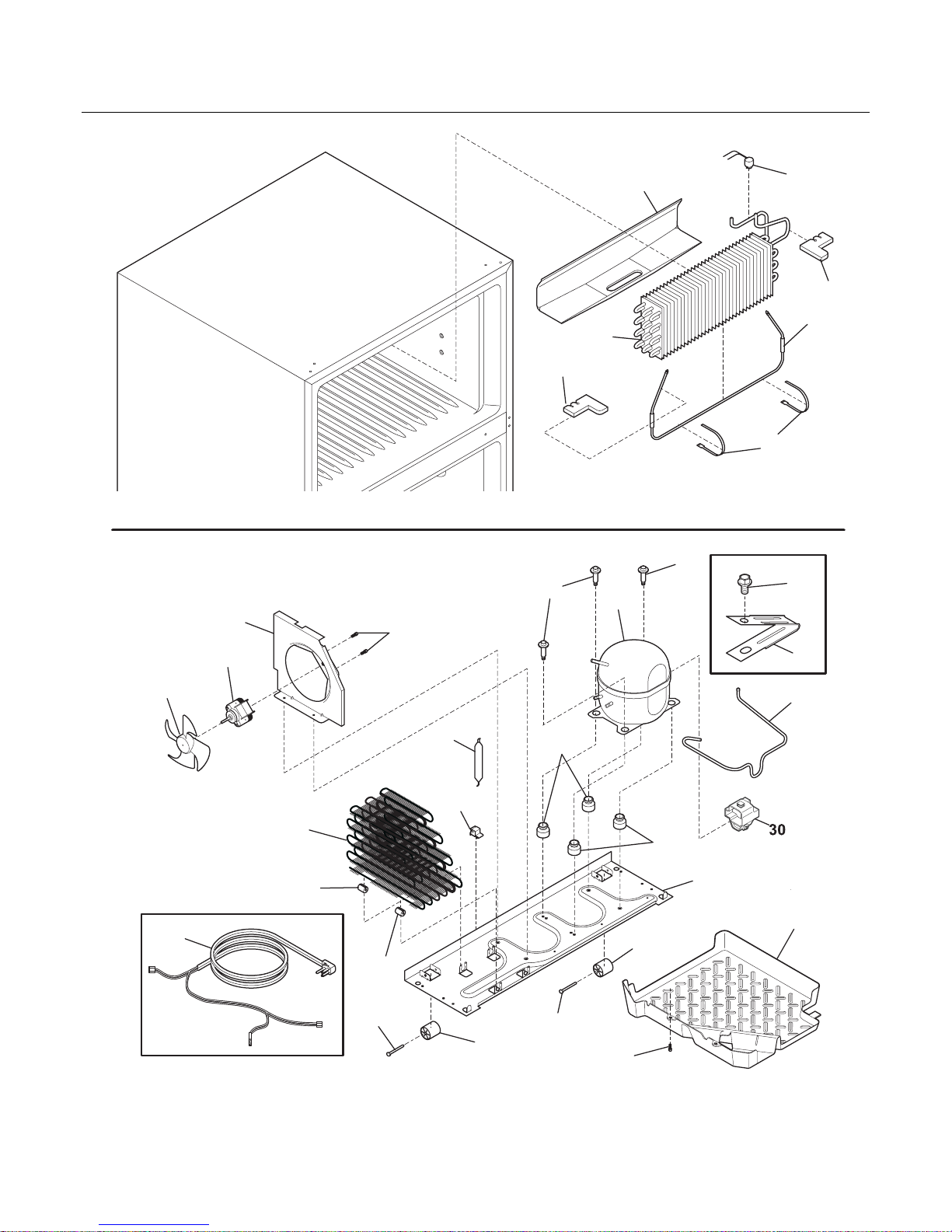

SYSTEM

17 21

N05CAAAAA25
