Frigidaire FRT21P5AW0 Manuel utilisateur

03/01 2

Publication No. FRT21P5AW0

5995351516

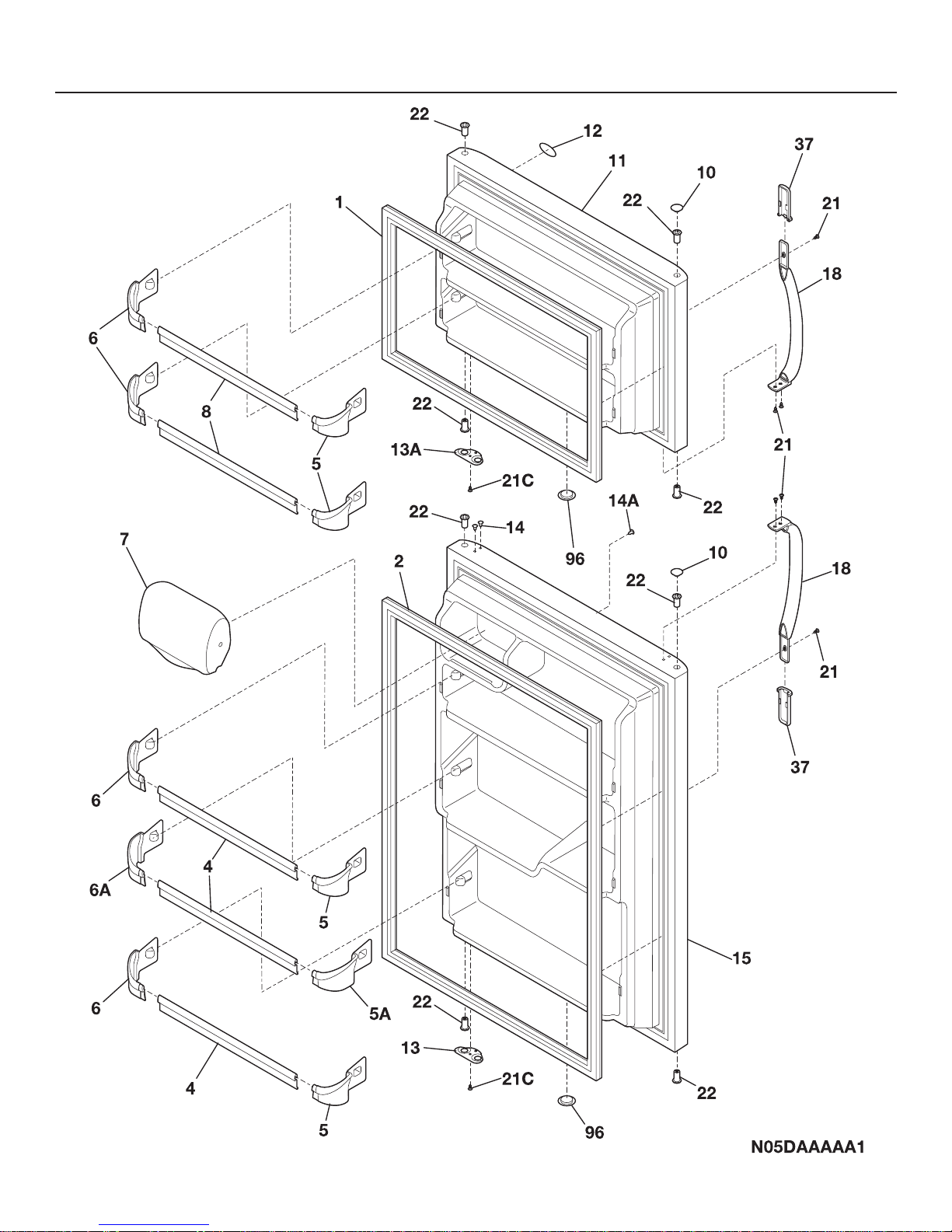

DOOR

# = Fast-moving Parts 3 03/01

* = Non-Illustrated Parts

FRT21P5AW0 Publication No.

5995351516

POS. NO PART NO DESCRIPTION

1 # 240390702 Gasket-frzr door,white ,magnetic

2 # 240390701 Gasket-refr door,white ,magnetic

4 240331401 Rack-door,20.27" x 1.72"

5 240311502 Support-door rack,2 liter ,RH

5A 240331502 Support-door rack,gallon ,RH

6 240311501 Support-door rack,2 liter ,LH

6A 240331501 Support-door rack,gallon ,LH

7 240337703 Door-dairy,w/o graphics ,clear

8 240331402 Rack-door,17.99"

10 240381301 Plug-button,hinge brg hole ,white ,(2)

11 240450301 Panel-frzr door,white

12 240415201 Label-nameplate,white

13 240312403 Door Stop,white ,ref

13A 240312404 Door Stop,white ,frzr

14 218915701 Plug-button,white

14A 240428301 Plug-button,screw type ,white

15 240450401 Panel-refr door,white ,complete assy

18 218668001 Handle-door,white

21 240383401 Screw,truss hd quad ,#10-16 x .500

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240311201 Bearing-hinge,(8)

37 215870629 Trim-handle,2.47" ,white, w/satin AL band

37* 218676004 Band-decorative,satin aluminum, handle trim

96 240345501 Plug-foam hole,white

DOOR

03/01 4

Publication No. FRT21P5AW0

5995351516

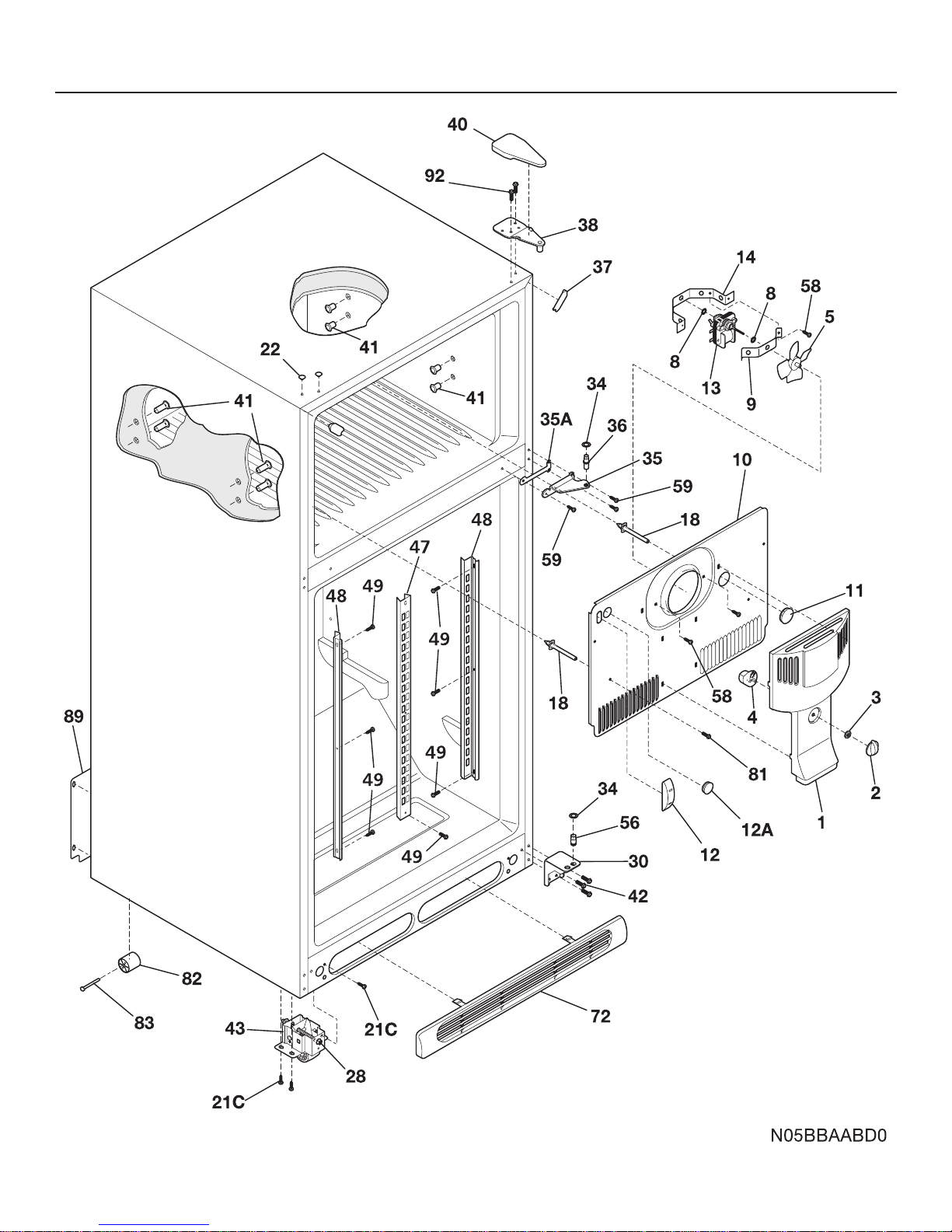

CABINET

# = Fast-moving Parts 5 03/01

* = Non-Illustrated Parts

FRT21P5AW0 Publication No.

5995351516

POS. NO PART NO DESCRIPTION

1 240355402 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut,push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade,red ,evaporator fan

8 5300157666 Bushing-motor mtg,(2)

9 5303292396 Bracket-motor mtg,front

10 240313606 Cover-evap coil

10*# 240385401 Wiring Harness,freezer section

11 5303208309 Plug-hole,factory test

12 240366801 Plug-ice maker harness,rectangular

12A 240374401 Plug-wtr inlet tube,round ,1"

13 # 240369701 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg,rear

14* 240433201 Screw-8-18 x 3/8

18 240345801 Support-evap cover,(2)

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 215774901 Plug-button,white ,upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314002 Bracket-lower hinge

34 240311301 Washer,hinge ,nylon ,(2)

35 240313802 Bracket-ctr hinge,white

35A 240336801 Spacer-hinge,center

36 240313901 Pin-center hinge

37 240337601 Trim-cabinet corner,white ,(2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge,white

41 5303001609 Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 Grommet,shelf mtg ,1.25" ,LH

42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

47 218233300 Channel-shelf mtg,side ,(2)

48 5303292395 Channel-shelf mtg,center

49 218362500 Screw,hex washer head ,8-18AB x 1.250

56 240314101 Pin-lower hinge

58 5303274237 Screw-bracket, hex wshr hd, 8-32CA x 0.500

59 218188000 Screw,pan hd ,10-32 x 0.625, hinge/mullion, thread forming

72 240368201 Grille/Kickplate,white

81 218843800 Screw, hex wshr hd, 8-15A x 0.500, wiring clamps

82 5304418225 Roller-rear,comp base ,(2)

83 215164200 Pin-roller,(2)

89 240326102 Cover-access,w/ label

89* 240345702 Screw-compr plate mtg, truss hd, #10-16 x .500

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 5303305324 Paint,touch-up ,white

* 5308016571 Plug-button,cab liner holes

CABINET

03/01 6

Publication No. FRT21P5AW0

5995351516

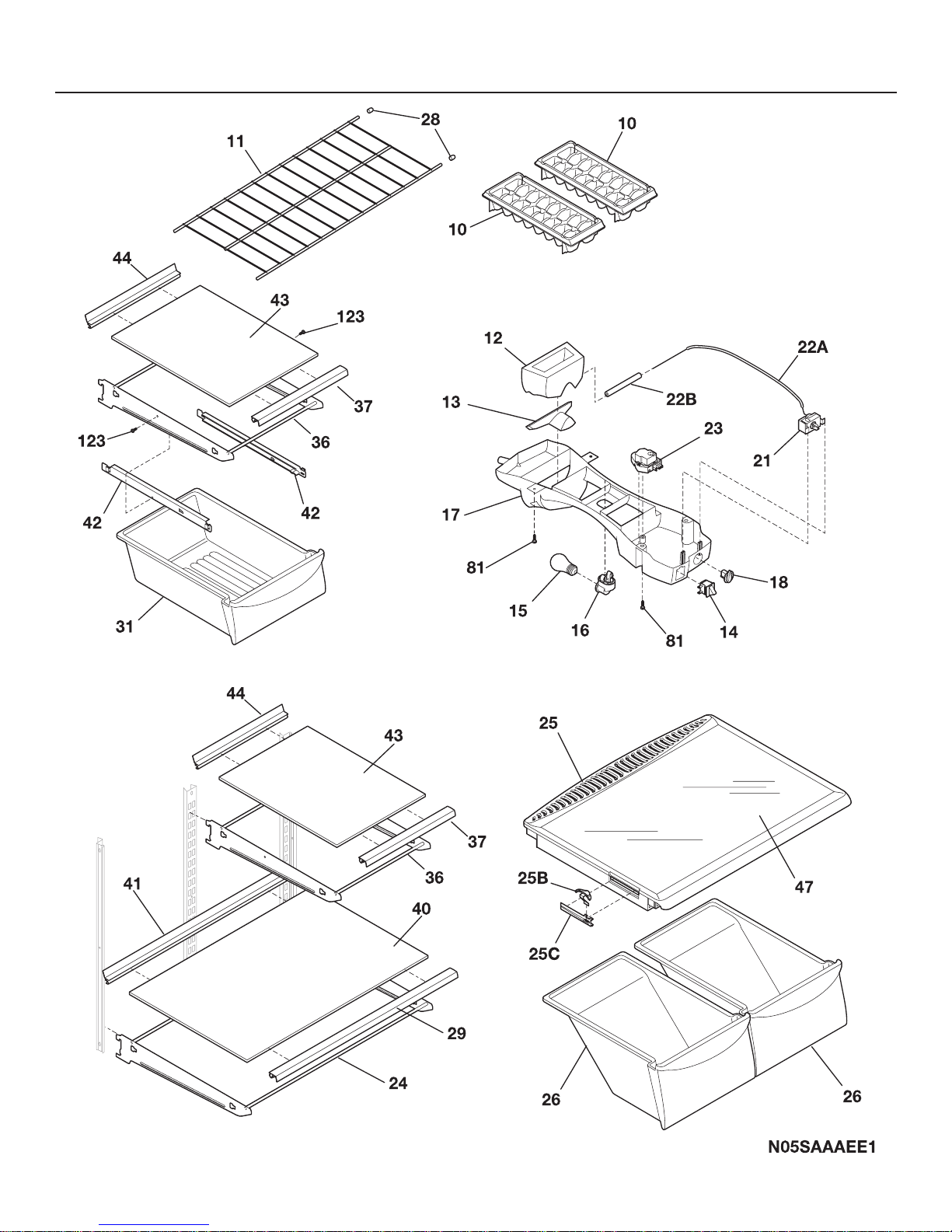

SHELVES

# = Fast-moving Parts 7 03/01

* = Non-Illustrated Parts

FRT21P5AW0 Publication No.

5995351516

POS. NO PART NO DESCRIPTION

10 215667501 Tray-ice,plastic

11 240358003 Shelf-freezer

11* 5303299664 Spacer-shelf

12 240380201 Diffuser-air,top

13 240362601 Diffuser-air,top

13* 240392601 Seal-diffuser

14 # 5309918806 Switch-light/lamp

15 5303001179 Light Bulb/Lamp,40 W

16 5303289050 Socket-light/lamp

17 240368101 Box-control

17*# 240388701 Wiring Harness,control box

18 240360801 Knob-control

21 # 5304418228 Control-temperature

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

22B 218731105 Tube,PVC ,white ,@ air diffuser, insulator

23 # 215846606 Timer-defrost, 60 Hz, 120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240373105 Frame-shelf,cantilever ,full width

25 240364717 Cover-crisper pan

25B 240361202 Control-humidity

25C 240361301 Damper-humidity control

26 240343803 Pan-crisper,(2)

28 3201150 End Cap-shelf,protector ,frzr shelf

29 240357701 Trim-shelf,24.48" ,front

31 240371403 Pan-meat

36 240373106 Frame-half shelf,cantilever ,(2)

37 240357702 Trim-shelf,11.95" ,front

40 240350652 Glass-shelf,23.82" x 17.17" ,refr

41 240357801 Trim-shelf,24.48" ,rear

42 240365201 Hanger-meat pan,white ,LH

42* 240365301 Hanger-meat pan,white ,RH

43 240350653 Glass-shelf,11.95" x 17.60"

44 240357802 Trim-shelf,11.95" ,rear

47 240350654 Insert-pan cover,glass

81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

123 215005100 Screw-roller/hanger,8-10 x 0.438

SHELVES

03/01 8

Publication No. FRT21P5AW0

5995351516

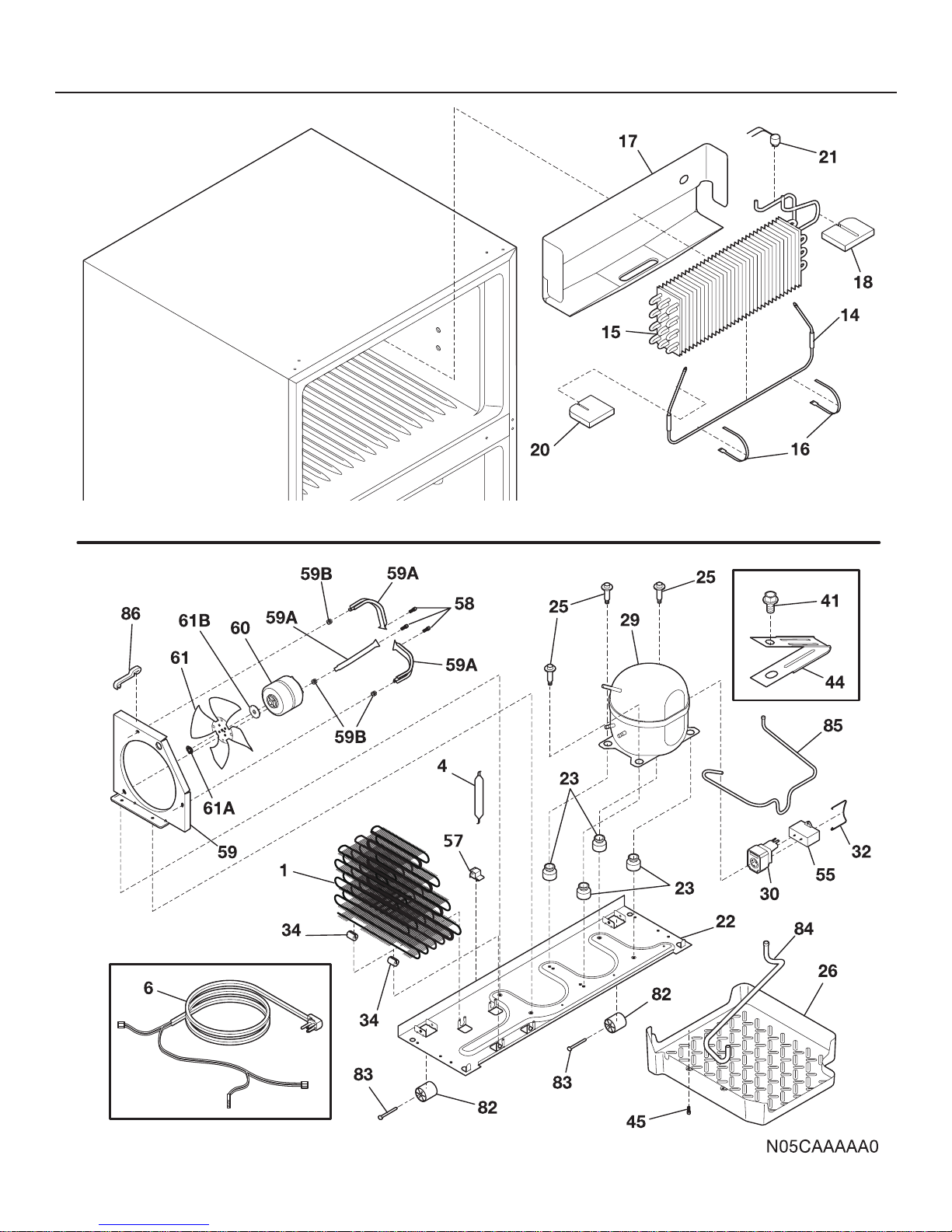

SYSTEM

# = Fast-moving Parts 9 03/01

* = Non-Illustrated Parts

FRT21P5AW0 Publication No.

5995351516

POS. NO PART NO DESCRIPTION

1 # 240345601 Condenser,dynamic

4 # 218944001 Drier-filter,R134a System

6 # 240375301 Wiring Harness,machine compt, w/service cord

6* # 240385401 Wiring Harness,freezer section

6* # 240388701 Wiring Harness,control box

14 # 5303918247 Defrost Heater Kit

15 # 5303918205 Evaporator Kit

16 5308000110 Strap-evap/heater,aluminum ,(2)

17 240434002 Trough-drain

18 240362301 Insulation Block,RH

20 240362401 Insulation Block,LH

21 # 5303918202 Thermostat-defrost,kit

22 240330001 Plate-compr mtg

22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 Grommet-compr mtg,(4)

25 240330402 Screw-shoulder, hex hd, 1/4-28 shoulder, (3)

26 240332602 Pan-defrost drain

29 5303918209 Compressor,w/electricals

30 # 218721112 Starter-PTC

32 218740800 Clamp,elec cont mtg ,compressor

34 240405201 Grommet-cond mtg,(4)

41 218897001 Screw,hex washer head ,8-32 x 1/4

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw,hex wshr hd, 8-15A x 0.625, low profile

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

57 240403601 Clip-wiring harness

58 215004600 Screw-cond fan mtr,hx serr wshr hd, 8-36 x 7/16,(2)

59 240315501 Shroud-cond fan

59* 240346701 Tape-foam seal,shroud

59* 240359401 Screw-fan shroud,(2)

59A 240346501 Bracket-support,cond mtr ,(3)

59B 240346601 Grommet-bracket,(3)

60 # 240334001 Motor-condenser fan

61 # 240315401 Fan Blade,galv steel ,condenser fan

61A 215004700 Nut,speed

61B 215004800 Grommet-silencer

82 5304418225 Roller-rear,comp base ,(2)

83 215164200 Pin-roller,(2)

84 240359601 Tube-drain,lower

85 240346201 Tube-connector,suction

86 240409301 Spacer-cond tube,black

* # 5303918210 Heat Exchanger Kit,suction line

* 5304421289 Hot Tube Repair Kit,Service

SYSTEM

03/01 10

Publication No. FRT21P5AW0

5995351516

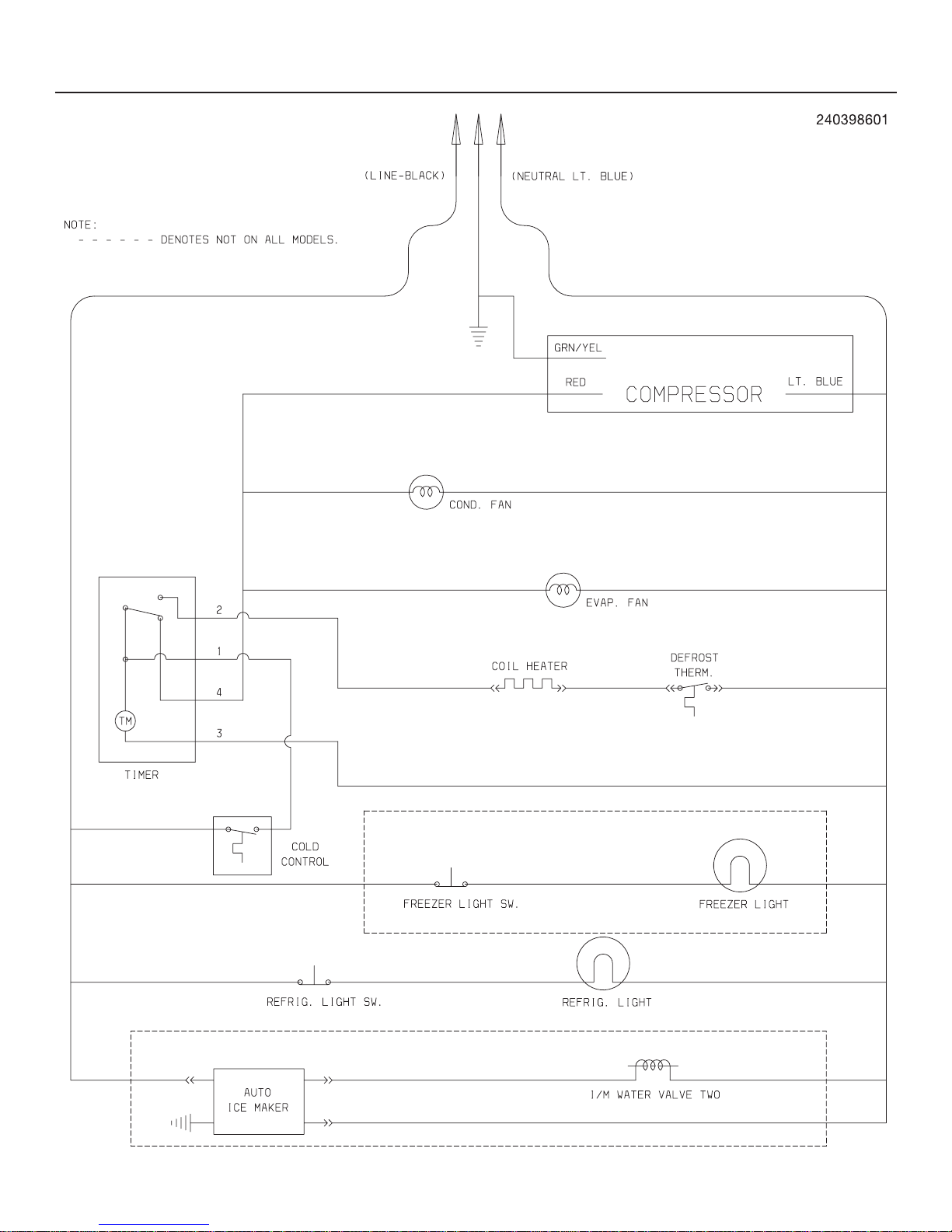

WIRING SCHEMATIC
