Frigidaire FRT21HC5D Manuel utilisateur

Product No. FRT21HC5DW0

Series R134a

Color white

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400111

Market North America

Energy Guide 241538743

Service Data Sheet 240379014

Installation Instructions 240568300

N05L00004.eps N05DBDCKA0.eps N05BBAABA6.eps N05SAAAEA13.eps

N05CAAAAA10.eps 240398801.eps 240398601.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995413886

04/07/27

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21HC5D

Publication No: 5995413886 FRT21HC5DW0

07/04 2

DOOR

FRT21HC5DW0 Publication No: 5995413886

# Functional Parts 3 07/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240514607 Gasket, seal, white, frzr door, magnetic

2 # 240514608 Gasket, seal, white, refr door, magnetic

4 240534901 Rack-door

4B 240534701 Rack-door, 4B

7 240337703 Door-dairy, w/o graphics, clear

8 240534801 Rack-door

10 240381301 Plug-button, white, hinge brg hole, (2)

11 240450301 Door, frzr, white

12 240415201 Label-nameplate, white

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

15 240450401 Door, refr, white

18A 218428101 Handle-door, white, w/block & screw

21 240383401 Screw, truss hd quad, #10-16 x .500

21A 240521301 Screw, #10-16 x 1/2

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995413886 FRT21HC5DW0

07/04 4

CABINET

FRT21HC5DW0 Publication No: 5995413886

# Functional Parts 5 07/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355402 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240313610 Cover-evap coil, w/o light

10* 240568606 Seal-coil cover

11 5303208309 Plug-hole, factory test

12 240366801 Plug-ice maker harness, rectangular

12* 218843800 Screw, hex wshr hd, 8-15A x 0.500

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 # 240369701 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

18 240411901 Support-evap cover, (2)

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314002 Bracket-lower hinge, white

34 240311303 Washer, hinge, nylon, (2)

35 240313802 Bracket-ctr hinge, white

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 240337601 Trim-cabinet corner, white, (2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge, white

41 5303001609 Grommet, shelf mtg, 0.69", RH

41* 5308009759 Grommet, shelf mtg, 1.25", LH

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442702 Screw-#10-32 X 3/4, white

72 240368205 Grille/Kickplate, white

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 Cover-access, w/label

89* 241500301 Screw, hex washer head, 8-18AB x 0.500

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 Plug, button, cab liner holes, (2)

* 5303305324 Paint, touch-up, white

Publication No: 5995413886 FRT21HC5DW0

07/04 6

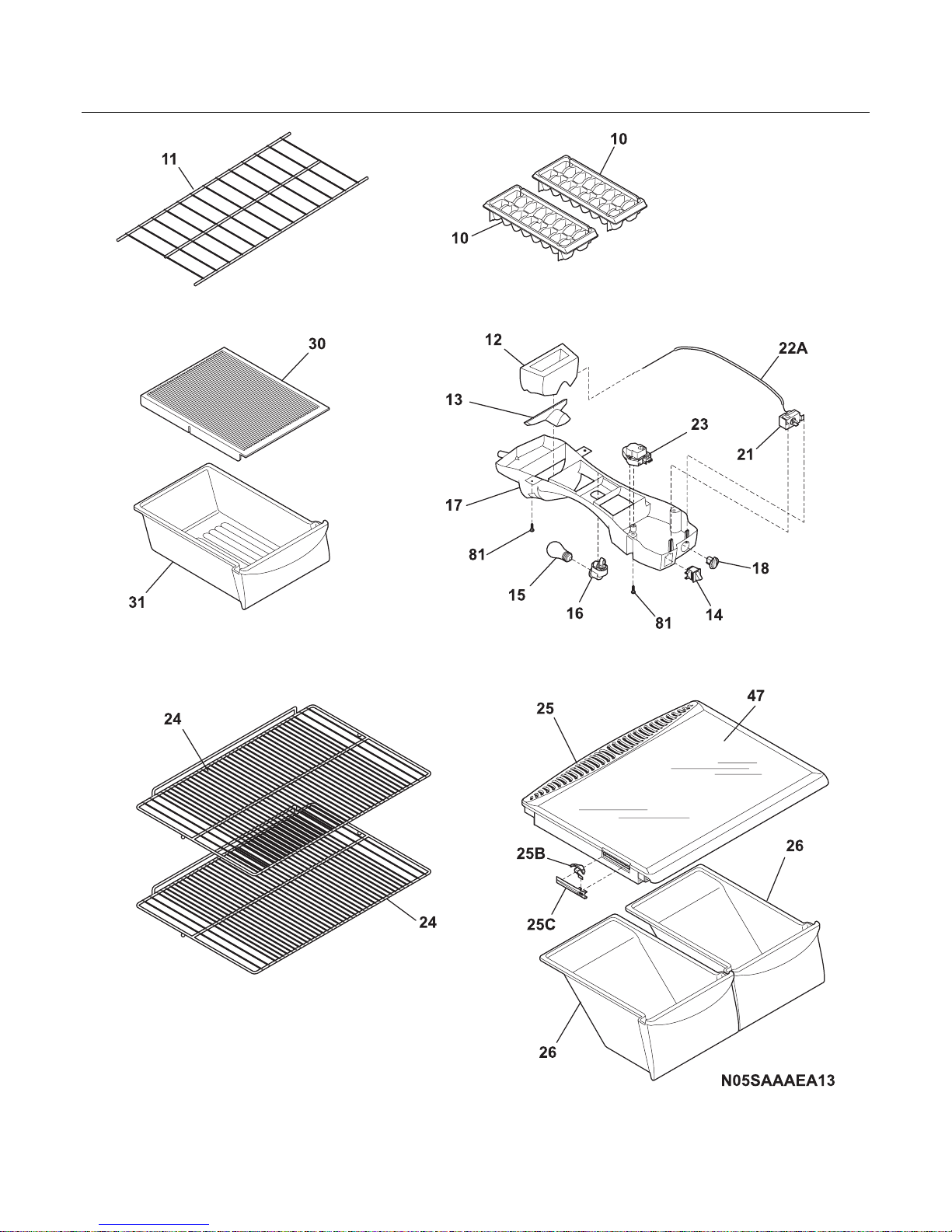

SHELVES

FRT21HC5DW0 Publication No: 5995413886

# Functional Parts 7 07/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 240358003 Shelf, freezer, full-width, wire

11* 5303299664 Spacer, shelf

12 240545901 Diffuser-air, top

13 240362601 Diffuser, air, bottom

14# 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241500701 Socket-light/lamp

17 240368101 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 5303916855 Tube, sensor sleeve, plastic, clear

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360904 Shelf, sliding, wire

25 240364717 Cover-crisper pan

25B 240361202 Control-humidity

25C 240361301 Damper, humidity cont.

26 240343801 Pan-crisper, (2)

30 240361801 Cover, meat pan hanger, drop through

31 240530803 Pan-meat, w/o graphics, clear

47 240350609 Insert-pan cover, glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995413886 FRT21HC5DW0

07/04 8

SYSTEM

61B

61A

59B

59A

N05CAAAAA10

FRT21HC5DW0 Publication No: 5995413886

# Functional Parts 9 07/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 240496101 Wiring Harness, machine compt, w/electric cord

6* # 240388701 Wiring Harness, control box

6* # 240524701 Wiring Harness, freezer section

14 # 5303918247 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 240518402 Insulation, evap block, foam, LH/RH

21 # 5303918202 Thermostat-defrost, kit

22 240330001 Plate-compr mtg

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332602 Pan-defrost drain

29 # 5303918299 Compressor, w/electricals

30 # 241527802 Starter

32 241527901 Clamp, elec cont mtg, compressor

34 240405201 Grommet, rubber, black, cond tube/wire

41 240555001 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909915 Capacitor-run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 240569201 Screw, 8-18 x 0.500

59 240315501 Shroud-cond fan

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

59A 240346501 Bracket-support, cond mtr, (3)

59B 240346601 Grommet-bracket, (3)

60 # 241537901 Motor-condenser fan

60* 240569501 Screw, 8-18 X 1 3/4, (2)

61 241536201 Blade-condenser fan

61B 240564001 Bracket-support, cond mtr, (3)

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 240553501 Tube-connector, suction

86 240409302 Spacer-cond tube, black

* 240396801 Clamp, tube/wiring, nylon, black/natural

* # 5303918210 Heat Exchanger Kit, suction line

* # 5304421289 Hot Tube Repair Kit, Service

Publication No: 5995413886 FRT21HC5DW0

07/04 10

WIRING SCHEMATIC
