Frigidaire FRT18P6BS Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18P6BSK5 FRT18P6BS R134a dynamic stainless/black 115

MARKET

North America

Publication No.

5995378691

020924

-EN/SERVICE /DCS

357

TOP MOUNT

REFRIGERATOR

Model No.

FRT18P6BS

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS,INC.

P.O. Box 212378, Augusta, GA 30917

ENERGY GUIDE - 218791412

OWNER’S GUIDE - 240400105

SERVICE DATA SHEET - 240379010

09/02 2

Publication No. FRT18P6BSK5

5995378691

DOOR

# = Fast-moving Parts 3 09/02

* = Non-Illustrated Parts

FRT18P6BSK5 Publication No.

5995378691

POS. NO PART NO DESCRIPTION

1 # 240514609 Gasket,frzr door seal ,black ,magnetic

2 # 240514612 Gasket,seal ,black ,refr door ,magnetic

4 240331401 Rack-door,20.27" x 1.72"

5 240311502 Support-door rack,2 liter ,RH

5A 240331502 Support-door rack,gallon ,RH

6 240311501 Support-door rack,2 liter ,LH

6A 240331501 Support-door rack,gallon ,LH

7 240337703 Door-dairy,w/o graphics ,clear

8 240331402 Rack-door,17.99" x 1.72"

11 240476219 Door-frzr,stainless steel ,complete assy

12 240415204 Label-nameplate,black

13 240312405 Door Stop,black ,refr

13A 240312406 Door Stop,black ,frzr

15 240476319 Door-refr,stainless steel ,complete assy

18 218668003 Handle-door,black

21 240383401 Screw,truss hd quad ,#10-16 x .500

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240527102 Bearing-hinge,black

37 215870636 Trim-handle,2.47" ,black ,w/satin AL band

37* 218676004 Band-decorative,satin aluminum ,handle trim

* 218490900 Cleaner,stainless steel

DOOR

09/02 4

Publication No. FRT18P6BSK5

5995378691

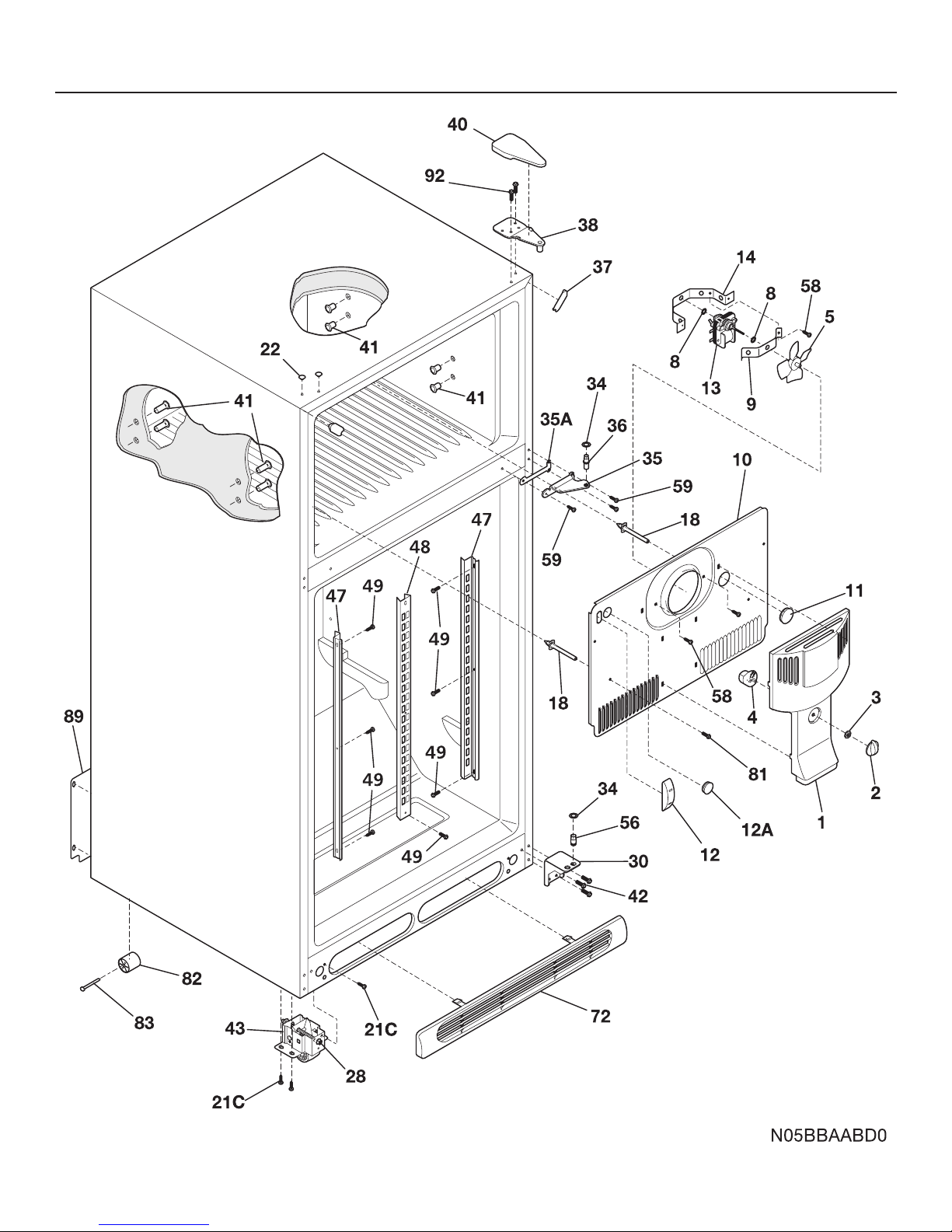

CABINET

# = Fast-moving Parts 5 09/02

* = Non-Illustrated Parts

FRT18P6BSK5 Publication No.

5995378691

POS. NO PART NO DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut,push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade,red ,evaporator fan

8 5300157666 Bushing-motor mtg,(2)

9 5303292396 Bracket-motor mtg,front

10 240462008 Cover-evap coil

10* 240371302 Seal,insulation ,47.77 in. long ,foam ,coil cover

10*# 240524701 Wiring Harness,freezer section

11 5303208309 Plug-hole,factory test

12 240366801 Plug-ice maker harness,rectangular

12A 240374401 Plug-wtr inlet tube,round ,1"

13 # 240369701 Motor-evap fan

13* 218931001 Clamp-motor wiring,nylon ,w/adhesive tape

14 5303292397 Bracket-motor mtg,rear

14* 240433201 Screw,hex washer head ,8-18 x 0.375

18 240411901 Support-evap cover,(2)

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 215774918 Plug-button,black ,upr hinge holes

28 240335501 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special

30 240314003 Bracket-lower hinge,black

34 240311301 Washer,hinge ,nylon ,(2)

35 240313803 Bracket-ctr hinge,black

35A 240336801 Spacer-hinge,center

36 240516401 Pin-center hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge,black

41 5303001609 Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 Grommet,shelf mtg ,1.25" ,LH

42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

47 218233300 Channel-shelf mtg,side ,(2)

48 5303292395 Channel-shelf mtg,center

49 218362500 Screw,hex washer head ,8-18AB x 1.250

56 240516501 Pin-lower hinge

58 5303001343 Screw,hex washer head ,8-15A x 0.500

59 240442703 Screw-#10-32 X 3/4,black

72 240368207 Grille/Kickplate,black

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

89 240326115 Cover-access,with label

89* 241500301 Screw,hex washer head ,8-18AB x 0.500

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 218990901 Clip-wire

* 240479601 Plug,button ,cab liner holes

* 5303305345 Paint,touch-up ,black

CABINET

09/02 6

Publication No. FRT18P6BSK5

5995378691

SHELVES

# = Fast-moving Parts 7 09/02

* = Non-Illustrated Parts

FRT18P6BSK5 Publication No.

5995378691

POS. NO PART NO DESCRIPTION

10 215667501 Tray,ice cube ,plastic

11 240358002 Shelf-freezer,full width

12 240362502 Diffuser,air ,top

13 240362601 Diffuser,air ,bottom

14 # 240505801 Switch,light/lamp

15 240436702 Light Bulb/Lamp,A-15 ,clear ,40 W ,120 V,miniature

16 # 241500701 Socket-light/lamp

17 240352701 Control Box

17*# 240388701 Wiring Harness,control box

18 240360801 Knob,temp control

21 # 5304421256 Control,temperature

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

23 # 215846606 Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 hour/30 min

23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)

24 240373102 Frame-full shelf,cantilever

25 240364713 Cover-crisper pan,with beam ,humid cont

25B 240361202 Control-humidity

25C 240361301 Damper,humidity cont.

26 240337103 Pan-crisper,clear ,(2) ,no graphics

29 240357701 Trim-shelf,24.48" ,front

31 240530803 Pan-meat,w/o graphics ,clear

36 240373103 Frame-half shelf,cantilever

37 240357702 Trim,shelf ,11.95" ,front

40 240443908 Glass-shelf,24.45" x 15.92" ,full width

41 240357801 Trim-shelf,24.48" ,rear

42 240530601 Track,meat pan hanger ,LH

42 240530701 Track,meat pan hanger ,RH

43 240443905 Glass-shelf,11.92" x 15.92" ,half shelf

44 240357802 Trim,shelf ,11.95" ,rear

47 240350643 Insert-pan cover,glass

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

* 218791412 Energy Guide,tag

SHELVES

09/02 8

Publication No. FRT18P6BSK5

5995378691

SYSTEM

# = Fast-moving Parts 9 09/02

* = Non-Illustrated Parts

FRT18P6BSK5 Publication No.

5995378691

POS. NO PART NO DESCRIPTION

1 240444401 Condenser,dynamic

4 # 218944001 Drier-filter,R134a System

6 # 240496101 Wiring Harness,machine compt ,w/electric cord

6 *# 240388701 Wiring Harness,control box

6* # 240524701 Wiring Harness,freezer section

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater,aluminum ,(2)

17 240434002 Trough-drain

18 240362301 Insulation,evap block ,foam ,RH

20 240518401 Insulation,evap block ,foam ,LH/RH

21 # 5303918202 Thermostat-defrost,kit

22 240330006 Plate-compr mtg

22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 Grommet-compr mtg,(4)

25 240491501 Screw-compressor mtg,1/4-28 x 1.16,shoulder,typ CF

26 240332601 Pan-defrost drain

29 # 5303918264 Compressor,w/electricals

30 # 218721120 Starter,PTC

32 240493301 Clamp,elec cont mtg ,compressor ,bale wire

34 240405201 Grommet,rubber ,black ,cond tube/wire

41 218897001 Screw,hex washer head ,8-32 x 1/4

44 215174700 Clamp-service cord,strain relief ,galv steel

45 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

55 # 218909901 Capacitor,run ,50/60 Hz ,220 VAC ,15 microfarad

57 240542601 Clip-wiring harness

58 215004600 Screw,hx serr wshr hd ,8-36 x 7/16 ,cond fan motor,(2)

59 240315501 Shroud-cond fan

59* 240346701 Tape-foam seal,shroud

59* 240359401 Screw-fan shroud,(2)

59A 240346501 Bracket-support,cond mtr ,(3)

59B 240346601 Grommet-bracket,(3)

60 # 240334001 Motor,condenser fan

61 # 240315401 Fan Blade,galv steel ,condenser fan

61A 215004700 Nut,speed

61B 215004800 Grommet-silencer

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

84 240500801 Tube-drain,rubber ,lower

85 240493101 Tube-connector,suction

86 240409302 Spacer-cond tube,black

* 3205266 Edge Protector,wiring harness

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* 5308000039 Screw,hex washer head ,8-32CA x 0.500 ,serrated head

* # 5303918207 Heat Exchanger Kit,suction line

* # 5303918222 Hot Tube Repair Kit,Service

SYSTEM

09/02 10

Publication No. FRT18P6BSK5

5995378691

WIRING SCHEMATIC
