Frigidaire FRT18KG3C Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18KG3CW2 FRT18KG3C R134a white 115

MARKET

North America

Publication No.

5995398194

031103

-EN/SERVICE /DCS

390

TOP MOUNT

REFRIGERATOR

Model No.

FRT18KG3C

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS,INC.

P.O. Box 212378, Augusta, GA 30917

ENERGY GUIDE - 240572160

OWNER’S GUIDE - 240400110

SERVICE DATA SHEET - 240379011

11/03 2

Publication No. FRT18KG3CW2

5995398194

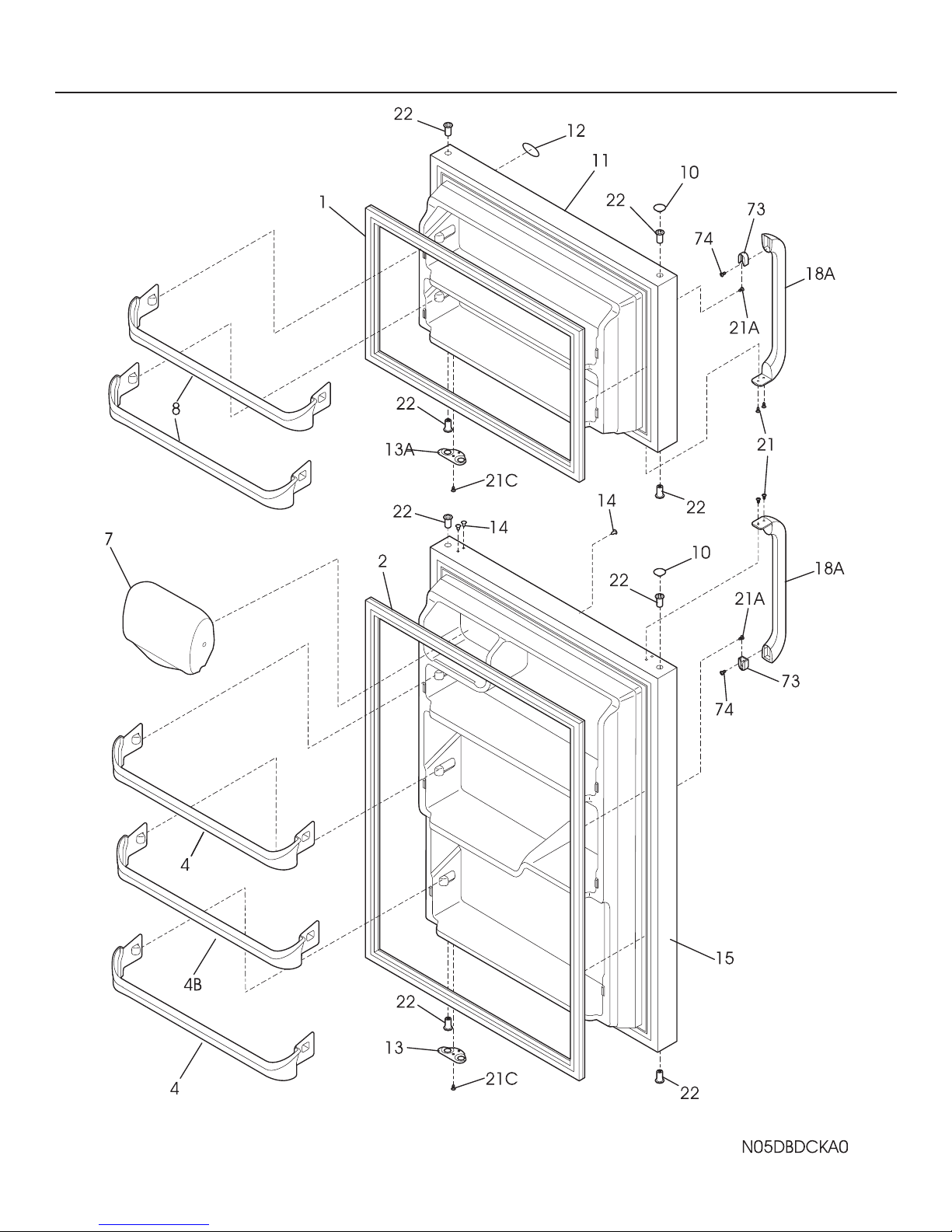

DOOR

# = Fast-moving Parts 3 11/03

* = Non-Illustrated Parts

FRT18KG3CW2 Publication No.

5995398194

POS. NO PART NO DESCRIPTION

1 240542103 Gasket-frzr door,white ,magnetic

2 240542106 Gasket-refr door,white ,magnetic

4 240534901 Rack-door

4B 240534701 Rack-door,4B

7 240337703 Door-dairy,w/o graphics ,clear

8 240534801 Rack-door

10 240381301 Plug-button,white ,hinge brg hole ,(2)

11 240412501 Door,frzr ,white ,complete assy

12 240415201 Label-nameplate,white

13 240312403 Door Stop,white ,ref

13A 240312404 Door Stop,white ,frzr

14 240494001 Plug-button,white

15 240412601 Door,refr ,white ,complete assy

18A 218428101 Handle-door,white ,w/block & screw

21 240383401 Screw,truss hd quad ,#10-16 x .500

21A 240521301 Screw,#10-16 x 1/2

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240527101 Bearing-hinge,natural color

73 218396700 Block-handle mtg,dovetail

74 215503200 Screw,cr pan hd ,10-16 x 0.500

DOOR

11/03 4

Publication No. FRT18KG3CW2

5995398194

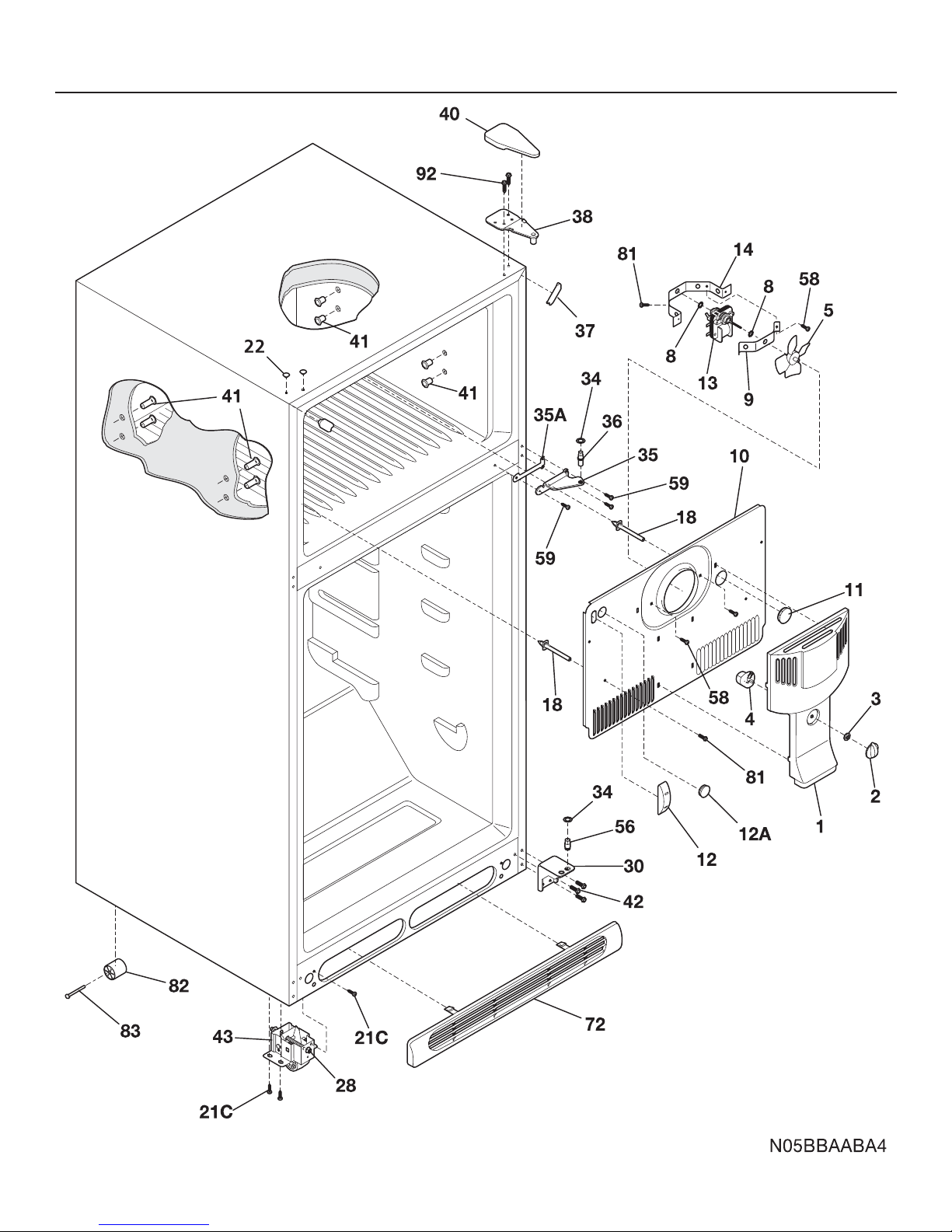

CABINET

# = Fast-moving Parts 5 11/03

* = Non-Illustrated Parts

FRT18KG3CW2 Publication No.

5995398194

POS. NO PART NO DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut,push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade,red ,evaporator fan

8 5300157666 Bushing-motor mtg,(2)

9 5303292396 Bracket-motor mtg,front

10 240462010 Cover-evap coil

10* 240568601 Seal-coil cover

10* 241520701 Harness-wiring

11 5303208309 Plug-hole,factory test

12 240366801 Plug-ice maker harness,rectangular

12* 218843800 Screw,hex wshr hd ,8-15A x 0.500

12A 240374401 Plug-wtr inlet tube,round ,1"

13 # 240369701 Motor-evap fan

13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft

13* 218931001 Clamp-motor wiring,nylon ,w/adhesive tape

14 5303292397 Bracket-motor mtg,rear

14* 240433201 Screw,hex washer head ,8-18 x 0.375

18 240411901 Support-evap cover,(2)

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 215774901 Plug-button,white ,upr hinge holes

28 240335501 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special

30 240314002 Bracket-lower hinge,white

34 240311303 Washer,hinge ,nylon ,(2)

35 240313802 Bracket-ctr hinge,white

35A 240336802 Spacer-hinge,center

36 240516401 Pin-center hinge

37 240337601 Trim-cabinet corner,white ,(2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge,white

41 5303001609 Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 Grommet,shelf mtg ,1.25" ,LH

42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 Roller Assy,front ,(2)

56 240516501 Pin-lower hinge

58 5303001343 Screw,hex washer head ,8-15A x 0.500

59 240442702 Screw-#10-32 X 3/4,white

72 240368205 Grille/Kickplate,white

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 240479601 Plug,button ,cab liner holes ,(2)

* 5303305324 Paint,touch-up ,white

CABINET

11/03 6

Publication No. FRT18KG3CW2

5995398194

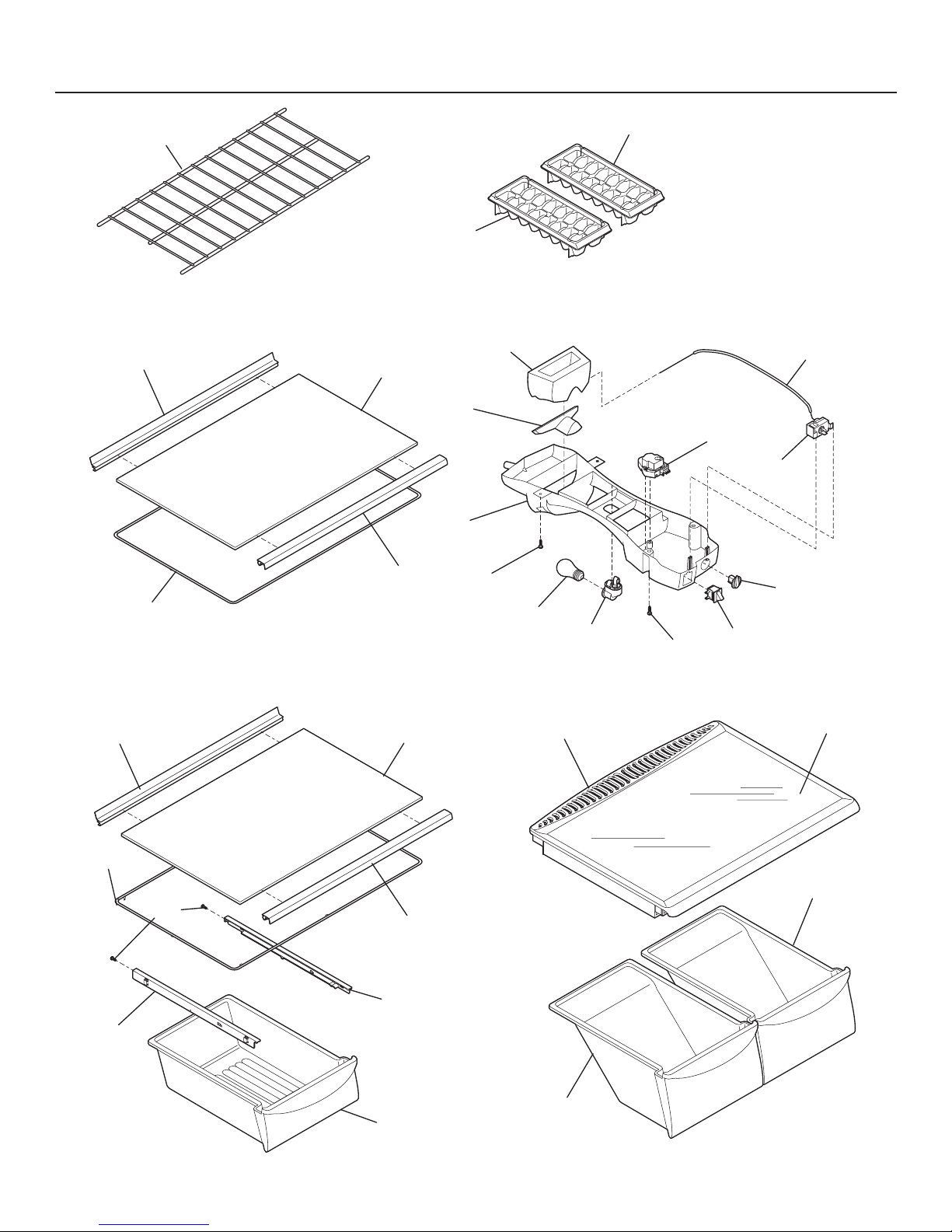

SHELVES

25 47

N05SAAADF11

22A

24A

123

# = Fast-moving Parts 7 11/03

* = Non-Illustrated Parts

FRT18KG3CW2 Publication No.

5995398194

POS. NO PART NO DESCRIPTION

10 215667501 Tray,ice cube ,plastic

11 240358002 Shelf-freezer,full width

12 240545001 Diffuser,air ,top

13 240362601 Diffuser,air ,bottom

14 # 240505801 Switch,light/lamp

15 240436702 Light Bulb/Lamp,A-15 ,clear ,40 W ,120 V,miniature

16 241500701 Socket-light/lamp

17 240352701 Control Box

17*# 240388701 Wiring Harness,control box

18 240360801 Knob,temp control

21 # 5304421256 Control,temperature

22A 240468201 Tube,sensor sleeve ,31 inch ,plastic ,white

23 # 215846606 Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 hour/30 min

23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)

24 240372409 Frame,sliding shelf ,full width

24A 240372410 Frame,sliding shelf ,full width ,w/hanger tabs

25 240364701 Cover-crisper pan,w/ beam ,less insert

26 240337103 Pan-crisper,clear ,(2) ,no graphics

29 240357704 Trim-shelf,front

31 240530803 Pan-meat,w/o graphics ,clear

40 240350620 Glass-shelf,23.78" x 16.34"

41 240561502 Trim-shelf,rear

42 240530601 Track,meat pan hanger ,LH

42* 240530701 Track,meat pan hanger ,RH

47 240350608 Insert-pan cover,23.82" x 15.50" ,glass

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

* 240572160 Label-energy

SHELVES

11/03 8

Publication No. FRT18KG3CW2

5995398194

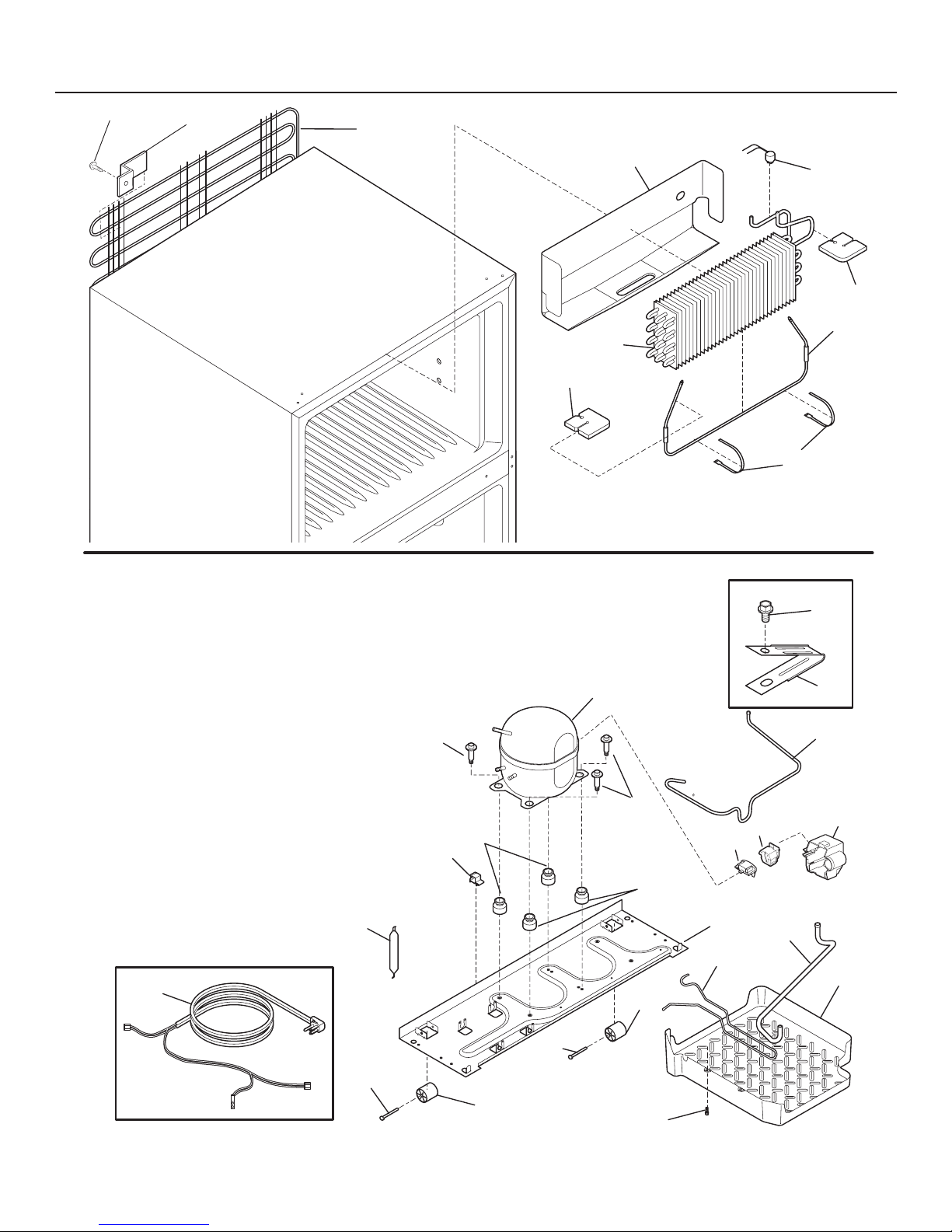

SYSTEM

N05CBBBAB0

30 56

# = Fast-moving Parts 9 11/03

* = Non-Illustrated Parts

FRT18KG3CW2 Publication No.

5995398194

POS. NO PART NO DESCRIPTION

1 # 240406406 Condenser,static

1* 240405201 Grommet,rubber ,black ,cond tube/wire

1* 5303208866 Spacer,condenser tube ,black

2 5308000296 Bracket,condenser mtg ,(4)

4 # 218944001 Drier-filter,R134a System

6 # 240581601 Harness-wiring,machine compt

6* 241520701 Harness-wiring

6* # 240388701 Wiring Harness,control box

6* # 240581801 Harness-wiring,compressor

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater,aluminum ,(2)

17 240434004 Trough-drain

20 240518402 Insulation,evap block ,foam ,LH/RH

21 # 5303918202 Thermostat-defrost,kit

22 240330001 Plate-compr mtg

22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 Grommet-compr mtg,(4)

25 240491501 Screw-compressor mtg,1/4-28 x 1.16 ,shoulder,typ CF

26 240332605 Pan-defrost drain

29 # 5303918297 Compressor,w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

41 240433202 Screw,hex washer head ,8-18 x 5/16

44 5303001199 Clamp-wiring harness,strain relief ,galv steel

45 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

84 240500801 Tube-drain,rubber ,lower

85 241504201 Tube-connector,suction

87 240533004 Tube-Condensate,87

* 5303918263 Heat Exchanger Kit,suction line

* # 5303918234 Hot Tube Repair Kit,Service

SYSTEM

11/03 10

Publication No. FRT18KG3CW2

5995398194

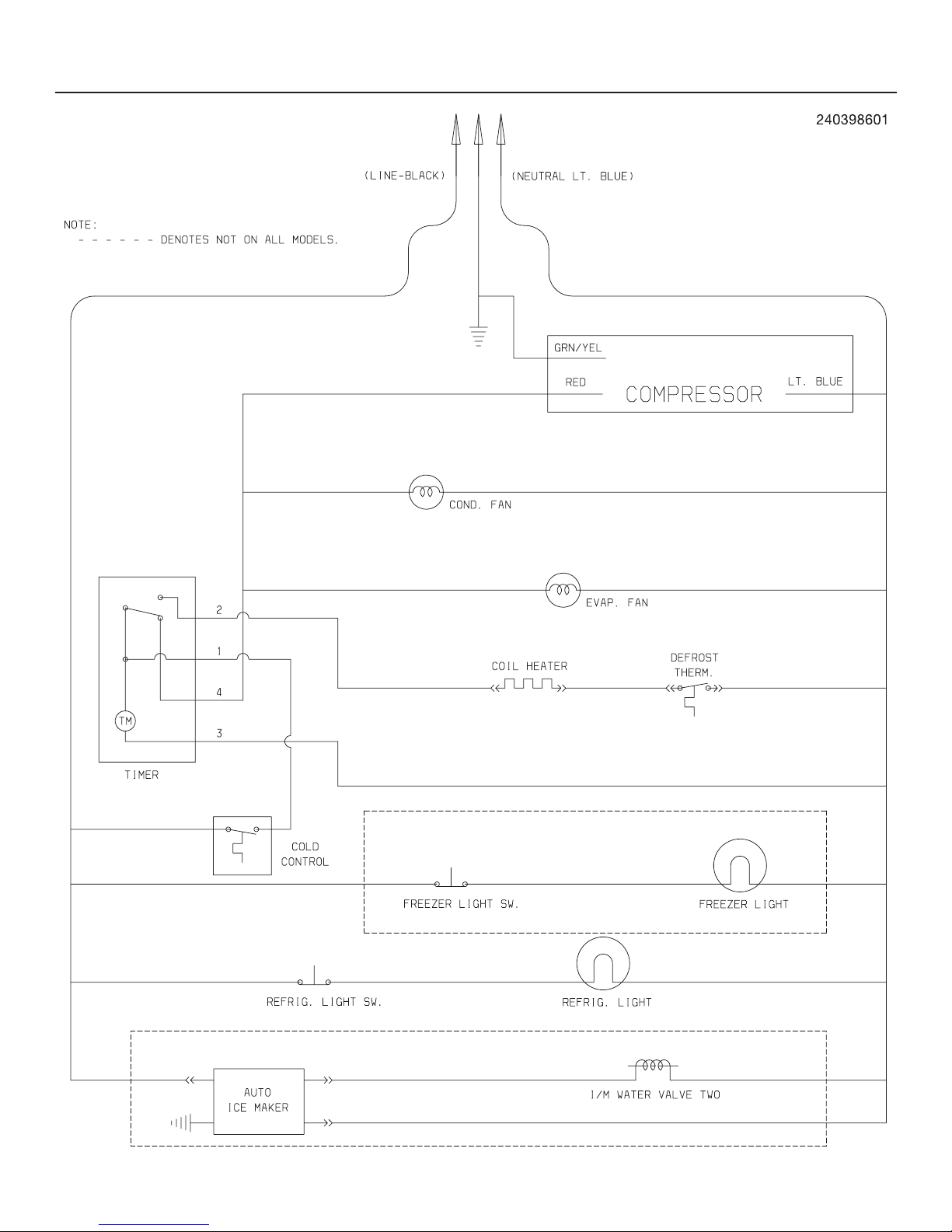

WIRING SCHEMATIC
