Frigidaire FRT18KD3AW0 Mode d’emploi

03/01 2

Publication No. FRT18KD3AW0

5995351680

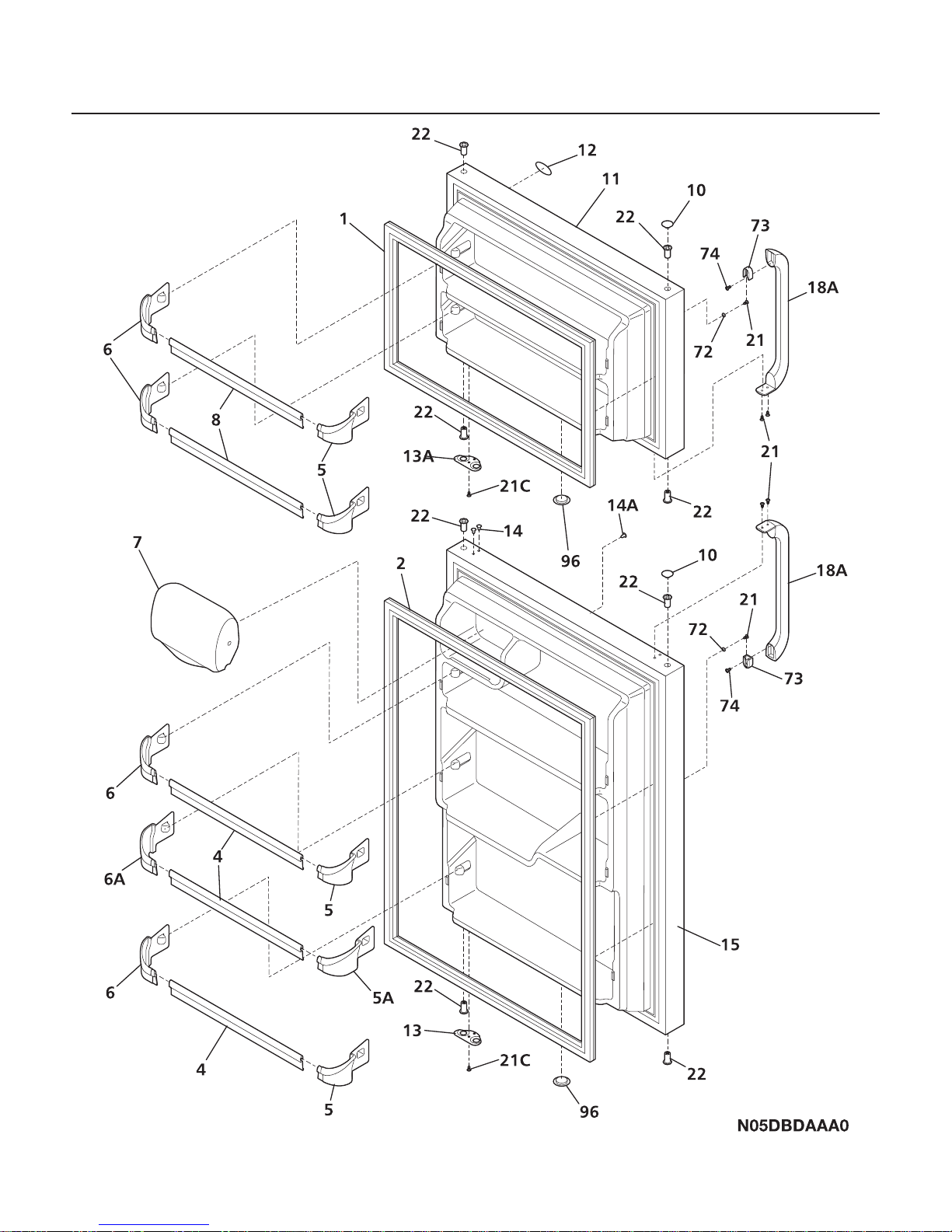

DOOR

# = Fast-moving Parts 3 03/01

* = Non-Illustrated Parts

FRT18KD3AW0 Publication No.

5995351680

POS. NO PART NO DESCRIPTION

1 # 240370905 Gasket-frzr door,white ,magnetic

2 # 240370906 Gasket-refr door,white ,magnetic

4 240331401 Rack-door,20.27" x 1.72"

5 240311502 Support-door rack,2 liter ,RH

5A 240331502 Support-door rack,gallon ,RH

6 240311501 Support-door rack,2 liter ,LH

6A 240331501 Support-door rack,gallon ,LH

7 240337701 Door-dairy,w/o graphics ,white

8 240331402 Rack-door,17.99"

10 240381301 Plug-button,hinge brg hole ,white ,(2)

11 240412501 Panel-frzr door,white ,complete assy

12 240415201 Label-nameplate,white

13 240312403 Door Stop,white ,ref

13A 240312404 Door Stop,white ,frzr

14 218915701 Plug-button,white

14A 240428301 Plug-button,screw type ,white

15 240412601 Panel-refr door,white ,complete assy

18A 218428121 Handle-door,gray ,w/block & screw

21 240383401 Screw,truss hd quad ,#10-16 x .500

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240311201 Bearing-hinge,natural color ,(8)

72 218397000 Button-handle mtg,dovetail

73 218396700 Block-handle mtg,dovetail

74 215503200 Screw,cr pan hd ,10-16 x 0.500

96 240345501 Plug-foam hole,white

DOOR

03/01 4

Publication No. FRT18KD3AW0

5995351680

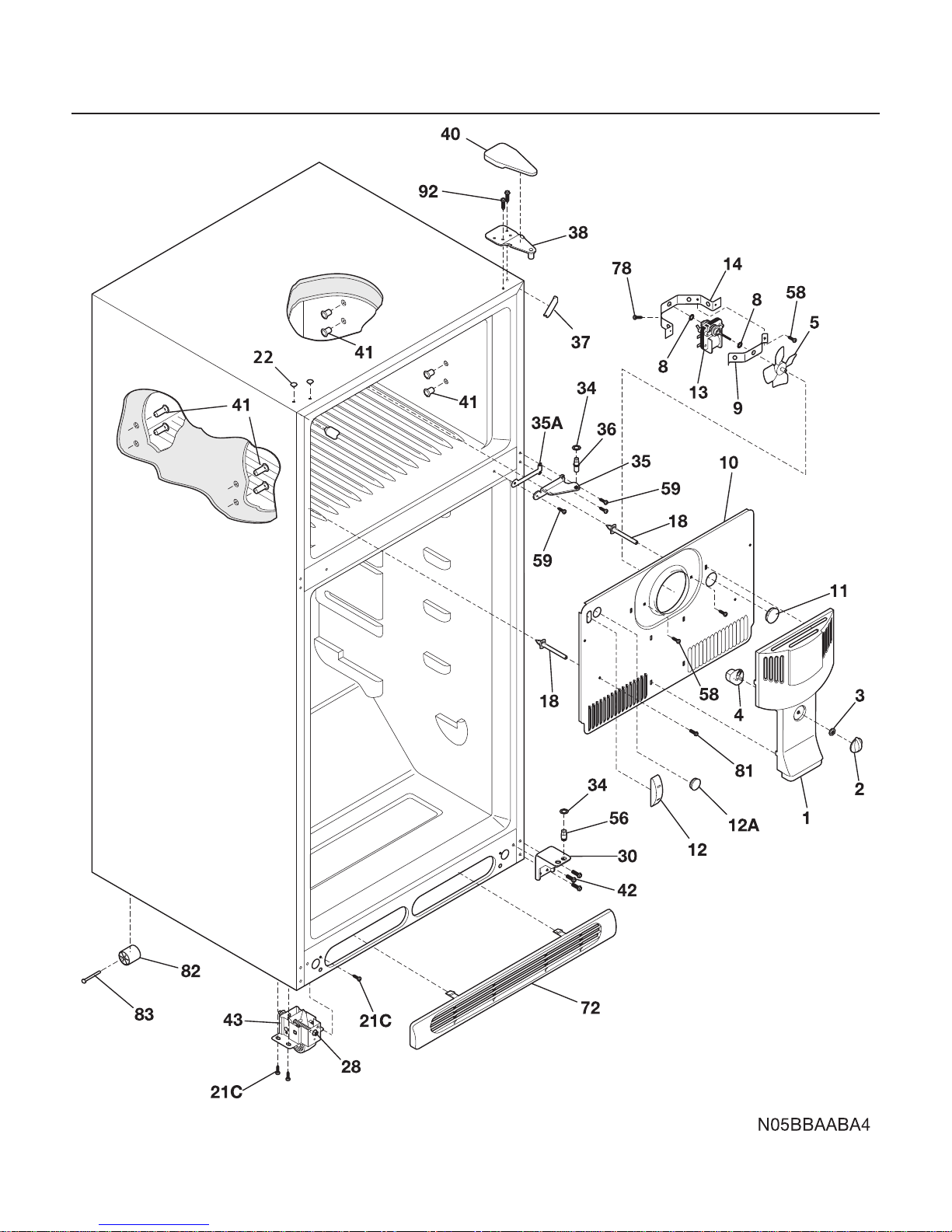

CABINET

# = Fast-moving Parts 5 03/01

* = Non-Illustrated Parts

FRT18KD3AW0 Publication No.

5995351680

POS. NO PART NO DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut,push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade,red ,evaporator fan

8 5300157666 Bushing-motor mtg,(2)

9 5303292396 Bracket-motor mtg,front

10 240313605 Cover-evap coil,w/o light

10* 240371302 Seal-coil cover

10*# 240385401 Wiring Harness,freezer section

11 5303208309 Plug-hole,factory test

12 240366801 Plug-ice maker harness,rectangular

12A 240374401 Plug-wtr inlet tube,round ,1"

13 # 240369701 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg,rear

14* 240433201 Screw-8-18 x 3/8

18 240345801 Support-evap cover,(2)

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 215774901 Plug-button,white ,upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2) , special

30 240314002 Bracket-lower hinge

34 240311301 Washer,hinge ,nylon ,(2)

35 240313802 Bracket-ctr hinge,white

35A 240336801 Spacer-hinge,center

36 240313901 Pin-center hinge

37 240337601 Trim-cabinet corner,white ,(2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge,white

41 5303001609 Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 Grommet,shelf mtg ,1.25" ,LH

42 240423601 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

56 240314101 Pin-lower hinge

58 5303001343 Screw,hex washer head ,8-15A x 0.500

59 218188000 Screw, pan hd,10-32 x 0.625, hinge/mullion, thrd forming

59 240442702 Screw-#10-32 X 3/4,white

72 240368201 Grille/Kickplate,white

78 5303274237 Screw-bracket, hex wshr hd, 8-32CA x 0.500

81 218843800 Screw, hex wshr hd, 8-15A x 0.500, wiring clamps

82 5304418225 Roller-rear,comp base ,(2)

83 215164200 Pin-roller,(2)

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 5303305324 Paint,touch-up ,white

* 5308016571 Plug-button,cab liner holes

CABINET

03/01 6

Publication No. FRT18KD3AW0

5995351680

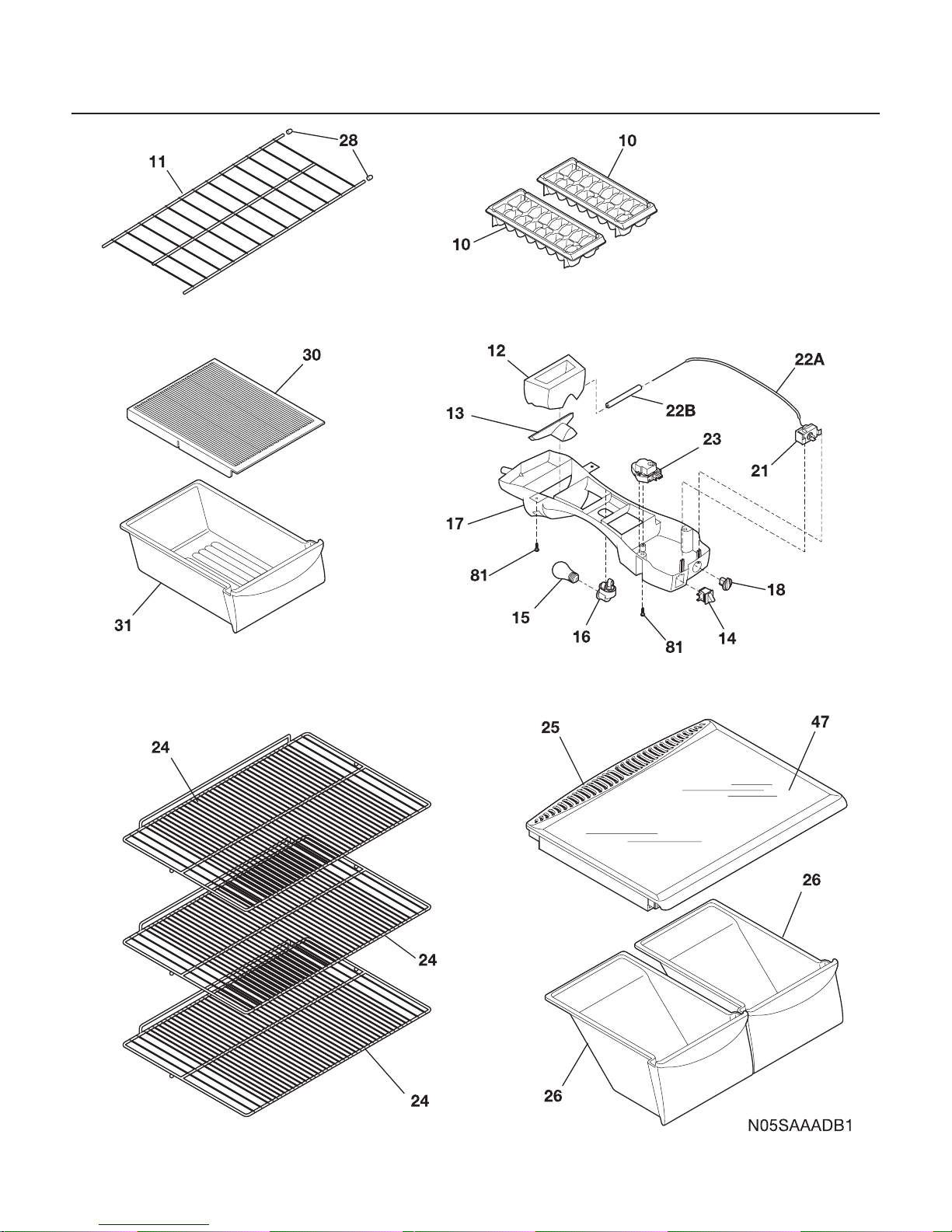

SHELVES

# = Fast-moving Parts 7 03/01

* = Non-Illustrated Parts

FRT18KD3AW0 Publication No.

5995351680

POS. NO PART NO DESCRIPTION

10 215667501 Tray-ice,plastic

11 240358002 Shelf-freezer,full width

11* 5303299664 Spacer-shelf

12 240362501 Diffuser-air,top

13 240362601 Diffuser-air,top

13* 240392601 Seal-diffuser

14 # 5309918806 Switch-light/lamp

15 # 5303001179 Light Bulb/Lamp,40 W

16 241500701 Socket-light/lamp

17 240352701 Control Box

17*# 240388701 Wiring Harness,control box

18 240360801 Knob-control

21 # 5304418228 Control-temperature

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

22B 218731105 Tube, PVC, white, @ air diffuser, insulator

23 # 215846606 Timer-defrost, 60 Hz ,120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360905 Shelf-sliding,refr ,(3)

25 240364701 Cover-crisper pan,w/ beam ,less insert

26 240337101 Pan-crisper,white ,(2) ,no graphics

28 3201150 End Cap-shelf,protector ,frzr shelf

30 240361801 Hanger-meat pan,drop thru

31 240354203 Pan-meat,w/o graphics ,clear

47 240350608 Insert-pan cover,glass

81 5308016566 Screw, hex wshr hd, 8-15A x 0.625, low profile

SHELVES

03/01 8

Publication No. FRT18KD3AW0

5995351680

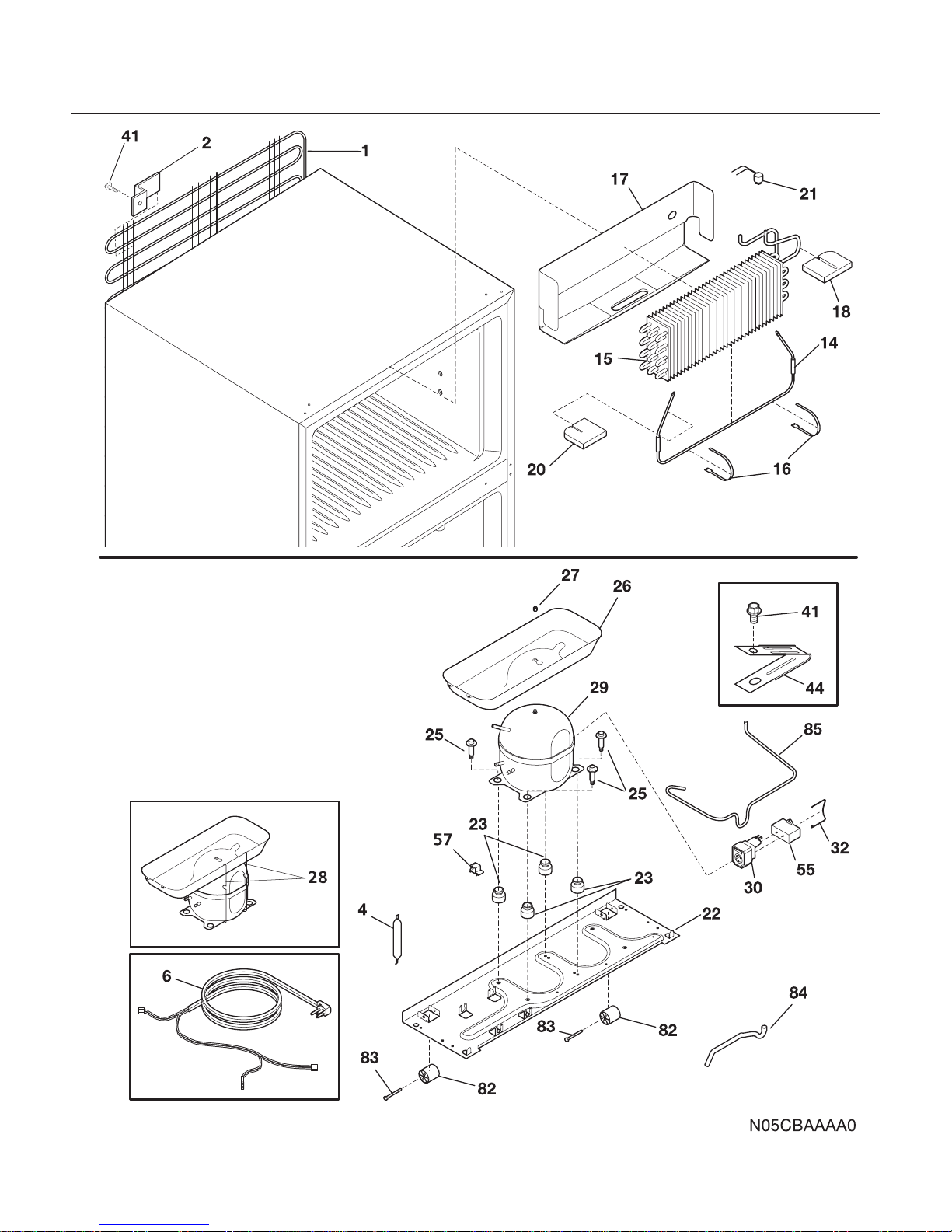

SYSTEM

# = Fast-moving Parts 9 03/01

* = Non-Illustrated Parts

FRT18KD3AW0 Publication No.

5995351680

POS. NO PART NO DESCRIPTION

1 # 240406401 Condenser,static

1* 5303208866 Spacer-cond tube,black

2 5308000296 Bracket,condenser mtg ,(4)

2* 5308000039 Screw, hex washer head, 8-32CA x 0.500,(7), serrated head

2* 5308009617 Washer,ext tooth lock ,#10 ,grounding

4 # 218944001 Drier-filter,R134a System

6 # 240375401 Wiring Harness, machine compt, w/service cord

6* # 240385401 Wiring Harness,freezer section

6* # 240388701 Wiring Harness,control box

14 # 5303918208 Defrost Heater Kit

15 # 5303918250 Evaporator Kit

16 5308000110 Strap-evap/heater,aluminum ,(2)

17 240434002 Trough-drain

18 240362301 Insulation Block,RH

20 240362401 Insulation Block,LH

21 # 5303918202 Thermostat-defrost,kit

22 240330001 Plate-compr mtg

22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500

23 216498900 Grommet,compressor

25 240420301 Screw-shoulder

26 240346901 Pan-defrost drain

27 5303001348 Nut-lock,1/4-20 ,drain pan mtg

28 5303916001 Pan Retainer Kit,Service

29 # 5303918233 Compressor,R134a ,w/ electricals

30 # 218721113 Starter-PTC

32 218740800 Clamp,elec cont mtg ,compressor

41 218897001 Screw,hex washer head ,8-32 x 1/4

44 5303001199 Clamp-wiring harness, strain relief, galv steel

55 # 218909901 Capacitor-run,220 VAC ,15 microfarad

57 240403601 Clip-wiring harness

82 5304418225 Roller-rear,comp base ,(2)

83 215164200 Pin-roller,(2)

84 240367101 Tube-drain,lower

85 240346202 Tube-connector,suction

* # 5303918207 Heat Exchanger Kit,suction line

* # 5303918234 Hot Tube Repair Kit,Service

SYSTEM

03/01 10

Publication No. FRT18KD3AW0

5995351680

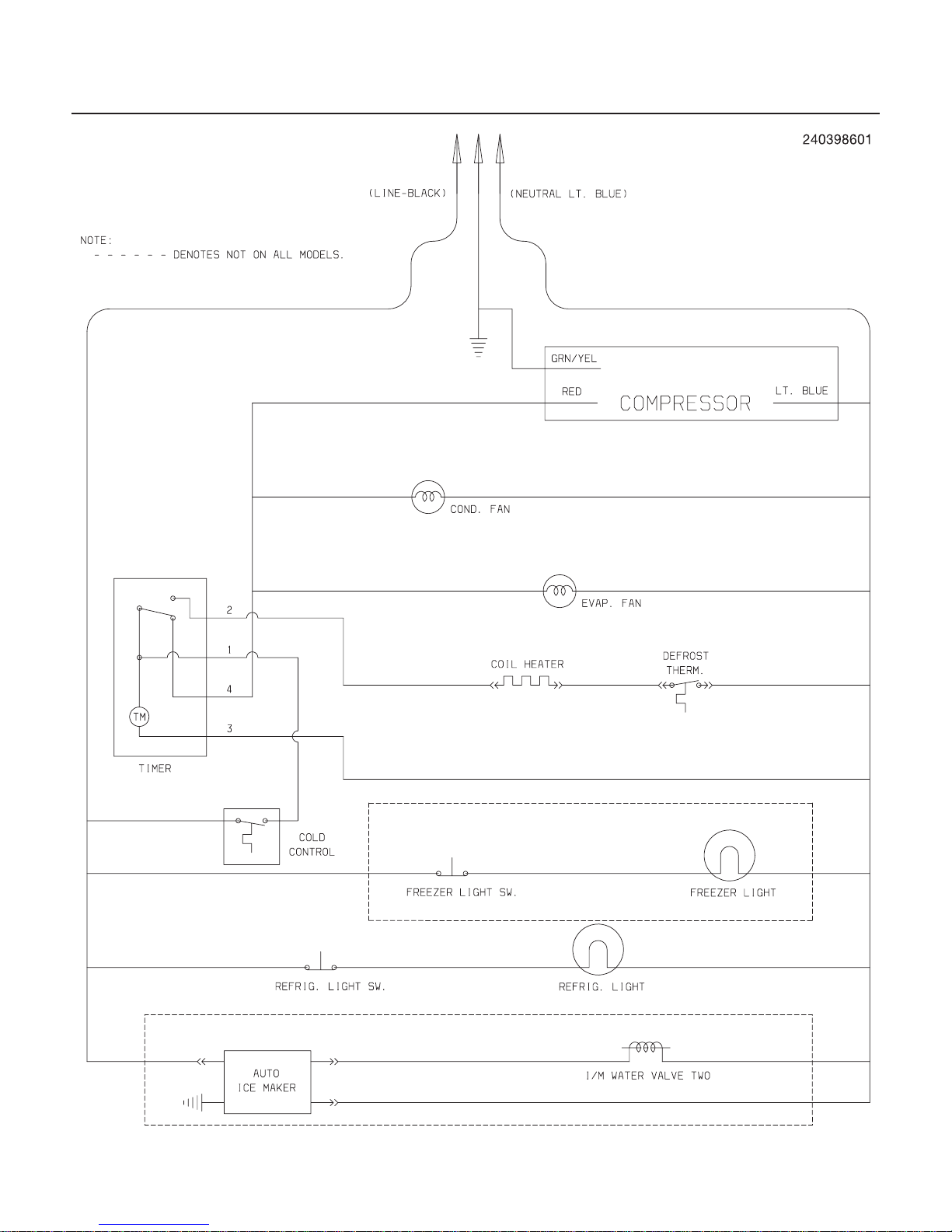

WIRING SCHEMATIC
