Frigidaire FRT17IB3A Manuel utilisateur

N05L00004.eps N05DBDCKA0.eps N05BBAAAA16.eps N05SACDCA2.eps

N05CBBBAC3.eps 115-1.eps 240398801.eps 240398601.eps

Product No. FRT17IB3AQB FRT17IB3AWB FRT17IB3AZB

Series R134A Static R134A Static R134A Static

Color bisque (right) white (right) white (left)

Volts 115 115 115

Wiring Diagram 240398801 240398801 240398801

Owner's Guide 241694400 241694400 241694400

Market North America North America North America

Energy Guide 218791452 218791452 218791452

Service Data Sheet 240379018 240379018 240379018

Installation Instructions 240568301 240568301 240568301

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995474565

06/09/19

(EN/SERVICE/KHB)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT17IB3A

Publication No: 5995474565 FRT17IB3A

09/06 2

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCKA0

FRT17IB3A Publication No: 5995474565

# Functional Parts 3 09/06

* Non-Illustrated Parts

DOOR

Model Index: AFRT17IB3A (FRT17IB3AQB)

BFRT17IB3A (FRT17IB3AWB)

CFRT17IB3A (FRT17IB3AZB)

POS. NO PART NO. DESCRIPTION

1 # 240554113 A B C Gasket-frzr door, white, magnetic

2 # 240542116 A B C Gasket-refr door, white, magnetic

4 240535101 A B C Rack-door

4B 240535201 A B C Rack-door

7 240337701 A B C Door-dairy, w/o graphics, white

8 240535001 A B C Rack-door

10 240381302 A - - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - B C Plug-button, white, hinge brg hole, (2)

11 240420102 A - - Door, frzr, bisque

11 240420101 - B C Door, frzr, white

12 240415203 A - - Label-nameplate, bisque

12 240415201 - B C Label-nameplate, white

13 240312407 A - - Door Stop, bisque, ref

13 240312403 - B C Door Stop, white, ref

13A 240312408 A - - Door Stop, bisque, frzr

13A 240312404 - B C Door Stop, white, frzr

14 240494002 A - - Plug-button, bisque

14 240494001 - B C Plug-button, white

15 240420202 A - - Door, refr, bisque

15 240420201 - B C Door, refr, white

18A 218428119 A - - Handle-door, bisque, w/block & screw

18A 218428101 - B C Handle-door, white, w/block & screw

21 240383406 A B C Screw, truss hd quad, #10-16 x .500, zinc

21A 240521303 A B C Screw, #10-16 x 1/2

21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B C Bearing-hinge, natural color

73 218396700 A B C Block-handle mtg, dovetail

74 215503203 A B C Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995474565 FRT17IB3A

09/06 4

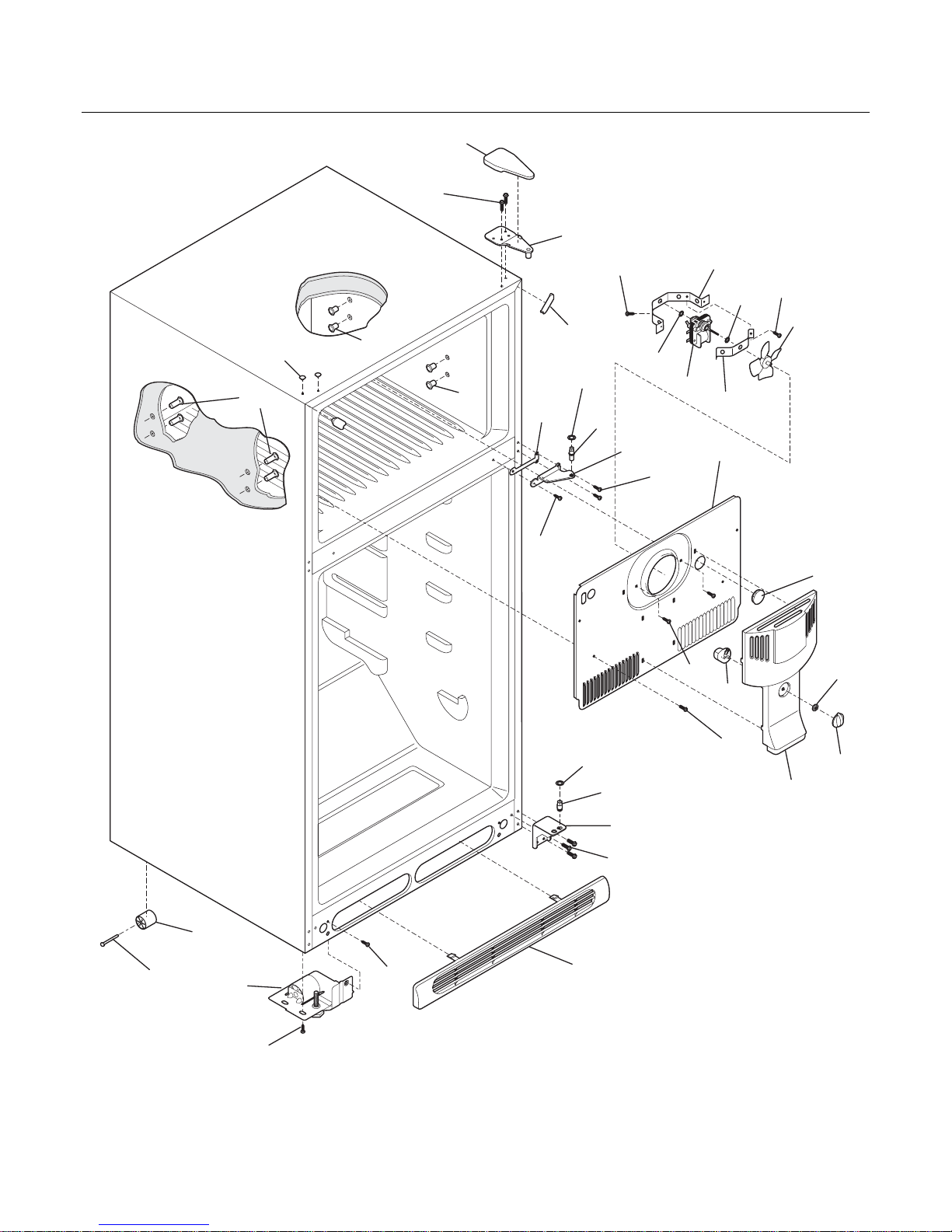

CABINET

35A 36

N05BBAAAA16

43 21C

21C

FRT17IB3A Publication No: 5995474565

# Functional Parts 5 09/06

* Non-Illustrated Parts

CABINET

Model Index: AFRT17IB3A (FRT17IB3AQB)

BFRT17IB3A (FRT17IB3AWB)

CFRT17IB3A (FRT17IB3AZB)

POS. NO PART NO. DESCRIPTION

1 241652301 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303001028 A B C Nut, push-on

4 241523701 A B C Damper-fan cover

5 # 5308000010 A B C Fan Blade, red, evaporator fan

8 5300157666 A B C Bushing-motor mtg, (2)

9 5303292396 A B C Bracket-motor mtg, front

10 241652215 A B C Cover-evap coil

10* 240568601 A B C Seal-coil cover

10* 241520701 A B C Harness-wiring, freezer

11 5303208309 A B C Plug-hole, factory test

13 240369702 A B C Motor-evap fan

13* 215474201 A B C Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C Bracket-motor mtg, rear

21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 215774919 A - - Plug-button, bisque, upr hinge holes

22 215774901 - B C Plug-button, white, upr hinge holes

30 240357106 A B C Bracket-lower hinge

34 240311303 A B C Washer, hinge, nylon, (2)

35 240357006 A B C Bracket-ctr hinge

35A 240336802 A B C Spacer-hinge, center

36 240516402 A B C Pin-center hinge

37 241611304 A - - Trim-cabinet corner, bisque, (2)

37 241611301 - B C Trim-cabinet corner, white, (2)

38 240356901 A B C Bracket, upper hinge

40 240354403 A - - Cover-upper hinge, bisque

40 240354401 - B C Cover-upper hinge, white

41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559604 A B C Roller Assy, fixed, front LH

43* 241559603 A B C Roller Assy, fixed, front RH

56 240516502 A B C Pin-lower hinge

58 240433204 A B C Screw, hex washer head, 8-18 x 5/16

59 240442706 A B C Screw-#10-32 X 3/4, zinc

72 240368302 A - - Grille/Kickplate, bisque, lower front

72 240368301 - B C Grille/Kickplate, white

81 5304456287 A B C Screw, hex washer head, 8-15A x 0.500

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 5304414035 A - - Paint, touch-up, bisque

* 5303321319 - B C Paint, touch-up, white

Publication No: 5995474565 FRT17IB3A

09/06 6

SHELVES

FRT17IB3A Publication No: 5995474565

# Functional Parts 7 09/06

* Non-Illustrated Parts

SHELVES

Model Index: AFRT17IB3A (FRT17IB3AQB)

BFRT17IB3A (FRT17IB3AWB)

CFRT17IB3A (FRT17IB3AZB)

POS. NO PART NO. DESCRIPTION

11 5303282284 A B C Shelf-freezer, "table type"

12 241542001 A B C Diffuser, air, top

13 240362601 A B C Diffuser, air, bottom

14 # 241554901 A B C Switch-light/lamp

15 240436702 A B C Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241559801 A B C Socket-light

17 240368001 A B C Control Box

17* 240568607 A B C Seal

17*# 240388701 A B C Wiring Harness, control box

18 240360801 A B C Knob, temp control

21 # 5304421256 A B C Control, temperature

22A 240468201 A B C Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 A B C Timer-defrost

23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438

24 240360902 A B C Shelf, sliding, wire

25 240364706 A B C Cover, crisper pan

26 240364501 A B C Pan, crisper, (2)

34 240385201 A B C Container, ice bin

81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

* 218791452 A B C Label-energy

Publication No: 5995474565 FRT17IB3A

09/06 8

SYSTEM

FRT17IB3A Publication No: 5995474565

# Functional Parts 9 09/06

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT17IB3A (FRT17IB3AQB)

BFRT17IB3A (FRT17IB3AWB)

CFRT17IB3A (FRT17IB3AZB)

POS. NO PART NO. DESCRIPTION

1 # 241674101 A B C Condenser, static

1* 240405201 A B C Grommet, rubber, black, cond tube/wire

1* 5303208866 A B C Spacer, condenser tube, black

1* 5304406721 A B C Spacer-cond tube, round, 5/8 OD x .81"lg

2 241658801 A B C Bracket, condenser mtg

4 # 218944001 A B C Drier-filter, R134a System

6 241678801 A B C Harness-wiring, machine compt

6* 241520701 A B C Harness-wiring, freezer

6* # 240388701 A B C Wiring Harness, control box

14 # 240356213 A B C Heater-defrost

15 5303918275 A B C Evaporator Kit

16 5308000110 A B C Strap-evap/heater, aluminum, (2)

17 241551802 A B C Trough-drain

20 241551901 A B C Insulation Block

21 # 5303918202 A B C Thermostat-defrost, kit

22 241665403 A B C Base-compressor

22* 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B C Grommet-compr mtg, (4)

25 240491503 A B C Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 240598501 A B C Pan-defrost drain

26* 5303307896 A B C Thermal Mastic

29 # 5303918326 A B C Compressor, w/electricals

30 # 241667501 A B C Relay Combo

41 240433204 A B C Screw, hex washer head, 8-18 x 5/16

44 5304456288 A B C Clamp-wiring harness, strain relief, galv steel

45 241500304 A B C Screw, hex washer head, 8-18AB x 0.625

45* 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

57 240542601 A B C Clip-wiring harness

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241505701 A B C Tube-drain, lower

85 241544301 A B C Tube-connector, suction

* 240396801 A B C Clamp, tube/wiring, nylon, black/natural

* 5303918263 A B C Heat Exchanger Kit, suction line

* 5303918234 A B C Hot Tube Repair Kit, service

Publication No: 5995474565 FRT17IB3A

09/06 10

ICE MAKER
