Frigidaire FRT17HB3C Manuel utilisateur

N05L00004.eps N05DBDCKA0.eps N05BBAABA16.eps N05SADDCA21.eps

N05CAABAD1.eps 240398801.eps 240398601.eps

Product No. FRT17HB3CW7 FRT17HB3CZ7

Series R134a R134a

Color white (RH) white (LH)

Volts 115 115

Wiring Diagram 240398801 240398801

Owner's Guide 241694400 241694400

Market North America North America

Energy Guide 240592273 240592273

Service Data Sheet 240379018 240379018

Installation Instructions 240568301 240568301

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995489415

07/04/24

(EN/SERVICE/KHB)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT17HB3C

Publication No: 5995489415 FRT17HB3C

04/07 2

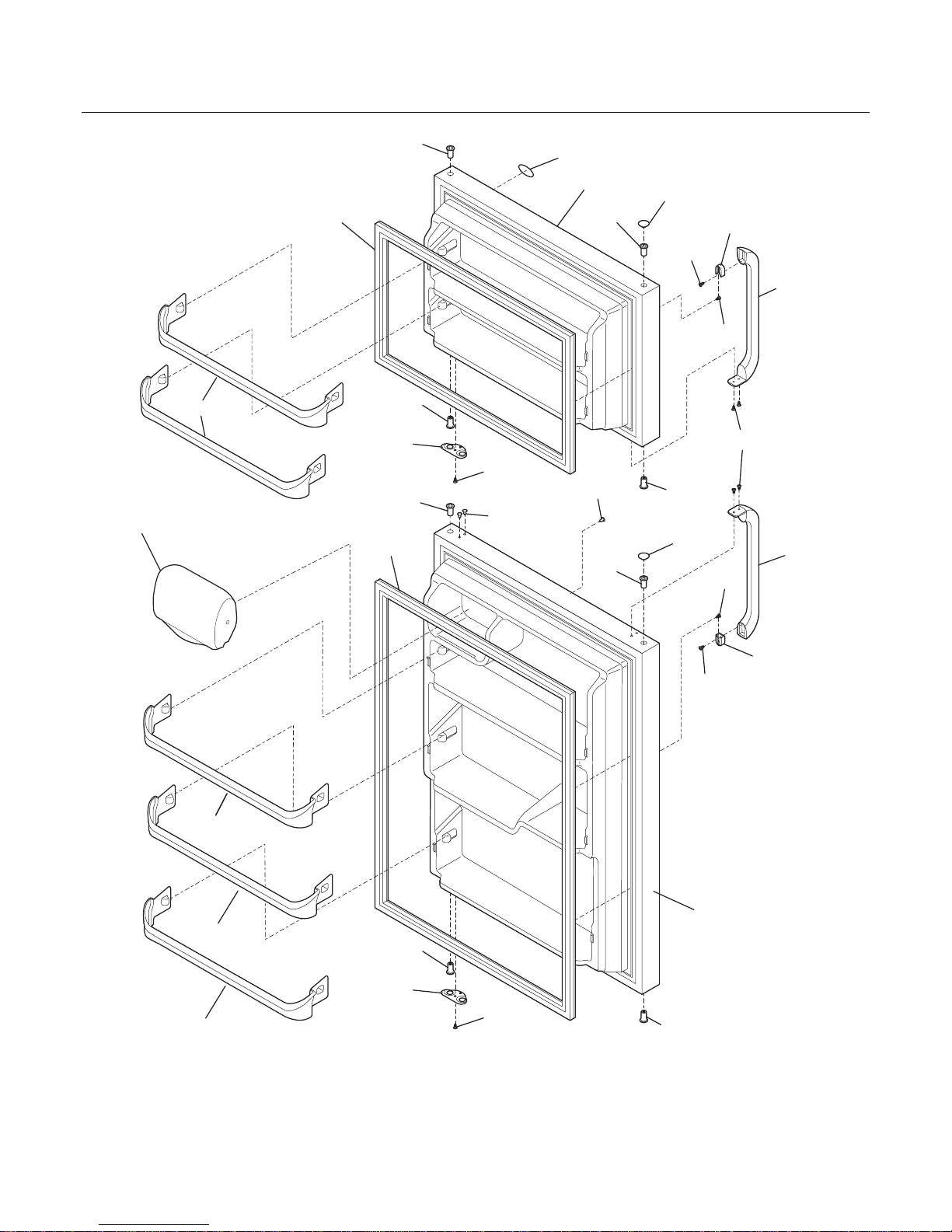

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCKA0

FRT17HB3C Publication No: 5995489415

# Functional Parts 3 04/07

* Non-Illustrated Parts

DOOR

Model Index: AFRT17HB3C (FRT17HB3CW7)

BFRT17HB3C (FRT17HB3CZ7)

POS. NO PART NO. DESCRIPTION

1 # 240554113 A B Gasket-frzr door, white, magnetic

2 240542116 A B Gasket-refr door, white, magnetic

4 240535101 A B Rack-door

4B 240535201 A B Rack-door

7 240337701 A B Door-dairy, w/o graphics, white

8 240535001 A B Rack-door

10 240381301 A B Plug-button, white, hinge brg hole, (2)

11 240420101 A B Door, frzr, white

12 241808601 A B Label-nameplate

13 240312403 A B Door Stop, white, ref

13A 240312404 A B Door Stop, white, frzr

14 240494001 A B Plug-button, white

15 240420201 A B Door, refr, white

18A 218428101 A B Handle-door, white, w/block & screw

21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc

21A 240521303 A B Screw, #10-16 x 1/2

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

73 218396701 A B Block-handle mtg, dovetail

74 215503203 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995489415 FRT17HB3C

04/07 4

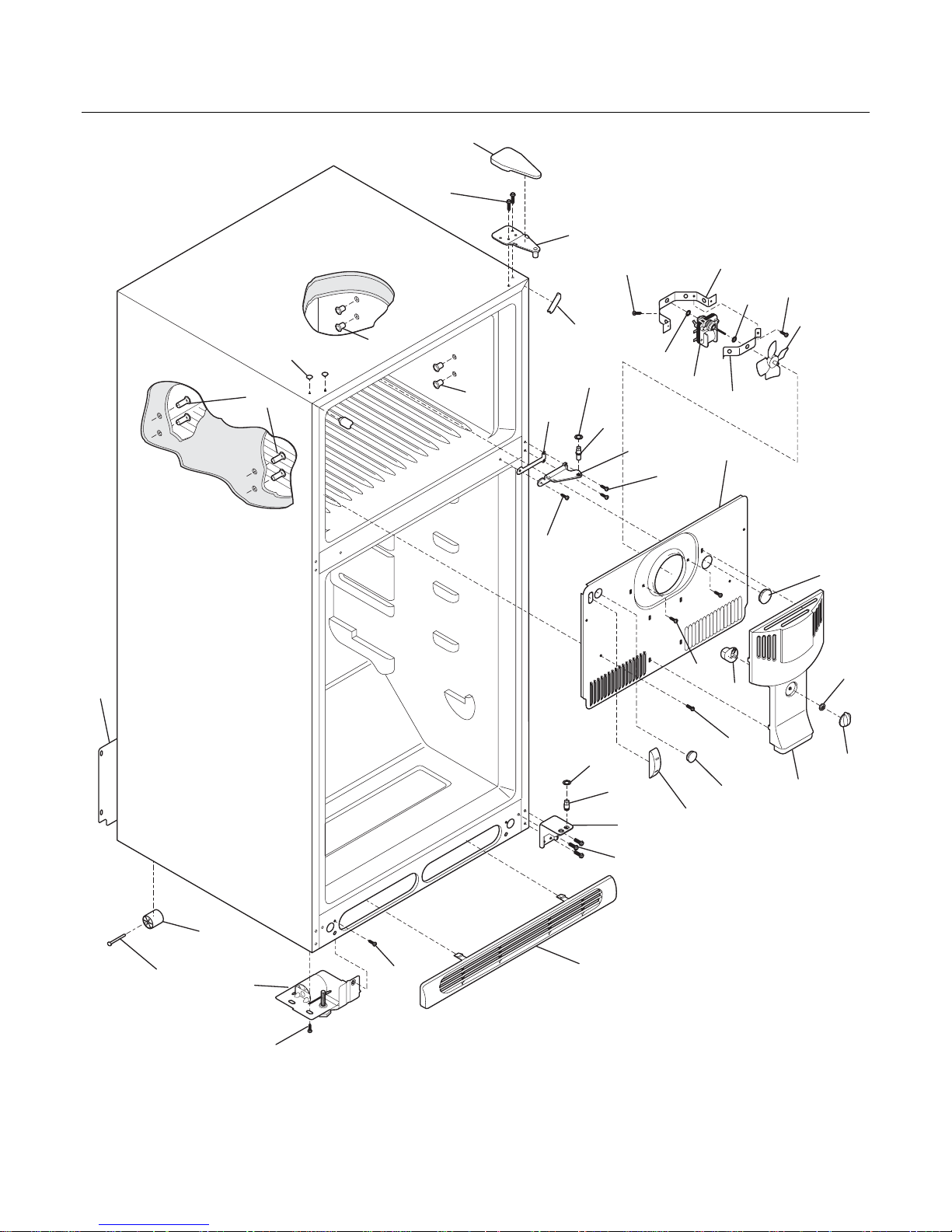

CABINET

12A

35A 36

N05BBAABA16

43 21C

21C

FRT17HB3C Publication No: 5995489415

# Functional Parts 5 04/07

* Non-Illustrated Parts

CABINET

Model Index: AFRT17HB3C (FRT17HB3CW7)

BFRT17HB3C (FRT17HB3CZ7)

POS. NO PART NO. DESCRIPTION

1 241652301 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 241652215 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

10*# 241520701 A B Harness-wiring, freezer

11 5303208309 A B Plug-hole, factory test

12 241557601 A B Plug-ice maker harness, rectangular

12* 218843800 A B Screw, hex wshr hd, 8-15A x 0.500

12A 240374401 A B Plug-wtr inlet tube, round, 1"

12A* 241586701 A B Plug-foam-wtr-inlet, round

13 # 240369702 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433201 A B Screw, hex washer head, 8-18 x 0.375

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 A B Plug-button, white, upr hinge holes

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

30 240357102 A B Bracket, bottom hinge, white

34 240311303 A B Washer, hinge, nylon, (2)

35 240357006 A B Bracket-ctr hinge

35A 240336802 A B Spacer-hinge, center

36 240516402 A B Pin-center hinge

37 241611301 A B Trim-cabinet corner, white, (2)

38 240356901 A B Bracket, upper hinge

40 240354401 A B Cover-upper hinge, white

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559604 A B Roller Assy, fixed, front LH

43* 241559603 A B Roller Assy, fixed, front RH

56 240516502 A B Pin-lower hinge

58 5304456287 A B Screw, hex washer head, 8-15A x 0.500

59 240442706 A B Screw-#10-32 X 3/4, zinc

72 240368301 A B Grille/Kickplate, white

81 240433204 A B Screw, hex washer head, 8-18 x 5/16

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733906 A B Cover-access, with label

89* 241500304 A B Screw, hex washer head, 8-18AB x 0.625

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 A B Plug, button, cab liner holes

* 5303321319 A B Paint, touch-up, white

Publication No: 5995489415 FRT17HB3C

04/07 6

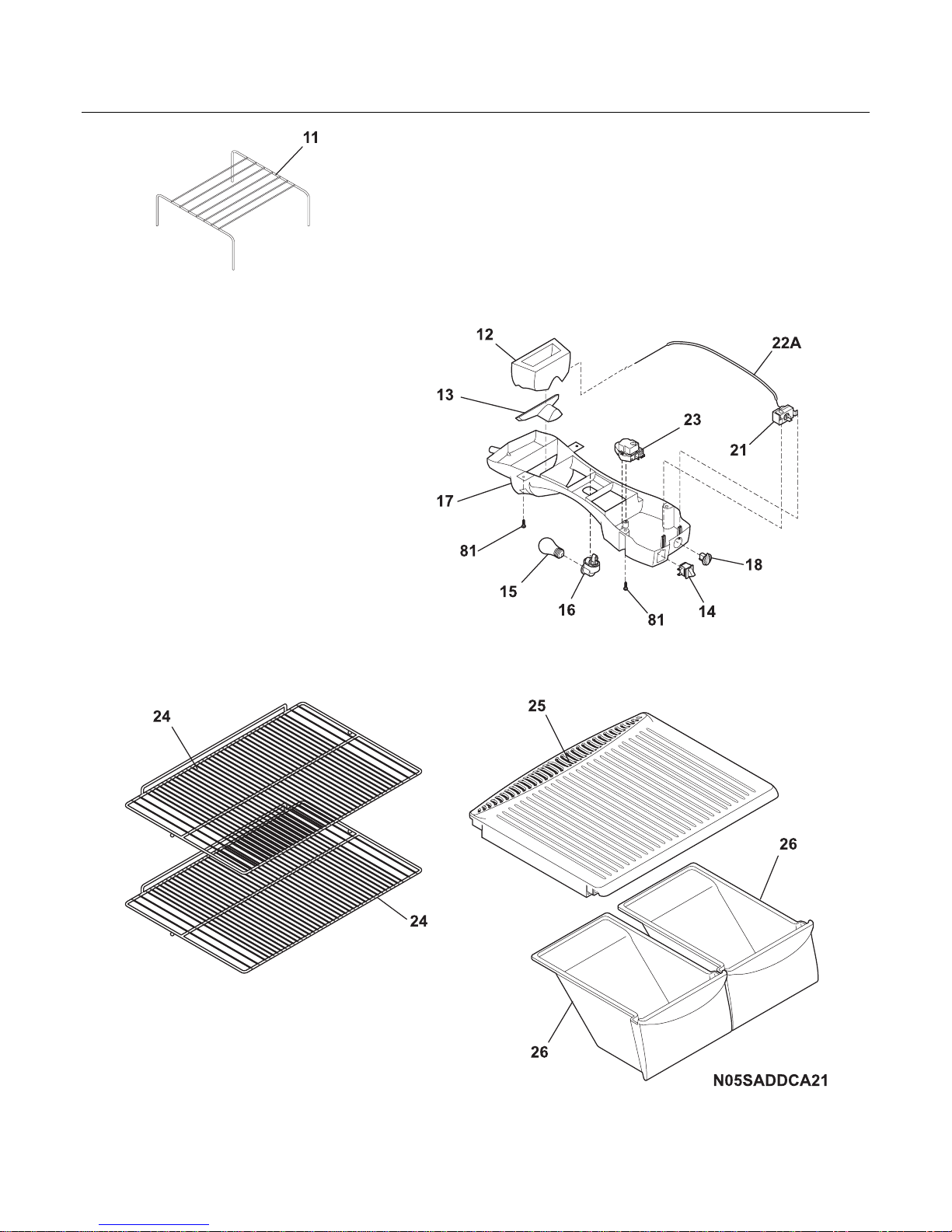

SHELVES

FRT17HB3C Publication No: 5995489415

# Functional Parts 7 04/07

* Non-Illustrated Parts

SHELVES

Model Index: AFRT17HB3C (FRT17HB3CW7)

BFRT17HB3C (FRT17HB3CZ7)

POS. NO PART NO. DESCRIPTION

11 5303282284 A B Shelf-freezer, "table type"

12 241542001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

16 241559801 A B Socket-light

17 240368001 A B Control Box

17* 240568607 A B Seal

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 A B Timer-defrost

23* 5304455649 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360902 A B Shelf, sliding, wire

25 240364706 A B Cover, crisper pan

26 240364501 A B Pan, crisper, (2)

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

* 240592273 A B Energy Guide

Publication No: 5995489415 FRT17HB3C

04/07 8

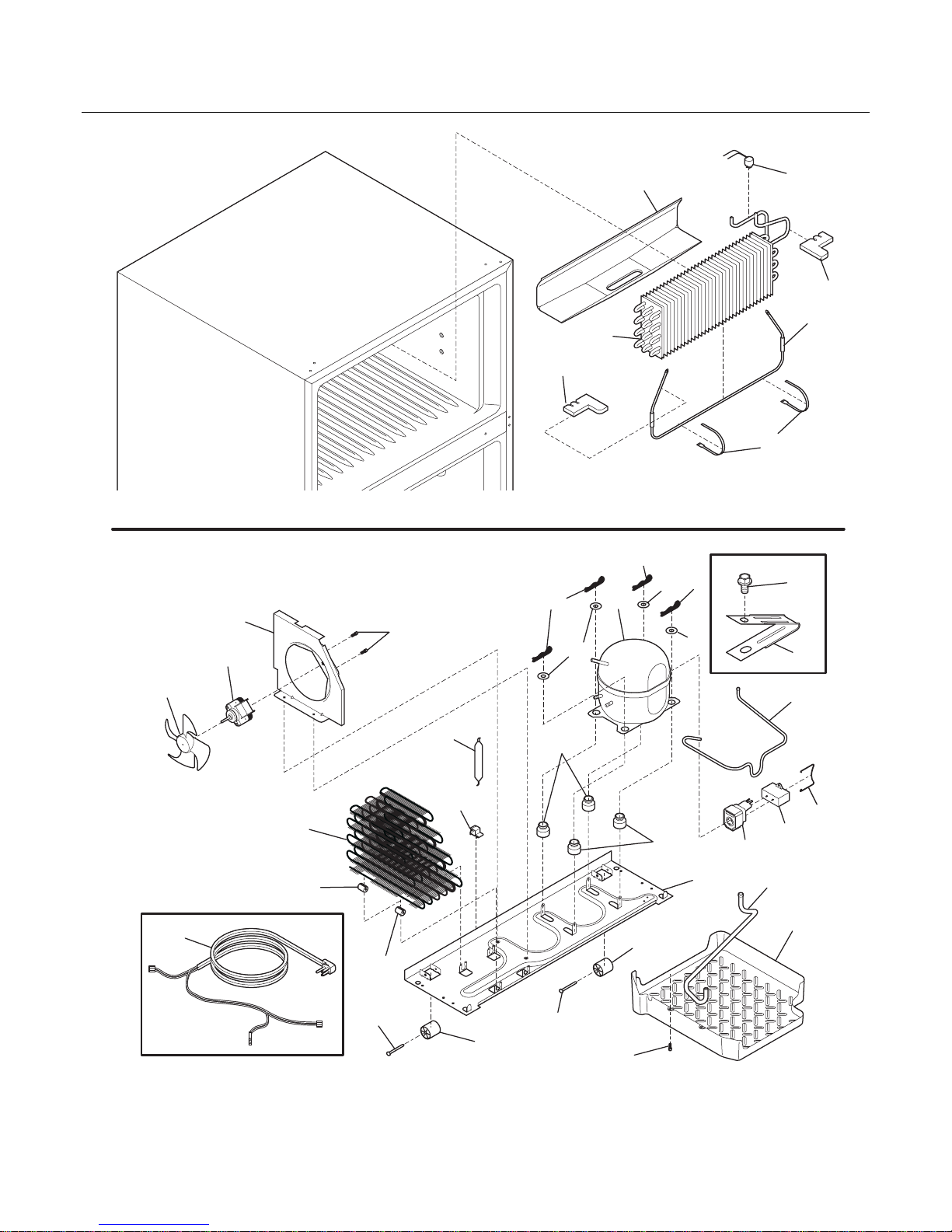

SYSTEM

17 21

N05CAABAD1

24 25

FRT17HB3C Publication No: 5995489415

# Functional Parts 9 04/07

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT17HB3C (FRT17HB3CW7)

BFRT17HB3C (FRT17HB3CZ7)

POS. NO PART NO. DESCRIPTION

1 # 241665702 A B Condenser, dynamic

4 # 218944001 A B Drier-filter, R134a System

6 # 241607001 A B Harness-wiring, machine compt

6* 240388701 A B Wiring Harness, control box

6* 241520701 A B Harness-wiring, freezer

14 # 240356213 A B Heater-defrost

15 # 5303918275 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241801302 A B Trough-drain

20 241551901 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241665605 A B Base-compressor

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

24 241812301 A B Washer-compr mtg

25 216056401 A B Clip-compressor mtg

26 241683601 A B Pan-defrost

29 # 5303918350 A B Compressor Kit

30 # 241707703 A B Starter, PTC

32 216649100 A B Clamp, elec cont mtg, compressor

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240433204 A B Screw, hex washer head, 8-18 x 5/16

44 5304456288 A B Clamp-wiring harness, strain relief, galv steel

45 241500304 A B Screw, hex washer head, 8-18AB x 0.625

55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad

57 240542601 A B Clip-wiring harness

58 218897004 A B Screw, hex washer head, 8-32 x 0.375

59 5304430246 A B Bracket-cond motor assy

59* 240346701 A B Tape-foam seal, shroud

59* 240359403 A B Screw-fan shroud, (2)

60 240525402 A B Motor, condensor fan

61 # 240524101 A B Fan Blade, galv steel, condenser fan

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 A B Tube-drain, rubber, lower

85 241719501 A B Tube-connector, suction

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* # 5303918263 A B Heat Exchanger Kit, suction line

* 5303918222 A B Hot Tube Repair Kit, service

Publication No: 5995489415 FRT17HB3C

04/07 10

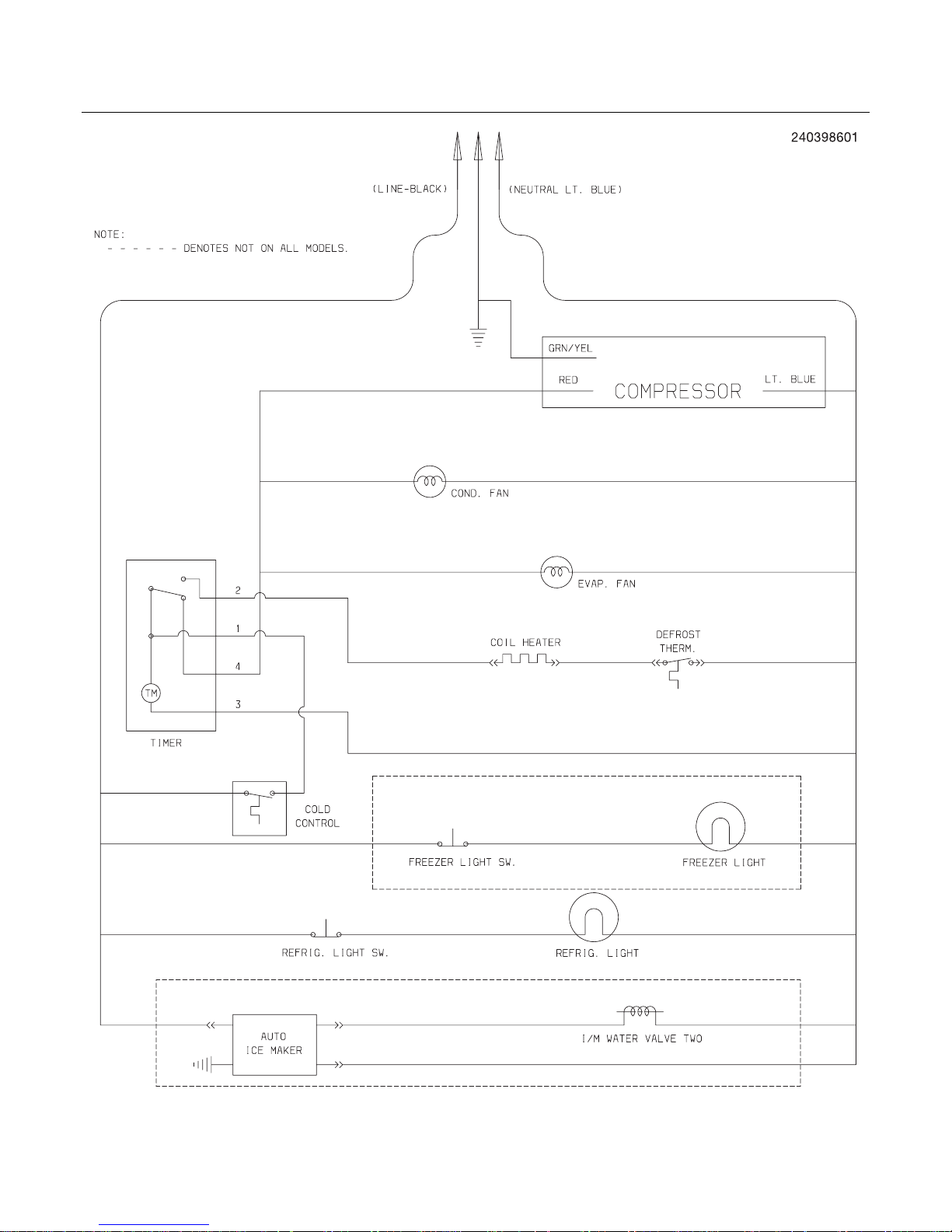

WIRING SCHEMATIC
