Frigidaire FRT17G4B Manuel utilisateur

Product No. FRT17G4BQ9 FRT17G4BW9

Series R134a, Static R134a, Static

Color bisque white

Volts 115 115

Wiring Diagram 240398801 240398801

Owner's Guide 241694400 241694400

Market North America North America

Energy Guide 218791413 218791413

Service Data Sheet 240379018 240379018

Installation Instructions 240568301 240568301

N05L00001.eps N05DAACLA0.eps N05BBAABA26.eps N05SADAHF12.eps

N05CBBBAC5.eps 240398801.eps 240398601.eps

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995475646

06/10/03

(EN/SERVICE/RLF)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT17G4B

Publication No: 5995475646 FRT17G4B

10/06 2

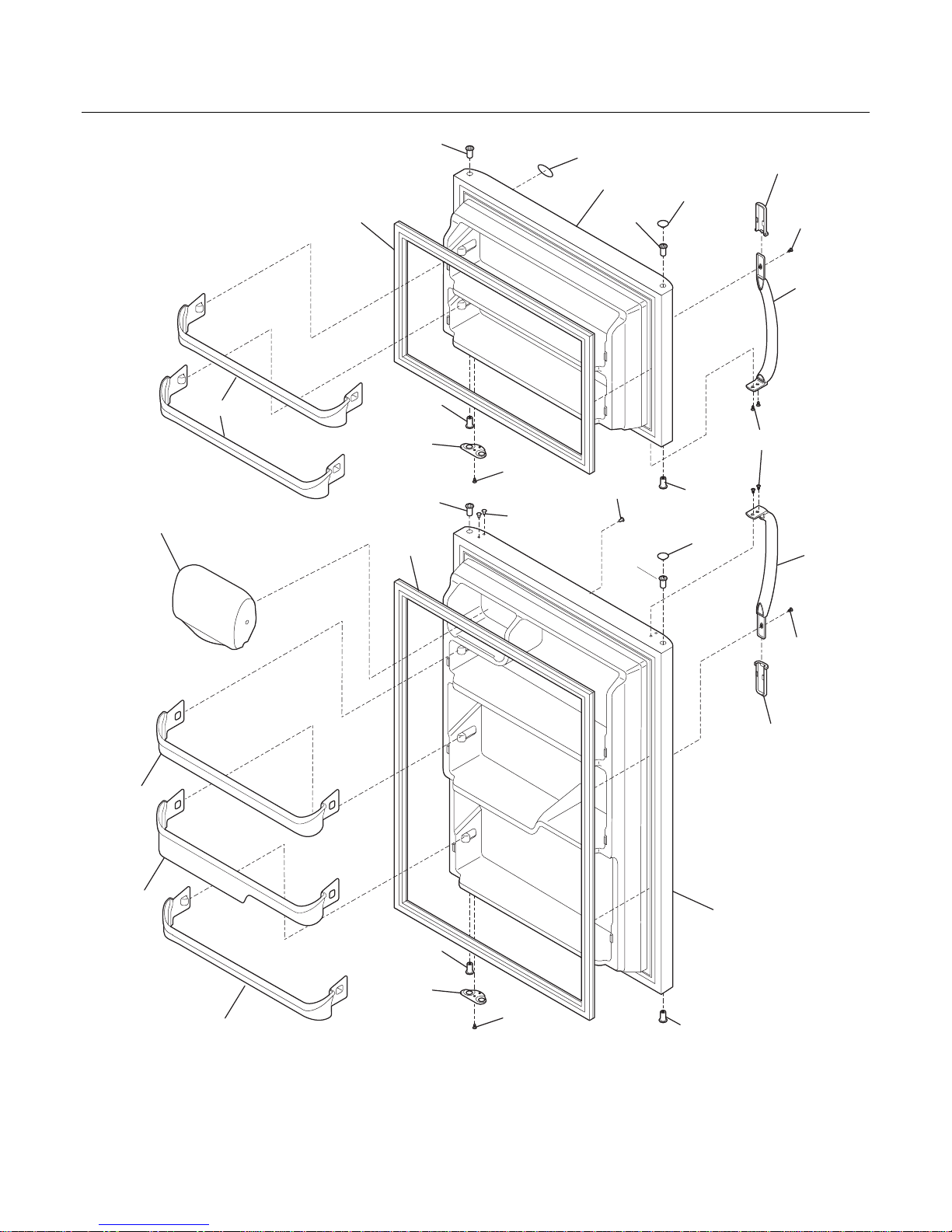

DOOR

13A

21C

N05DAACLA0

48A

48B

FRT17G4B Publication No: 5995475646

# Functional Parts 3 10/06

* Non-Illustrated Parts

DOOR

Model Index: AFRT17G4B (FRT17G4BQ9)

BFRT17G4B (FRT17G4BW9)

POS. NO PART NO. DESCRIPTION

1 # 240554113 A B Gasket-frzr door, white, magnetic

2 # 240542116 A B Gasket-refr door, white, magnetic

4 240535101 A B Rack-door

7 240337712 A B Door-dairy

8 240535001 A B Rack-door

10 240381302 A - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - B Plug-button, white, hinge brg hole, (2)

11 240420102 A - Door, frzr, bisque

11 240420101 - B Door, frzr, white

12 240415203 A - Label-nameplate, bisque

12 240415201 - B Label-nameplate, white

13 240312407 A - Door Stop, bisque, ref

13 240312403 - B Door Stop, white, ref

13A 240312408 A - Door Stop, bisque, frzr

13A 240312404 - B Door Stop, white, frzr

14 240494002 A - Plug-button, bisque

14 240494001 - B Plug-button, white

15 240420202 A - Door, refr, bisque

15 240420201 - B Door, refr, white

18 218668004 A - Handle-door, bisque

18 218668001 - B Handle-door, white

21 240383406 A B Screw, truss hd quad, #10-16 x .500, zinc

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

37 215870633 A - Trim-handle, 2.47", bisque, w/satin AL band

37 215870629 - B Trim-handle, 2.47", white, w/satin AL band

37* 218676004 A B Band-decorative, satin aluminum, handle trim

48A 240383901 A B Bin-door, 2-liter

48B 240383801 A B Bin-door, gallon

* 218515401 A B Clip

Publication No: 5995475646 FRT17G4B

10/06 4

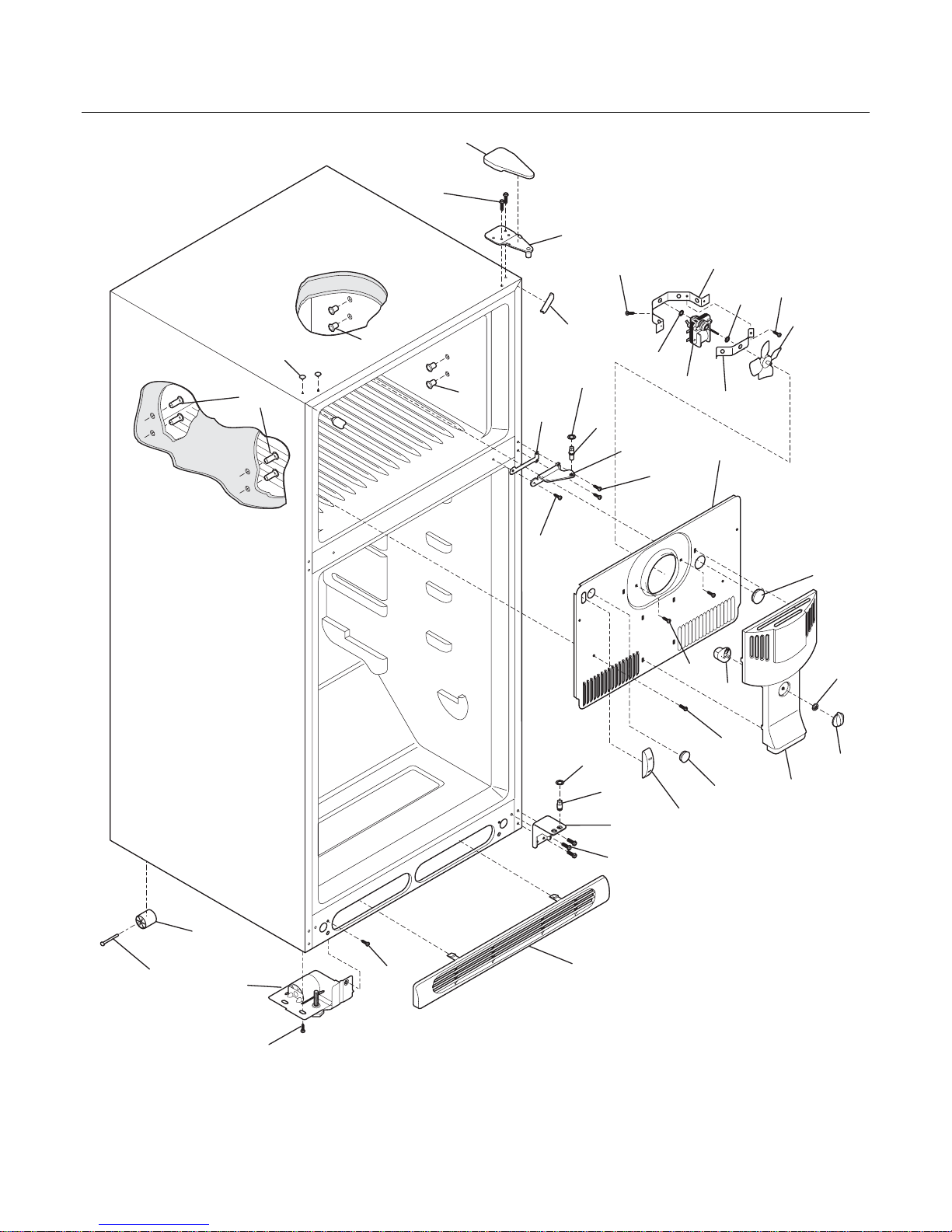

CABINET

12A

35A 36

N05BBAABA26

43 21C

21C

FRT17G4B Publication No: 5995475646

# Functional Parts 5 10/06

* Non-Illustrated Parts

CABINET

Model Index: AFRT17G4B (FRT17G4BQ9)

BFRT17G4B (FRT17G4BW9)

POS. NO PART NO. DESCRIPTION

1 241652301 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 241652215 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

10* 241520701 A B Harness-wiring, freezer

11 5303208309 A B Plug-hole, factory test

12 241557601 A B Plug-ice maker harness, rectangular

12A 240374401 A B Plug-wtr inlet tube, round, 1"

12A* 241586701 A B Plug-foam-wtr-inlet, round

13 240369702 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433204 A B Screw, hex washer head, 8-18 x 5/16

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774919 A - Plug-button, bisque, upr hinge holes

22 215774901 - B Plug-button, white, upr hinge holes

30 240357106 A B Bracket-lower hinge

34 240311303 A B Washer, hinge, nylon, (2)

35 240357006 A B Bracket-ctr hinge

35A 240336802 A B Spacer-hinge, center

36 240516402 A B Pin-center hinge

37 241611304 A - Trim-cabinet corner, bisque, (2)

37 241611301 - B Trim-cabinet corner, white, (2)

38 240356901 A B Bracket, upper hinge

40 240354403 A - Cover-upper hinge, bisque

40 240354401 - B Cover-upper hinge, white

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559604 A B Roller Assy, fixed, front LH

43* 241559603 A B Roller Assy, fixed, front RH

56 240516502 A B Pin-lower hinge

58 5304456287 A B Screw, hex washer head, 8-15A x 0.500

59 240442706 A B Screw-#10-32 X 3/4, zinc

72 240368302 A - Grille/Kickplate, bisque, lower front

72 240368301 - B Grille/Kickplate, white

81 240433202 A B Screw, hex washer head, 8-18 x 5/16

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 A B Plug, button, cab liner holes

* 5304414035 A - Paint, touch-up, bisque

* 5303321319 - B Paint, touch-up, white

Publication No: 5995475646 FRT17G4B

10/06 6

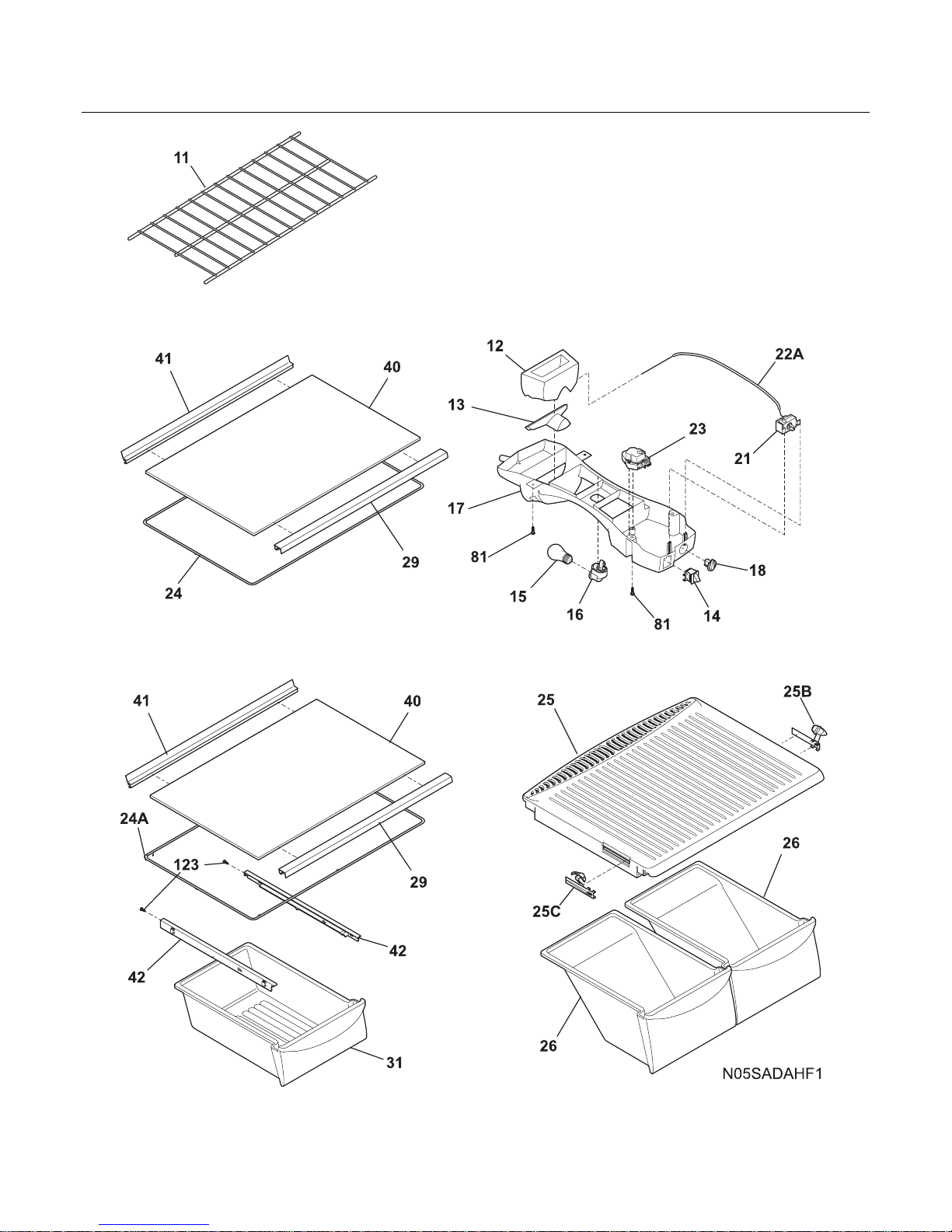

SHELVES

FRT17G4B Publication No: 5995475646

# Functional Parts 7 10/06

* Non-Illustrated Parts

SHELVES

Model Index: AFRT17G4B (FRT17G4BQ9)

BFRT17G4B (FRT17G4BW9)

POS. NO PART NO. DESCRIPTION

11 240358004 A B Shelf, freezer

12 241542001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 # 241559801 A B Socket-light

17 240368001 A B Control Box

17* 240568607 A B Seal

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 A B Timer-defrost

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438

24 240372401 A B Frame, sliding shelf, full width

24A 240372404 A B Frame, sliding shelf, full width, w/hanger tabs

25 240364722 A B Cover-crisper pan

25B 241613501 A B Control-humidity, RH

25C 241613502 A B Control-humidity, LH

26 240364503 A B Pan, crisper, (2)

29 240357703 A B Trim, shelf, front

31 240530811 A B Pan-meat, w/o graphics, clear

40 240350619 A B Panel, glass shelf, full width

41 240561501 A B Trim-shelf, 22.16", rear

42 240530601 A B Track, meat pan hanger, LH

42 240530701 A B Track, meat pan hanger, RH

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16

* 240379018 A B Service Data Sheet

* 218791413 A B Energy Guide

Publication No: 5995475646 FRT17G4B

10/06 8

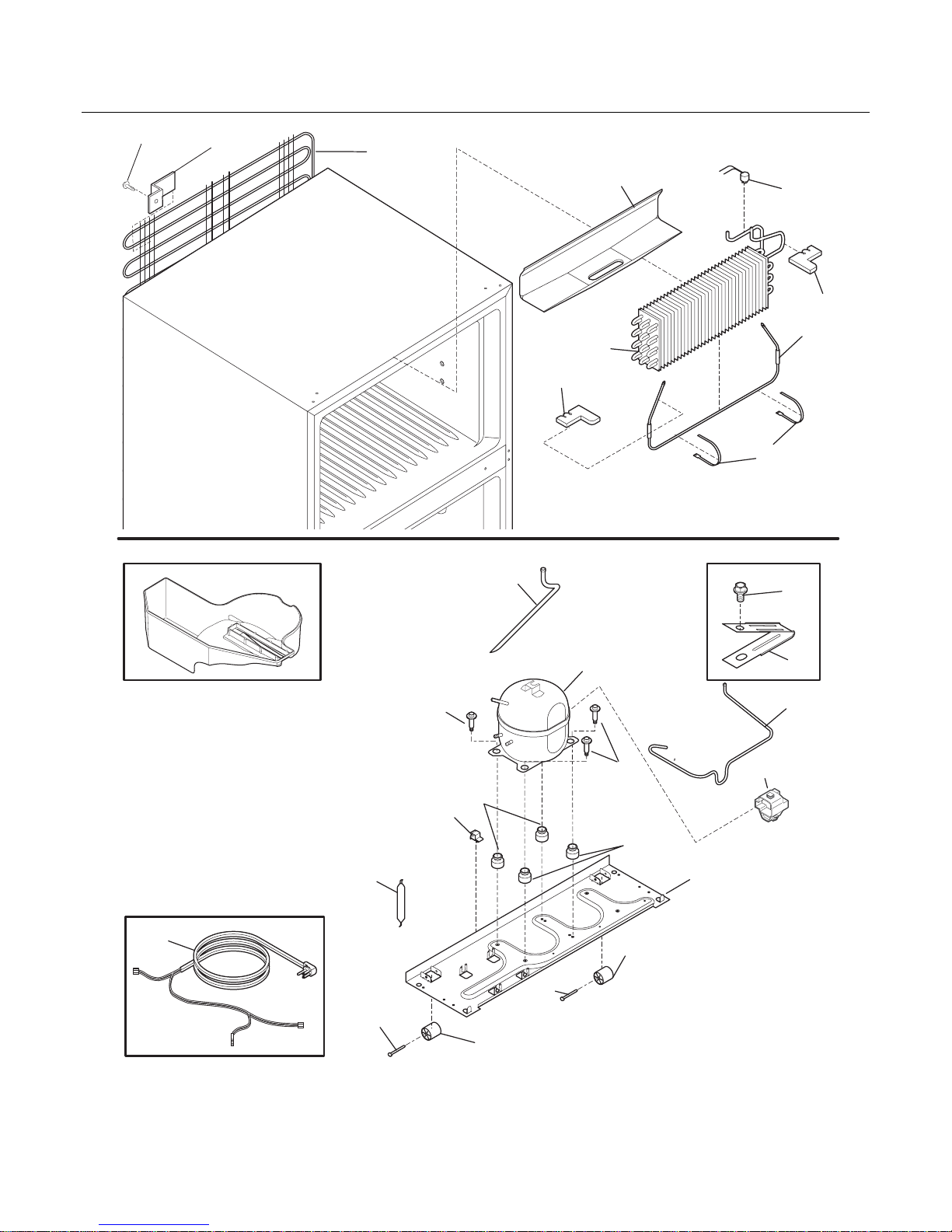

SYSTEM

N05CBBBAC5

FRT17G4B Publication No: 5995475646

# Functional Parts 9 10/06

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT17G4B (FRT17G4BQ9)

BFRT17G4B (FRT17G4BW9)

POS. NO PART NO. DESCRIPTION

1 # 240406407 A B Condenser, static

1* 240405201 A B Grommet, rubber, black, cond tube/wire

1* 5303208866 A B Spacer, condenser tube, black

1* 5304406721 A B Spacer-cond tube, round, 5/8 OD x .81"lg

2 5308000296 A B Bracket, condenser mtg, (4)

4 # 218944001 A B Drier-filter, R134a System

6 # 241678801 A B Harness-wiring, machine compt

6* # 240388701 A B Wiring Harness, control box

6* # 241520701 A B Harness-wiring, freezer

14 # 240356213 A B Heater-defrost

15 5303918275 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241551802 A B Trough-drain

20 241551901 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241665503 A B Base-compressor

22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 240598501 A B Pan-defrost drain

26* 5303307896 A B Thermal Mastic

29 # 5303918326 A B Compressor, w/electricals

30 # 241667501 A B Relay Combo

41 240433204 A B Screw, hex washer head, 8-18 x 5/16

44 5304456288 A B Clamp-wiring harness, strain relief, galv steel

45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

57 240542601 A B Clip-wiring harness

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241505701 A B Tube-drain, lower

85 241544301 A B Tube-connector, suction

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 5303918263 A B Heat Exchanger Kit, suction line

* # 5303918234 A B Hot Tube Repair Kit, service

Publication No: 5995475646 FRT17G4B

10/06 10

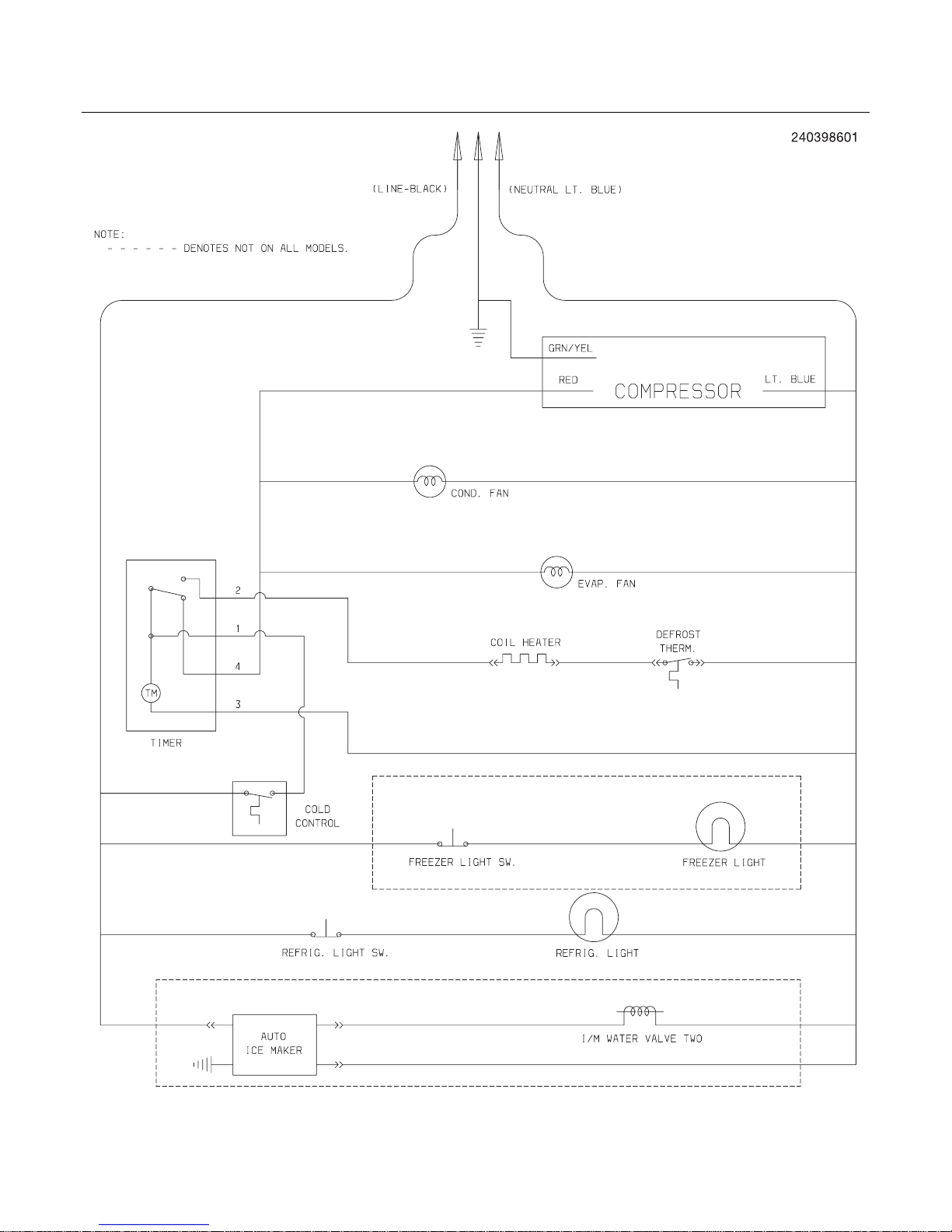

WIRING SCHEMATIC
