Frigidaire FRT15G5CS Manuel utilisateur

N05L00001.e

s N05DAACJA2.e

s N05BBAABA6.e

s N05SAAAHF12.e

N05CABBAB1.eps 240398601.eps 240398801.eps

Product No. FRT15G5CSB1 FRT15G5CSK1

Series R134a R134a

Color stain/blk right stain/blk left

Volts 115 115

Wiring Diagram 240398801 240398801

Owner's Guide 240400110 240400110

Market North America North America

Energy Guide 240572146 240572146

Service Data Sheet 240379011 240379011

Installation Instructions 240568300 240568300

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995399838

03/12/05

(EN/SERVICE/KB)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT15G5CS

Publication No: 5995399838 FRT15G5CS

12/03 2

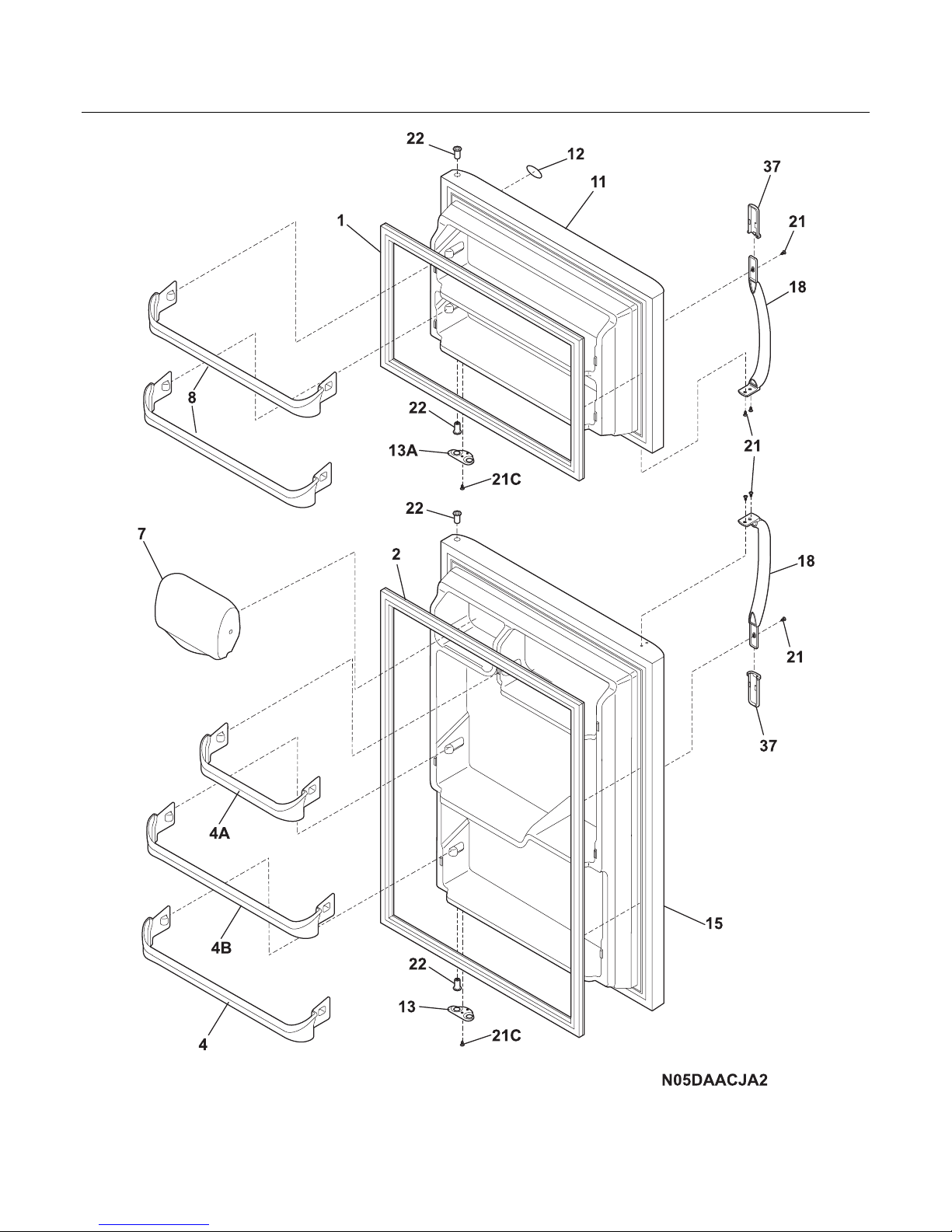

DOOR

FRT15G5CS Publication No: 5995399838

# Functional Parts 3 12/03

* Non-Ilustrated Parts

DOOR

Model Index: AFRT15G5CS (FRT15G5CSB1)

BFRT15G5CS (FRT15G5CSK1)

POS. NO PART NO. DESCRIPTION

1 # 240542107 A B Gasket, frzr door seal, black, magnetic

2 # 240542108 A B Gasket, refr door seal, black, magnetic

4 240535101 A B Rack-door

4A 240535301 A B Rack-door

4B 240535201 A B Rack-door

7 240337703 A B Door-dairy, w/o graphics, clear

8 240535001 A B Rack-door

11 240573501 A - Door, frzr, stainless, RH, complete assy

11 240573502 - B Door, frzr, stainless, LH, complete assy

12 240415204 A B Label-nameplate, black

13 240312405 A B Door Stop, black, refr

13A 240312406 A B Door Stop, black, frzr

15 240573603 A - Door, refr, stainless, RH, complete assy

15 240573604 - B Door, refr, stainless, LH, complete assy

18 218668003 A B Handle-door, black

21 240383401 A B Screw, truss hd quad, #10-16 x .500

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A B Bearing-hinge, black

37 215870636 A B Trim-handle, 2.47", black, w/satin AL band

37* 218676004 A B Band-decorative, satin aluminum, handle trim

* 218490900 A B Cleaner, stainless steel

Publication No: 5995399838 FRT15G5CS

12/03 4

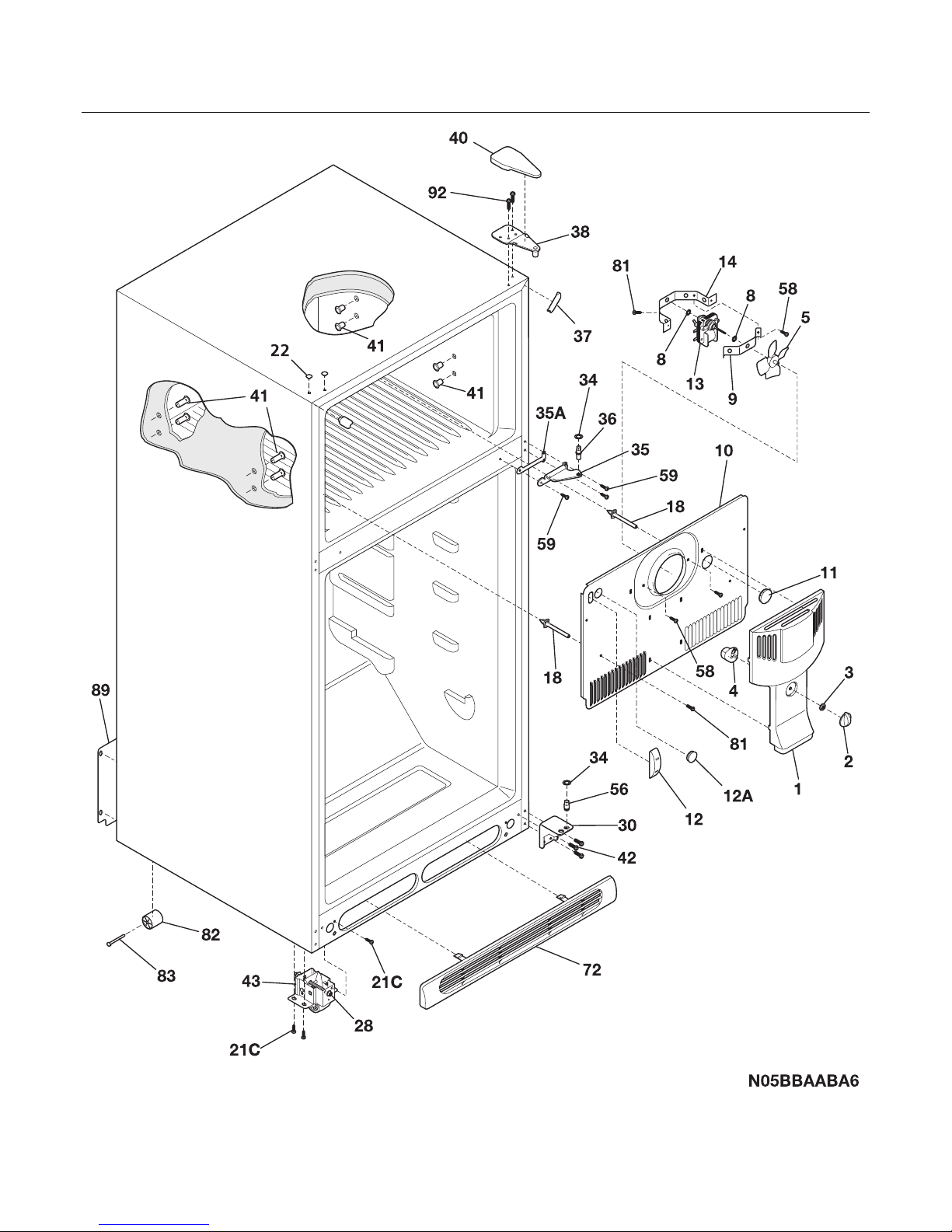

CABINET

FRT15G5CS Publication No: 5995399838

# Functional Parts 5 12/03

* Non-Ilustrated Parts

CABINET

Model Index: AFRT15G5CS (FRT15G5CSB1)

BFRT15G5CS (FRT15G5CSK1)

POS. NO PART NO. DESCRIPTION

1 240355401 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 240367401 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 240462011 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

10* 241520701 A B Harness-wiring

11 5303208309 A B Plug-hole, factory test

12 240366801 A B Plug-ice maker harness, rectangular

12A 240374401 A B Plug-wtr inlet tube, round, 1"

13 # 240369701 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

18 240411901 A B Support-evap cover, (2)

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A B Plug-button, black, upr hinge holes

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240357103 A B Bracket, bottom hinge, black

34 240311303 A B Washer, hinge, nylon, (2)

35 240357003 A B Bracket, center hinge, black

35A 240336802 A B Spacer-hinge, center

36 240516401 A B Pin-center hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 240356901 A B Bracket, upper hinge

40 240354404 A B Cover-upper hinge, black

41 5303001609 A B Grommet, shelf mtg, 0.69", RH

41* 5308009759 A B Grommet, shelf mtg, 1.25", LH

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, front, (2)

56 240516501 A B Pin-lower hinge

58 5303001343 A B Screw, hex washer head, 8-15A x 0.500

59 240442703 A B Screw-#10-32 X 3/4, black

72 240368303 A B Grille/Kickplate, black, lower front

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326114 A B Cover, access, system compt, with label

92 5303001479 A B Screw-hinge mtg, hex hd, 1/4-20 x 0.875

* 240479601 A B Plug, button, cab liner holes, (2)

* 5303305345 A B Paint, touch-up, black

Publication No: 5995399838 FRT15G5CS

12/03 6

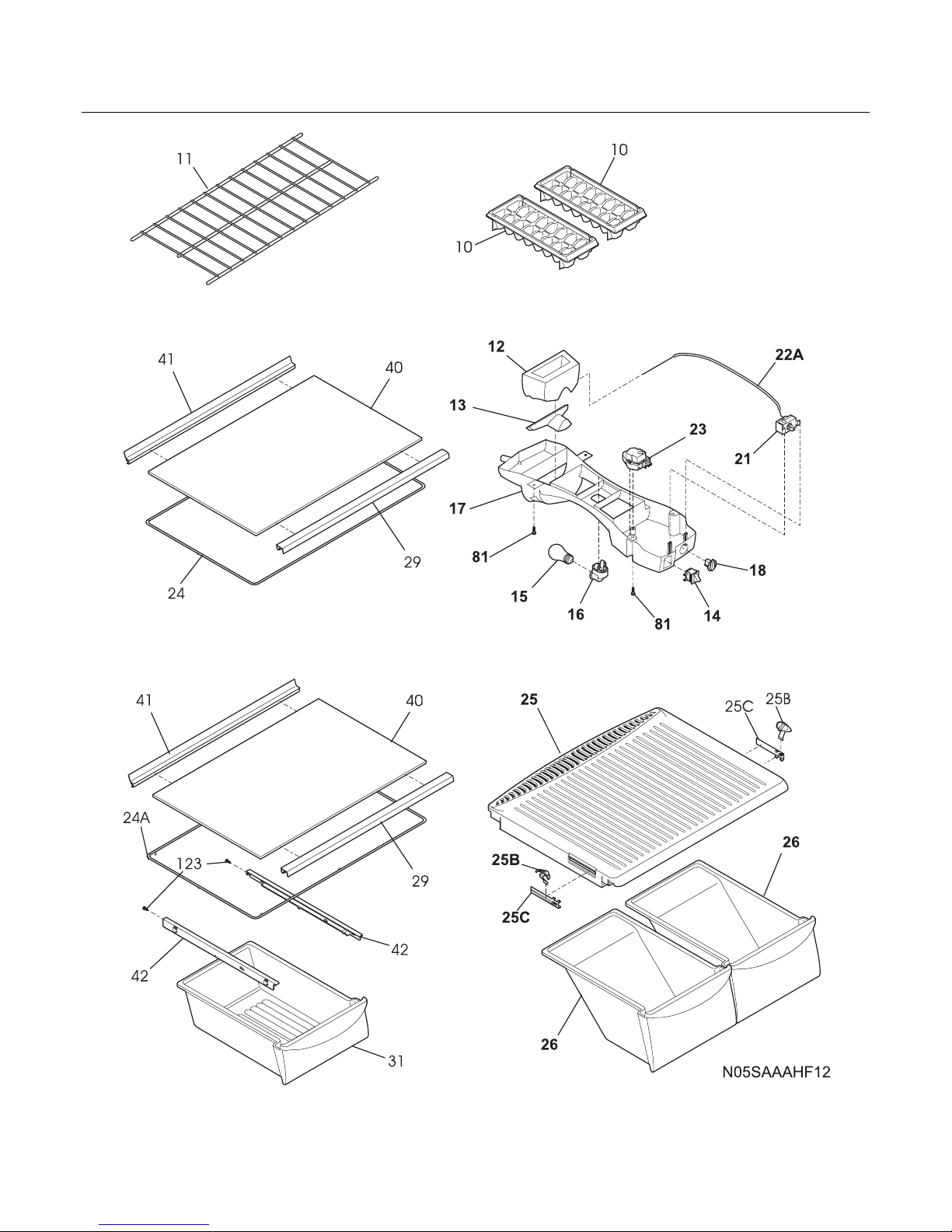

SHELVES

FRT15G5CS Publication No: 5995399838

# Functional Parts 7 12/03

* Non-Ilustrated Parts

SHELVES

Model Index: AFRT15G5CS (FRT15G5CSB1)

BFRT15G5CS (FRT15G5CSK1)

POS. NO PART NO. DESCRIPTION

10 215667501 A B Tray, ice cube, plastic

11 240358001 A B Shelf, freezer

12 240545001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 240505801 A B Switch, light/lamp

15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 # 241500701 A B Socket-light/lamp

17 240368001 A B Control Box

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 A B Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240372401 A B Frame, sliding shelf, full width

24A 240372404 A B Frame, sliding shelf, full width, w/hanger tabs

25 240364722 A B Cover-crisper pan

25B 240361202 A B Control-humidity

25C 240361301 A B Damper, humidity cont.

26 240364503 A B Pan, crisper, (2)

29 240357703 A B Trim, shelf, front

31 240530803 A B Pan-meat, w/o graphics, clear

40 240350663 A B Glass-shelf, 22.16" x 16.08", refr

41 240561501 A B Trim-shelf, 22.16", rear

42 240530601 A B Track, meat pan hanger, LH

42 240530701 A B Track, meat pan hanger, RH

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995399838 FRT15G5CS

12/03 8

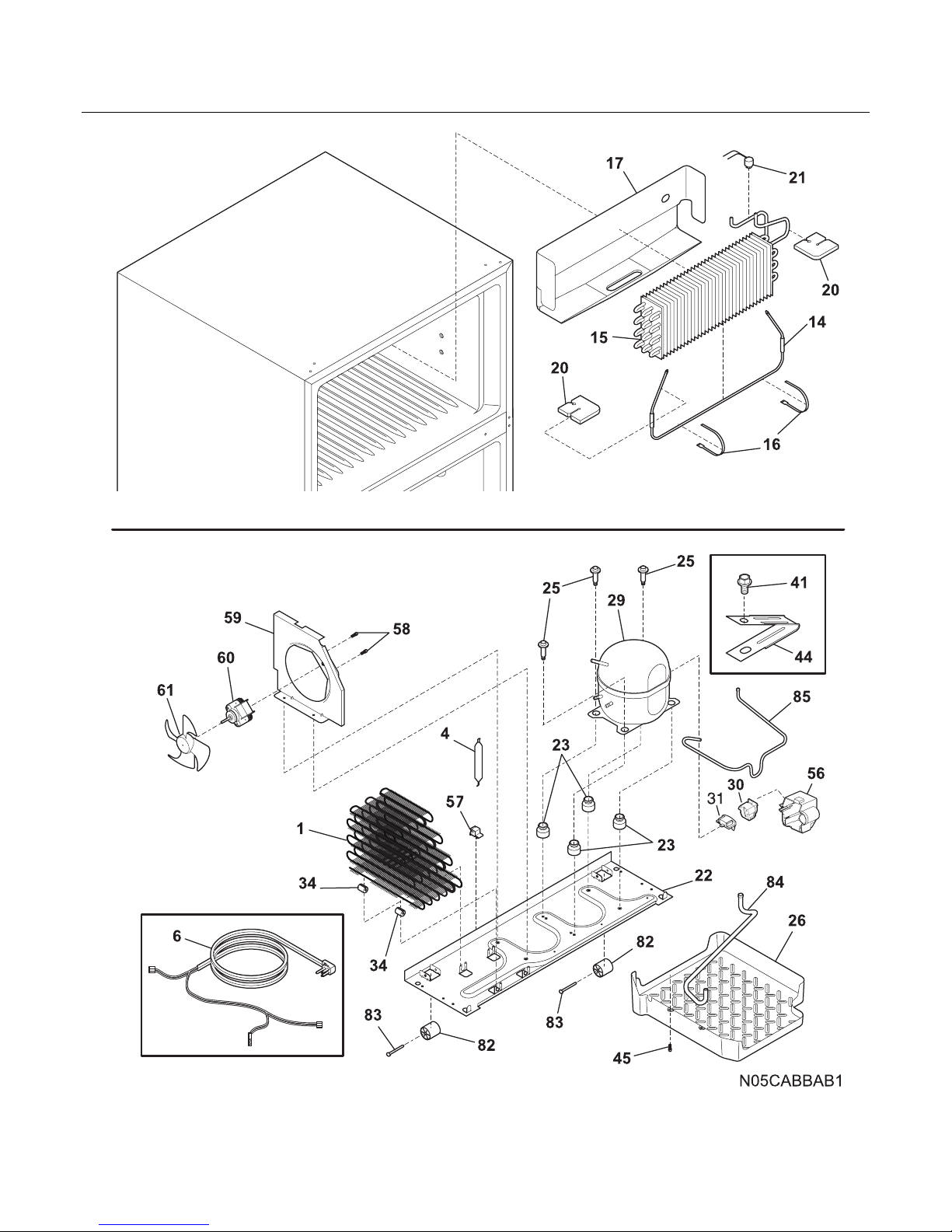

SYSTEM

FRT15G5CS Publication No: 5995399838

# Functional Parts 9 12/03

* Non-Ilustrated Parts

SYSTEM

Model Index: AFRT15G5CS (FRT15G5CSB1)

BFRT15G5CS (FRT15G5CSK1)

POS. NO PART NO. DESCRIPTION

1 240444401 A B Condenser, dynamic

4 # 218944001 A B Drier-filter, R134a System

6 # 240581701 A B Harness-wiring, machine compt

6* 241520701 A B Harness-wiring

6* # 240388701 A B Wiring Harness, control box

6* # 240581801 A B Harness-wiring, compressor

14 # 5303918203 A B Defrost Heater Kit

15 # 5303918275 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 240434003 A B Trough-drain

20 240518402 A B Insulation, evap block, foam, LH/RH

21 # 5303918202 A B Thermostat-defrost, kit

22 240330005 A B Base-compressor

22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332605 A B Pan-defrost drain

29 # 5303918297 A B Compressor, w/electricals

30 # 5304433579 A B Relay

31 # 5304433578 A B Overload Protector

34 240405201 A B Grommet, rubber, black, cond tube/wire

41 240433202 A B Screw, hex washer head, 8-18 x 5/16

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

56 240582001 A B Cover-terminal

57 240542601 A B Clip-wiring harness

58 218897002 A B Screw, hex washer head, 8-32 x 0.375

59 5304430246 A B Bracket-cond motor assy

59* 240346701 A B Tape-foam seal, shroud

59* 240359401 A B Screw-fan shroud, (2)

60 # 240525401 A B Motor-condenser fan

61 # 240524101 A B Fan Blade, galv steel, condenser fan

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 A B Tube-drain, rubber, lower

85 240493101 A B Tube-connector, suction

* 5303918263 A B Heat Exchanger Kit, suction line

* 5303918222 A B Hot Tube Repair Kit, Service

Publication No: 5995399838 FRT15G5CS

12/03 10

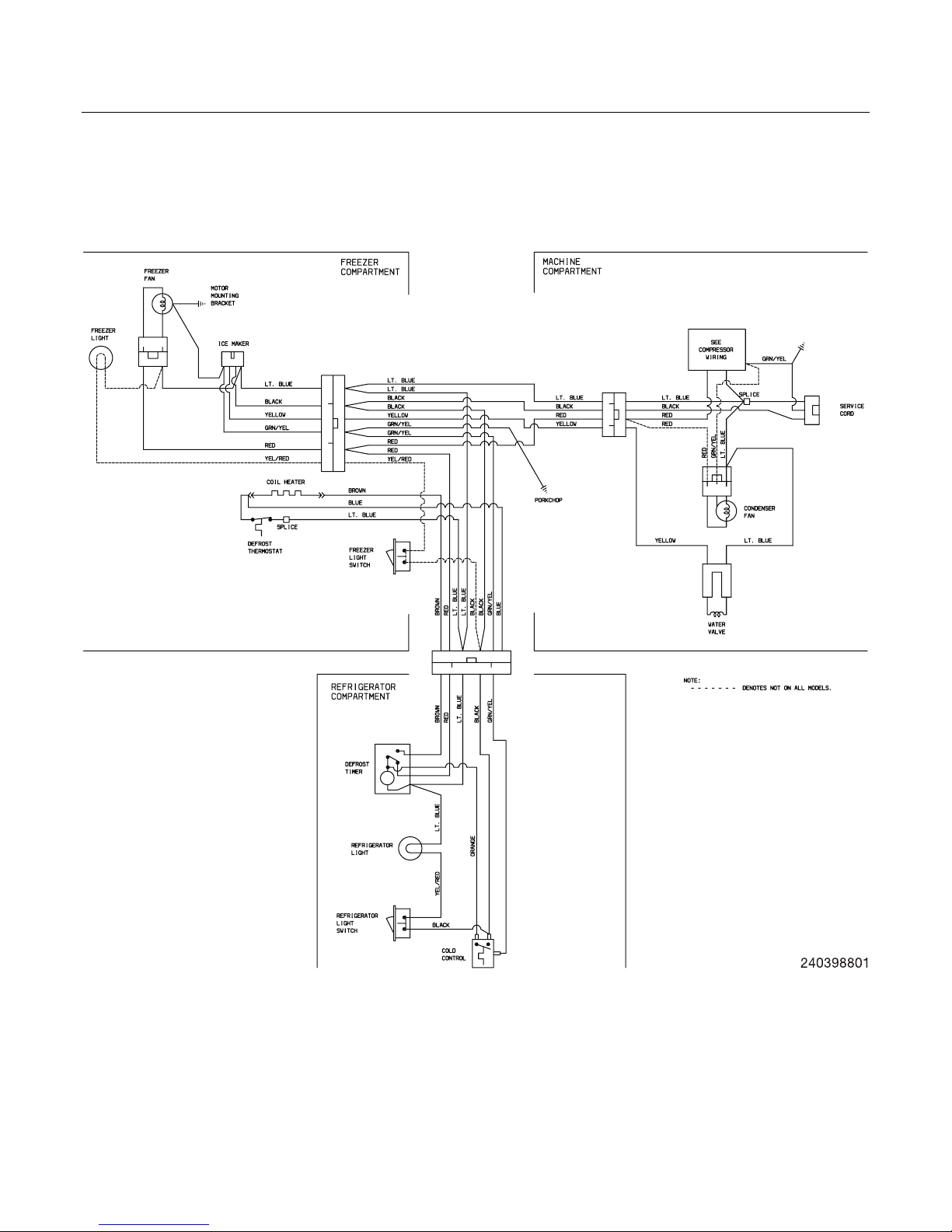

WIRING SCHEMATIC
