Frigidaire FRS6L9EES Mode d’emploi

N58L00001.eps N58FFDEEA2.eps N58RFCBBC7.eps N58BAAAAB2.eps

N58SLDJBE11.eps N58TCAAAB0.eps N58CAAAAC5.eps N58XEAAAA0.eps

N58YDAAAC0.eps N58I115T.eps W241660501.eps S241660501.eps

Product No. FRS6L9EESS5 FRS6L9EESS9

Series 134A 134A

Color stain/gray stain/gray

Volts 115 115

Wiring Diagram 241636300 241636300

Owner's Guide 241622401 241622401

Market North America North America

Energy Guide 241649201 241649201

Service Data Sheet 241636601 241636601

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995442026

05/07/18

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6L9EES

Publication No: 5995442026 FRS6L9EES

07/05 2

FREEZER DOOR

22C

22A

21A

13A

N58FFDEEA2

79 80

FRS6L9EES Publication No: 5995442026

# Functional Parts 3 07/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS6L9EES (FRS6L9EESS5)

BFRS6L9EES (FRS6L9EESS9)

POS. NO PART NO. DESCRIPTION

1 # 241569806 A B Gasket-frzr door, black, magnetic

4B 240334202 A B Bin-door, frzr-upper

4C 240351702 A B Bin-door, frzr-dispenser

5 241545005 A B Bin-tilt out, tilt-out

11 241615116 A B Door-frzr, stainless, complete assy

13A 240581906 A B Door Stop, black, frzr

18 240536801 A B Handle-door, stainless steel, with insert

21A 240598401 A B Screw, 10-32 x 1/2

22A 240328204 A B Bearing-hinge(frz), black, closer

22C 240328404 A B Bearing-hinge, black, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995442026 FRS6L9EES

07/05 4

REFRIGERATOR DOOR

FRS6L9EES Publication No: 5995442026

# Functional Parts 5 07/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS6L9EES (FRS6L9EESS5)

BFRS6L9EES (FRS6L9EESS9)

POS. NO PART NO. DESCRIPTION

2 # 241569805 A B Gasket-refr door, black, magnetic

4 240323002 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

12 240572601 A B Label-nameplate

13 240581905 A B Door Stop, black, ref

15 241534541 A B Door-refr, stainless steel, complete assy

18 240536801 A B Handle-door, stainless steel, with insert

21A 240598401 A B Screw, 10-32 x 1/2

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

27A 240396102 A B Retainer, tall bottle

49 240356410 A B Bin-door, gallon

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995442026 FRS6L9EES

07/05 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB2

FRS6L9EES Publication No: 5995442026

# Functional Parts 7 07/05

* Non-Illustrated Parts

CABINET

Model Index: AFRS6L9EES (FRS6L9EESS5)

BFRS6L9EES (FRS6L9EESS9)

POS. NO PART NO. DESCRIPTION

10 240435908 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337605 A B Trim-cabinet corner, silver, (2)

38 240327201 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324406 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574605 A B Cover-access, w/label

90 218249808 A B Seal-coil cover

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 241581801 A B Paint-pen

Publication No: 5995442026 FRS6L9EES

07/05 8

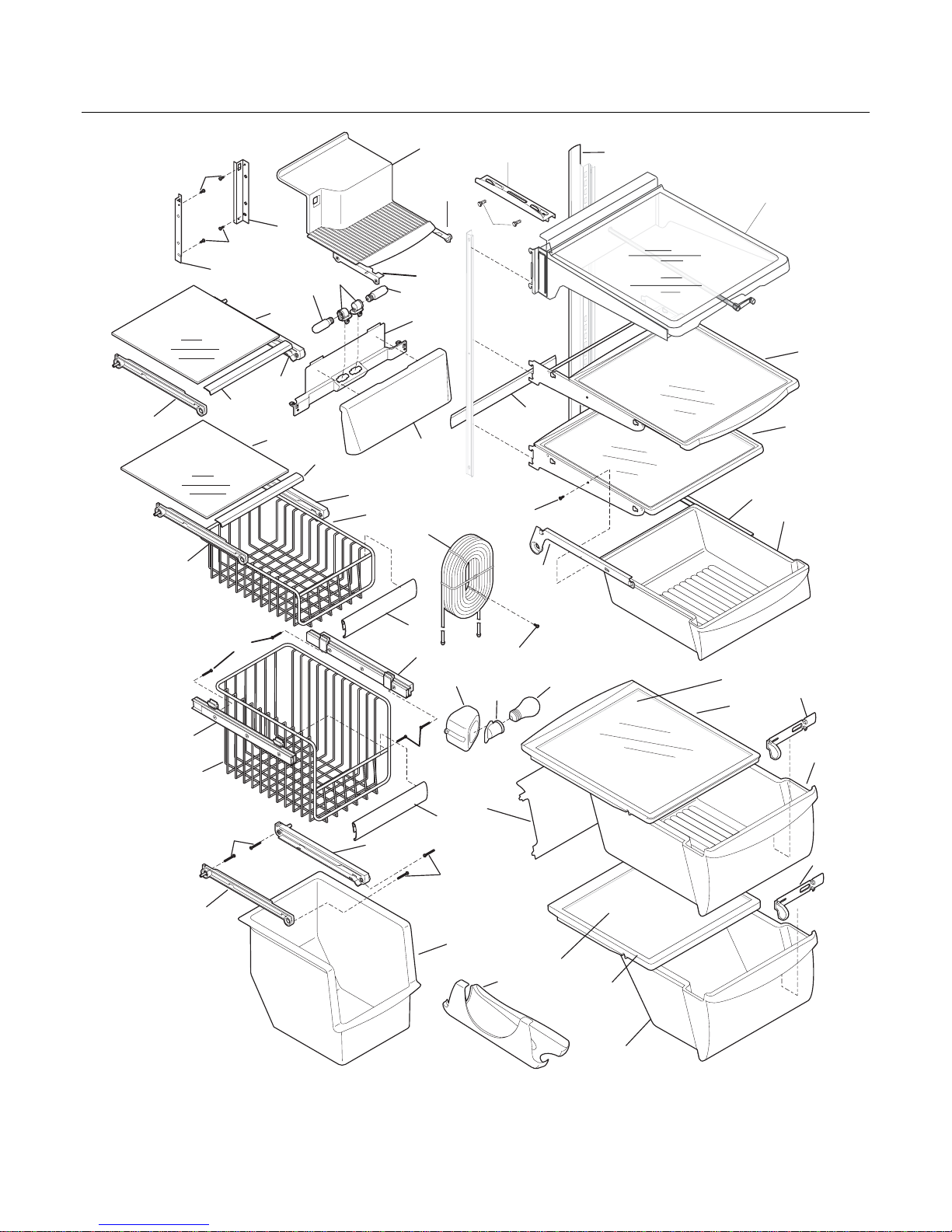

SHELVES

120

122

121

11A

141

142

140A

126

52A

109

51A

49B

49A

52B

51B

101

N58SLDJBE11

100

25A

47A

15A

16A

26A

27A

42A

123

24A

140

11C

24B

136

FRS6L9EES Publication No: 5995442026

# Functional Parts 9 07/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRS6L9EES (FRS6L9EESS5)

BFRS6L9EES (FRS6L9EESS9)

POS. NO PART NO. DESCRIPTION

2 241510604 A B Trim-basket

11 240350668 A B Shelf-freezer, glass, lower

11A 240350667 A B Shelf-freezer, glass, upper

11C 240324101 A B Shelf-pizza

15 241552801 A B Light Bulb

15A 241555401 A B Light Bulb

16 240590401 A B Socket-light

16A 241513901 A B Socket-light

16A* 241537502 A B Harness-wiring

24 240355203 A B Shelf-"Spill-Safe", fixed

24A 240350106 A B Shelf-"Spill-Safe", cantilever, sliding

24B 240424602 A B Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351021 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26* 240423101 A B Channel-divider

26* 240423201 A B Retainer

26* 240423301 A B Divider-crisper pan

26* 241595202 A B Clip-slide, pan-crisper

26A 241638201 A B Control-humidity

26A* 241638101 A B Frame-humidity control

27 240351218 A B Pan-crisper, lower

27A 240362201 A B Control-humidity

39 240367602 A B Trim-shelf, front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

47 240350602 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

49A 240530502 A B Basket-sliding, upper, half

49B 240530504 A B Basket-sliding, upper, full

51 240343002 A B Hanger-basket, RH

51A 240395502 A B Hanger-basket, RH

51B 240579801 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

52A 240395602 A B Hanger-basket, LH

52B 240579802 A B Hanger-basket, LH

60 218362500 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 240342817 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B Water Tank Assy, coiled tubing, front filter

100 240326302 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 241559001 A B Shelf-ice cream

Publication No: 5995442026 FRS6L9EES

07/05 10

SHELVES

120

122

121

11A

141

142

140A

126

52A

109

51A

49B

49A

52B

51B

101

N58SLDJBE11

100

25A

47A

15A

16A

26A

27A

42A

123

24A

140

11C

24B

136
