Frigidaire FRS6HR35K Manuel utilisateur

Product No. FRS6HR35KB0

FRS6HR35KM0

FRS6HR35KS0

FRS6HR35KW0

Series R134a R134a R135a R134a

Color black silver mist stainless white

Volts 115 115 115 115

Wiring Diagram 241970401 241970401 241970401 241970401

Owner's Guide 241856000 241856000 241856000 241856000

Market North America North America North America North America

Energy Guide 241935582 241935582 241935582 241935582

Service Data Sheet 240389636 240389636 240389636 240389636

N58L00002.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps

N58SJCAFB2.eps N58TAAAAA7.eps N58CAAAAC10.eps N58XDAAAA1.eps

N58YBAAAA5.eps N58I1151-1.eps W241970401.eps S241970401.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995532032

09/01/26

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6HR35K

Publication No: 5995532032 FRS6HR35K

01/09 2

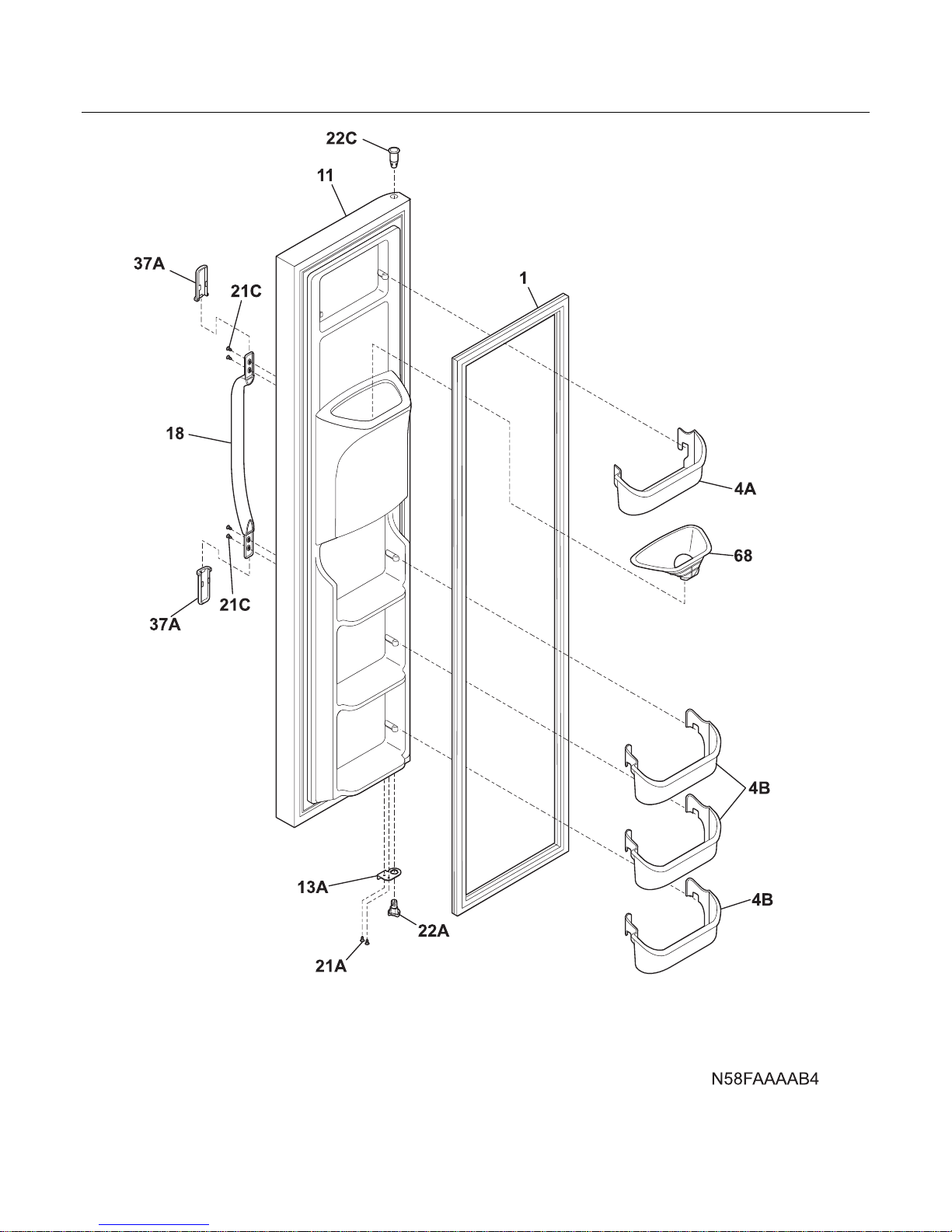

FREEZER DOOR

FRS6HR35K Publication No: 5995532032

# Functional Parts 3 01/09

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS6HR35K (FRS6HR35KB0)

BFRS6HR35K (FRS6HR35KM0)

CFRS6HR35K (FRS6HR35KS0)

DFRS6HR35K (FRS6HR35KW0)

POS. NO PART NO. DESCRIPTION

1 241786006 A B C - Gasket-frzr door, black, magnetic

1 241786002 - - - D Gasket-frzr door, white, magnetic

4A 240334201 A B C D Bin-door, frzr-upper

4B 240351601 A B C D Bin-door

11 241615175 A - - - Door-frzr, black, complete assy

11 242026401 - B - - Door-frzr, silver mist, complete assy

11 242026402 - - C - Door-frzr, stainless, complete assy

11 241668111 - - - D Door-frzr, white, complete assy

13A 240581906 A B C - Door Stop, black, frzr

13A 240581902 - - - D Door Stop, white, frzr

18 218762703 A B C - Handle-door, black

18 218762701 - - - D Handle-door, white

21A 240598402 A B C D Screw, 10-32 x 1/2

21C 218781101 A B C D Screw, pan head, 8-18 x 0.625

22A 240328204 A B C - Bearing-hinge(frz), black, closer

22A 240328202 - - - D Bearing-hinge(frz), closer

22C 240328404 A B C - Bearing-hinge, black, upper

22C 240328402 - - - D Bearing-hinge, natural, upper

37A 215870636 A B C - Trim-handle, 2.47", black, w/satin AL band

37A 215870629 - - - D Trim-handle, 2.47", white, w/satin AL band

37A* 218676004 A B C D Band-decorative, satin aluminum, handle trim

68 241525101 A B C D Chute-ice

* 240451503 A B C D Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 240552101 A B C D Harness-wiring, door

* 241806601 A B C D Connector-water, straight

* 5303918256 A B C D Dispenser heater kit

Publication No: 5995532032 FRS6HR35K

01/09 4

REFRIGERATOR DOOR

FRS6HR35K Publication No: 5995532032

# Functional Parts 5 01/09

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS6HR35K (FRS6HR35KB0)

BFRS6HR35K (FRS6HR35KM0)

CFRS6HR35K (FRS6HR35KS0)

DFRS6HR35K (FRS6HR35KW0)

POS. NO PART NO. DESCRIPTION

2 241786005 A B C - Gasket-refr door, black, magnetic

2 241786001 - - - D Gasket-refr door, white, magnetic

4 240323001 A B C D Bin-door, pseudo, bottom

7 240326203 A B C D Door-dairy

13 240581905 A B C - Door Stop, black, ref

13 240581901 - - - D Door Stop, white, refr

15 241629345 A - - - Door-refr, black, complete assy

15 241629367 - B - - Door-refr, silver mist, complete assy

15 241629368 - - C - Door-refr, stainless, complete assy

15 240451902 - - - D Door-refr, white, complete assy

18 218762703 A B C - Handle-door, black

18 218762701 - - - D Handle-door, white

21A 240598402 A B C D Screw, 10-32 x 1/2

21C 218781101 A B C D Screw, pan head, 8-18 x 0.625

22 240328203 A B C - Bearing-hinge, black, closer

22 240328201 - - - D Bearing-hinge(ref), closer

22B 240328404 A B C - Bearing-hinge, black, upper

22B 240328402 - - - D Bearing-hinge, natural, upper

37A 215870636 A B C - Trim-handle, 2.47", black, w/satin AL band

37A 215870629 - - - D Trim-handle, 2.47", white, w/satin AL band

37A* 218676004 A B C D Band-decorative, satin aluminum, handle trim

49 240356401 A B C D Bin-door, gallon

Publication No: 5995532032 FRS6HR35K

01/09 6

CABINET

FRS6HR35K Publication No: 5995532032

# Functional Parts 7 01/09

* Non-Illustrated Parts

CABINET

Model Index: AFRS6HR35K (FRS6HR35KB0)

BFRS6HR35K (FRS6HR35KM0)

CFRS6HR35K (FRS6HR35KS0)

DFRS6HR35K (FRS6HR35KW0)

POS. NO PART NO. DESCRIPTION

10 240435912 A B C D Cover-air duct

10A 241719711 A B C D Cover-evap coil, lower

11 5303208309 A B C D Plug-hole, factory test

14 240505801 A B C D Switch, light/lamp

14A 241547901 A B C D Switch-light/lamp, frzr door

21C 218252201 A B C D Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B C - Plate-door closer

22 240457701 - - - D Plate-door closer

23 240402702 A B C D Screw-#10-32 x 1/4 flat hd

28 240335502 A B C D Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B C D Bracket-lower hinge, ref

30A 241603704 A B C D Bracket-lower hinge

37 240337610 A B C - Trim-cabinet corner, black, (2)

37 240337608 - - - D Trim-cabinet corner, white, (2)

38 240327207 A B C D Bracket-upper hinge

40 240327007 A B C - Cover-upper hinge, black

40 240327005 - - - D Cover-upper hinge, white

41 241550801 A B C D Grommet-shelf mtg, 1.40" long

41* 241550701 A B C D Grommet-shelf mtg, .96" long

42 240578902 A B C D Screw, hex head, 1/4-20 x 5/8

43 240335006 A B C D Roller Assy, front, (2)

45 241500303 A B C D Screw, hex washer head, 8-18AB x 0.500

47 218659500 A B C D Channel-shelf mtg, side, (2)

58 218781101 A B C D Screw, pan head, 8-18 x 0.625

66B 240374301 A B C D Diffuser-air

66B* 240518802 A B C D Pin-push, push-in, plastic

72 240324411 A B C - Grille/Kickplate, black

72 240324409 - - - D Grille/Kickplate, white

81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C D Roller, compressor base, rear, (2)

83 5304455655 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 A B C D Cover-access, w/label

90 218249808 A B C D Seal-coil cover

91 240380101 A B C D Duct-ice maker

92 241710601 A B C D Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C D Support, crisper cover, front, (4)

100* 240350802 A B C D Support, crisper cover, rear, (4)

150 240368701 A B C D Guide-control bulb

* 240396801 A B C D Clamp, tube/wiring, nylon, black/natural

* 240479601 A B C D Plug, button, cab liner holes

* 5303321321 A B C - Paint, touch-up, black

* 5303321319 - - - D Paint, touch-up, white

Publication No: 5995532032 FRS6HR35K

01/09 8

SHELVES

N58SJCAFB2

11B

11A

126

No glass in the

lower crisper cover

for this model.

25A

101

140

FRS6HR35K Publication No: 5995532032

# Functional Parts 9 01/09

* Non-Illustrated Parts

SHELVES

Model Index: AFRS6HR35K (FRS6HR35KB0)

BFRS6HR35K (FRS6HR35KM0)

CFRS6HR35K (FRS6HR35KS0)

DFRS6HR35K (FRS6HR35KW0)

POS. NO PART NO. DESCRIPTION

11 241657602 A B C D Shelf, flip up, wire

11A 241657502 A B C D Shelf, fixed, freezer

11B 241657504 A B C D Shelf, fixed, upper, freezer

21 5304455658 A B C D Screw, hx wshr hd sems, 8-15A x 0.625

24 240355208 A B C D Shelf-"Spill-Safe", fixed

25 240350702 A B C D Cover-crisper pan, upper

25* 240362101 A B C D Clip-slide, cover-crisper

25A 240350902 A B C D Cover-crisper pan, lower

26 240351007 A B C D Pan-crisper, upper

26* 240349801 A B C D Clip-slide, pan-crisper

27 240351207 A B C D Pan-crisper, lower

47 240350649 A B C D Insert-pan cover, glass

49 240564401 A B C D Basket-sliding

51 240343002 A B C D Hanger-basket, RH

52 240343102 A B C D Hanger-basket, LH

81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 A B C D Water Tank

101 218493101 A B C D Screw, hex washer head, 8-18AB x 1-3/4

126 241674401 A B C D Channel, auger mtg, LH

126 241674402 A B C D Channel, auger mtg, RH

140 240430501 A B C D Channel, wtr tube cover

* 241935582 A B C D Energy Guide

Publication No: 5995532032 FRS6HR35K

01/09 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA7

149
