Frigidaire FRS26RBC Manuel utilisateur

N58L00001.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps

N58SACAAA23.eps N58TAAAAA4.eps N58CAAAAA3.eps N58XCAAAA0.eps

N58YCAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS26RBCW2

Series R134a

Color white

Volts 115

Wiring Diagram 241526901

Owner's Guide 240389311

Market North America

Energy Guide 240598618

Service Data Sheet 240389616

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995410551

04/05/26

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26RBC

Publication No: 5995410551 FRS26RBCW2

05/04 2

FREEZER DOOR

FRS26RBCW2 Publication No: 5995410551

# Functional Parts 3 05/04

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 240390602 Gasket-frzr door, white, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 240451802 Door-frzr, white, complete assy

13A 240537102 Door Stop, white, frzr

18 218762701 Handle-door, white

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 Screw, pan head, 8-18 x 0.625

22A 240328202 Bearing-hinge, closer

22C 240328402 Bearing-hinge, upper

37A 215870629 Trim-handle, 2.47", white, w/satin AL band

68 241525101 Chute-ice

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995410551 FRS26RBCW2

05/04 4

REFRIGERATOR DOOR

FRS26RBCW2 Publication No: 5995410551

# Functional Parts 5 05/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 240390601 Gasket-refr door, white, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240537101 Door Stop, white, ref

15 240451902 Door-refr, white, complete assy

18 218762701 Handle-door, white

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 Screw, pan head, 8-18 x 0.625

22 240328201 Bearing-hinge, closer

22B 240328401 Bearing-hinge, upper

37A 215870629 Trim-handle, 2.47", white, w/satin AL band

49 240356401 Bin-door, gallon

Publication No: 5995410551 FRS26RBCW2

05/04 6

CABINET

FRS26RBCW2 Publication No: 5995410551

# Functional Parts 7 05/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435906 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337601 Trim-cabinet corner, white, (2)

38 240327202 Bracket-upper hinge

40 240327005 Cover-upper hinge, white

41 240358701 Grommet-shelf mtg, 1.40" long

41* 240358801 Grommet-shelf mtg, .875" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324402 Grille/Kickplate, white

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 Cover, access, system compt, with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305324 Paint, touch-up, white

Publication No: 5995410551 FRS26RBCW2

05/04 8

SHELVES

FRS26RBCW2 Publication No: 5995410551

# Functional Parts 9 05/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510604 Trim-basket

11 240338802 Shelf-freezer, flip-up

11A 240338702 Shelf-freezer, fixed wire

11B 240338704 Shelf-freezer, fixed wire

24 240373108 Frame-shelf, cantilever

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351207 Pan-crisper, lower

29 240357706 Trim-shelf, front

39 240430706 Trim-shelf, 11.21", front

39B 240430702 Trim-shelf, 12.39", front

40 240350623 Glass-shelf, 16.76" x 17.60"

41 240357806 Trim-shelf, rear

47 240350649 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240530402 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 Water Tank Assy, coiled tubing, rear filter

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

* 240598618 Energy Guide

Publication No: 5995410551 FRS26RBCW2

05/04 10

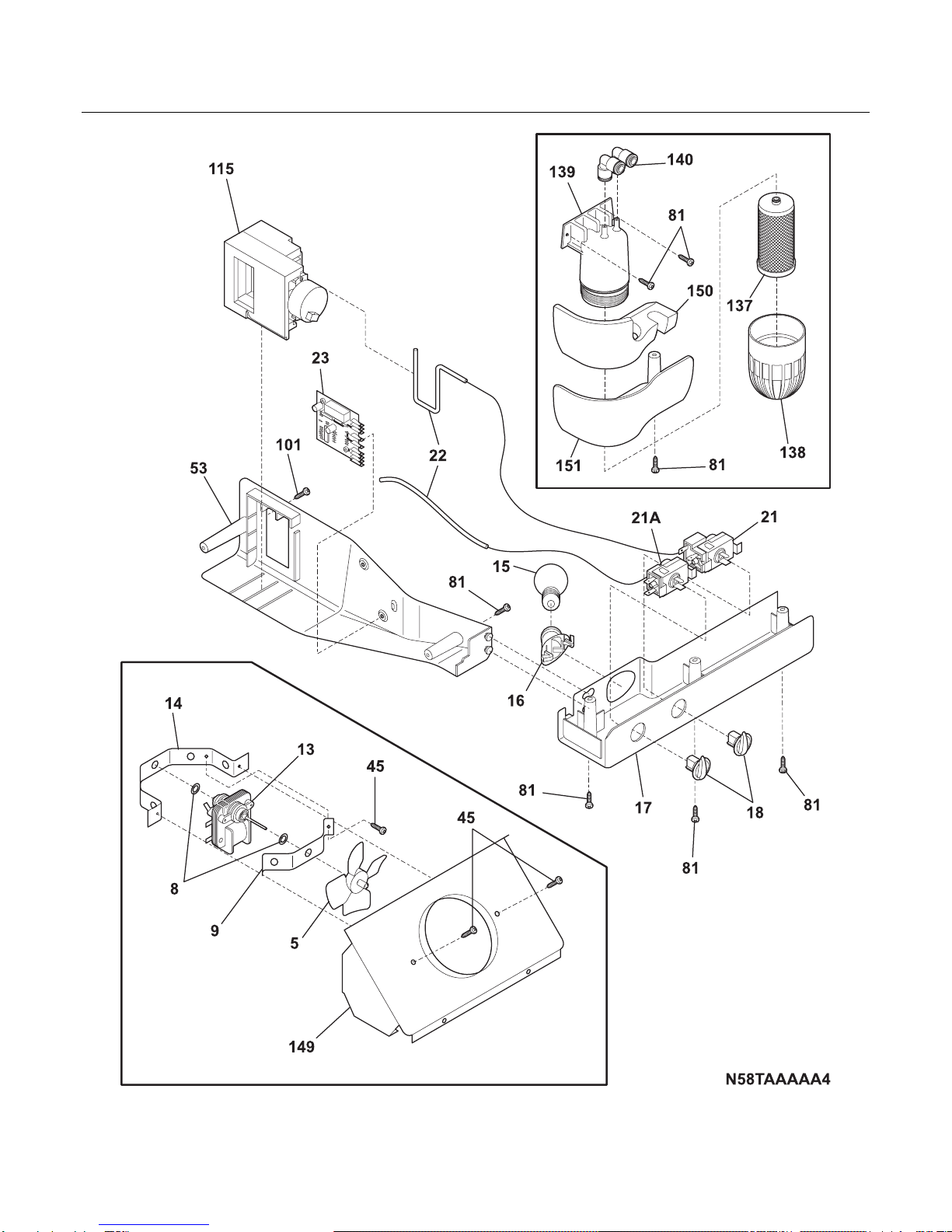

CONTROLS
