Frigidaire FRS26R2A Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26R2AQ6 FRS26R2A R134a bisque 115

FRS26R2AW6 FRS26R2A R134a white 115

MARKET

North America

Publication No.

5995396578

030925

-EN/SERVICE /DCS

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26R2A

WIRING DIAGRAM - 240389613

OWNER’S GUIDE - 240389311

SERVICE DATA SHEET - 240389613

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

09/03 2

Publication No. FRS26R2A

5995396578

FREEZER DOOR

# = Fast-moving Parts 3 09/03

* = Non-Illustrated Parts

FRS26R2A Publication No.

5995396578

FREEZER DOOR

A = FRS26R2A (FRS26R2AQ6)

B = FRS26R2A (FRS26R2AW6)

POS. NO PART NO DESCRIPTION

1 # 240390602 A B Gasket-frzr door,white ,magnetic

4A 240334201 A B Bin-door,frzr-upper

4B 240351601 A B Bin-door

11 240451808 A - Door-frzr,bisque ,complete assy

11 240451802 - B Door-frzr,white ,complete assy

13A 240537104 A - Door Stop,bisque ,frzr

13A 240537102 - B Door Stop,white ,frzr

18 218762706 A - Handle-door,bisque

18 218762701 - B Handle-door,white

21A 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22A 240328202 A B Bearing-hinge,closer

22C 240328402 A B Bearing-hinge,upper

37A 215870633 A - Trim-handle,2.47" ,bisque ,w/satin AL band

37A 215870629 - B Trim-handle,2.47" ,white ,w/satin AL band

68 240467701 A B Chute-ice

* 240545101 A B Connector-water,straight

* 240552101 A B Harness-wiring,door

* 5303918256 A B Dispenser heater kit

09/03 4

Publication No. FRS26R2A

5995396578

REFRIGERATOR DOOR

# = Fast-moving Parts 5 09/03

* = Non-Illustrated Parts

FRS26R2A Publication No.

5995396578

A = FRS26R2A (FRS26R2AQ6)

B = FRS26R2A (FRS26R2AW6)

POS. NO PART NO DESCRIPTION

2 # 240390601 A B Gasket-refr door,white ,magnetic

4 240323001 A B Bin-door,pseudo ,bottom

7 240326203 A B Door-dairy

13 240537103 A - Door Stop,bisque ,ref

13 240537101 - B Door Stop,white ,ref

15 240451906 A - Door-refr,bisque ,complete assy

15 240451902 - B Door-refr,white ,complete assy

18 218762706 A - Handle-door,bisque

18 218762701 - B Handle-door,white

21A 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22 240328201 A B Bearing-hinge,closer

22B 240328401 A B Bearing-hinge,upper

37A 215870633 A - Trim-handle,2.47" ,bisque ,w/satin AL band

37A 215870629 - B Trim-handle,2.47" ,white ,w/satin AL band

49 240356401 A B Bin-door,gallon

REFRIGERATOR DOOR

09/03 6

Publication No. FRS26R2A

5995396578

CABINET

# = Fast-moving Parts 7 09/03

* = Non-Illustrated Parts

FRS26R2A Publication No.

5995396578

A = FRS26R2A (FRS26R2AQ6)

B = FRS26R2A (FRS26R2AW6)

POS. NO PART NO DESCRIPTION

10 240435904 A B Cover-air duct

10A 240475904 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole,factory test

14 # 240505801 A B Switch,light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj,hex wshr hd,1/4-20x4.020,(2) ,special

30 240419103 A B Bracket-lower hinge, ref

30A 240419104 A B Bracket-lower hinge

37 240337604 A - Trim-cabinet corner,bisque ,(2)

37 240337601 - B Trim-cabinet corner,white ,(2)

38 240327202 A B Bracket-upper hinge

40 240327006 A - Cover-upper hinge,bisque

40 240327005 - B Cover-upper hinge,white

41 240358701 A B Grommet-shelf mtg,1.40" long

41* 240358801 A B Grommet-shelf mtg,.875" long

42 240578901 A B Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 A B Roller Assy,front ,(2)

45 241500301 A B Screw,hex washer head ,8-18AB x 0.500

47 218659500 A B Channel-shelf mtg,side ,(2)

58 218781100 A B Screw,pan head ,8-18 x 0.625

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push,push-in ,plastic

72 240324404 A - Grille/Kickplate,bisque

72 240324402 - B Grille/Kickplate,white

81 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

89 240326104 A B Cover,access ,system compt ,with label

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

100 240423701 A B Support,crisper cover ,front ,(4)

100* 240350802 A B Support,crisper cover ,rear ,(4)

150 240368701 A B Guide-control bulb

* 218515401 A B Clip

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* 240479601 A B Plug,button ,cab liner holes ,(2)

* 240481601 A B Shim-lower hinge

* 5304414035 A - Paint,touch-up ,bisque

* 5303305324 - B Paint,touch-up ,white

CABINET

09/03 8

Publication No. FRS26R2A

5995396578

SHELVES

# = Fast-moving Parts 9 09/03

* = Non-Illustrated Parts

FRS26R2A Publication No.

5995396578

A = FRS26R2A (FRS26R2AQ6)

B = FRS26R2A (FRS26R2AW6)

POS. NO PART NO DESCRIPTION

2 240434604 A B Trim-basket

11 240338802 A B Shelf-freezer,flip-up

11A 240338702 A B Shelf-freezer,fixed wire

11B 240338704 A B Shelf-freezer,fixed wire

24 240355208 A B Shelf-"Spill-Safe",fixed

25 240350702 A B Cover-crisper pan,upper

25* 240362101 A B Clip-slide,cover-crisper

25A 240350902 A B Cover-crisper pan,lower

26 240351007 A B Pan-crisper,upper

26* 240349801 A B Clip-slide,pan-crisper

27 240351207 A B Pan-crisper,lower

39 240430706 A B Trim-shelf,11.21" ,front

39A 240430702 A B Trim-shelf,12.39" ,front

47 240350633 A B Insert-pan cover,glass

47A 240350603 A B Insert-pan cover,glass

49 240530402 A B Basket-sliding

51 240343002 A B Hanger-basket,RH

52 240343102 A B Hanger-basket,LH

81 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

97 240545302 A B Water Tank Assy,coiled tubing ,rear filter

100 240326302 A B Cover-water tank

101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4

126 218867405 A B Channel,auger mtg ,LH

126 218867406 A B Channel,auger mtg ,RH

140 240430501 A B Channel,wtr tube cover

SHELVES

09/03 10

Publication No. FRS26R2A

5995396578

CONTROLS

Autres manuels pour FRS26R2A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Réfrigérateur

Frigidaire

Frigidaire FPBG2277RF5 Manuel du propriétaire

Frigidaire

Frigidaire FRT16PRGD2 Manuel utilisateur

Frigidaire

Frigidaire FRS26KR4D Manuel utilisateur

Frigidaire

Frigidaire FRT21IL4F Manuel utilisateur

Frigidaire

Frigidaire PLHS67EESB7 Manuel utilisateur

Frigidaire

Frigidaire FRS23R3A Manuel utilisateur

Frigidaire

Frigidaire EFMIS149-AMZ-WHITE Manuel du propriétaire

Frigidaire

Frigidaire GRFS2853AF Manuel du propriétaire

Frigidaire

Frigidaire FRT21FR7E Manuel utilisateur

Frigidaire

Frigidaire FRT22TSEK5 Manuel utilisateur

Frigidaire

Frigidaire FGTC2349K S Manuel utilisateur

Frigidaire

Frigidaire FRT21HR6AW5 Guide de l'utilisateur

Frigidaire

Frigidaire FRT18P6BS Manuel utilisateur

Frigidaire

Frigidaire R134a Guide de l'utilisateur

Frigidaire

Frigidaire FRS3R3J Mode d’emploi

Frigidaire

Frigidaire PLRS237ZA Manuel utilisateur

Frigidaire

Frigidaire FRT15B3J Manuel utilisateur

Frigidaire

Frigidaire FRT21IG3D Manuel utilisateur

Frigidaire

Frigidaire FRT17G4J Mode d’emploi

Frigidaire

Frigidaire FRS26ZSGW4 Guide de l'utilisateur

Frigidaire

Frigidaire FRS26R4AB2 Guide de l'utilisateur

Frigidaire

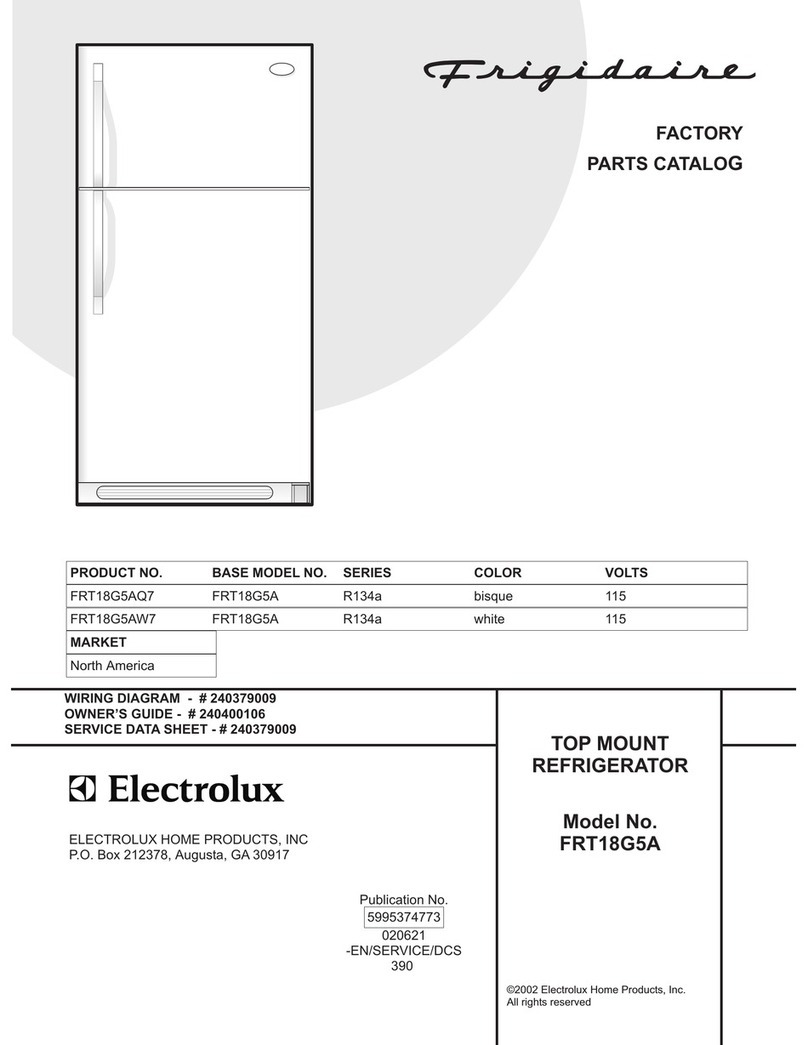

Frigidaire FRT18G5A Manuel utilisateur
