Frigidaire FRS26LH5D Manuel utilisateur

Product No. FRS26LH5DSC

Series R134a

Color stain/blk

Volts 115

Wiring Diagram 241526901

Owner's Guide 241695301

Market North America

Energy Guide 241538737

Service Data Sheet 240389616

N58L00001.eps N58FACBBB4.eps N58RACBBA1.eps N58BAAAAA0.eps

N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAC1.eps N58XDAAAA1.eps

N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

u x Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995465621

06/04/27

(EN/SERVICE/WC)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26LH5D

Publication No: 5995465621 FRS26LH5DSC

04/06 2

FREEZER DOOR

FRS26LH5DSC Publication No: 5995465621

# Functional Parts 3 04/06

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241674806 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 241668180 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 218762703 Handle-door, black

21A 240598401 Screw, 10-32 x 1/2

21C 218781100 Screw, pan head, 8-18 x 0.625

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

37 218811620 Trim-handle, black, upper

37* 218676004 Band-decorative, satin aluminum, handle trim

37A 218811617 Trim-handle, black, lower

37A* 215782300 Lock-handle trim, snap-in

68 241525101 Chute-ice

* 218490901 Cleaner, stainless steel

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995465621 FRS26LH5DSC

04/06 4

REFRIGERATOR DOOR

21A

22B

21C

21C 37A

N58RACBBA1

FRS26LH5DSC Publication No: 5995465621

# Functional Parts 5 04/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241674805 Gasket-refr door, black, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

12 240572601 Label-nameplate

13 240581905 Door Stop, black, ref

15 241534531 Door-refr, stainless, complete assy

18 218762703 Handle-door, black

21A 240598401 Screw, 10-32 x 1/2

21C 218781100 Screw, pan head, 8-18 x 0.625

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

37 218811620 Trim-handle, black, upper

37* 218676004 Band-decorative, satin aluminum, handle trim

37A 218811617 Trim-handle, black, lower

37A* 215782300 Lock-handle trim, snap-in

49 240356402 Bin-door, gallon

* 218490901 Cleaner, stainless steel

Publication No: 5995465621 FRS26LH5DSC

04/06 6

CABINET

FRS26LH5DSC Publication No: 5995465621

# Functional Parts 7 04/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435912 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327201 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, adjustable, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324406 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 Cover access

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 5303305345 Paint, touch-up, black

Publication No: 5995465621 FRS26LH5DSC

04/06 8

SHELVES

N58SJCAAB12

11B

11A

126

39B

123

25A

47A

101

26A

140

FRS26LH5DSC Publication No: 5995465621

# Functional Parts 9 04/06

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 241657602 Shelf, flip up, wire

11A 241657502 Shelf, fixed, freezer

11B 241657504 Shelf, fixed, upper, freezer

24 240355208 Shelf-"Spill-Safe", fixed

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351206 Pan-crisper, lower

39 240430706 Trim-shelf, 11.21", front

39B 240430702 Trim-shelf, 12.39", front

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350633 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240342806 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 Water Tank Assy, coiled tubing, rear filter

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

Publication No: 5995465621 FRS26LH5DSC

04/06 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA6

149

Autres manuels pour FRS26LH5D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Réfrigérateur

Frigidaire

Frigidaire FRT8WR6EZ6 Guide de l'utilisateur

Frigidaire

Frigidaire FRT21PRH Manuel utilisateur

Frigidaire

Frigidaire FGHS2631PE Guide de l'utilisateur

Frigidaire

Frigidaire FRT18FP5D Manuel utilisateur

Frigidaire

Frigidaire Refrigerator Guide de l'utilisateur

Frigidaire

Frigidaire FRT18KC3B Manuel utilisateur

Frigidaire

Frigidaire FRTB7B4EMB0 Manuel utilisateur

Frigidaire

Frigidaire FRFG1723AV Manuel du propriétaire

Frigidaire

Frigidaire FRS26RBC Manuel utilisateur

Frigidaire

Frigidaire FRS26ZRG Manuel utilisateur

Frigidaire

Frigidaire FFPT10F0K W Manuel utilisateur

Frigidaire

Frigidaire FGHT1834KB - 18 cu. ft. Top Freezer... Instructions d'installation

Frigidaire

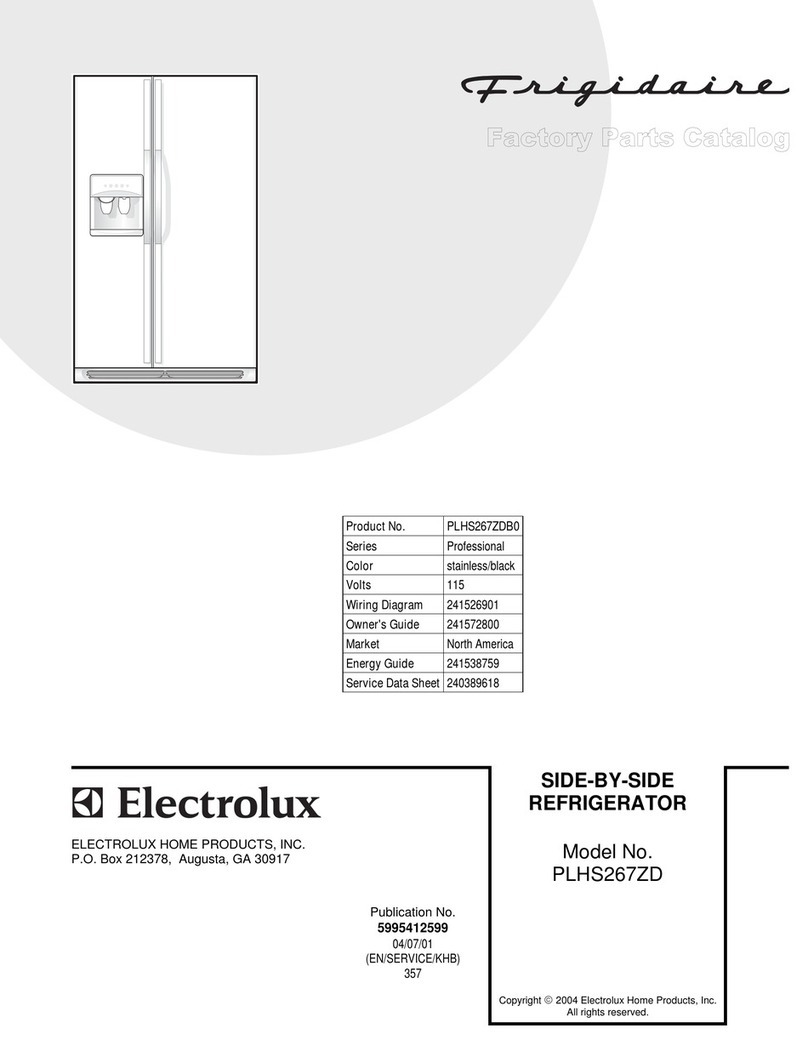

Frigidaire PLHS267ZD Manuel utilisateur
