Frigidaire FRS26LF7D Manuel utilisateur

N58L00001.eps N58FCCBBB2.eps N58RCCBBC6.eps N58BAAAAB1.eps

N58SMDMBC1.eps N58TAAAAB4.eps N58CAAAAC0.eps N58XBAAAB0.eps

N58YBAAAA1.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS26LF7DS1 FRS26LF7DS2

Series R134a R134a

Color stain/blk stain/blk

Volts 115 115

Wiring Diagram 241526901 241526901

Owner's Guide 240389311 240389312

Market North America North America

Energy Guide 241538738 241538738

Service Data Sheet 240389616 240389616

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995416350

04/09/14

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26LF7D

Publication No: 5995416350 FRS26LF7D

09/04 2

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB2

FRS26LF7D Publication No: 5995416350

# Functional Parts 3 09/04

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS26LF7D (FRS26LF7DS1)

BFRS26LF7D (FRS26LF7DS2)

POS. NO PART NO. DESCRIPTION

1 # 240390606 A B Gasket-frzr door, black, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

11 240554225 A B Door-frzr, stainless steel, complete assy

13A 240581906 A B Door Stop, black, frzr

18 240359108 A B Handle-door, black, LH

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 240598401 A B Screw, 10-32 x 1/2

21C 240521302 A B Screw, #8-18 x 3/4

22A 240328204 A B Bearing-hinge, closer

22C 240328404 A B Bearing-hinge, black, upper

37 240359203 A B Trim-handle, 30.13", black, lower

68 241525101 A B Chute-ice

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

* 240470401 A B Connector-amp

Publication No: 5995416350 FRS26LF7D

09/04 4

REFRIGERATOR DOOR

FRS26LF7D Publication No: 5995416350

# Functional Parts 5 09/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS26LF7D (FRS26LF7DS1)

BFRS26LF7D (FRS26LF7DS2)

POS. NO PART NO. DESCRIPTION

2 240390605 A B Gasket-refr door, black, magnetic

4 240323001 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

12 240572601 A B Label-nameplate

13 240581905 A B Door Stop, black, ref

15 240451980 A B Door-refr, stainless steel, complete assy

18 240359103 A B Handle-door, black, RH

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 240598401 A B Screw, 10-32 x 1/2

21C 240521302 A B Screw, #8-18 x 3/4

22 240328203 A B Bearing-hinge, closer

22B 240328404 A B Bearing-hinge, black, upper

37 240359203 A B Trim-handle, 30.13", black, lower

49 240356401 A B Bin-door, gallon

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995416350 FRS26LF7D

09/04 6

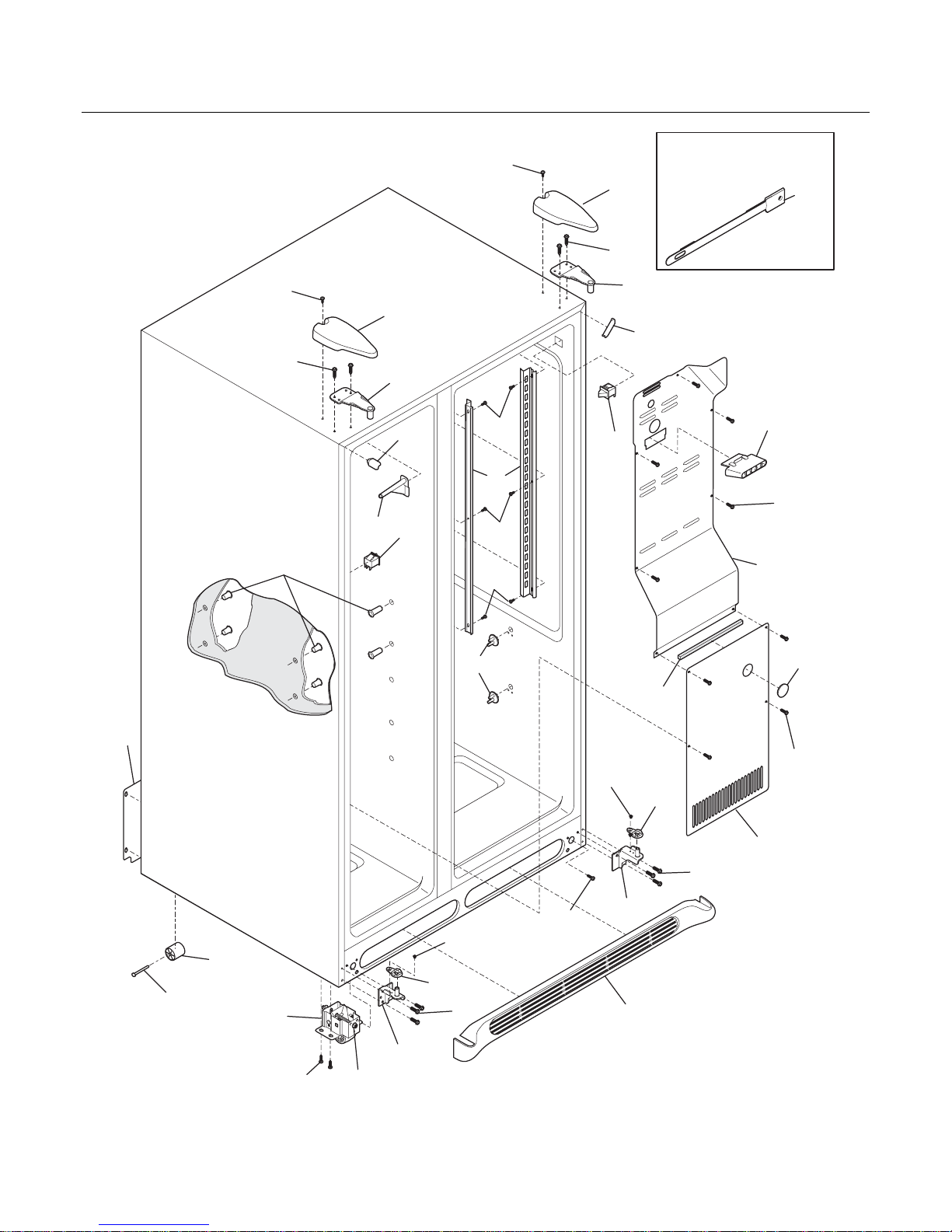

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB1

150

FRS26LF7D Publication No: 5995416350

# Functional Parts 7 09/04

* Non-Illustrated Parts

CABINET

Model Index: AFRS26LF7D (FRS26LF7DS1)

BFRS26LF7D (FRS26LF7DS2)

POS. NO PART NO. DESCRIPTION

10 240435906 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419101 A B Bracket-lower hinge, ref

30A 240419102 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 240327201 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324406 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 A - Cover, access, system compt, with label

89 241574602 - B Cover access

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 240481601 A B Shim-lower hinge

* 5303305345 A B Paint, touch-up, black

Publication No: 5995416350 FRS26LF7D

09/04 8

SHELVES

49A

11A

126

52A

109

51A

101

N58SMDMBC1

100

25A

47A

15A

16A

26A

42A

123

24B

140

24B

136

11C

FRS26LF7D Publication No: 5995416350

# Functional Parts 9 09/04

* Non-Illustrated Parts

SHELVES

Model Index: AFRS26LF7D (FRS26LF7DS1)

BFRS26LF7D (FRS26LF7DS2)

POS. NO PART NO. DESCRIPTION

2 241510604 A B Trim-basket

11 240443344 A B Shelf-freezer, glass, lower

11A 240443343 A B Shelf-freezer, glass, upper

11C 240324101 A B Shelf-pizza

15A 241555401 A B Light Bulb

16A# 241513901 A B Socket-light

16A* 241537602 A B Harness-wiring

24 240355207 A B Shelf-"Spill-Safe", cantilever, half width, fixed

24B 240350108 A B Shelf-"Spill-Safe", cantilever, sliding

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351205 A B Pan-crisper, lower

39 240367602 A B Trim-shelf, front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

42A* 240356702 A B Seal-meat pan

47 240350633 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

49A 240530502 A B Basket-sliding, upper, half

51 240343002 A B Hanger-basket, RH

51A 240395502 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

52A 240395602 A B Hanger-basket, LH

62 240342805 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B Water Tank Assy, coiled tubing, front filter

100 240326302 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

101* 215005000 A B Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger

109 240351301 A B Base-crisper light socket

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 A B Channel, auger mtg, LH

126 218867406 A B Channel, auger mtg, RH

136 240424501 A B Dispenser-can, white

140 240430501 A B Channel, wtr tube cover

Publication No: 5995416350 FRS26LF7D

09/04 10

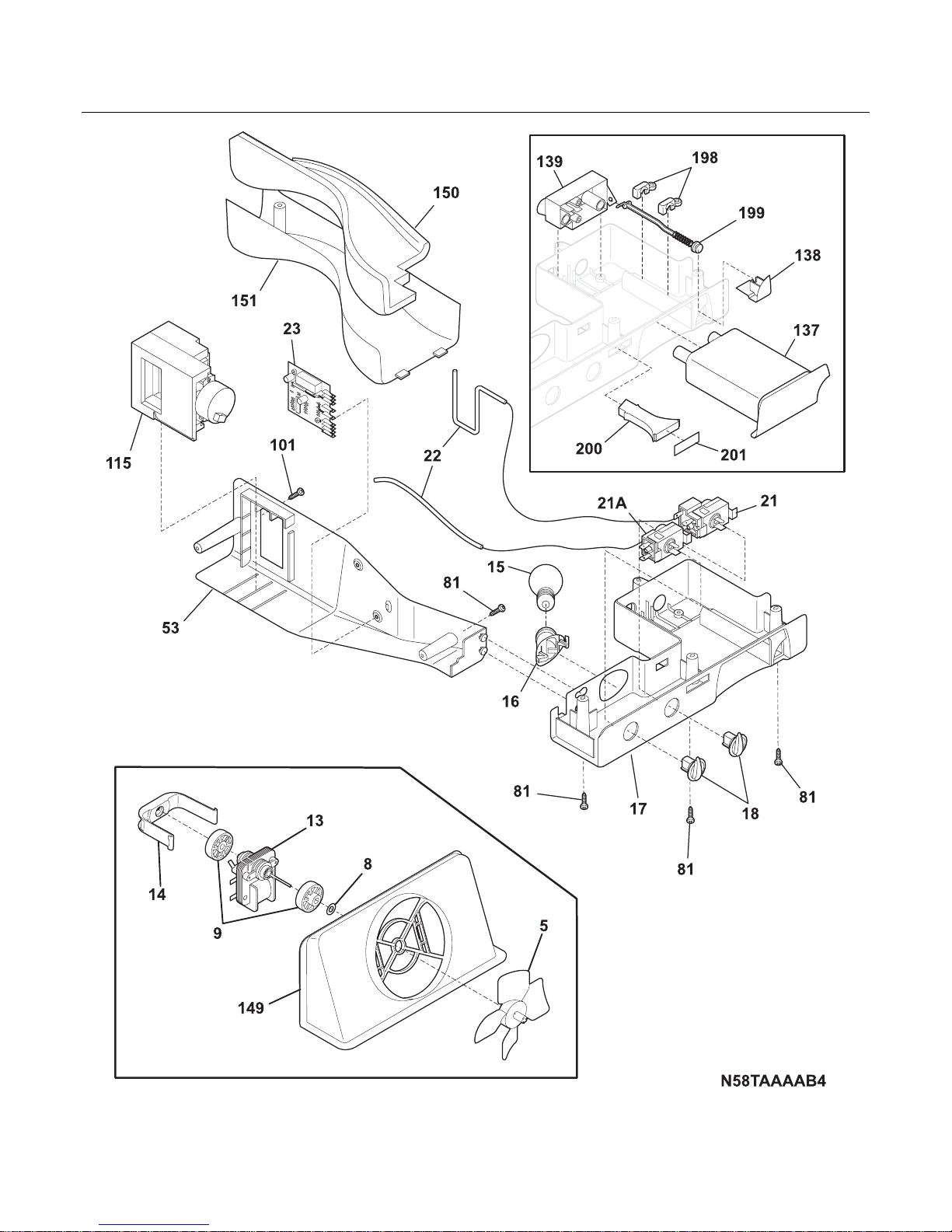

CONTROLS
