Frigidaire FRS26H5AS Manuel utilisateur

N58L00001.eps N58FCCBBB2.eps N58RCCBBB5.eps N58BAAAAB1.eps

N58SBBHBD12.eps N58TAAAAB3.eps N58CAAAAC0.eps N58XBAAAB0.eps

N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS26H5ASBA

Series R134a

Color stain/black

Volts 115

Wiring Diagram 241526901

Owner's Guide 240389311

Market North America

Service Data Sheet 240389615

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995402962

04/01/30

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26H5AS

Publication No: 5995402962 FRS26H5ASBA

01/04 2

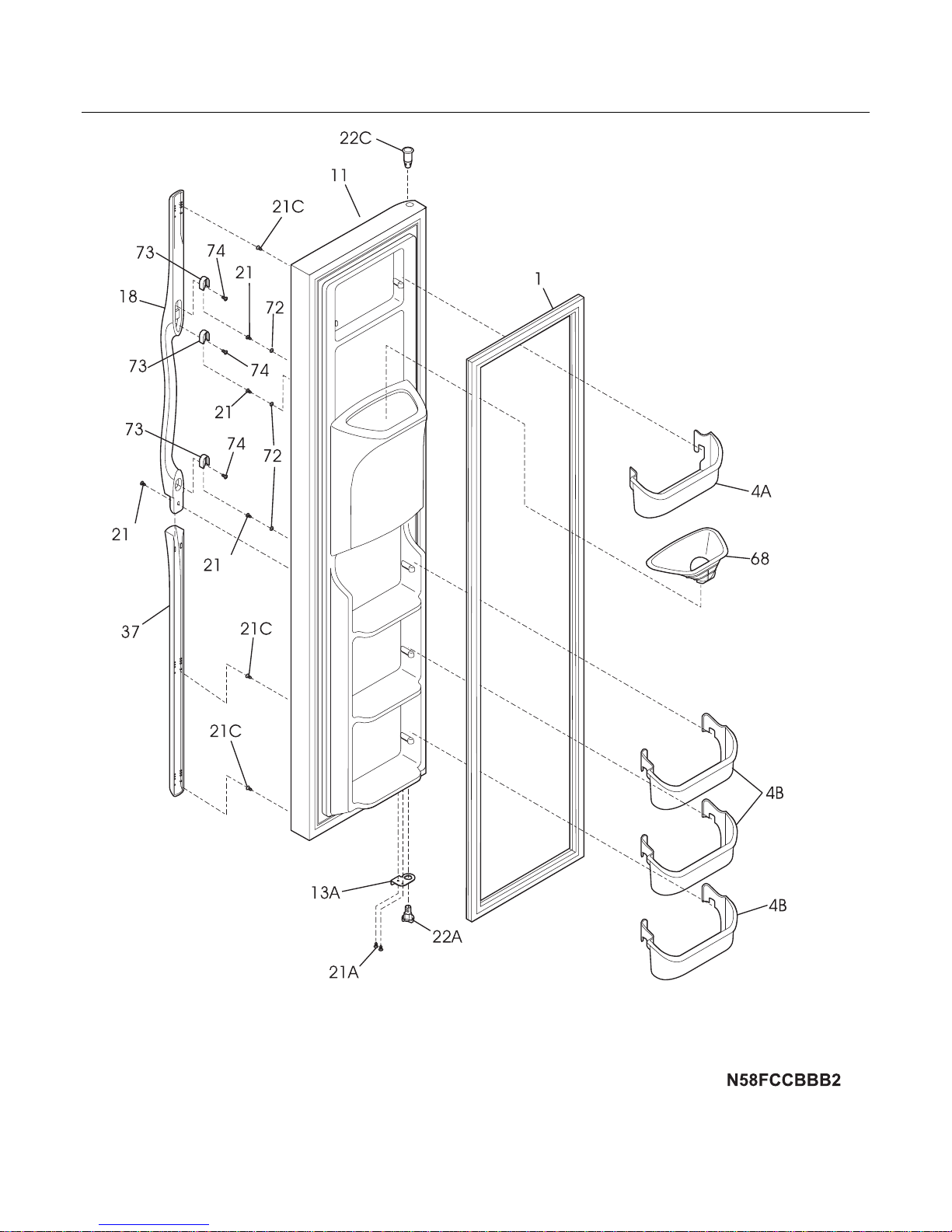

FREEZER DOOR

FRS26H5ASBA Publication No: 5995402962

# Functional Parts 3 01/04

* Non-Ilustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 240390606 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 240554228 Door-frzr, stainless steel, complete assy

13A 240581906 Door Stop, black, frzr

18 240359108 Handle-door, black, LH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21C 240521302 Screw, #8-18 x 3/4

22A 240328202 Bearing-hinge, closer

22C 240328404 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black, lower

68 241525101 Chute-ice

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490900 Cleaner, stainless steel

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995402962 FRS26H5ASBA

01/04 4

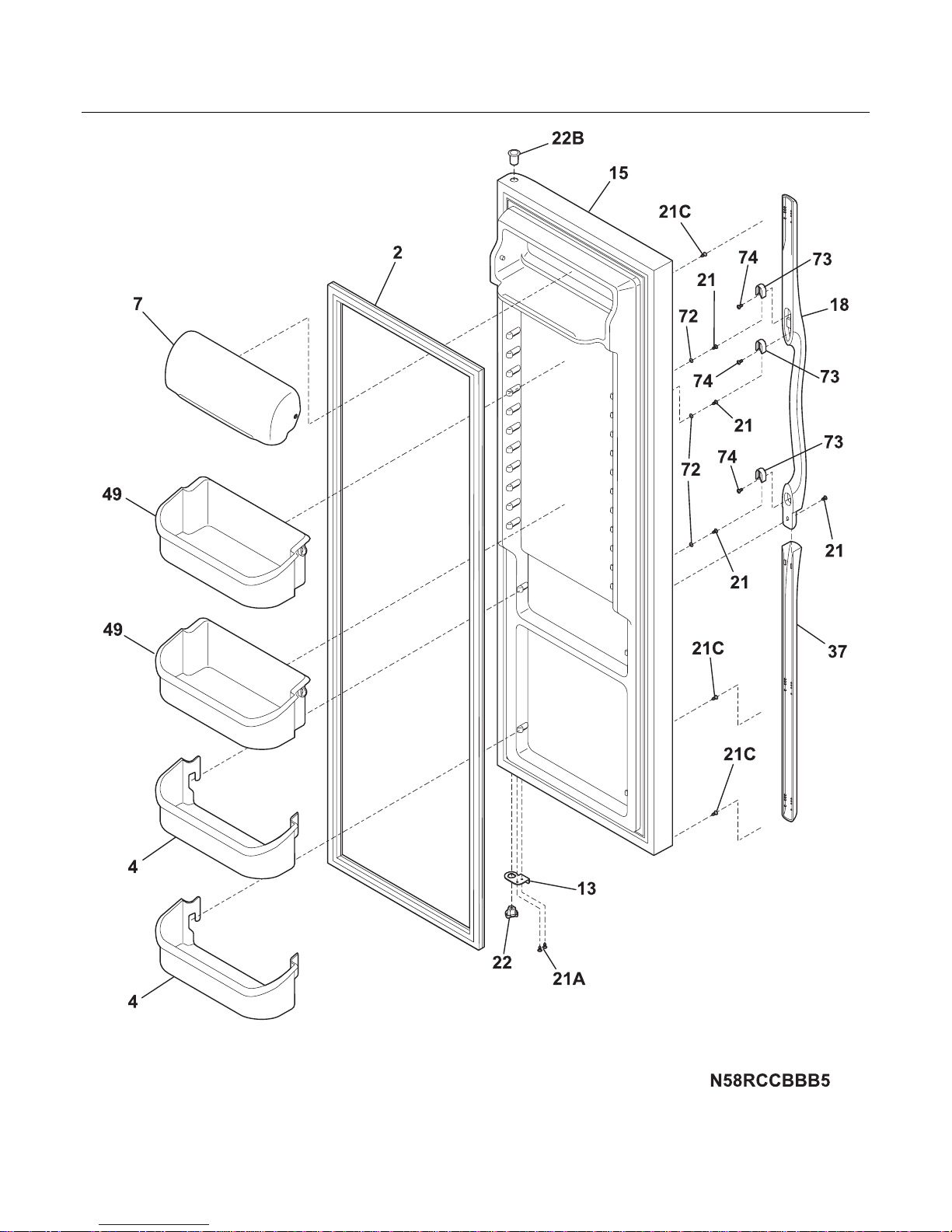

REFRIGERATOR DOOR

FRS26H5ASBA Publication No: 5995402962

# Functional Parts 5 01/04

* Non-Ilustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 240390605 Gasket-refr door, black, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240581905 Door Stop, black, ref

15 240451982 Door-refr, stainless steel, complete assy

18 240359103 Handle-door, black, RH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21C 240521302 Screw, #8-18 x 3/4

22 240328201 Bearing-hinge, closer

22B 240328403 Bearing-hinge, upper

37 240359203 Trim-handle, 30.13", black, lower

49 240356401 Bin-door, gallon

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490900 Cleaner, stainless steel

Publication No: 5995402962 FRS26H5ASBA

01/04 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB1

150

FRS26H5ASBA Publication No: 5995402962

# Functional Parts 7 01/04

* Non-Ilustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435904 Cover-air duct

10A 240475904 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 # 240505801 Switch, light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 240358701 Grommet-shelf mtg, 1.40" long

41* 240358801 Grommet-shelf mtg, .875" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66 5304424968 Damper Cover Assy

72 240324406 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 Cover, access, system compt, with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

Publication No: 5995402962 FRS26H5ASBA

01/04 8

SHELVES

FRS26H5ASBA Publication No: 5995402962

# Functional Parts 9 01/04

* Non-Ilustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510604 Trim-basket

11 240338802 Shelf-freezer, flip-up

11A 240338704 Shelf-freezer, fixed wire

11C 240324101 Shelf-pizza

24 240355208 Shelf-"Spill-Safe", fixed

24A 240355207 Shelf-"Spill-Safe", cantilever, half width, fixed

24B 240350108 Shelf-"Spill-Safe", cantilever, sliding

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351205 Pan-crisper, lower

39 240430706 Trim-shelf, 11.21", front

39A 240430702 Trim-shelf, 12.39", front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

42A* 240356702 Seal-meat pan

47 240350633 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240530402 Basket-sliding

49B 240530502 Basket-sliding, upper, half

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240342805 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

101* 215005000 Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

Publication No: 5995402962 FRS26H5ASBA

01/04 10

CONTROLS
