Frigidaire FPUS2698LF Instructions d'installation

frigidaire.com

Signature Features

Real Stainless Steel

Real stainless steel with a protective

coating that reduces fingerprints and

smudges so it’s easy to clean.

SpaceWise®

Organization System

Our SpaceWise® organization system

makes it easy to keep food organized

and easy to find when you need it.

Largest Crisper Drawers1

Store more in our largest capacity

crisper drawers.

Best-in-Class Ice &

Water Filtration2

PureSource Ultra® Water Filtration

offers best-in-class water filtration so

you get cleaner, better-tasting water

at your fingertips.

frigidaire.com

Side-by-Side Refrigerator

FPUS2698L F

26 Cu. Ft. Standard-Depth

Product Dimensions

Height 69-3/8"

(Including Hinges & Rollers)

Width (Doors) 36"

Depth (Including Door) 33"

More Easy-To-Use Features

PowerPlus® Ice3

PowerPlus® Ice delivers up to 37 percent

more ice.

PowerPlus® Freeze

Quickly freeze whatever you store to keep

foods at their freshest.

PureAir Ultra® Filters

Keeps the air cleaner and fresher.

SpillSafe® Shelves

Designed to keep spills contained, making

cleanup a breeze.

Pro-Select® Controls

Easily select options with the touch of

a button.

Energy Saver Plus Technology4

Our refrigerator will automatically go into

an energy-saving mode if not opened for

24 hours.

Automatic Alerts

Refrigerator alerts you if the door is left

open or if temperature rises.

Performance Lighting

Beautiful, ramp-up lighting keeps contents

clearly visible.

ENERGY STAR® Maximum Eciency5

Sabbath Mode (Star-K® Certiﬁed)

Available in:

1As compared to other side-by-side models.

2As compared to other consumer refrigeration water

ﬁltration systems.

3In a 24-hour period.

4If this refrigerator door is not opened for 24 hours

AND the refrigerator system is set to the 12-hour

defrost cycle, then the system automatically goes

to a 96-hour compressor run time defrost cycle to

conserve electricity.

5Exceeds minimum ENERGY STAR® standard by at

least 30%.

Stainless

(F)

Side-by-Side Refrigerator

FPUS2698L F 26 Cu. Ft. Standard-Depth

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Specifications

subject to change.

Standard-Depth SxS Refrigerators

Frigidaire Professional

Overall Exterior Dimensions

A - Height (Incl. Hinges and Rollers)

B - Cabinet Width / Door Width

C - Depth (Incl. Door)

Depth with Door Open 90˚

69-3/8"

35-5/8" / 36"

33"

49-7/8"

NOTE: For planning purposes only. Always consult local and national

electric and plumbing codes. Refer to Product Installation Guide for

detailed installation instructions on the web at frigidaire.com.

1Exceeds minimum ENERGY STAR® standard by at least 30%.

2For use on adequately wired 120V, dedicated circuit having 2-wire service with a

separate ground wire. Appliance must be grounded for safe operation.

Features

Door Design

Door Handle Design

Cabinet Finish

Door Stops / Door Closers

Door Hinge Covers

Rollers – Front / Rear

Energy Saver Plus Technology

Water Filter Location

Sound Package

Dispenser

Controls

Dispenser Design

Number of Dispenser Buttons

Crushed Ice / Cube Ice / Chilled Water

Ice Option

Freeze Option

Display On / O Option

Lock / Light

Temp / Door Ajar / Power Failure Alerts

Water Filter Change Indicator Light

Air Filter Change Indicator Light

Refrigerator Features

Interior Lighting

Water Filter Type

Air Filter Type

Fixed Shelves

Sliding Shelves

Cool Zone™ Drawer

Wine / Can Rack

Upper Crisper / Lower Crisper

Humidity Controls

Dairy Compartment

Fixed Door Bins

Adjustable Door Bins

Non-Slip Bin Liner / Bottle Retainers

Condiment Bin

Freezer Features

Door Bins / Tilt-Out Wire Door Bins

Fixed Shelves

Full Extension Baskets

Full Freezer Baskets

Half Freezer Baskets

Ice Cream Shelf / Pizza Shelf

SpaceSaver™ Shelf

Lighting

Certiﬁcations

ENERGY STAR® Maximum Eciency1

Sabbath Mode (Star-K® Certiﬁed)

Speciﬁcations

Total Capacity (Cu. Ft.)

Refrigerator Capacity (Cu. Ft.)

Freezer Capacity (Cu. Ft.)

Power Supply Connection Location

Water Inlet Connection Location

Voltage Rating

Connected Load (kW Rating)

@ 120 Volts2

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Soft-Arc

Stainless Steel

Stainless Look

Yes / Yes

Hidden

Adjustable / Yes

Yes

Top Right Rear

Quiet Pack

Pro-Select®

Tall, Single Paddle

Yes / Yes / Yes

PowerPlus® Ice

PowerPlus® Freeze

Yes

Yes / Yes

Yes / Yes / Yes

Yes

Performance

PureSource Ultra®

PureAir Ultra®

3 SpillSafe®

1 Stacked

1 Clear / 1 Clear

1 Clear

2 Two-Liter Clear

2 One-Gallon Clear

Yes / 1 Clear

2 White / 3

1 Flip-Out / 1 Wire

1 Plastic / 1 Wire

1 Wire

Yes / Yes

Yes

16.5

9.5

Right Bottom Rear

Left Bottom Rear

120V / 60Hz / 15 or 20A

1.02

8.5

300 Lbs.

Accessories information available

on the web at frigidaire.com

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Ce manuel convient aux modèles suivants

Autres manuels Frigidaire Réfrigérateur

Frigidaire

Frigidaire FRS23H5DS Manuel utilisateur

Frigidaire

Frigidaire GLHS68EGQ4 Guide de l'utilisateur

Frigidaire

Frigidaire FRT21P5A Manuel utilisateur

Frigidaire

Frigidaire FRS23KF6E Manuel utilisateur

Frigidaire

Frigidaire FRS23F4D Manuel utilisateur

Frigidaire

Frigidaire Refrigerator Manuel utilisateur

Frigidaire

Frigidaire FGHS2667K Manuel utilisateur

Frigidaire

Frigidaire FRT21NSG Manuel utilisateur

Frigidaire

Frigidaire Gallery FGHG2344M E Manuel du propriétaire

Frigidaire

Frigidaire Gallery FGHC2369K P Manuel utilisateur

Frigidaire

Frigidaire FRTX18N5BW0 Manuel utilisateur

Frigidaire

Frigidaire FG4H2272UF Manuel du propriétaire

Frigidaire

Frigidaire GLRT180SA Manuel utilisateur

Frigidaire

Frigidaire FGHC2378LE Manuel utilisateur

Frigidaire

Frigidaire FSC23F7DS Manuel utilisateur

Frigidaire

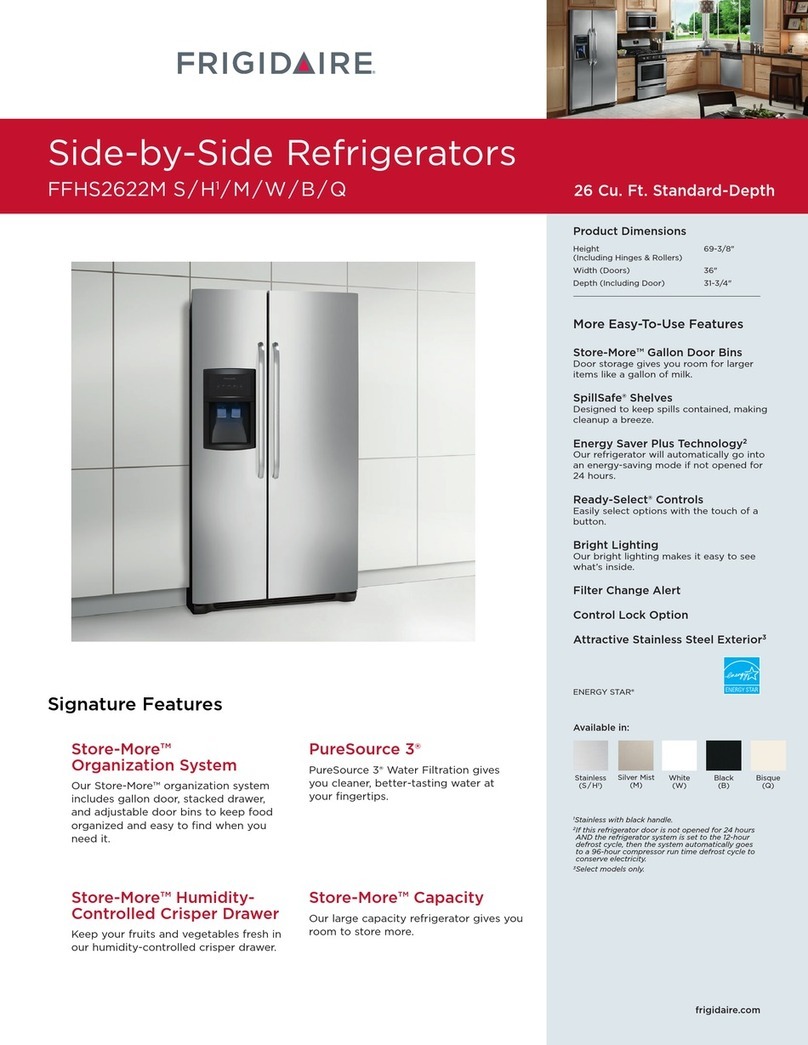

Frigidaire FFHS2622M S Manuel d'installation et d'exploitation
