Frigidaire FPMC2785K F Manuel utilisateur

FPMC2785KF.jp$ CFPMC3085KFA.eps 318279621A.eps BFGMC2765KBA.eps

DFPMC2785KFA.eps 318046267.eps

Product No. FPMC2785KFA

39257773D90S1

Series 27" elec

Color stainless

Market North America

Wiring Diagram 318046267

Owner's Guide 318205149

Installation Instructions 318201533

Service Data Sheet 318047455

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995550992

09/09/01

(EN/SERVICE/ECL)

377

27” WALL OVEN /

MICROWAVE COMBO

Model No.

FPMC2785K

Publication No: 5995550992 FPMC2785KFA

09/09 2

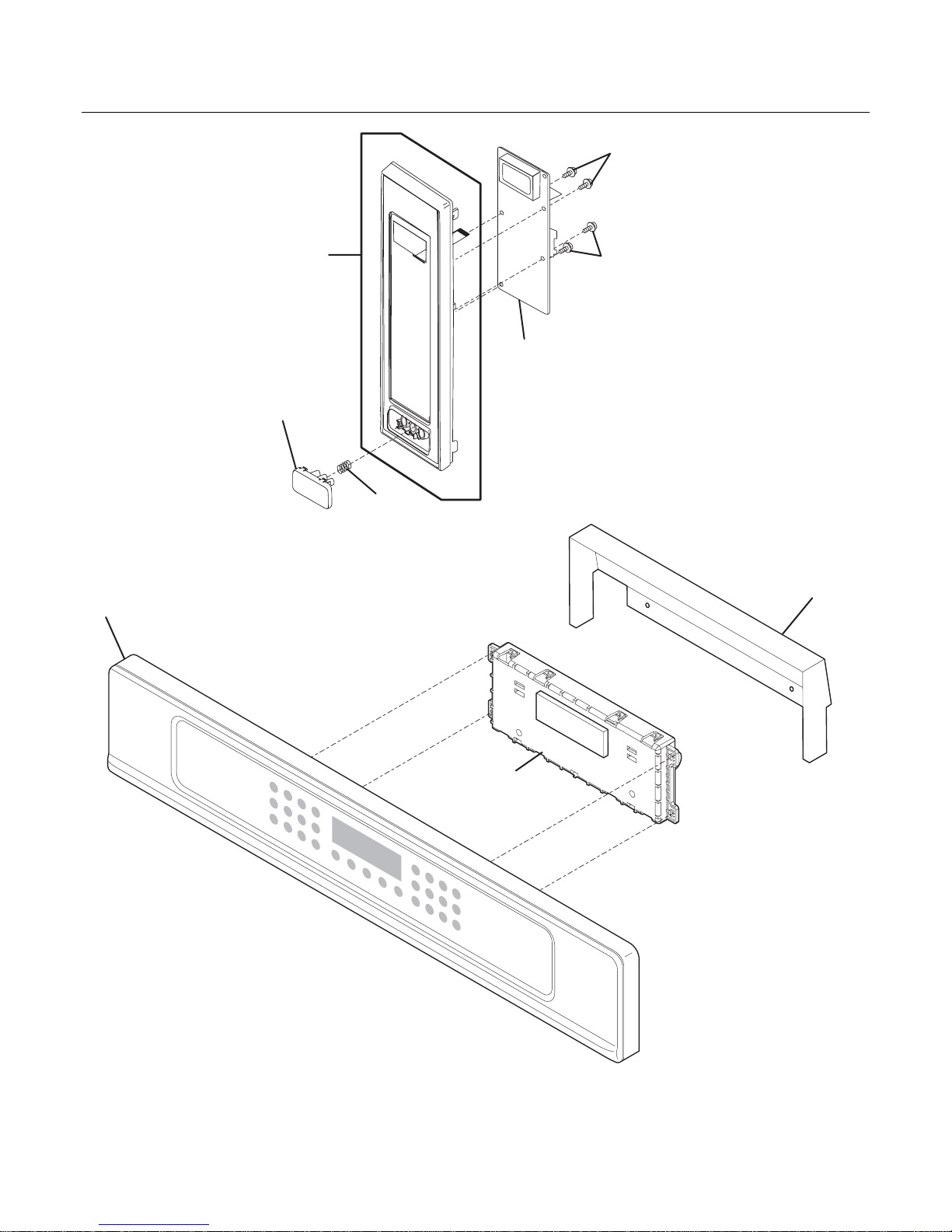

CONTROL PANEL

CFPMC3085KFA

FPMC2785KFA Publication No: 5995550992

# Functional Parts 3 09/09

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 318575136 Panel Assembly, control, stainless, w/overlay-trim

2 # 316560151 Controller, electronic, ES530W2/W3

* 5303311306 Screw, 8-18 x 0.375, (6)

3 318295705 Deflector, timer

* 5303211311 Screw, 8 x 0.500

16 # 5304474853 Control Board, assembly, microwave

17 # 5304472841 Control PanelAssy, stainless

18 5304472845 Push Button, door, stainless

19 5304440831 Spring, door button

20 5304456930 Screw, 3 mm x 10 mm

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995550992 FPMC2785KFA

09/09 4

MICROWAVE

50 7

318279621A

338

FPMC2785KFA Publication No: 5995550992

# Functional Parts 5 09/09

* Non-Illustrated Parts

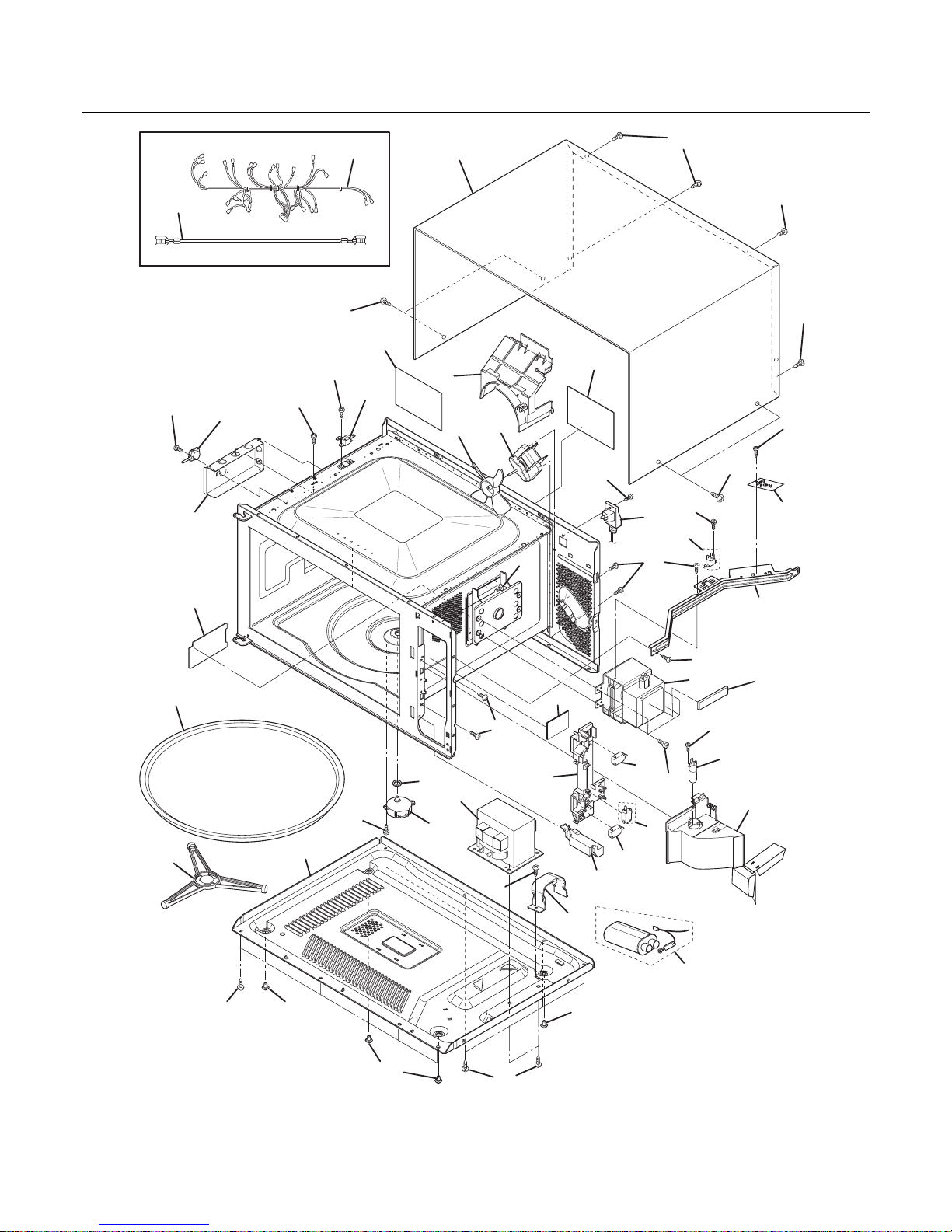

MICROWAVE

POS. NO PART NO. DESCRIPTION

1 # 5304462258 Capacitor/Rectifier Assy, HV

2 # 5303322968 Filter, noise, electronic

3 # 5304440779 Lamp Assy, with socket

4 # 5304448490 Motor, cooling fan

5 # 5304440027 Switch Kit, monitor, with CT fuse

6 # 5304440026 Switch, interlock, door sensor

7 # 5304440780 Fuse, cavity temp, 20 Amp, 250 V

8 # 5304472253 Magnetron

9 # 5304440782 Motor, turntable

10 # 5304473321 Transformer, power

11 # 5304440784 Power Cord, electric

12 # 5304440785 Sensor, humidity, cook control

13 5304440814 Base, unit chassis

14 5304474852 Foot, cabinet support

15 5304440816 Cabinet, outer casing, black

21 5304440838 Retainer, capacitor strap

22 5304462313 Bracket, chassis support

23 5304440840 Latch Hook

24 5304464899 Lever, door release

25 5304440842 Duct, magnetron

26 # 5304440843 Fan Blade, cooling fan

27 5304472846 Duct, cooling fan

28 5304465314 Label, NHW caution

29 5304462314 Cover, waveguide

30 5304440288 Bushing, motor shaft, turntable

31 # 5304440870 Wire, high voltage-A

32 5304440847 Duct, AH sensor

33 5304441910 Cushion, magnetron pad

44 # 5304440878 Wiring Harness, main

45 5304440284 Support Assy, turntable

46 5304440868 Tray, turntable, glass

47 5304440334 Label, Caution-monitor

48 5304440333 Label, Caution-DHHS

49 5303319636 Screw

50 5303319641 Screw

51 5304462315 Screw, 4 mm x 12 mm, ground

52 5304451553 Screw, 4 mm x 12 mm

53 5304453725 Screw, 3mm x 8mm

54 5304450253 Screw, 4 mm x 8 mm

55 5304440873 Screw, Torx, T20H/GTXH20-100

* 5304400794 Screw, 10-32 x 3/4, (4)

Publication No: 5995550992 FPMC2785KFA

09/09 6

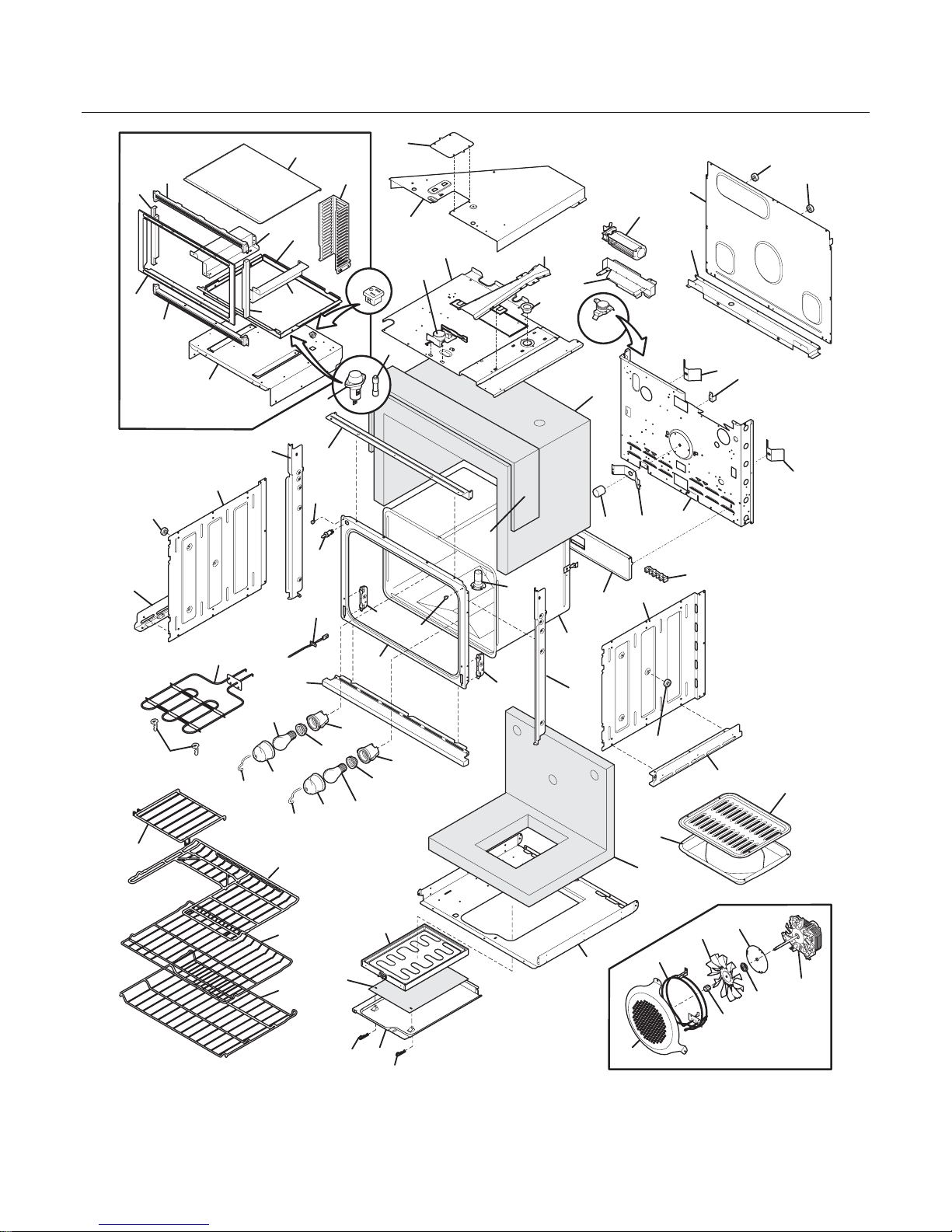

LOWER OVEN

272

58B

119

143

264

131

132

58D

133

108

108A

185

163

142

58A

127

BFGMC2765KBA

185

56A

107

161

111

109

125

412

411

400

300

301

402

410

401

403

409

Microwave

Parts

406

FPMC2785KFA Publication No: 5995550992

# Functional Parts 7 09/09

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259213 Back, main

2 318258920 Shield, insulation, upper

6 318922300 Rack, oven

6A 318926804 Rack, half, oven

6B 318919800 Rack, oven

6C 318929703 Insert, half rack

7 318368300 Pin, locking, (2)

9 5303317977 Pan, broiler, OPTIONAL ACCESS0RY

10 5303317976 Insert, broiler pan, OPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

18* 318368501 Seal, housing, flat washer

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

56 318276328 Trim, side filler, grey, RH

56A 318276329 Trim, side filler, grey, LH

57 318902701 Panel, service

58 318330503 Insulation, service panel

58A 318386110 Insulation, oven wrapper

58B 318330510 Insulation, back & bottom, oven

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072577 Duct, oven vent

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318902502 Element, hidden bake, 1450W

* # 318231870 Wiring Harness, bake element

* 5303323130 Screw, 8 x 1/4, (6)

68 5304403015 Support, hanger, (4), broil element

70 318259105 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056224 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258774 Shield, insulation, lower

83 318261810 Liner, oven

84 # 318146833 Outlet-electrical, miniature, black-glossy

86 318561100 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32

87 318260623 Bracket, cable mtg.

89 # 318261215 Motor, latch assy

* # 318402209 Wiring Harness, main, latch

Publication No: 5995550992 FPMC2785KFA

09/09 8

LOWER OVEN

272

58B

119

143

264

131

132

58D

133

108

108A

185

163

142

58A

127

BFGMC2765KBA

185

56A

107

161

111

109

125

412

411

400

300

301

402

410

401

403

409

Microwave

Parts

406

FPMC2785KFA Publication No: 5995550992

# Functional Parts 9 09/09

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

90 318259838 Trim, base, stainless

99 318256201 Bracket, side, bottom, (2)

107 318219405 Cover, fan

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 318398300 Fan Blade

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

* 5303308450 Screw, 8 x 0.375, (10)

125# 318398200 Motor, fan

* 5303324184 Screw, 8-18 x 5/16, black, (4)

127 318357001 Adapter Assembly, w/vent tube, and catalyst

131 318272901 Box, vent

132 318003000 Plate, shield

133 318347800 Chimney

142 318123910 Deflector

143 318172904 Support, wire

161# 318255504 Element, convection, 350 W

163 318531703 Spacer, (4)

185 318531800 Spacer, oven shield, (2)

264 318257721 Trim, oven, black, front

272 318249409 Tube, protector

300 318925002 Trim, microwave frame, grey, top/bottom, (2)

301 318925105 Trim, microwave frame, grey, sides, (2)

400 318930303 Frame, microwave, stainless

* 5303307406 Screw, 6-32 x 3/8, black, (2)

401 318297206 Plate, support, microwave, 27"

402 318276204 Bracket, base pad, RH

403 318276206 Bracket, base pad, LH

406 318277201 Shield, microwave rear

409 318295301 Bracket, top trim

410 318297111 Flue, black

411# 5304442354 Holder, fuse

* 5304453707 Screw, 8-18 X 1/2

412# 5304442353 Fuse, 20 Amp

* # 318394442 Box & wires assy

* # 318532182 Harness, wiring, main

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303323136 Screw ground

* 5303323277 Screw, 8-18 X 13/32

* 5304415832 Screw, 8-18 x 0.406

Publication No: 5995550992 FPMC2785KFA

09/09 10

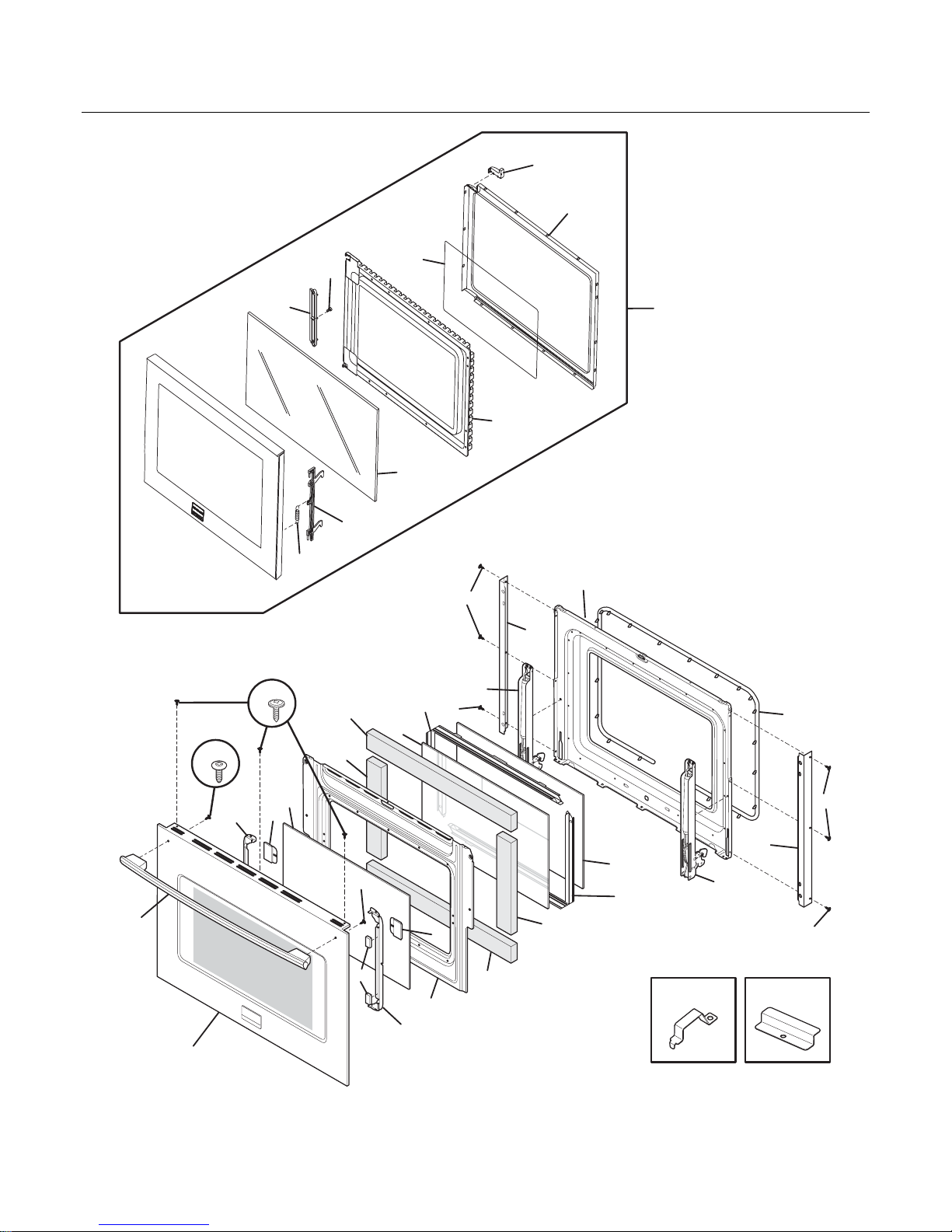

DOORS

4142

DFPMC2785KFA
