Frigidaire FMV156DS - 1.5 Cu. Ft. Microwave Oven Manuel utilisateur

FMV156D.tif FMV156D_E cab.wmf FMV156D-D door.eps FMV156D-F

Wiring.eps

Product No. FMV156DBF FMV156DCG FMV156DQF FMV156DSF

Market North America North America North America North America

Color black stainless bisque white

Volts 120 120 120 120

Watts 950 950 950 950

Wiring Diagram 5995503470 5995503470 5995503470 5995503470

Owner's Guide 316137230 316137230 316137230 316137230

Installation Instructions 316137233 316137233 316137233 316137233

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995503470

07/11/05

(EN/SERVICE/KC)

099

OVER-RANGE

MICROWAVE

Model No.

FMV156D

Publication No: 5995503470 FMV156D

11/07 2

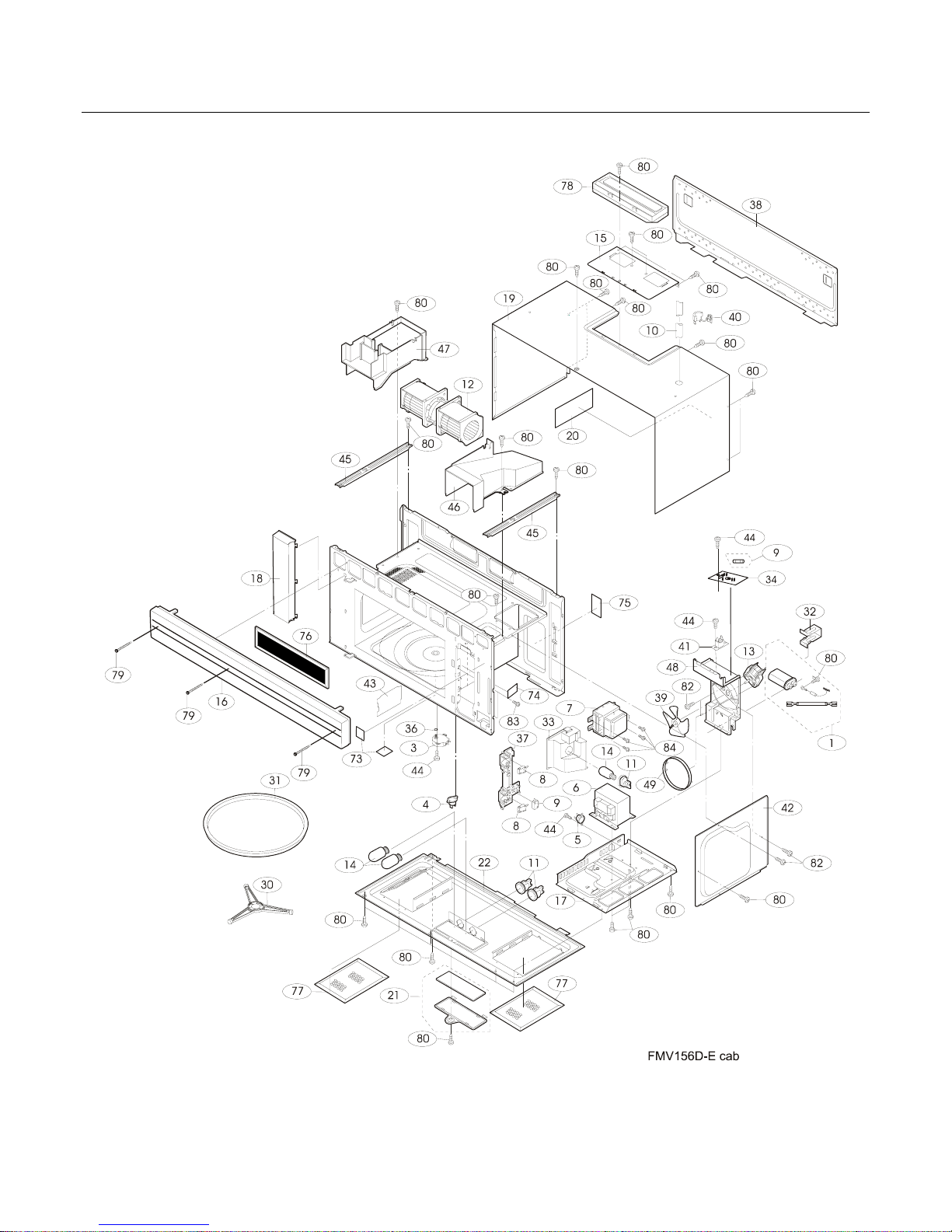

OVEN,CABINET

FMV156D Publication No: 5995503470

# Functional Parts 3 11/07

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AFMV156D (FMV156DBF)

BFMV156D (FMV156DCG)

CFMV156D (FMV156DQF)

DFMV156D (FMV156DSF)

POS. NO PART NO. DESCRIPTION

1 5304461618 A B C D HV Assy, w/rectifier, capacitor, wire

3 # 5304448488 A B C D Motor, turntable

4 # 5304440032 A B C D Thermal Cutout, oven cavity

5 # 5304440023 A B C D Thermal Cutout, hood

6 # 5304461585 A B C D Transformer, power

7 # 5304440781 A B C D Magnetron

8 # 5304440026 A B C D Switch, interlock, door sensor

9 # 5303319559 A B C D Switch, monitor, w/ceramic fuse

10 # 5304440028 A B C D Power Cord, electric

11 # 5303319561 A B C D Receptacle, lamp socket, oven

12 # 5304441847 A B C D Motor, hood fan

13 # 5304441848 A B C D Motor, cooling fan

14 5304440031 A B C D Lamp, incandescent, 20 W, (3)

15 5304441849 A B C D Plate, rear stay

16 5304458567 A B - - Grille, exhaust louver, black

16 5304461265 - - C - Grille, exhaust louver, bisque

16 5304461264 - - - D Grille, exhaust louver, white

17 5304461266 A B C D Base, transformer, right side

18 5304451942 A - - - Panel, front trim, black, LS

18 5304448841 - B - - Panel, front trim, stainless, LS

18 5304441856 - - C - Panel, front trim, bisque, LS

18 5304441857 - - - D Panel, front trim, white, LS

19 5304441858 A B - - Cabinet, outer casing, black

19 5304441859 - - C - Cabinet, outer casing, bisque

19 5304441860 - - - D Cabinet, outer casing, white

20 5304451814 A B C D Wiring Diagram, schematic, label

21 5303319573 A B C D Lens/Frame Assy, lamp

22 5304451815 A B - - Cover, unit base, black

22 5304451817 - - C - Cover, unit base, bisque

22 5304451816 - - - D Cover, unit base, white

30 5304440284 A B C D Support Assy, turntable

31 5304441872 A B C D Tray, turntable, glass

32 5304441873 A B C D Retainer, capacitor strap

33 5304441874 A B C D Duct, magnetron

34 # 5304451818 A B C D Filter, noise, electronic

36 5304440288 A B C D Bushing, motor shaft, turntable

37 5304440289 A B C D Latch Hook

38 5304461267 A B C D Bracket, mounting plate, rear

39 # 5304440843 A B C D Fan Blade, cooling fan

40 5303319605 A B C D Bushing, grommet, power cord

41 # 5303319550 A B C D Fuse, magnetron

42 5304441876 A B C D Duct, hood intake, right side

43 5304440845 A B C D Cover, waveguide

44 5304453725 A B C D Screw, 3mm x 8mm

45 5304441877 A B C D Support, chassis

46 5304441878 A B C D Duct, hood intake, right side

47 5304441879 A B C D Duct, exhaust hood, left side

Publication No: 5995503470 FMV156D

11/07 4

OVEN,CABINET

FMV156D Publication No: 5995503470

# Functional Parts 5 11/07

* Non-Illustrated Parts

OVEN,CABINET

Model Index: AFMV156D (FMV156DBF)

BFMV156D (FMV156DCG)

CFMV156D (FMV156DQF)

DFMV156D (FMV156DSF)

POS. NO PART NO. DESCRIPTION

48 5304461586 A B C D Duct, cooling fan

49 5304441881 A B C D Ring, fan orifice

73 5304441900 A B C D Label, Caution-DHHS

74 5304440334 A B C D Label, Caution-monitor

75 5304440333 A B C D Label, Caution-DHHS

76 5304456425 A B C D Filter, inside exhaust, charcoal

77 5303319568 A B C D Filter, grease, (2)

78 5304440283 A B C D Damper Assy, exhaust

79 5303319640 A B - - Screw, black

79 5303319652 - - C - Screw, vent grille, bisque

79 5303319663 - - - D Screw, white

80 5304451553 A B C D Screw, 4 mm x 12 mm

82 5304450253 A B C D Screw, 4 mm x 8 mm

83 5303319641 A B C D Screw

84 5303319636 A B C D Screw

Publication No: 5995503470 FMV156D

11/07 6

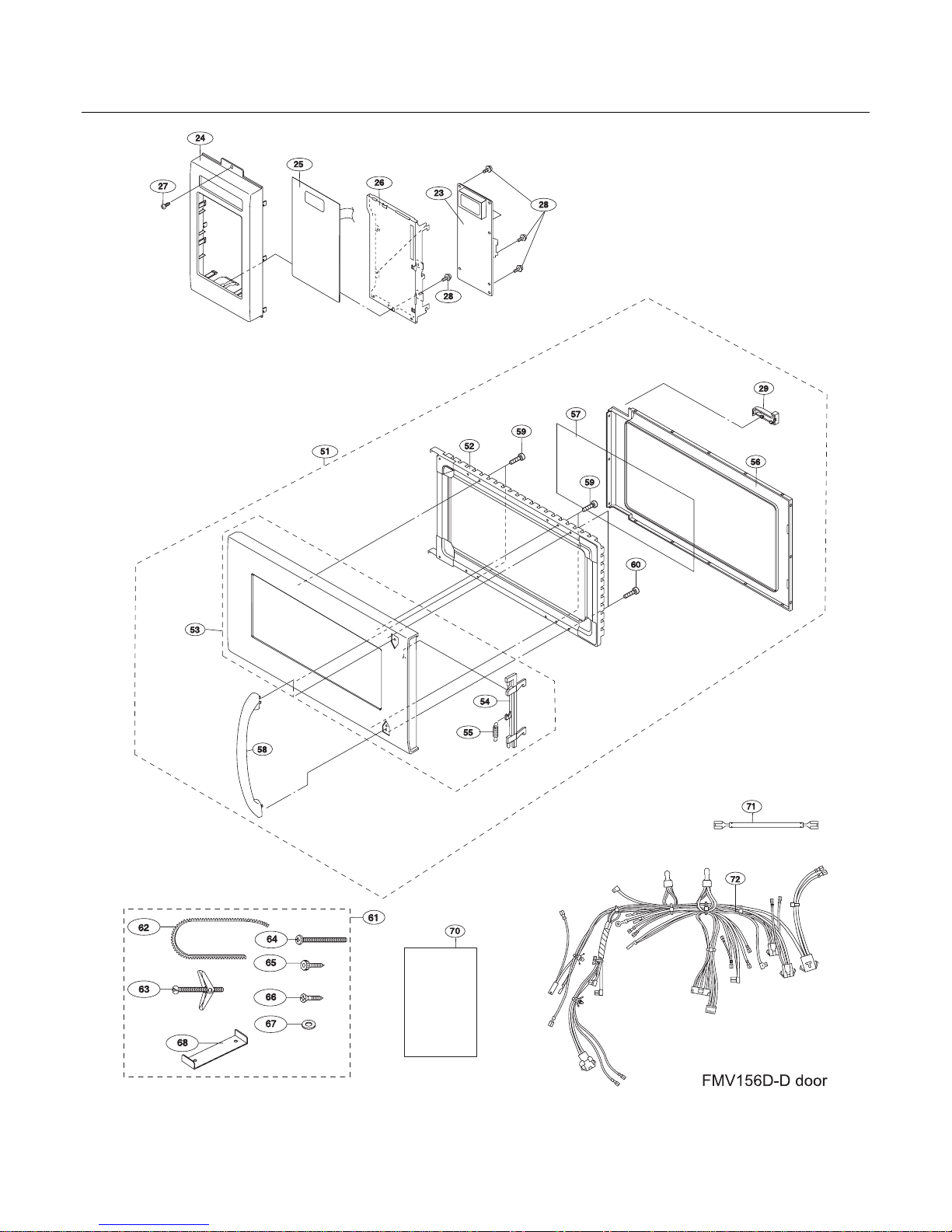

CONTROL PANEL,DOOR,MISC.

FMV156D Publication No: 5995503470

# Functional Parts 7 11/07

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

Model Index: AFMV156D (FMV156DBF)

BFMV156D (FMV156DCG)

CFMV156D (FMV156DQF)

DFMV156D (FMV156DSF)

POS. NO PART NO. DESCRIPTION

23 # 5304441863 A B C D Control Board, printed circuit

24 5304450254 A - - - Frame, control panel, black

24 5304448513 - B - - Frame, control panel, stainless steel

24 5304441866 - - C - Frame, control panel, bisque

24 5304441867 - - - D Frame, control panel, white

25 # 5304441868 A B - - Switch, touch pad, black

25 # 5304441869 - - C - Switch, touch pad, bisque

25 # 5304441870 - - - D Switch, touch pad, white

26 5304440281 A B C D Panel, control mount

27 5304458568 A B C D Screw, 3 mm x 10 mm

28 5304456930 A B C D Screw, 3 mm x 10 mm

29 5304441871 A B C D DoorStop

51 5304455603 A - - - Door Assy, black, w/handle

51 5304447862 - B - - Door Assy, stainless, w/handle

51 5304461269 - - C - Door Assy, bisque, w/handle

51 5304461268 - - - D Door Assy, white, w/handle

52 5304441887 A B - - Panel, inner door, black

52 5304441888 - - C - Panel, inner door, bisque

52 5304441889 - - - D Panel, inner door, white

53 5304461334 A - - - Frame, outer door, black

53 Not Replaceable - B - - Order complete stainless door assembly (Item 51)

53 5304461271 - - C - Frame, outer door, bisque

53 5304461270 - - - D Frame, outer door, white

54 5304440314 A B C D Latch, door

55 5304440316 A B C D Spring, door latch

56 5304441894 A B C D Frame, choke cover, inner door

57 5304440860 A B C D Seal, door, film

58 5304440323 A B - - Handle, door, black

58 5304440325 - - C - Handle, door, bisque

58 5304440324 - - - D Handle, door, white

59 5304451561 A B C D Screw, 4 mm x 8 mm

60 5304458213 A B C D Screw, 4 mm x 12 mm

61 5304461272 A B C D Hardware, installation, kit

62 5303319605 A B C D Bushing, grommet, power cord

63 5303318762 A B C D Screw, toggle

64 5304453895 A B C D Screw, 5mm x 85mm

65 5304451553 A B C D Screw, 4 mm x 12 mm

66 5304453723 A B C D Screw, 5mm x 35mm

67 5304453724 A B C D Washer

68 5304441896 A B C D Bracket, scale plate

70 5304458571 A B C D Template, installation, top/wall

71 # 5304441898 A B C D Wire, high voltage-A

72 # 5304451820 A B C D Wiring Harness, main

Publication No: 5995503470 FMV156D

11/07 8

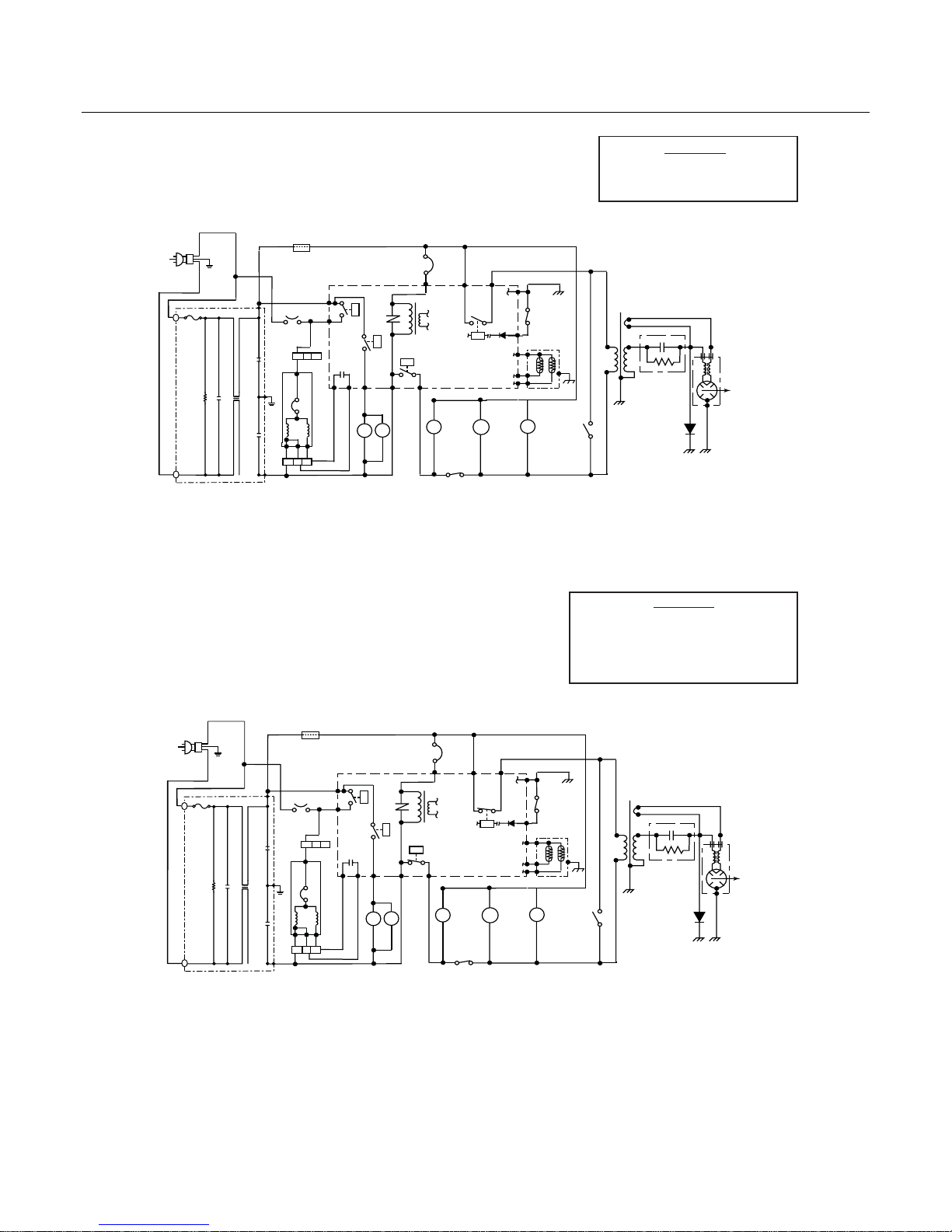

WIRING SCHEMATIC

SCHEMATIC

NOTE: CONDITION OF OVEN

1. DOOR CLOSED.

2. COOKING TIME PROGRAMMED.

3. VARIABLE COOKING CONTROL

"HIGH".

Figure O-2. Oven Schematic-Cooking Condition

Figure O-1. Oven Schematic-Off Condition

SCHEMATIC

NOTE: CONDITION OF OVEN

1. DOOR CLOSED.

2. CLOCK APPEARS ON DISPLAY.

NOTES:

1.CIRCUITS SUBJECT TO CHANGE WITHOUTNOTICE.

2. TERMINAL WITH PROJECTION OR OPPOSITE BLUE MARK ON LAMPSOCKET

MUST BE CONNECTED TO NEUTRALWIRE.

3. ONLY CERTAIN MODELS USETHE ABSOLUTE HUMIDITYSENSOR.

4. POWER TRANSFORMER LEFT (FINISH LEAD) TERMINALMUST BE CONNECTED TO THE NEUTRAL (WHITE) WIRE.

MAG. TEMP. FUSE

CAVITY

THERMAL

CUTOUT

120VAC

60Hz

HOOD FAN

THERMAL

CUT OUT

RED

PPL

COM.

RED

WHT

BLK

WHT

GRY

BRN

WHT

RED

WHT

YLW

BLK

WHT

ORG

GRN

A1 A3 A9 N.O.

RY6

HOOD

MOTOR

CONTROL UNIT

N.O.

(RY1)

(RY2)

COM.

DOOR

SENSING

SWITCH

TTM FMOL

HL TURN

TABLE

MOTOR FAN

MOTOR

OVEN

LAMP

HOOD

LAMP

GRY

MONITOR

SWITCH

PRIMARY

INTERLOCK

SWITCH

RED

BLU

POWER

TRANSFORMER

MAGNETRON

HIGH

VOLTAGE

CAPACITOR

xx uF

HOOD

CAPACITOR

RED

BRN

WHT

SECONDARY

INTERLOCK

RELAY

OVEN LAMP

RELAY

ORG

RED

COM

RED

ORG

WHT

RY5

GRY

BLK

WHT

GRY

GND

BRN

WHT

F3 SENSOR

BRN

RED RED

ORG

RED

HIGH

VOLTAGE

RECTIFIER

WHT

N.C.

WHT

BLU

WHT

HUMIDITY

COM. N.O.

PPL

WHT

RED

BLU

NOISE SUPRESSION COIL

RESISTOR 470 kW 1/2W

LINE CROSS CAPACITOR 1.0 uF 275V

LINE BYPASS CAPACITOR

0.0033 uF 250V

FUSE

20A

LINE BYPASS CAPACITOR

0.0033 uF 250V

NOISE FILTER

GND

NOTES:

1.CIRCUITS SUBJECT TO CHANGE WITHOUTNOTICE.

2. TERMINAL WITH PROJECTION OR OPPOSITE BLUE MARK ON LAMPSOCKET

MUST BE CONNECTED TO NEUTRALWIRE.

3. ONLY CERTAIN MODELS USETHE ABSOLUTE HUMIDITYSENSOR.

4. POWER TRANSFORMER LEFT (FINISH LEAD) TERMINALMUST BE CONNECTED TO THE NEUTRAL (WHITE) WIRE.

MAG. TEMP. FUSE

CAVITY

THERMAL

CUTOUT

120VAC

60Hz

HOOD FAN

THERMAL

CUT OUT

RED

PPL

COM.

RED

WHT

BLK

WHT

GRY

BRN

WHT

RED

WHT

YLW

BLK

WHT

ORG

GRN

A1 A3 A9 N.O.

RY6

HOOD

MOTOR

CONTROL UNIT

N.O.

(RY1)

(RY2)

COM.

DOOR

SENSING

SWITCH

TTM FMOL

HL TURN

TABLE

MOTOR FAN

MOTOR

OVEN

LAMP

HOOD

LAMP

GRY

MONITOR

SWITCH

PRIMARY

INTERLOCK

SWITCH

RED

BLU

POWER

TRANSFORMER

MAGNETRON

HIGH

VOLTAGE

CAPACITOR

xx uF

HOOD

CAPACITOR

RED

BRN

WHT

SECONDARY

INTERLOCK

RELAY

OVEN LAMP

RELAY

ORG

RED

COM

RED

ORG

WHT

RY5

GRY

BLK

WHT

GRY

GND

BRN

WHT

F3 SENSOR

BRN

RED RED

ORG

RED

HIGH

VOLTAGE

RECTIFIER

WHT

N.C.

WHT

BLU

WHT

HUMIDITY

COM. N.O.

PPL

WHT

RED

BLU

NOISE SUPRESSION COIL

RESISTOR 470 kW 1/2W

LINE CROSS CAPACITOR 1.0 uF 275V

LINE BYPASS CAPACITOR

0.0033 uF 250V

FUSE

20A

LINE BYPASS CAPACITOR

0.0033 uF 250V

NOISE FILTER

GND

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Four à micro-ondes

Frigidaire

Frigidaire FFMV162LMA Manuel du propriétaire

Frigidaire

Frigidaire FGMV173KQ - Gallery Series Microwave Guide de démarrage rapide

Frigidaire

Frigidaire GLMV168K Manuel utilisateur

Frigidaire

Frigidaire GLMB209D Manuel utilisateur

Frigidaire

Frigidaire FPBM307NTF Manuel utilisateur

Frigidaire

Frigidaire FFMO1611LB Manuel utilisateur

Frigidaire

Frigidaire FCL-MW10W Mode d’emploi

Frigidaire

Frigidaire LEVM30FE Manuel utilisateur

Frigidaire

Frigidaire FMV152KB - 1.5 Cu Ft Microwave Manuel utilisateur

Frigidaire

Frigidaire 316495002 Manuel utilisateur

Frigidaire

Frigidaire Gallery FGMO205K F Manuel utilisateur

Frigidaire

Frigidaire FFCT1278LS Manuel utilisateur

Frigidaire

Frigidaire FGMC2765KB - Gallery 27" Microwave Combination... Guide de démarrage rapide

Frigidaire

Frigidaire FMV158FM Manuel utilisateur

Frigidaire

Frigidaire FFCE1638LS Manuel utilisateur

Frigidaire

Frigidaire PMOS1980AF Fiche technique

Frigidaire

Frigidaire CPLMB209DC Manuel utilisateur

Frigidaire

Frigidaire FFCM1155US Manuel du propriétaire

Frigidaire

Frigidaire FMV156D Manuel utilisateur

Frigidaire

Frigidaire FGMV205KB Manuel utilisateur

Frigidaire

Frigidaire PLMV169DC Manuel utilisateur

Frigidaire

Frigidaire 316495054 Manuel utilisateur

Frigidaire

Frigidaire 316137234 Manuel utilisateur

Frigidaire

Frigidaire Gallery FGMC3065K Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
