Frigidaire FGX831MC Manuel utilisateur

Product No. FGX831MCS0

Market Mexico

Color white

Volts 120

Wiring Diagram 134135600

Owner's Guide 134536500

Installation Instructions 134536400

Operating Instructions 134536300

P17L0008.eps P17U0038.eps P17B0041.eps P17c0066.eps P17R0010.eps P17T0054.eps

P17M0016.eps 134135600g.eps 134419800_sp_G.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995436770

05/05/13

(EN/SERVICE/BJH)

361

LAUNDRY CENTER

WITH GAS DRYER

Model No.

FGX831MC

Publication No: 5995436770 FGX831MCS0

05/05 2

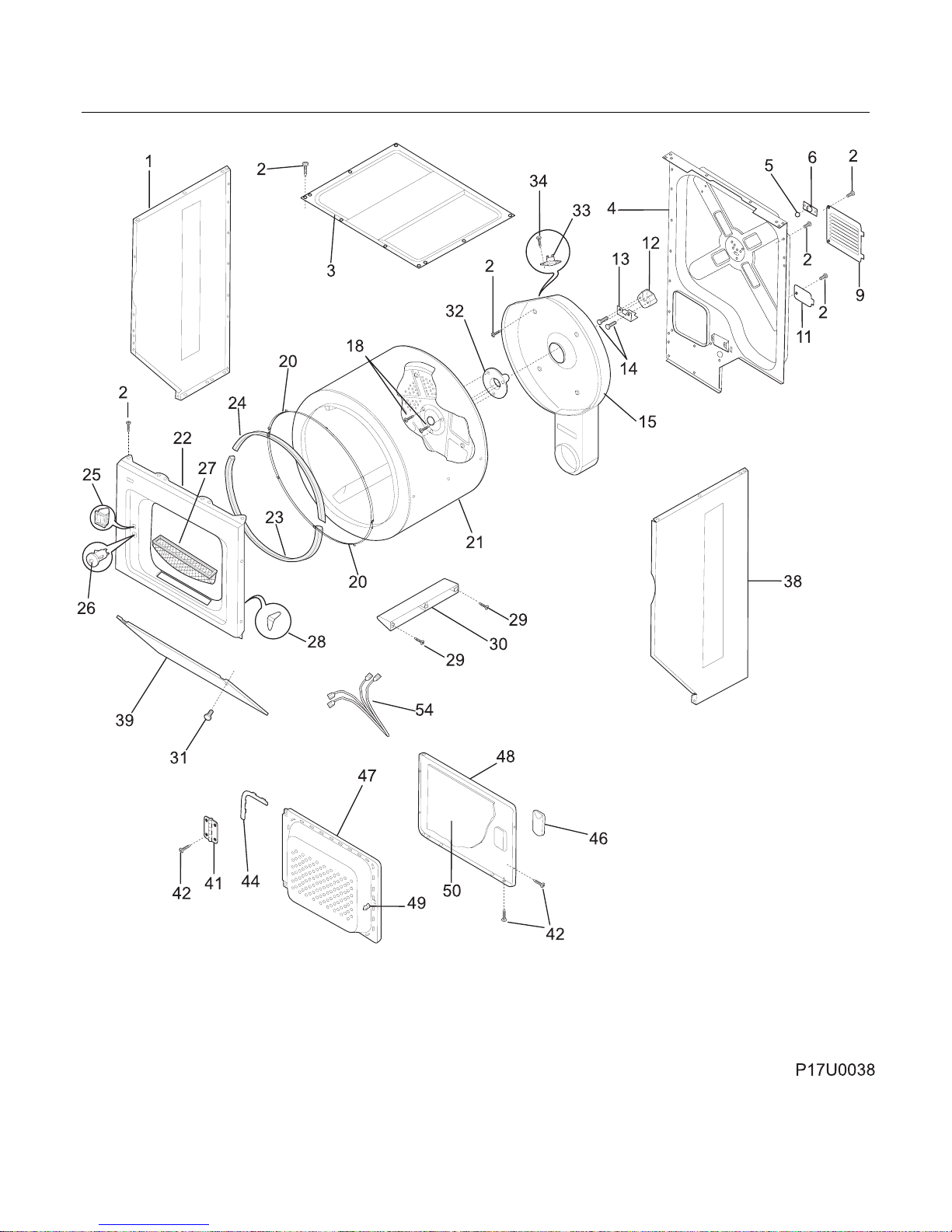

UPPER CABINET/DRUM HEATER

FGX831MCS0 Publication No: 5995436770

# Functional Parts 3 05/05

* Non-Illustrated Parts

UPPER CABINET/DRUM HEATER

POS. NO PART NO. DESCRIPTION

1 131084710 Panel, white, left side

2 131168200 Screw, pan head, 8-18B x 0.31

3 131883301 Panel, top

4 131752302 Panel, rear, steel, galvanized

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

9 3204249 Panel, motor access, rear

11 5303207395 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 5303207394 Housing, heater, w/duct & seal

18 131477000 Screw, 10-16AB x 0.375

20 131963900 Glide, drum

21 134122532 Drum, dryer, galvanized stl., service kit

22 134031600 Panel, front, white, svce kit w/plug

22* 131870700 Plug, light hole

23 134134700 Seal, felt, lower

24 134036400 Seal, felt, upper

25 131658800 Door Catch

26 # 5308001614 Switch, door, w/o drum light

27 131359600 Lint Trap

28 134440000 Clip, guide, (3)

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5303201200 Vane, straight

31 131202300 Screw, 10-16AB x 0.625

32 131777700 Shaft, drum support, ballhitch

33 # 5304406099 Thermostat, safety

34 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

38 131084810 Panel, white, right side

39 131084402 Panel, access, white, front

41 134222900 Hinge, dryer door

42 131209600 Screw, flat head, 8-18AB x 0.44, cr/sq drive

44 131129900 Gasket, door seal

46 131789400 Handle, door, white

47 131579103 Panel, inner door, white

48 131789303 Panel, outer door, white

49 5303211430 Door Strike

50 134535300 Insulator, heat shield, outer door

54 # 131498900 Wiring Harness, door switch, w/o light

Publication No: 5995436770 FGX831MCS0

05/05 4

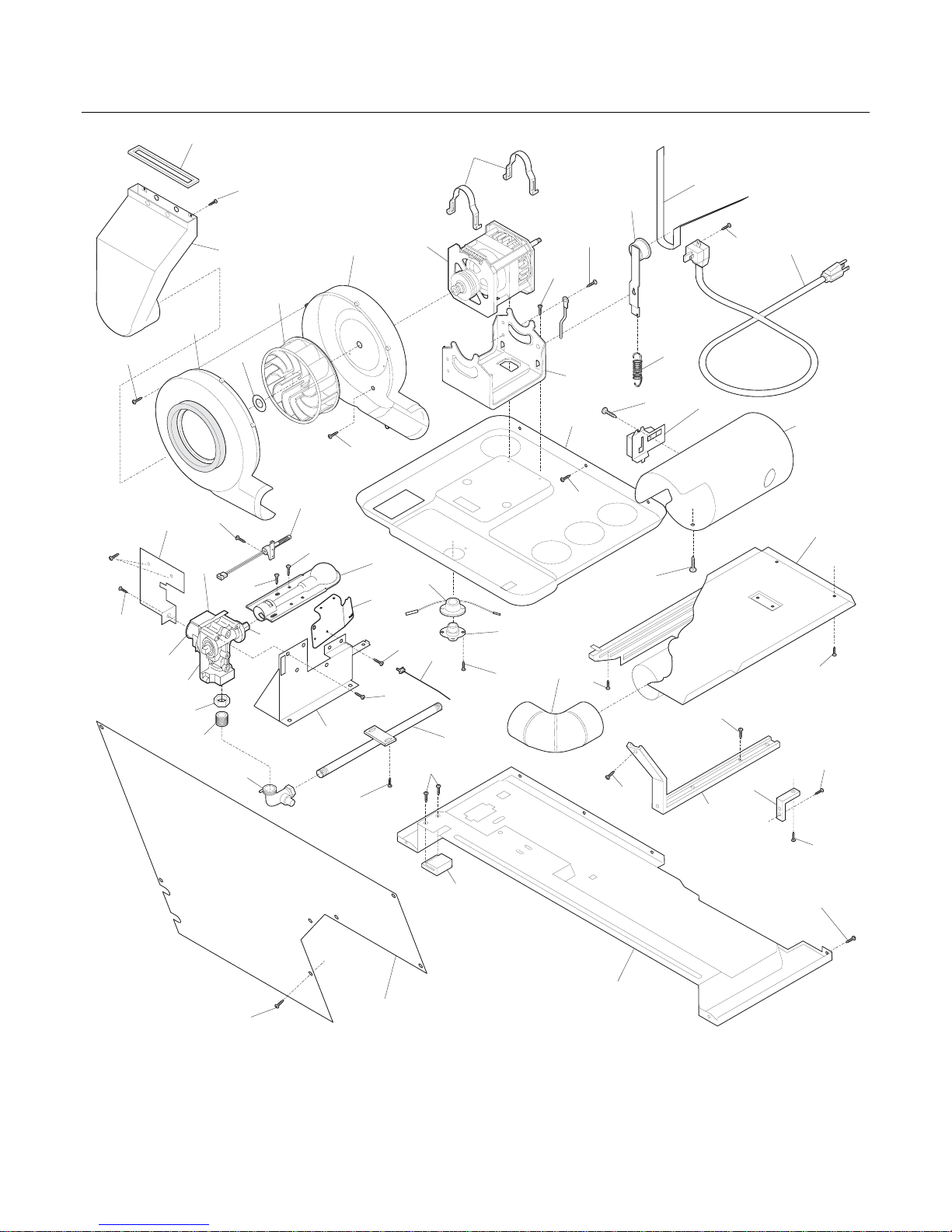

MOTOR/BLOWER/BELT

P17B0041

10A

62 87

242

7962

FGX831MCS0 Publication No: 5995436770

# Functional Parts 5 05/05

* Non-Illustrated Parts

MOTOR/BLOWER/BELT

POS. NO PART NO. DESCRIPTION

1 131295200 Seal, air duct

2 131168200 Screw, pan head, 8-18B x 0.31

4 131362400 Fastener, push-in

6 134086300 Duct, air

8 3205245 Screw, pan head, 6-18AB x 0.60

9 5303304824 Clamp

10 131784500 Housing, blower, front, with seal

10A 134145100 Housing, blower, rear

12 131476300 Blower Wheel

14 # 131658101 Thermostat, heater

15 # 131322600 Thermostat, control

16 131311900 Screw, quadrex ph, 8-18AB x 0.500

18 131477000 Screw, 10-16AB x 0.375

19 131363901 Panel, motor cradle mt

22 3205241 Spring, idler

23 131863100 Idler Arm Assy, with pulley

25 # 134163500 Belt, dryer drive

26 5303212870 Block, support, bottom panel

27 134242400 Clamp, motor mtg.

28 # 134196600 Motor, dryer drive, with pulley

31 # 134500500 Power Cord, electric svce

33 131731410 Shield, access area, cover

34 131301100 Screw, hex washer head, 10-32T x 0.375, cabinet ground

38 3204320 Elbow, exhaust duct

39 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

42 5304439185 Bracket, marriage, interior

43 131751500 Screw, hex head, 12-24T 0.63

44 3204326 Bracket, L mounting, cabinet rear, external

48 131731310 Panel, dryer, bottom rear

50 3204329 Cover, safety, lower front

61 5303309493 Bracket, gas valve mtg

62 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

64 134145200 Pipe, gas

67 # 131498500 Valve, gas shutoff

68 # 134185100 Tail Piece, coupling

69 # 5308015194 Union, hex nut

70 # 134169200 Valve, LP gas

71 # 5300622602 Solenoid, secondary coil

72 # 5308015680 Solenoid, booster coil

73 # 5303207410 Orifice, natural gas, size 44

74 # 134393700 Igniter Assy

77 # 134216600 Burner Assy

79 # 5303281135 Sensor, radiant

80 # 131712401 Tube, burner

85 134287300 Shield, heat

86 134264800 Plate, adapter

87 131964400 Cable Tie, push mount, 5.20 inch

* 134169500 Gas Conversion Kit, LP to natural

* # 134101400 Terminal Block, main

* 08015112 Cap, pipe

* 131453000 Bushing, snap-in

Publication No: 5995436770 FGX831MCS0

05/05 6

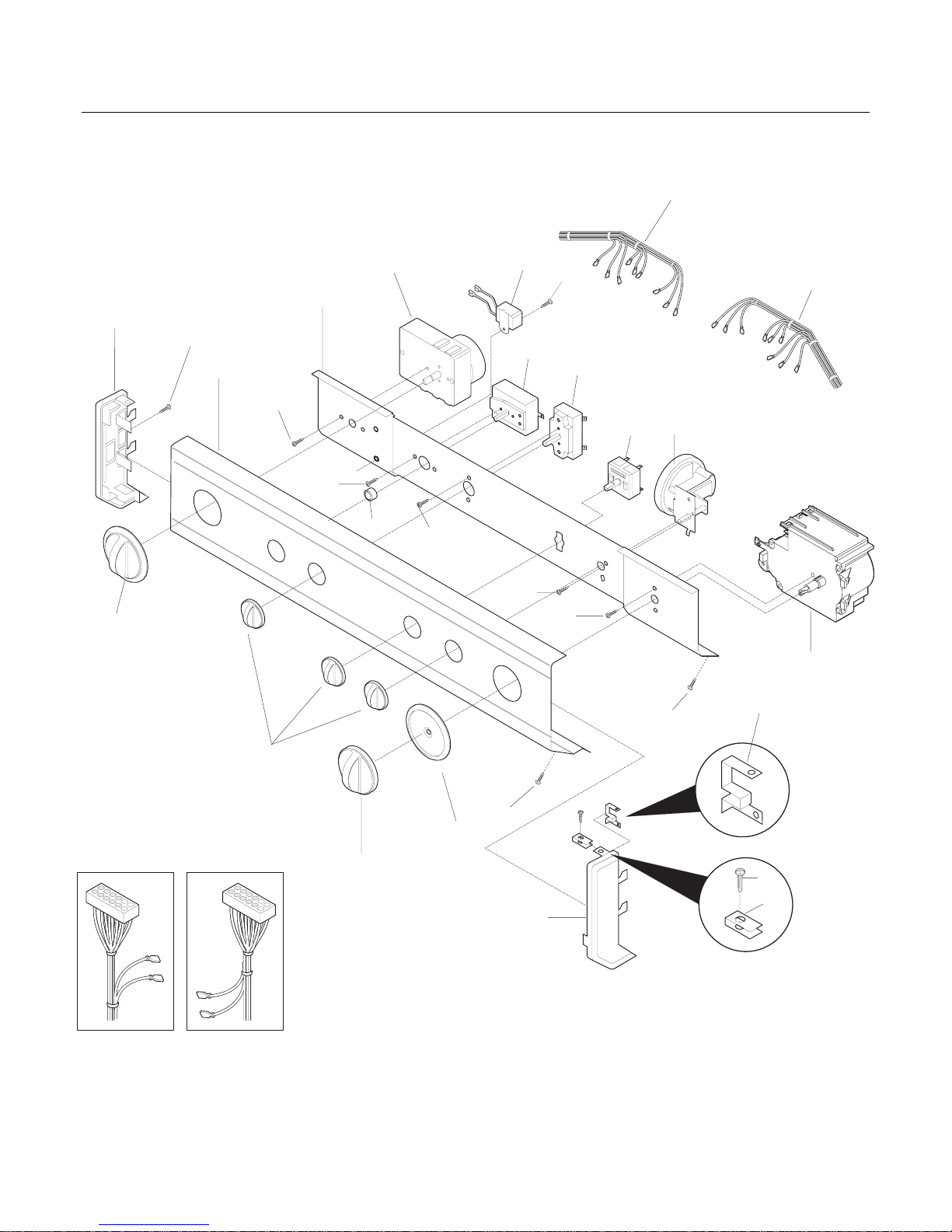

CONTROL PANEL

P17C0066

15 5

21A

25 27

23 29

38 27

FGX831MCS0 Publication No: 5995436770

# Functional Parts 7 05/05

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 5303297139 Timer, dryer

2 131168200 Screw, pan head, 8-18B x 0.31

3 # 134066100 Wiring Harness, dryer control

4 131873404 Knob, rotary, white/dk gray

5 134422700 Switch, pressure, 3 position, 3/4 hp

5* 131209800 Clamp, hose, pressure switch

6 # 134508000 Wiring Harness, washer control, w/temp switch

8 # 131758600 Timer, washer

9 131111501 Button, start switch, white, push type

10 # 131628900 Switch, push start

11 5303283289 Screw, cr pan head, 8-32 x 0.250, thread forming

15 # 131620800 Switch, temp selector, 3 posn rotary

17 134263400 Bracket, control mount

18 134310300 Panel, trimplate, console front

20 131288101 End Cap, white, LH

21 131873304 Knob, dryer timer, white

21A 131977201 Knob, washer timer, white

22 131311700 Screw, pan head quad, 8-32 x 0.15

23 # 131848700 Wiring Harness, main

* # 134101400 Terminal Block, main

24 131209600 Screw, flat head, 8-18AB x 0.44, cr/sq drive

25 131976804 Indicator, timer pointer, white/dark gray, washer

27 131892100 Screw, 6-20B x 0.230

29 # 134542100 Wiring Harness, washer, lower

29* 5303161300 Strap, plastic

31 131288211 End Cap, white, RH

32 3204357 Clip, grounding

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

35 5308014350 Clip, end cap mtg, U-type

38 # 5303286537 Buzzer

39 # 134400000 Switch, rotary, 2 position

Publication No: 5995436770 FGX831MCS0

05/05 8

LOWER CABINET/TOP

FGX831MCS0 Publication No: 5995436770

# Functional Parts 9 05/05

* Non-Illustrated Parts

LOWER CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 134203900 Screw, pan hd phillips, 6-32 x 0.337, dog point

2 131168200 Screw, pan head, 8-18B x 0.31

3A 134075500 Bumper, lid, front

4 3205250 Hinge Bar

5 5303208743 Grommet, hinge

6 5303212872 Lid, washer, white

9 131390000 Lid Strike

11 3204368 Screw, lid strike mtg, 6-20B X 0.375

20 3204374 Pin, slide, side to top

33 # 134211400 Valve, water, 115 V

34 131205500 Screw, cab body, 1/4-14 x 0.625, side-to-base

35 5308002385 Snubber Ring

36 3204380 Shipping Block

37 131658900 Screw, shipping, 1/4-20 x 1.001, yellow, unit base, thread forming

38 5303311213 Base Assembly

41 131258400 Screw, 10-16AB x 0.500

42 131104303 Panel, front, white

43 131422100 Pad, leveling leg, front

43A 131422200 Pad, self lvlg leg, rear

44 5303309673 Screw, leveling leg, with pad

45 131346400 Pin, panel locator

45A 131346401 Pin, panel locator, front

46 134046600 Cabinet Assy, white, back and sides

47 131106701 Bracket, marriage, RH

47A 131091001 Bracket, marriage, LH

50 # 134101800 Lock, lid, w/ext switch

53 131452510 Panel, washer top, white

54 3204394 Dispenser, bleach

55 5303212876 Spring, lid assist

56 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

Publication No: 5995436770 FGX831MCS0

05/05 10

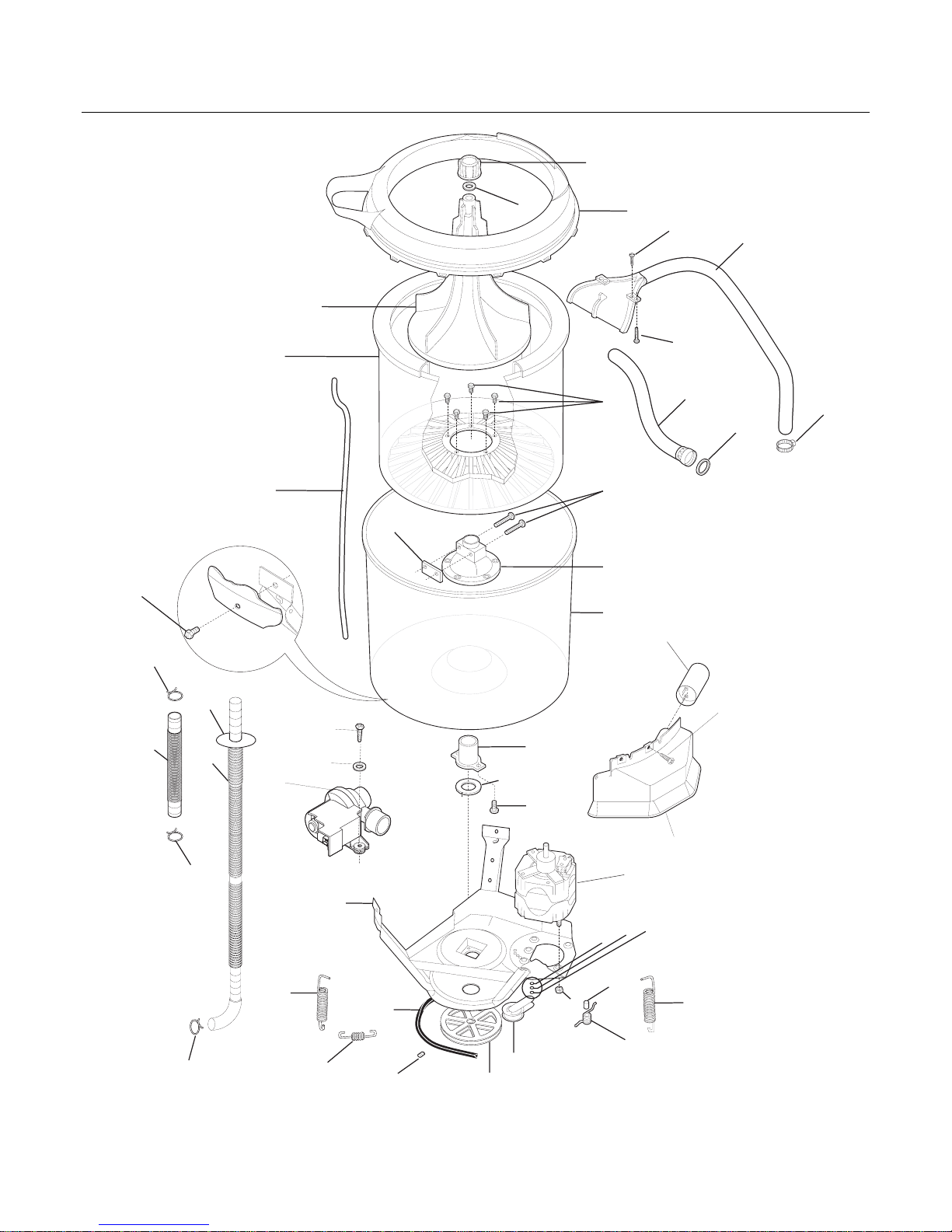

MOTOR/TUB

P17T0054

35 36 37

23A

339
