IMPORTANT SAFETY INSTRUCTIONS
1
WARNING:
Please read all instructions before using this unit.
FOR YOUR SAFETY
• DO NOT store or use gasoline, or other flammable liquids in the vicinity of this or any other
appliance. Read product labels for warnings regarding flammability and other hazards.
• DO NOT operate the appliance in the presence of explosive fumes.
• Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes
if they come in contact with other appliances or furniture.
DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey
all safety messages that follow this symbol to avoid possible injury or death.
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious minjury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
IMPORTANT indicates installation, operation or maintenance information
which is important but not hazard-related.
INSTALLATION CHECKLIST
Electrical Power
House power turned on
Appliance plugged in
Final Checks
Shipping material removed
Appliance temperatures set
Registration card sent in
Doors
Door seals completely to cabinet on all sides
Door is level across the top
Leveling
Unit is level, side-to-side and tilted 1/4” (6 mm)
front-to-back
Cabinet is setting solid on all corners
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after
the appliance is unpacked. Children should NEVER use these items to play. Cartons covered
with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can
quickly cause suffocation.
2
WARNING These guidelines must be followed to ensure that safety
mechanisms in this unit will operate properly.
IMPORTANT Turning the Temperature Control to
“OFF” turns off the compressor and prevents your
appliance from cooling, but does not disconnect the
power to the other electrical components. To turn off
power to your appliance you must unplug the power
cord from the electrical outlet.
PROPER DISPOSAL OF YOUR APPLIANCE
ELECTRICAL INFORMATION
RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the past. Junked or abandoned
appliances are still dangerous – even if they will sit for “just a few days.” If you are getting rid of
your old appliance, please follow the instructions below to help prevent accidents.
PROPER DISPOSAL OF APPLIANCE
We strongly encourage responsible appliance recycling/disposal methods. Check with your
utility company or visit www.energystar.gov/recycle for more information on recycling your old
appliance.
BEFORE YOU THROW AWAY YOUR OLD APPLIANCE:
• Remove doors.
• Leave shelves in place so children may
not easily climb inside.
• Have refrigerant removed by a qualified
service technician.
• The appliance must be plugged into its own dedicated 115 Volt, 60 Hz., AC only electrical
outlet. The power cord of the appliance is equipped with a three-prong grounding plug for
your protection against electrical shock hazards. It must be plugged directly into a properly
grounded three prong receptacle. The receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician. Avoid connecting keg cooler to a Ground
Fault Interruptor (GFI) circuit. Do not use an extension cord or adapter plug.
• If the power cord is damaged, it should be replaced by an authorized service technician to
prevent any risk.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly, and pull
straight out from the receptacle to prevent damaging the power cord.
• Unplug the appliance before cleaning and before replacing a light bulb to avoid electrical shock.
• Performance may be affected if the voltage varies by 10% or more. Operating the appliance
with insufficient power can damage the compressor. Such damage is not covered under your
warranty.
• Do not plug the unit into an electrical outlet controlled by a wall switch or pull cord to prevent
the unit from being turned off accidentally.
3
WARNING
CO2CANISTER SAFE HANDLING
• CO2canisters must be handled with extreme care. They contain potentially
hazardous high pressure compressed gas. Make sure you read and understand all of
these instructions before installation.
• Never attempt to refill a CO2cylinder yourself. They can be refilled at locations such
as welding supply shops, party stores, fire supply shops, or where kegs are purchased.
• ALWAYS connect CO2gas canisters to a pressure regulator.
• NEVER drop or throw the CO2canister.
• NEVER connect gas canister directly to keg.
• ALWAYS keep CO2canisters in a cool place (21.5°C（70°F）or less) and away from heat.
• In case of CO2leakage, ventilate and evacuate the area immediately.
• ALWAYS keep canister secured in an upright position.
• Check the Department of Transportation (D.O.T.) test date on the canister neck and do
not use if older than five (5) years.
• Return outdated canister to your gas supplier for one that is within the time limit.
UNPACKING AND SETUP
4
This Use and Care Manual provides specific assembly, operating and maintenance instructions
for your model. Use the keg cooler only as instructed in this Use and Care Manual. Before
starting the keg cooler, follow these important first steps.
PARTS
Your keg cooler comes with several small boxes that contain all the required parts and
accessories. Check to make sure that you have received all of the components listed below.
BEVERAGE DELIVERY KIT BOX
(1) Drip Tray
(2) Casters and Washers
(3) Retaining Strap
(4) Hole Plug
(5) Faucet Knob
(6) CO2Regulator (with plastic washer)
(7) Keg Coupler
(8) Small Hose (Gas Line)
(9) Rubber Gasket (Black)
(For bottom of Dispensing Tower)
(10) Guard Rail
(11) Dispenser Tower (with faucet)
(12) CO2Canister (Empty)
(13) Bag of spare parts
(replacement seals and washers)
Casters and
Washers
Faucet Knob
Drip Tray Retaining Strap
C0 Regulator
2
Hole Plug
Keg Coupler
Spare Parts
Rubber Gasket
1
5
2
6
9
3
7
11
4
8
10
13
Dispenser
Tower C0 Canister
2
11 12
Guard Rail
1 piece
4 pieces
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
1 bag
The box comes with a “D System” type Keg Coupler (7). Depending on your choice of beer,
you may require a different Keg Coupler (7). Check with your local beer distributor to
determine which type of system you need, and order additional Keg Couplers as needed.
NOTE
Small Hose
FEATURES AT A GLANCE
5
Features may vary according to model
Dispensing Tower
Drip Tray
Casters (x4)
Faucet Handle
Faucet
Top Rail
Temperature Control
Standard Keg Sizes for this Cooler
35.2 cm
(13-7/8 in.)
59.4 cm
(23-3/8 in.) 59.4 cm
(23-3/8 in.)
41.0 cm (16-1/8 in.) 41.0 cm (16-1/8 in.) 28.3 cm (11-1/8 in.)
23.5 cm (9-1/4 in.)
ASSEMBLY AND INSTALLATION
6
LOCATION
• Choose a place that is near a grounded electrical outlet. Do not use an extension cord or an
adapter plug.
• If possible, place the unit out of direct sunlight and away from the range, dishwasher or other
heat sources.
• For optimum performance, this product should only be used indoors under normal ambient
conditions.
• The appliance must be installed on a floor that is level and strong enough to support a fully
loaded unit.
• If the appliance has been placed in a horizontal or tilted position for any period of time, please
wait at least 24 hours before plugging the unit in.
INSTALLING THE CASTERS
Follow the steps below to install the casters.
1. Empty the inside of the cabinet completely and lay the Keg Cooler down on its side.
We recommend that you place a piece of cardboard or cloth underneath the cabinet to prevent
dents or scratches.
2. Insert the casters into the holes on the bottom corners of the cabinet. Tighten each caster by
turning the head of the bolts clockwise with a wrench (not provided in the kit).
3. Once all four casters have been tightened, stand the cabinet in its upright position.
INSTALLING THE BEER TAP
There are notches on the bottom of the dispensing tower that line up with grooves inside the
opening on the top of the Keg Cooler. Align the dispensing tower with the opening on the top of
the unit, then place inside and twist clockwise until secure. Use four screws to fasten the beer tap.
Pay attention to use the thin black gasket (9) for assembly (see illustration). If you find this to be
a tight fit, apply some soapy water to the gasket to make the tower easier to twist into place.
Also see illustration showing hose connections to CO2regulator to the beer tap.
This Use and Care Guide provides specific operating instructions for your model. Use this unit
only as instructed in this Use and Care Guide. Before starting the unit, follow these important
first steps.
NOTE: Two of the casters include locking mechanisms to ensure the unit does not
slide on hard floors. These two locking casters should be fastened at the front end
of the unit, with the unlocked casters fastened on the rear end.
7
INSTALLING THE GUARDRAIL
Follow the steps below to install the guardrail.
1. Place the guard rail on top of the cabinet.
2. Align all support feet of the guardrail with the holes on the top of the unit and press down into
place.
INSTALLATION
Installation clearances
• Allow the following clearances for ease of installation, proper air circulation, and electrical
connections:
Sides and Top 12.7 cm (5 inches)
Back 12.7 cm (5 inches)
LEVELING
All four casters of your unit must rest firmly on a solid floor. Use adjustable wrench to adjust
leveling screws.

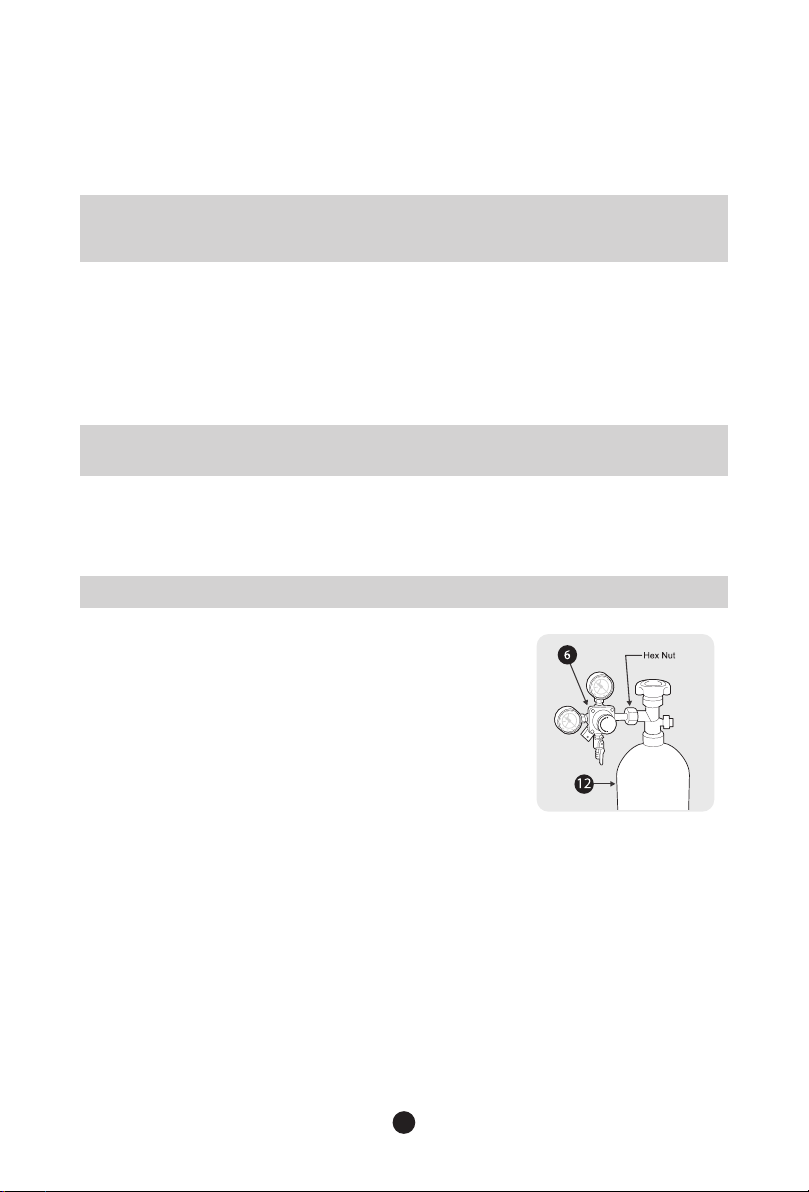

REGULATOR INSTALLATION
• Check to ensure plastic washer is inside the hex nut.
• Fasten the CO2 regulator (6) to the CO2 canister (12). Place
the regulator to the right of the tank.
• Tighten the hex nut securely. DO NOT over tighten. Over-
tightening may damage the gasket in the nut of the regulator.
SMALL CO2HOSE TO REGULATOR CONNECTION
• Attach wing nut on end of small hose (8) to fitting at bottom of regulator (6).
CAUTION: Do not install the unit where the temperature will drop below 13°C
(55°F) or rise above 32°C (90°F). The compressor will not be able to maintain
proper temperatures inside the unit.
NOTE: If your unit is placed with the door hinge side against a wall, you may have
to allow additional space so the door can be opened wider.
CAUTION: do not attempt to move or relocate the keg cooler with a keg inside.
SMALL CO2HOSE TO COUPLER CONNECTION
• Secure other end of small hose (8) to the threaded
end of keg coupler (7) as shown. Be sure to fully
tighten fitting.
CLEAR HOSE TO COUPLER CONNECTION
Place one of the supplied rubber washers inside
the wing nut on the one end of the clear hose
(beverage delivery line) and attach to keg coupler
(7). Be sure to tighten the nut securely to prevent
leakage. DO NOT overtighten. Overtightening may
damage the gasket in the nut.
COUPLER TO KEG INSTALLATION
• Align locks on keg coupler (7) with housing on
top of keg and push down on the keg coupler (7).
Make sure top handle is in the up position.
• Turn the tap head handle clockwise 1/4 turn. The
tap head is now secured to the keg.
• Pull the tap handle out and push down until it locks
into place to open the port in the keg.
DELIVERY HOSE PRESSURIZATION
• Open the CO2canister valve all the way by turning
counterclockwise until it stops. This valve seals
at both the fully open and fully closed positions.
Failure to completely open or close the valve could
result in premature loss of CO2pressure.
• Open the regulator shut-off valve by moving it to
the 6 o’clock position.
• Check gauge pressure. Adjust the regulator
adjustment knob Knob as necessary until the pressure
reads between 12 to 14 psi. You may first need to
loosen set screw located behind knob. After setting
regulator to correct pressure, set screw may be retightened
to lock knob in place.
NOTE: Depending on your choice of beer, you may require a
different keg coupler (7). Check with your local beer
distributor to determine which type of system you need, and
order additional keg couplers as needed.
8
CO2CANISTER TO CABINET INSTALLATION
• Lift and place the CO2 canister (12) with the CO2 regulator (6) on the shelf at rear right hand
corner of cabinet. It is important that the canister be kept in an upright position to operate
efficiently. Hook one end of retaining strap (3) over metal bracket at rear, then stretch around
canister and hook other end over front bracket.
KEG TO CABINET INSTALLATION
• Place the keg on the support shelf and push
back next to the CO2 canister (12) (See TIPS ON
INSTALLING KEG TO THE CABINET) inside the
cabinet as shown.
WARNING
SAFE KEG HANDLING
• Installing the keg to the cabinet is a two-person team effort. NEVER lift a full keg alone.
Doing so may cause severe injury.
• With the door fully open and the help of another person, lift the keg vertically on both
sides until the keg is higher than the keg support shelf.
• Set the edge of the keg on top of the plastic protective plate located on top of keg
support shelf. Slide the keg back until it is fully inside the cabinet.
• Care must be taken to avoid damage to the temperature control and shelf tower located
in the cabinet.
NOTE: The above illustration does not show the tap installed for clarity of installation.
9
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Frigidaire Congélateur
Frigidaire
Frigidaire FFU17F9GW Manuel utilisateur
Frigidaire
Frigidaire FFU20F9HW Manuel utilisateur
Frigidaire
Frigidaire FFC0923DW - 8.8 cu. Ft. Manual Defrost Chest... Manuel utilisateur
Frigidaire
Frigidaire FFN15M5HW - 14.8 cu. Ft. Chest Freezer Manuel de la liste des pièces
Frigidaire
Frigidaire FFC09K0DW Manuel utilisateur
Frigidaire
Frigidaire 297298800 Manuel utilisateur
Frigidaire
Frigidaire GLFU2067FW Manuel utilisateur
Frigidaire
Frigidaire FFU20FG6AW0 Guide de l'utilisateur
Frigidaire
Frigidaire R134a Manuel utilisateur
Frigidaire
Frigidaire FFC0522FW Manuel utilisateur
Frigidaire
Frigidaire FFU11FC2CW1 Manuel utilisateur
Frigidaire
Frigidaire FFC09K1CW Manuel utilisateur
Frigidaire
Frigidaire FFU20FC4CW Manuel utilisateur
Frigidaire
Frigidaire FFC13C3AW1 Manuel utilisateur
Frigidaire
Frigidaire FKFU13M2HW - 12.5 cu. Ft. Manual Defrost Upright... Manuel de la liste des pièces
Frigidaire
Frigidaire FFU21G5AW1 Manuel utilisateur
Frigidaire
Frigidaire FFC13C3AW0 Manuel utilisateur
Frigidaire
Frigidaire FFC7C4AW0 Manuel utilisateur
Frigidaire
Frigidaire FPUH17D7KF0 Manuel utilisateur
Frigidaire
Frigidaire FFU17D7HW Manuel utilisateur
