Frigidaire FGQ332E Manuel utilisateur

Product No. FGQ332ES0

Series Frigidaire

Market North America

Color white

Volts 120

Wiring Diagram 134064000

Owner's Guide 131956700

Installation Instructions 134296400

Operating Instructions 134383600

P16L0007.eps P16V0064.eps P16d0028.eps P16C0153.eps P16M0024.eps P16b0015.eps

134064000g.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995427514

05/01/27

(EN/SERVICE/BJH)

361

GAS DRYER

Model No.

FGQ332E

Publication No: 5995427514 FGQ332ES0

01/05 2

CABINET/DRUM

FGQ332ES0 Publication No: 5995427514

# Functional Parts 3 01/05

* Non-Illustrated Parts

CABINET/DRUM

POS. NO PART NO. DESCRIPTION

2 131168200 Screw, pan head, 8-18B x 0.31

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

9 131793200 Panel, service access, rear

11 131363200 Cover, terminal block

* # 134101400 Terminal Block, main

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131600500 Housing, gas heater assy, w/seal

18 131477000 Screw, 10-16AB x 0.375

20 131469100 Bracket, hinge, rear, top panel mtg.

21 134122532 Drum, dryer, galvanized stl., service kit

24 131963900 Glide, drum

25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5303201200 Vane, straight

31 # 134102200 Power Cord, electric svce

32 131777700 Shaft, drum support, ballhitch

32* 5303307893 Lubricant, high temp

33 # 5308015399 Thermostat, safety

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

37 131952100 Duct, heat

42 134154100 Screw, hex washer head, 10-32 x 0.375, ground

44 134158000 Leveling Leg, screw

64 131704600 Clip, front, cabinet bottom

* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32

* 5303937141 Stacking Kit, washer/dryer

Publication No: 5995427514 FGQ332ES0

01/05 4

FRONT PANEL/LINT FILTER

P16D0028

28 16

FGQ332ES0 Publication No: 5995427514

# Functional Parts 5 01/05

* Non-Illustrated Parts

FRONT PANEL/LINT FILTER

POS. NO PART NO. DESCRIPTION

1 134417000 Seal, air duct

2 131397000 Plug, dome, white

6 131621900 Duct, air

8 # 131845801 Cover, lint housing, w/moist sensor

8* # 131657500 •Wiring Harness, moisture sensor

9 131633200 Plug, white

16 131063700 Clip, wiring

20 134440200 Seal, felt, upper

20* 5308027429 •Adhesive, high temp

21 134134700 Seal, felt, lower

22 131845902 Panel, front, white, with lamp hole

22* 131474700 Insulation

25 131658800 Door Catch

26 # 131843101 Switch, door, with drum light

27 131450300 Trap, lint blade assy

28 134440000 Clip, guide

41 134222900 Hinge, dryer door

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

44 131129900 Gasket, door seal

45 134207300 Screw, pan head, 8-18AB x 0.250

46 131644700 Handle, door, white

47 131844104 Panel, inner door, white

48 131789303 Panel, outer door, white

49 5303211430 Door Strike

50 131303300 Screw, pan head, 10-16AB x 0.500, locking

58 # 131843500 Lamp Assy, drum light, w/mtg bracket

58*# 131862800 •Lamp

Publication No: 5995427514 FGQ332ES0

01/05 6

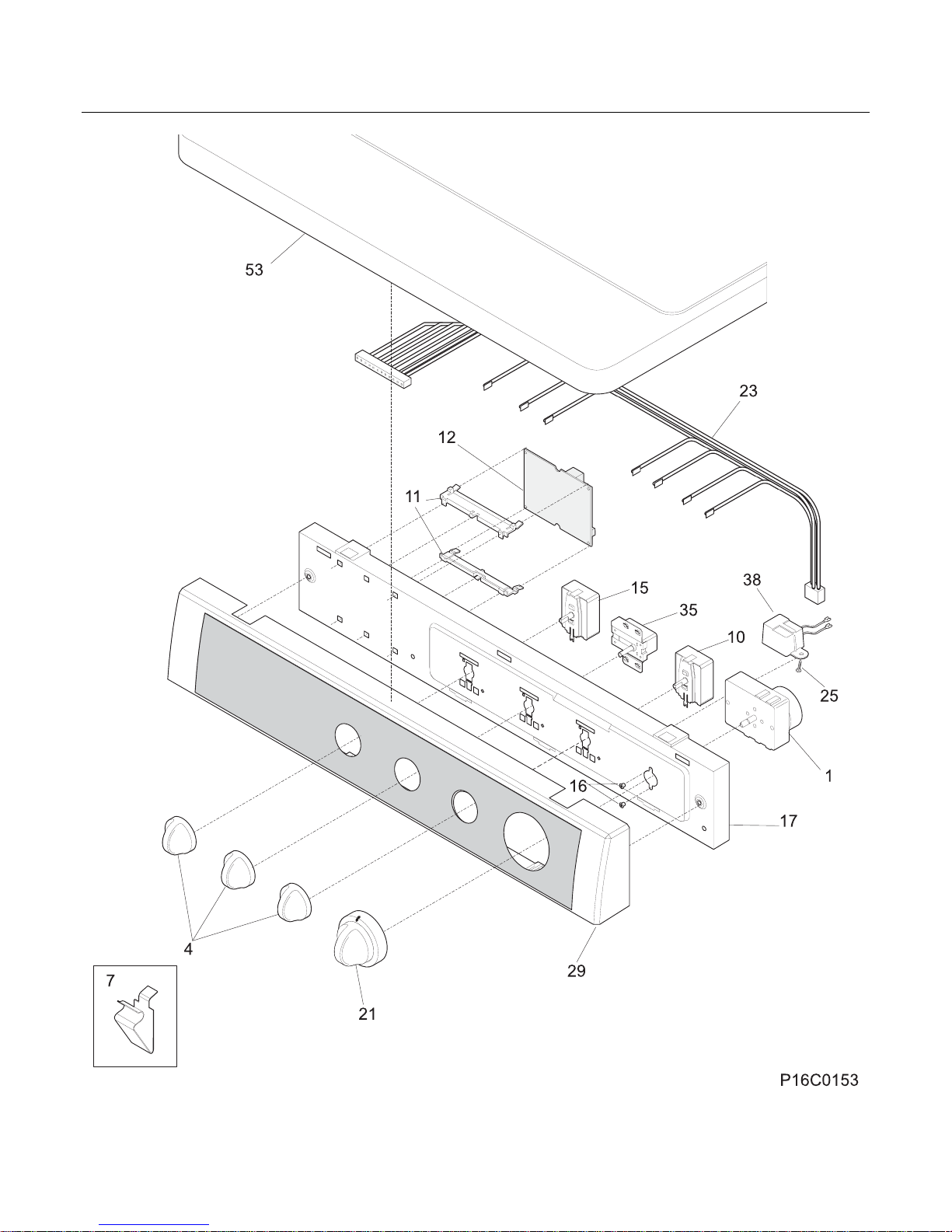

CONTROLS/TOP PANEL

FGQ332ES0 Publication No: 5995427514

# Functional Parts 7 01/05

* Non-Illustrated Parts

CONTROLS/TOP PANEL

POS. NO PART NO. DESCRIPTION

1 # 131789200 Timer, dryer

4 134042800 Knob, rotary, white

7 3205821 Clip, top-to-front

10 134398300 Switch, start, turn type

11 131587400 Bracket, pc board mtg., (2)

12 # 134216300 Control Board, moisture sensor

15 # 134046801 Switch, temperature

16 134034300 Screw, pan hd phillips, 8-18B x 0.250

17 134064501 Bracket, control mtg.

21 134042600 Knob, timer, white/gray

23 # 134063900 Wiring Harness, control

* # 134006600 Wiring Harness, main

* # 134101400 Terminal Block, main

25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point

29 131666971 Console, frame, w/trim & tape

35 # 131243200 Switch, 2 position

38 # 5303210285 Buzzer

53 134086812 Panel, dryer top, white, stackable

* 134296400 Instructions, installation

Publication No: 5995427514 FGQ332ES0

01/05 8

MOTOR

FGQ332ES0 Publication No: 5995427514

# Functional Parts 9 01/05

* Non-Illustrated Parts

MOTOR

POS. NO PART NO. DESCRIPTION

4 131435200 Lock, blower housing

7 131451600 Tube, exhaust, rear, w/mtg bracket

7* 131456800 Tube, exhaust, side/bottom, Optional Kit

10 # 131775600 Blower Assy, housing, w/cover & wheel

11 131749800 Spacer, idler

15 # 134048900 Thermostat, control

20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting

22 131601000 Spring, idler arm

23 # 131863004 Idler Arm Assy, w/pulley

25 # 134163400 Belt, dryer

27 134242400 Clamp, motor mtg.

28 # 131560100 Motor & Pulley Assy

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

46 134203400 Bracket, motor mtg

47 131633300 Seal, exhaust tube

48 131168200 Screw, pan head, 8-18B x 0.31

52 131202300 Screw, 10-16AB x 0.625

Publication No: 5995427514 FGQ332ES0

01/05 10

BURNER
