Frigidaire FEQ332 Manuel utilisateur

Product No. FEQ332ES0

Series Frigidaire

Market North America

Color white

Wiring Diagram 134064000

Owner's Guide 131956700

01/17/05

Installation Instructions 134296400

Operating Instructions 134383600

P16L0007.eps P16V0082.eps P16d0028.eps P16C0153.eps P16M0024.eps

134064000e.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995427175

05/01/21

(EN/SERVICE/BJH)

361

ELECTRIC DRYER

Model No.

FEQ332E

Publication No: 5995427175 FEQ332ES0

01/05 2

CABINET/DRUM

P16V0082

52A

FEQ332ES0 Publication No: 5995427175

# Functional Parts 3 01/05

* Non-Illustrated Parts

CABINET/DRUM

POS. NO PART NO. DESCRIPTION

2 131168200 Screw, pan head, 8-18B x 0.31

4 131785200 Bracket, elec power cord, knock out

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

9 131793200 Panel, service access, rear

11 5303211428 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131553900 Heater Assy, w/housing/felt

17 3204254 Baffle, heater shield

18 131477000 Screw, 10-16AB x 0.375

20 131469100 Bracket, hinge, rear, top panel mtg.

21 134122532 Drum, dryer, galvanized stl., service kit

24 131963900 Glide, drum

25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5303201200 Vane, straight

32 131777700 Shaft, drum support, ballhitch

32* 5303307893 Lubricant, high temp

33 # 3204267 Thermostat, safety

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

35 131892100 Screw, 6-20B x 0.230

36 # 134120900 Thermal Limiter

42 134154100 Screw, hex washer head, 10-32 x 0.375, ground

44 134158000 Leveling Leg, screw

51 131472100 Insulator, heater housing

52 # 134101400 Terminal Block, main

52A 3202786 Terminal Block, heater housing

64 131704600 Clip, front, cabinet bottom

* # 134110500 Wiring Harness, main

* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32

* 5303937141 Stacking Kit, washer/dryer

Publication No: 5995427175 FEQ332ES0

01/05 4

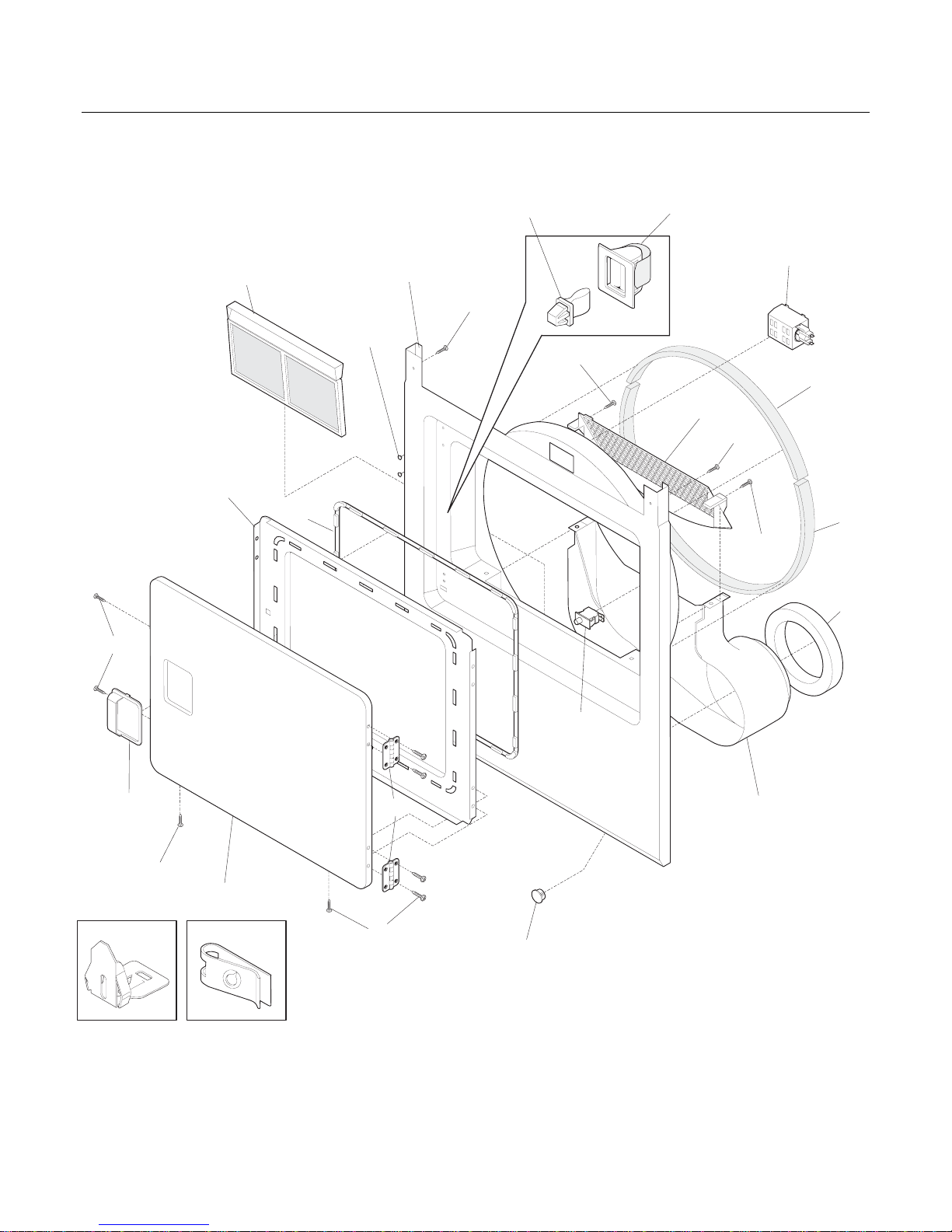

FRONT PANEL/LINT FILTER

P16D0028

28 16

FEQ332ES0 Publication No: 5995427175

# Functional Parts 5 01/05

* Non-Illustrated Parts

FRONT PANEL/LINT FILTER

POS. NO PART NO. DESCRIPTION

1 134417000 Seal, air duct

2 131397000 Plug, dome, white

6 131621900 Duct, air

8 # 131845801 Cover, lint housing, w/moist sensor

8* # 131657500 •Wiring Harness, moisture sensor

9 131633200 Plug, white

16 131063700 Clip, wiring

20 134440200 Seal, felt, upper

20* 5308027429 •Adhesive, high temp

21 134134700 Seal, felt, lower

22 131845902 Panel, front, white, with lamp hole

22* 131474700 Insulation

25 131658800 Door Catch

26 # 131843101 Switch, door, with drum light

27 131450300 Trap, lint blade assy

28 134440000 Clip, guide

41 134222900 Hinge, dryer door

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

44 131129900 Gasket, door seal

45 134207300 Screw, pan head, 8-18AB x 0.250

46 131644700 Handle, door, white

47 131844104 Panel, inner door, white

48 131789303 Panel, outer door, white

49 5303211430 Door Strike

50 131303300 Screw, pan head, 10-16AB x 0.500, locking

58 # 131843500 Lamp Assy, drum light, w/mtg bracket

58*# 131862800 •Lamp

Publication No: 5995427175 FEQ332ES0

01/05 6

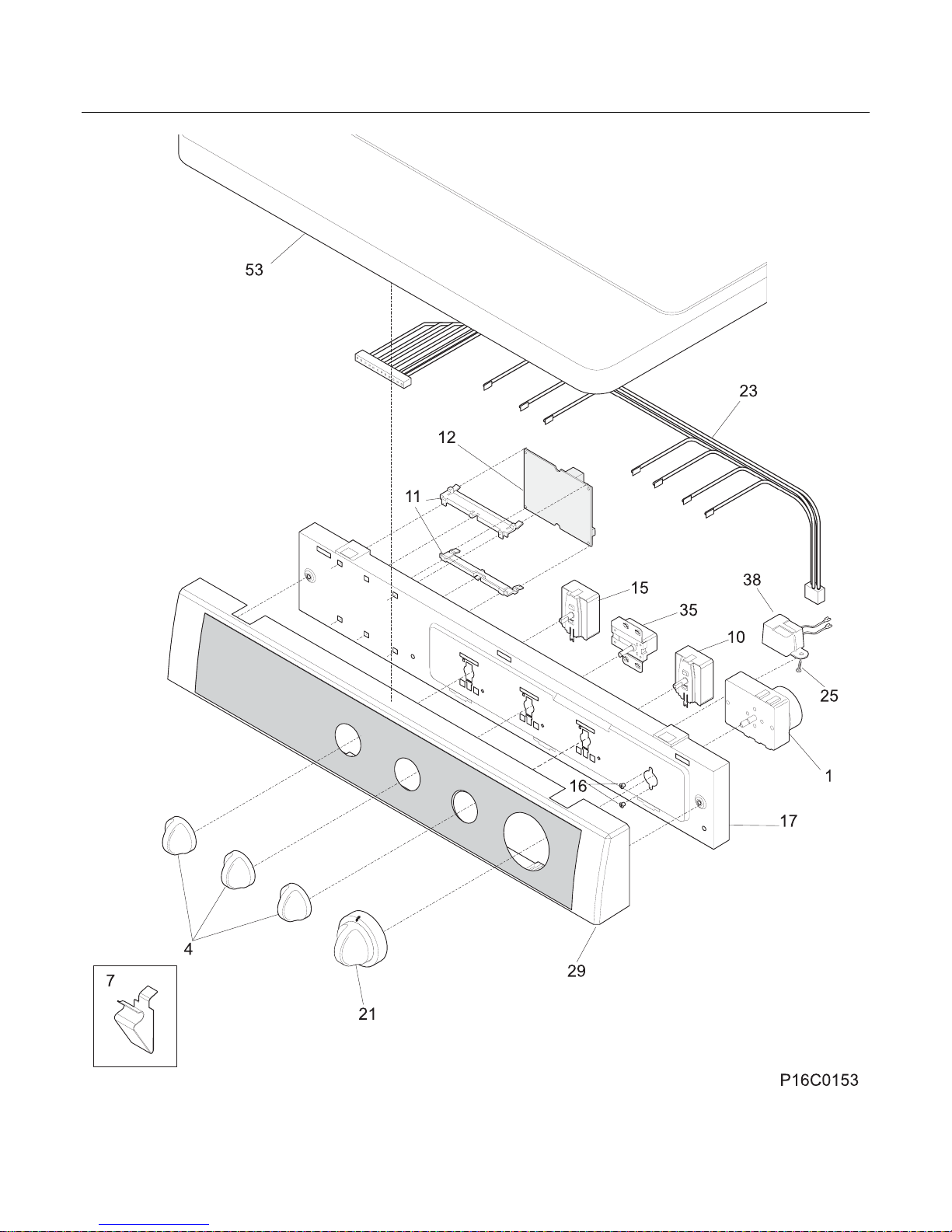

CONTROLS/TOP PANEL

FEQ332ES0 Publication No: 5995427175

# Functional Parts 7 01/05

* Non-Illustrated Parts

CONTROLS/TOP PANEL

POS. NO PART NO. DESCRIPTION

1 # 131789200 Timer, dryer

4 134042800 Knob, rotary, white

7 3205821 Clip, top-to-front

10 134398300 Switch, start, turn type

11 131587400 Bracket, pc board mtg., (2)

12 # 134216300 Control Board, moisture sensor

15 # 134046800 Switch, temp control, 3 posn rotary

16 134034300 Screw, pan hd phillips, 8-18B x 0.250

17 134064501 Bracket, control mtg.

21 134042600 Knob, timer, white/gray

23 # 134063800 Wiring Harness, control

* # 134110500 Wiring Harness, main

* # 134101400 Terminal Block, main

25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point

29 131666971 Console, frame, w/trim & tape

35 # 131243200 Switch, 2 position

38 # 5303210285 Buzzer

53 134086812 Panel, dryer top, white, stackable

Publication No: 5995427175 FEQ332ES0

01/05 8

MOTOR

FEQ332ES0 Publication No: 5995427175

# Functional Parts 9 01/05

* Non-Illustrated Parts

MOTOR

POS. NO PART NO. DESCRIPTION

4 131435200 Lock, blower housing

7 131451600 Tube, exhaust, rear, w/mtg bracket

7* 131456800 Tube, exhaust, side/bottom, Optional Kit

10 # 131775600 Blower Assy, housing, w/cover & wheel

11 131749800 Spacer, idler

15 # 134048800 Thermostat, control

20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting

22 131601000 Spring, idler arm

23 # 131863004 Idler Arm Assy, w/pulley

25 # 134163400 Belt, dryer

27 134242400 Clamp, motor mtg.

28 # 131560100 Motor & Pulley Assy

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

46 134203400 Bracket, motor mtg

47 131633300 Seal, exhaust tube

48 131168200 Screw, pan head, 8-18B x 0.31

52 131202300 Screw, 10-16AB x 0.625

Publication No: 5995427175 FEQ332ES0

01/05 10

WIRING DIAGRAM
