Frigidaire FEQ1442CE Manuel utilisateur

Product No. FEQ1442CES0

Series Frigidaire

Market Canada

Color white

Volts 240

Wiring Diagram 134509400

Owner's Guide 134508100

Installation Instructions 134507900

Operating Instructions 134507800

Energy Guide 134507600

P16L0041.eps P16V0083.eps P16d0032.eps P16C0229.eps P16M0024.eps

134509400e.eps

ELECTROLUX MAJOR APPLIANCES

NORTH & LATIN AMERICA

6150 McLaughlin Road

Mississauga, Ontario, Canada L5R 1K6 Publication No.

5995430450

05/03/01

(EN/SERVICE/KC)

361

ELECTRIC DRYER

Model No.

FEQ1442CE

Publication No: 5995430450 FEQ1442CES0

03/05 2

CABINET/DRUM

P16V0083

52A

FEQ1442CES0 Publication No: 5995430450

# Functional Parts 3 03/05

* Non-Illustrated Parts

CABINET/DRUM

POS. NO PART NO. DESCRIPTION

2 131168200 Screw, pan head, 8-18B x 0.31

4 131785200 Bracket, elec power cord, knock out

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

9 131793200 Panel, service access, rear

11 5303211428 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131553900 Heater Assy, w/housing/felt

17 3204254 Baffle, heater shield

18 131477000 Screw, 10-16AB x 0.375

20 134166500 Bracket, top panel mtg., rear

21 134122532 Drum, dryer, galvanized stl., service kit

24 131963900 Glide, drum

25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5303201200 Vane, straight

31 # 134502300 Power Cord, electric svce, 4-wire Canada

* 5303297892 Clamp, strain relief, power cord

32 131777700 Shaft, drum support, ballhitch

32* 5303307893 Lubricant, high temp

33 # 3204267 Thermostat, safety

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

35 131892100 Screw, 6-20B x 0.230

36 # 134120900 Thermal Limiter

42 134154100 Screw, hex washer head, 10-32 x 0.375, ground

44 134344900 Leveling Leg, screw

51 131472100 Insulator, heater housing

52 # 134101400 Terminal Block, main

* # 134394200 Wiring Harness, main

52A# 3202786 Terminal Block, heater housing

64 134360100 Bracket, svce panel mtg.

* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32

* 134467300 Stacking Kit, washer/dryer

Publication No: 5995430450 FEQ1442CES0

03/05 4

FRONT PANEL/LINT FILTER

P16D0032

FEQ1442CES0 Publication No: 5995430450

# Functional Parts 5 03/05

* Non-Illustrated Parts

FRONT PANEL/LINT FILTER

POS. NO PART NO. DESCRIPTION

1 134417000 Seal, air duct

2 131168200 Screw, pan head, 8-18B x 0.31

6 134382900 Duct, air

8 # 131845802 Cover, lint housing, w/moist sensor

9 131633200 Plug, white

16 131063700 Clip, wiring

17 134408700 Clip, assembly

18 134321702 Panel, front service, white

20 134440200 Seal, felt, upper

20* 5308027429 •Adhesive, high temp

21 134134700 Seal, felt, lower

22 134393502 Panel, front, white, with lamp hole

25 131658800 Door Catch

26 # 131843101 Switch, door, with drum light

27 131450300 Trap, lint blade assy

28 134440000 Clip, guide

39 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

41 134412400 Hinge, door

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

44 134413300 Gasket, door seal

46 134439300 Handle, door

47 134412204 Panel, inner door, white

48 134412003 Panel, outer door, white

49 5303211430 Door Strike

50 131303300 Screw, pan head, 10-16AB x 0.500, locking

58 # 131843500 Lamp Assy, drum light, w/mtg bracket

58*# 131862800 •Lamp

Publication No: 5995430450 FEQ1442CES0

03/05 6

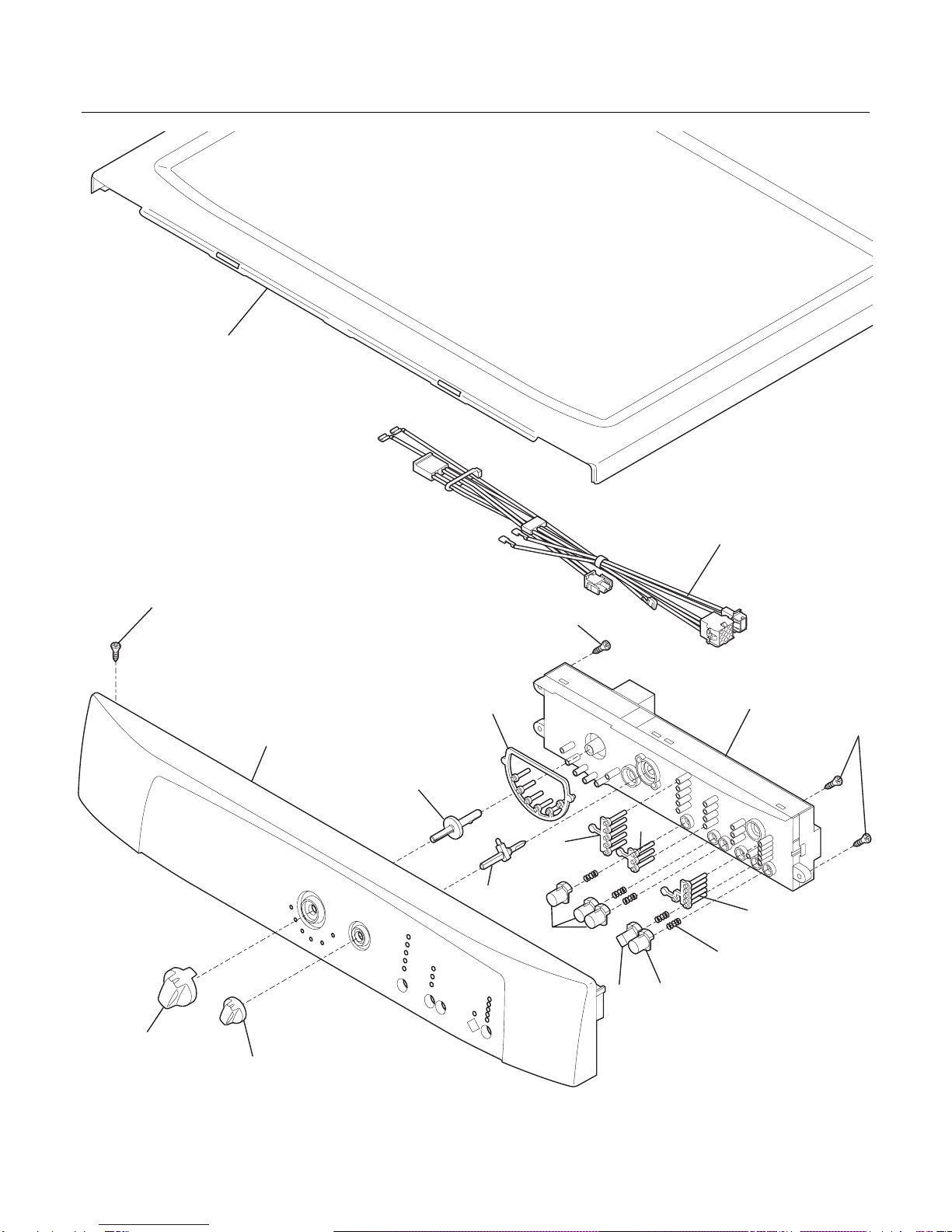

CONTROLS/TOP PANEL

P16C0229

11 12

FEQ1442CES0 Publication No: 5995430450

# Functional Parts 7 03/05

* Non-Illustrated Parts

CONTROLS/TOP PANEL

POS. NO PART NO. DESCRIPTION

1 # 134484212 Control Board, printed circuit, with housing

2 134432000 Knob, function

3 134431800 Knob, program

4 134347700 Pin, program knob

5 134347300 Pin, function knob

6 134447600 Light Pipe, array, 9 curved prgm.

7 134429100 Light Pipe, array, 1 row of 5

8 134429200 Light Pipe, array, 2 row of 4

9 134429400 Light Pipe, array, 4 start group

10 134385100 Push Button, function

11 134385201 Push Button, start

12 134385301 Push Button, pause

13 134349400 Spring, push button

19 134402900 Screw, phillips pan hd, 6-19 x 0.650, type p

23 # 134394400 Wiring Harness, controls

* # 134394200 Wiring Harness, main

29 134442400 Panel, control console

39 134178900 Screw, Quad, 8-18AB x 0.455

53 134365000 Panel, work top, white

Publication No: 5995430450 FEQ1442CES0

03/05 8

MOTOR

FEQ1442CES0 Publication No: 5995430450

# Functional Parts 9 03/05

* Non-Illustrated Parts

MOTOR

POS. NO PART NO. DESCRIPTION

4 131435200 Lock, blower housing

7 131451600 Tube, exhaust, rear, w/mtg bracket

7* 131456800 Tube, exhaust, side/bottom, Optional Kit

10 # 131775600 Blower Assy, housing, w/cover & wheel

11 131749800 Spacer, idler

15 # 134216500 Thermistor, control

20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting

22 131601000 Spring, idler arm

23 # 131863004 Idler Arm Assy, w/pulley

25 # 134163400 Belt, dryer

27 134242400 Clamp, motor mtg.

28 # 131560100 Motor & Pulley Assy

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

46 134203400 Bracket, motor mtg

47 131633300 Seal, exhaust tube

48 131168200 Screw, pan head, 8-18B x 0.31

52 131202300 Screw, 10-16AB x 0.625

Publication No: 5995430450 FEQ1442CES0

03/05 10

WIRING DIAGRAM
