Frigidaire CAQE7001LW0 Manuel du propriétaire

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

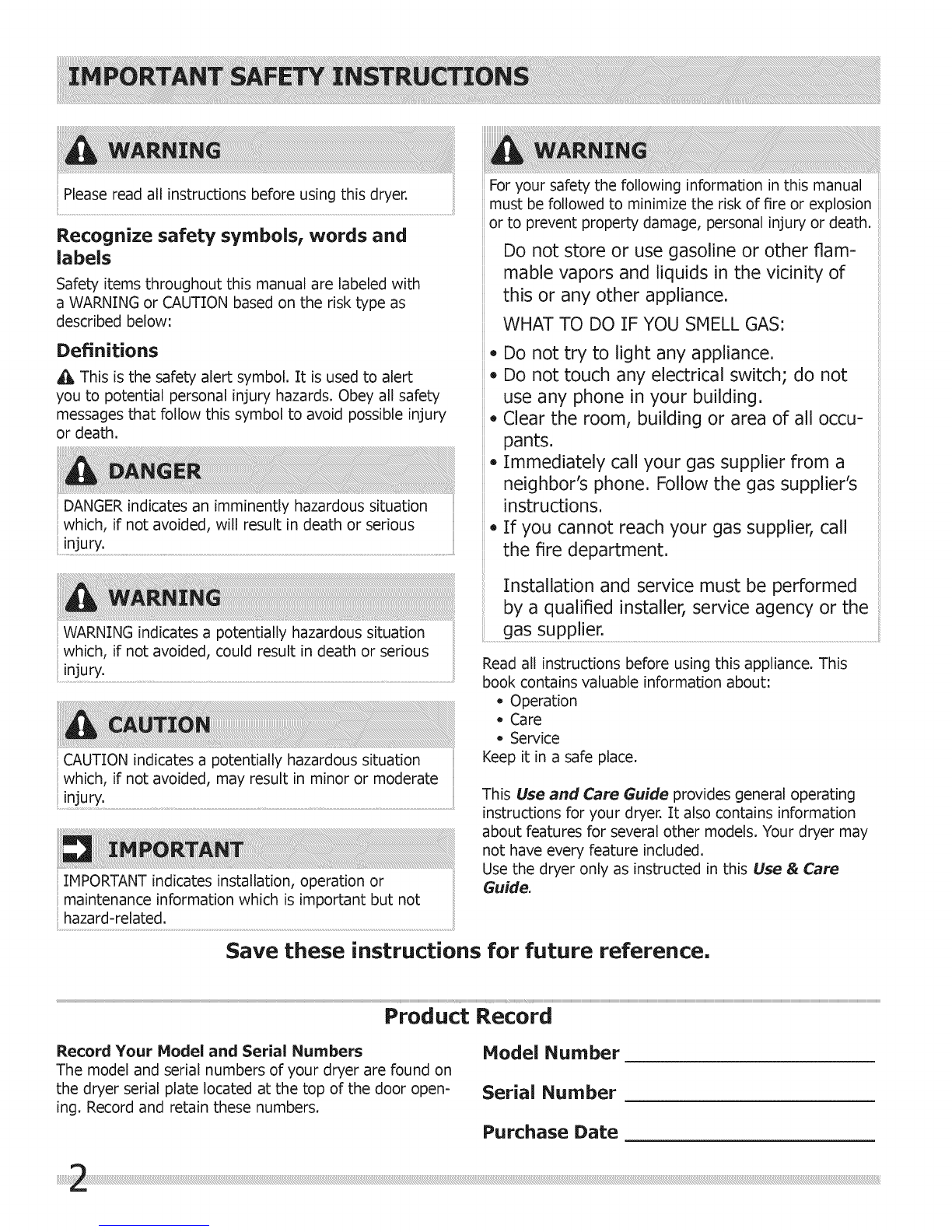

Pleasereadallinstructionsbeforeusingthisdryer,

Recognize safety symbols, words and

labels

Safety items throughout this manual are labeled with

a WARNING or CAUTION based on the risk type as

described below:

Definitions

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey al! safety

messages that follow this symbol to avoid possible injury

or death.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

For your safety the following information in this manual

must be followed to minimize the risk of fire or explosion

or to prevent property damage, personal injury or death.

Do not store or use gasoline or other flam-

mable vapors and liquids in the vicinity of

this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Clear the room, building or area of all occu-

pants.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call

the fire department.

Installation and service must be performed

by a qualified installer, service agency or the

gas supplier,

Read all instructions before using this appliance. This

book contains valuable information about:

- Operation

- Care

-Service

Keep it in a safe place.

IMPORTANT indicates installation, operation or

maintenance information which is important but not

hazard-related,

This Use and Care Guide provides general operating

instructions for your dryer. It also contains information

about features for several other models. Your dryer may

not have every feature included.

Use the dryer only as instructed in this Use & Care

Guide.

Save these instructions for future reference,

Product Record

Record Your Model and Serial Numbers

The model and serial numbers of your dryer are found on

the dryer serial plate located at the top of the door open-

ing. Record and retain these numbers.

Model Number

Serial Number

Purchase Date

240 v Electric Dryer 120 v GasDryer

Grounding type

wall receptacle

10-30R

3-wire UL-approved service Do not. under

cord must be installed any circumstances

'fused 30 amp) on electric dryers Inot cut. remove,

provided with unit or bypass the

except those grounding prong.

manufactured for sale

in Canada).

14-30R _

4-wire _ J

(fused 30 ampj Power cord with

3-prong grounded plug

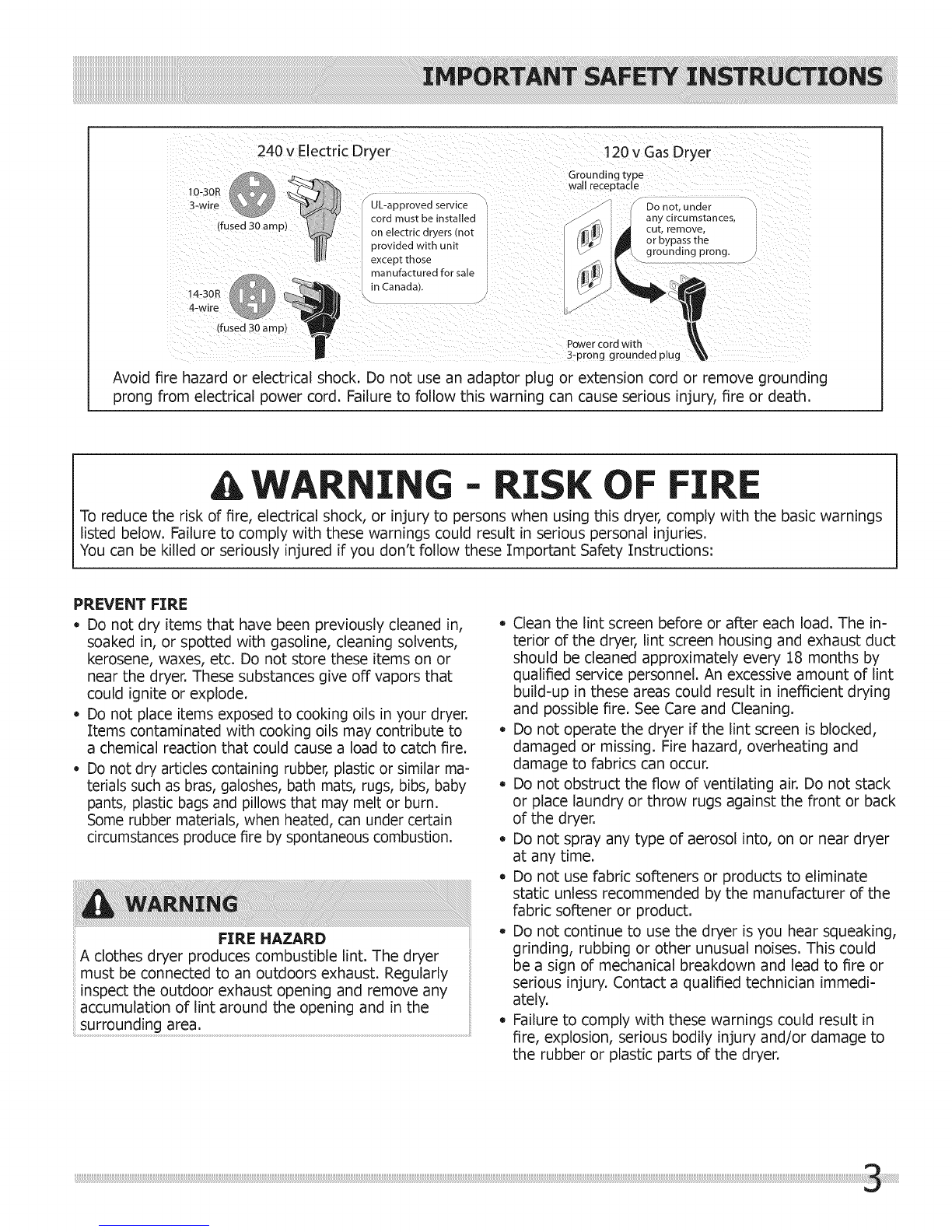

Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding

prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.

& WARNING - RISK OF FIRE

To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the basic warnings

listed below. Failure to comply with these warnings could result in serious personal injuries.

You can be killed or seriously injured if you don't follow these Important Safety Instructions:

PREVENT FIRE

*Do not dry items that have been previously cleaned in,

soaked in, or spotted with gasoline, cleaning solvents,

kerosene, waxes, etc. Do not store these items on or

near the dryer. These substances give off vapors that

could ignite or explode.

,Do not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch fire.

Do not dry articles containing rubber, plastic or similar ma-

terials such as bras, galoshes, bath mats, rugs, bibs, baby

pants, plastic bags and pillows that may melt or burn.

Some rubber materials, when heated, can under certain

circumstances produce fire by spontaneous combustion.

FIRE HAZARD

A clothes dryer produces combustible lint, The dryer

must be connected to an outdoors exhaust. Regularly

inspect the outdoor exhaust opening and remove any

accumulation of lint around the opening and in the

* Clean the lint screen before or after each load. The in-

terior of the dryer, lint screen housing and exhaust duct

should be cleaned approximately every 18 months by

qualified service personnel. An excessive amount of lint

build-up in these areas could result in inefficient drying

and possible fire. See Care and Cleaning.

Do not operate the dryer if the lint screen is blocked,

damaged or missing. Fire hazard, overheating and

damage to fabrics can occur.

Do not obstruct the flow of ventilating air. Do not stack

or place laundry or throw rugs against the front or back

of the dryer.

Do not spray any type of aerosol into, on or near dryer

at any time.

Do not use fabric softeners or products to eliminate

static unless recommended by the manufacturer of the

fabric softener or product.

Do not continue to use the dryer is you hear squeaking,

grinding, rubbing or other unusual noises. This could

be a sign of mechanical breakdown and lead to fire or

serious injury. Contact a qualified technician immedi-

ately.

Failure to comply with these warnings could result in

fire, explosion, serious bodily injury and/or damage to

the rubber or plastic parts of the dryer.

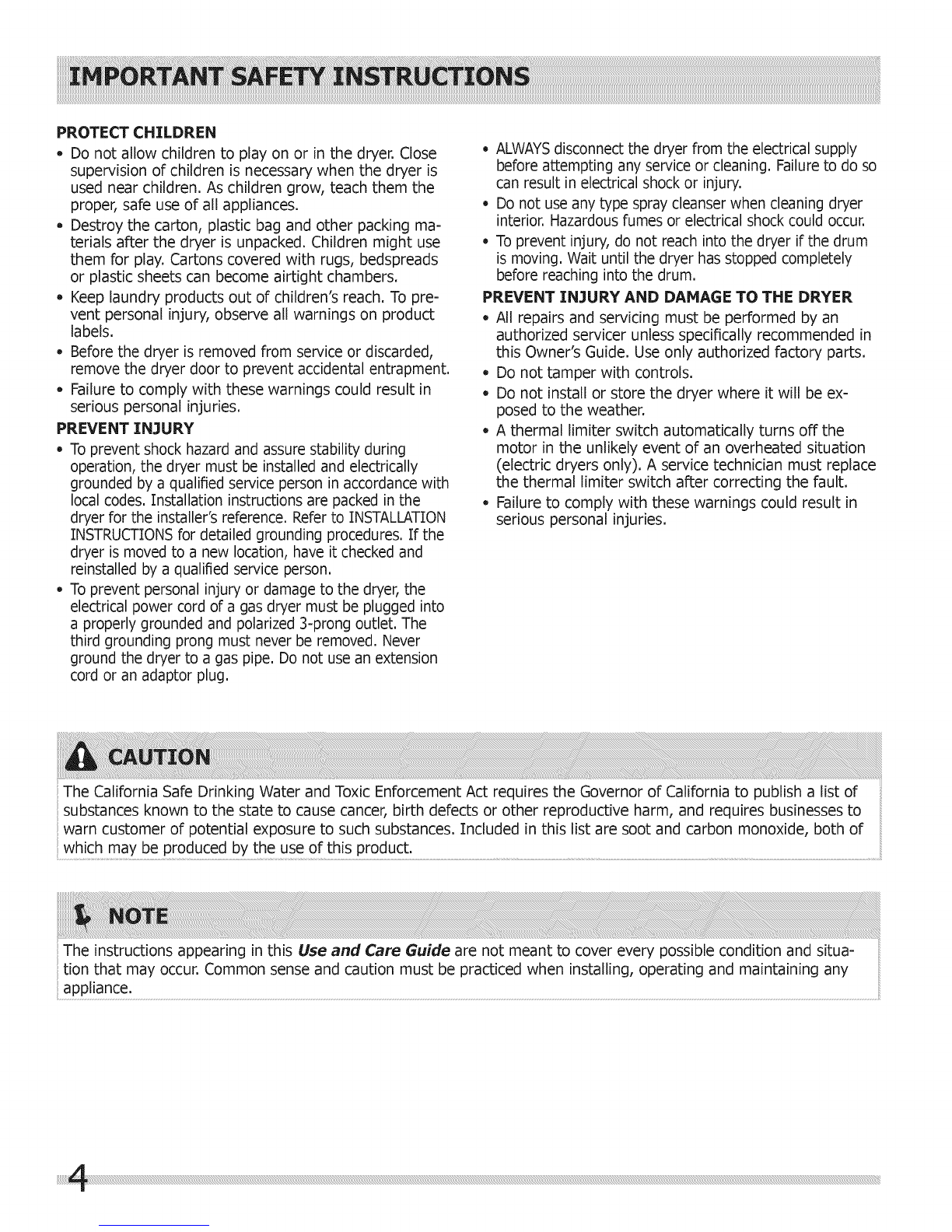

PROTECT CHILDREN

- Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is

used near children. As children grow, teach them the

proper, safe use of all appliances.

o Destroy the carton, plastic bag and other packing ma-

terials after the dryer is unpacked. Children might use

them for play. Cartons covered with rugs, bedspreads

or plastic sheets can become airtight chambers.

Keep laundry products out of children's reach. To pre-

vent personal injury, observe all warnings on product

labels.

• Before the dryer is removed from service or discarded,

remove the dryer door to prevent accidental entrapment.

Failure to comply with these warnings could result in

serious personal injuries.

PREVENT INJURY

•To prevent shock hazard and assure stability during

operation, the dryer must be installed and electrically

grounded by a qualified service person in accordance with

local codes, Installation instructions are packed in the

dryer for the installer's reference. Refer to INSTALLATION

INSTRUCTIONSfor detailed grounding procedures. If the

dryer is moved to a new location, have it checked and

reinstalled by a qualified service person.

• To prevent personal injury or damage to the dryer, the

electrical power cord of a gas dryer must be plugged into

a properly grounded and polarized 3-prong outlet. The

third grounding prong must never be removed. Never

ground the dryer to a gas pipe. Do not use an extension

cord or an adaptor plug.

ALWAYSdisconnect the dryer from the electrical supply

before attempting any service or cleaning. Failureto do so

can result in electrical shock or injury.

• Do not use any type spray cleanser when cleaning dryer

interior. Hazardous fumes or electrical shock could occur.

• To prevent injury, do not reach into the dryer if the drum

is moving. Wait until the dryer has stopped completely

before reaching into the drum.

PREVENT IN3URY AND DAHAGE TO THE DRYER

- All repairs and servicing must be performed by an

authorized servicer unless specifically recommended in

this Owner's Guide. Use only authorized factory parts.

Do not tamper with controls.

Do not install or store the dryer where it will be ex-

posed to the weather.

A thermal limiter switch automatically turns off the

motor in the unlikely event of an overheated situation

(electric dryers only). A service technician must replace

the thermal limiter switch after correcting the fault.

Failure to comply with these warnings could result in

serious personal injuries.

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of

substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to

warn customer of potential exposure to such substances. Included in this list are soot and carbon monoxide, both of

which may be produced by the use of this product.

The instructions appearing in this Use and Care Guide are not meant to cover every possible condition and situa-

tion that may occur. Common sense and caution must be practiced when installing, operating and maintaining any

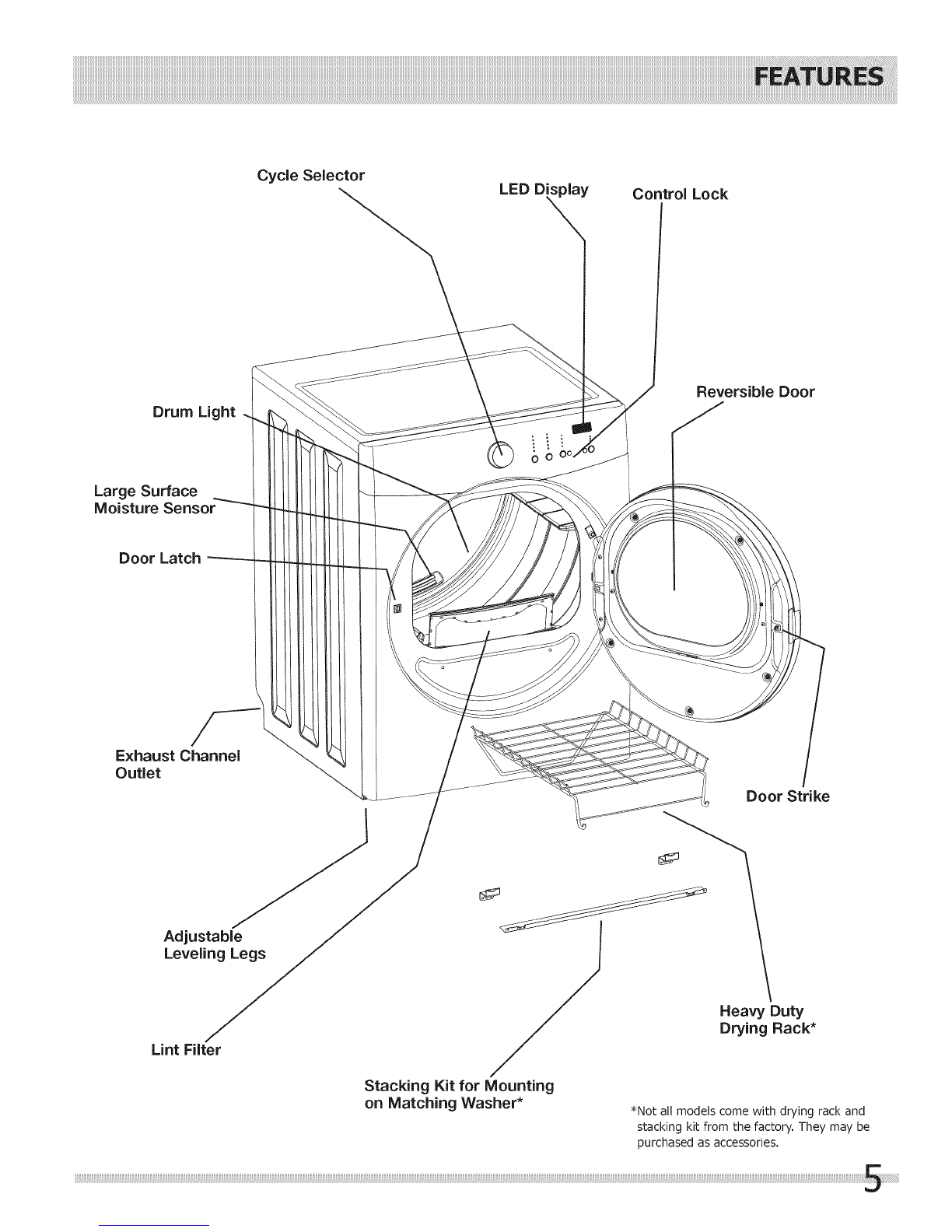

Cycle Selector

LED D_y

Control Lock

Drum Light

Large Surface

Moisture Sensor

Door Latch

Adjustable

Leveling Legs

Lint Filter

Reversible Door

Door Strike

Stacking Kit for Mounting

on Matching Washer* *Not all models come with drying rack and

stacking kit from the factory. They may be

purchased as accessories.

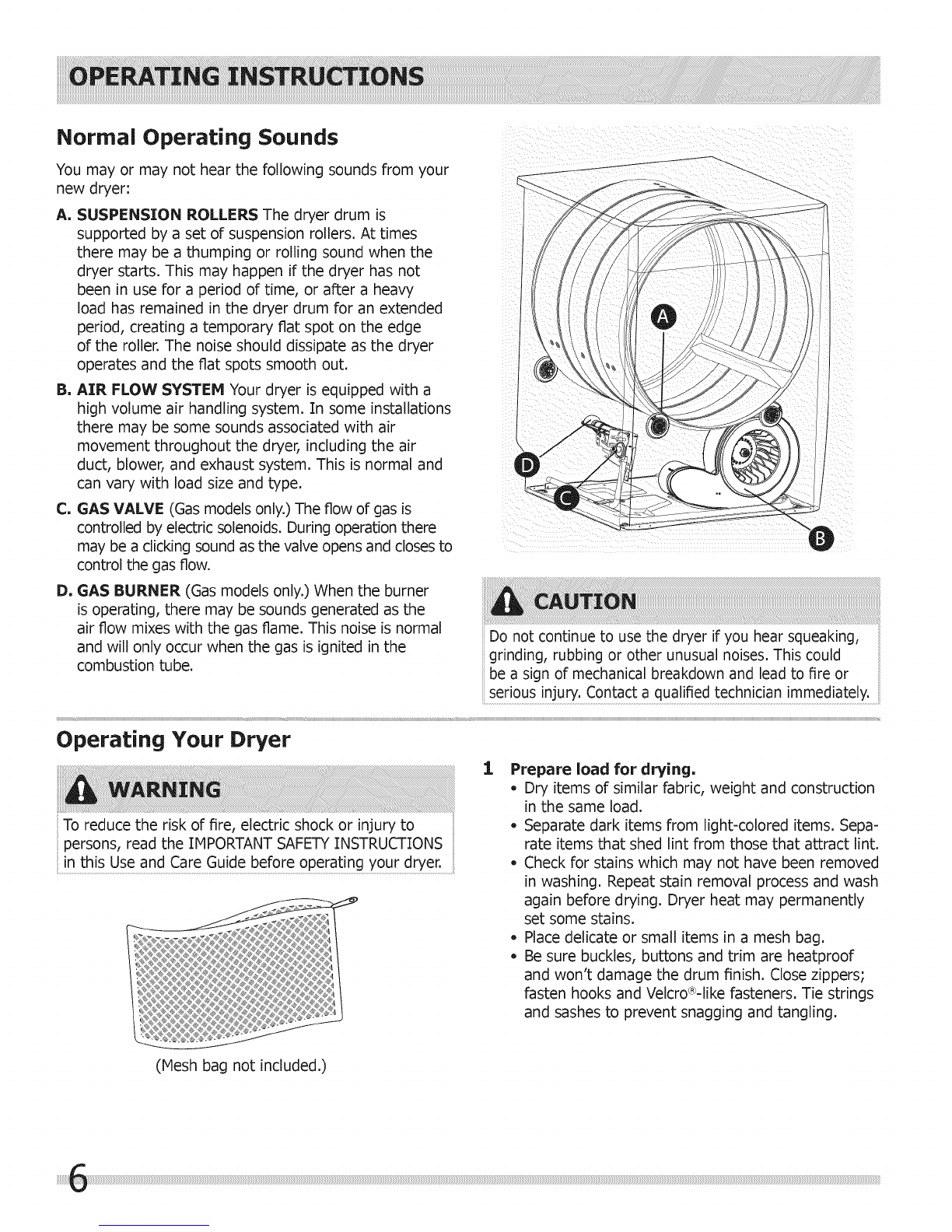

Normal Operating Sounds

You may or may not hear the following sounds from your

new dryer:

A. SUSPENSION ROLLERS The dryer drum is

supported by a set of suspension rollers. At times

there may be a thumping or rolling sound when the

dryer starts. This may happen if the dryer has not

been in use for a period of time, or after a heavy

load has remained in the dryer drum for an extended

period, creating a temporary fiat spot on the edge

of the roller. The noise should dissipate as the dryer

operates and the fiat spots smooth out.

B. AIR FLOW SYSTEM Your dryer is equipped with a

high volume air handling system. In some installations

there may be some sounds associated with air

movement throughout the dryer, including the air

duct, blower, and exhaust system. This is normal and

can vary with load size and type.

C. GAS VALVE (Gas models only.) The flow of gas is

controlled by electric solenoids. During operation there

may be a clicking sound as the valve opens and closes to

control the gas flow.

D. GAS BURNER (Gas models only.) When the burner

is operating, there may be sounds generated as the

air flow mixes with the gas flame. This noise is normal

and will only occur when the gas is ignited in the

combustion tube.

Do not continue to use the dryer if you hear squeaking,

grinding, rubbing or other unusual noises. This could

be a sign of mechanical breakdown and lead to fire or

serious injury. Contact a qualified technician immediately.

Operating Your Dryer

To reduce the risk of fire, electric shock or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS

in this Use and Care Guide before operating your dryer.

(Mesh bag not included.)

1Prepare load for drying,

- Dry items of similar fabric, weight and construction

in the same load.

- Separate dark items from light-colored items. Sepa-

rate items that shed lint from those that attract lint.

- Check for stains which may not have been removed

in washing. Repeat stain removal process and wash

again before drying. Dryer heat may permanently

set some stains.

- Place delicate or small items in a mesh bag.

- Be sure buckles, buttons and trim are heatproof

and won't damage the drum finish. Close zippers;

fasten hooks and Velcro<_>-Iikefasteners. Tie strings

and sashes to prevent snagging and tangling.

Operating Your Dryer, continued

2Check that the lint filter is clean and in place.

[

3 Load the dryer and dose the door.

*Load itemsloosely.The averagewet loadwill

fillthe drum I/3to I/2full.Itemsneed room to

tumble freelyforeven dryingand lesswrinkling.

o Ifdesired,placea dryerfabricsoftenersheeton

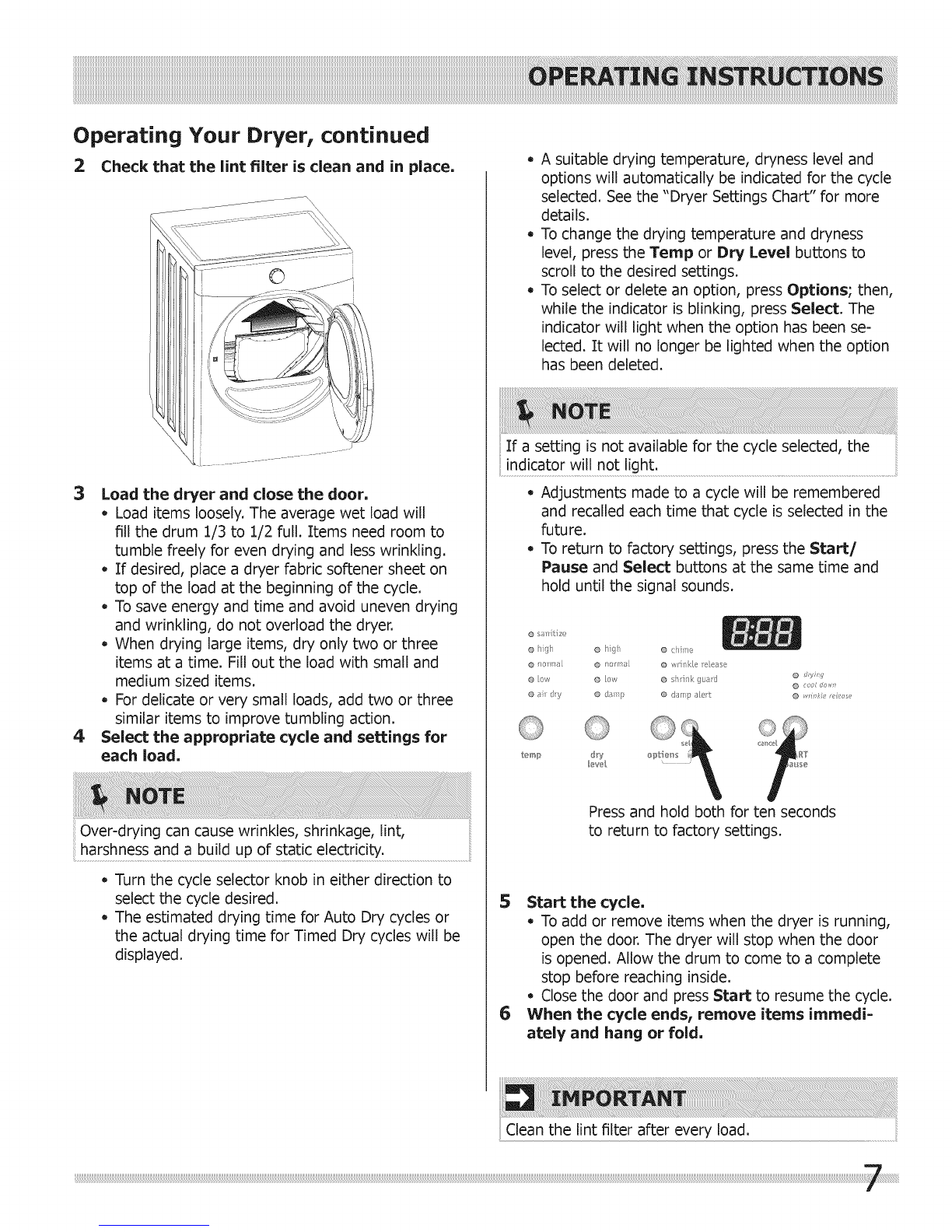

top ofthe loadatthe beginningofthe cycle.

-To save energyand timeand avoidunevendrying

and wrinkling,do notoverloadthedryen

-When dryinglargeitems,dryonlytwo orthree

itemsata time.Fillout the loadwithsmalland

medium sizeditems.

-Fordelicateorverysmallloads,add two orthree

similaritemstoimprovetumblingaction.

4Select the appropriate cycle and settings for

each load,

Over-drying can cause wrinkles, shrinkage, lint,

harshness and a build up of static electricity.

Turn the cycle selector knob in either direction to

select the cycle desired.

The estimated drying time for Auto Dry cycles or

the actual drying time for Timed Dry cycles will be

displayed.

A suitable drying temperature, dryness level and

options will automatically be indicated for the cycle

selected. See the "Dryer Settings Chart" for more

details.

To change the drying temperature and dryness

level, press the Temp or Dry Level buttons to

scroll to the desired settings.

To select or delete an option, press Options; then,

while the indicator is blinking, press Select. The

indicator will light when the option has been se-

lected. It will no longer be lighted when the option

has been deleted.

If a setting is not available for the cycle selected, the

indicator will not light.

Adjustments made to a cycle will be remembered

and recalled each time that cycle is selected in the

future.

To return to factory settings, press the Start/

Pause and Select buttons at the same time and

hold until the signal sounds.

O s r_tze

O hq_ O hg O chime

o low o Low o shrink g_d o _y_m,

@ so d#,xu_

o _r d_y o damp o d_snpater o i,_;fi£ _,re e_se

L_'mp 4_

Press and hold both Forten seconds

to return to Factory settings.

5 Start the cycle.

To add or remove items when the dryer is running,

open the door. The dryer will stop when the door

is opened. Allow the drum to come to a complete

stop before reaching inside.

Close the door and press Start to resume the cycle.

6When the cycle ends, remove items immedi=

ately and hang or fold,

Clean the lint filter after every load,

casual

@max

@Hgf @ h_h @ chime ON

@ iorma ® orsa ® chine OFF: @ _/(shg

@(ow @ low @ wnnke letease ON @ c{o£ Eoxn

@a_r dvv @ dasp @ wrnke e[ease O/l: @ wn£,, ecr_s£

O:':> o O

teml'_ d'_ o_tiot_s _! SAIT

[IVII ltlSe

casua[

norsla( quick dry

aItergy de_cates

heavy/ 45

butky

temp d_#

/eve{

O C)

I,d: o 0

am*Lx_

STARY

IIIII@

This manual covers many models and not all cycles, options, or features listed are available

on every model. Consoles shown above for reference only. Your model may differ,

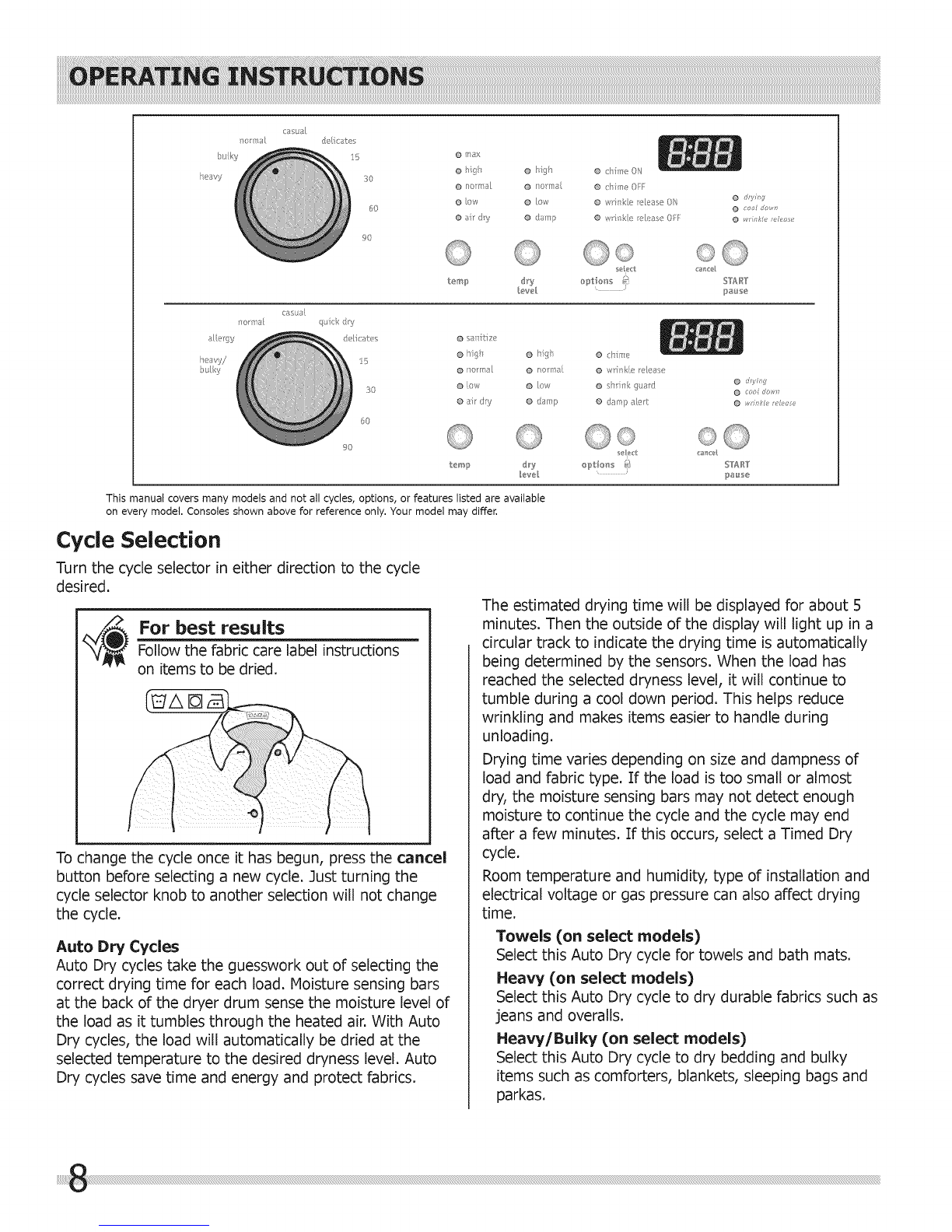

Cycle Selection

Turn the cycle selector in either direction to the cycle

desired.

For best results

Follow the fabric care label instructions

on items to be dried.

(WA []

To change the cycle once it has begun, press the cancel

button before selecting a new cycle, lust turning the

cycle selector knob to another selection will not change

the cycle.

Auto Dry Cycles

Auto Dry cycles take the guesswork out of selecting the

correct drying time for each load. Moisture sensing bars

at the back of the dryer drum sense the moisture level of

the load as it tumbles through the heated air. With Auto

Dry cycles, the load will automatically be dried at the

selected temperature to the desired dryness level. Auto

Dry cycles save time and energy and protect fabrics.

The estimated drying time will be displayed for about 5

minutes. Then the outside of the display will light up in a

circular track to indicate the drying time is automatically

being determined by the sensors. When the load has

reached the selected dryness level, it will continue to

tumble during a cool down period. This helps reduce

wrinkling and makes items easier to handle during

unloading.

Drying time varies depending on size and dampness of

load and fabric type. If the load is too small or almost

dry, the moisture sensing bars may not detect enough

moisture to continue the cycle and the cycle may end

after a few minutes. If this occurs, select a Timed Dry

cycle.

Room temperature and humidity, type of installation and

electrical voltage or gas pressure can also affect drying

time.

Towels (on select models)

Select this Auto Dry cycle for towels and bath mats.

Heavy (on select models)

Select this Auto Dry cycle to dry durable fabrics such as

jeans and overalls.

Heavy/Bulky (on select models)

Select this Auto Dry cycle to dry bedding and bulky

items such as comforters, blankets, sleeping bags and

parkas.

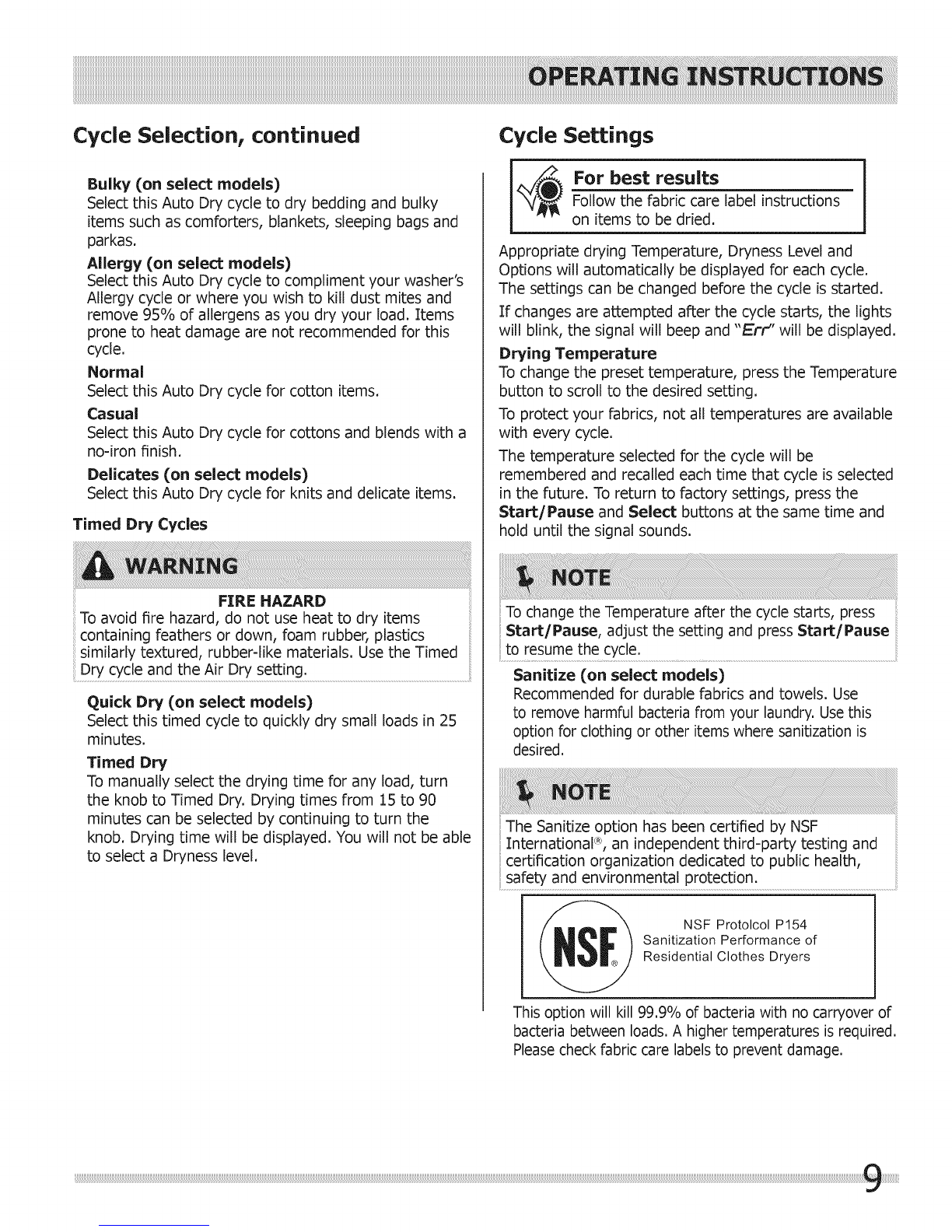

Cycle Selection, continued

Bulky (on select models)

Select this Auto Dry cycle to dry bedding and bulky

items such as comforters, blankets, sleeping bags and

parkas.

Allergy (on select models)

Select this Auto Dry cycle to compliment your washer's

Allergy cycle or where you wish to kill dust mites and

remove 95% of allergens as you dry your load. Items

prone to heat damage are not recommended for this

cycle.

Normal

Select this Auto Dry cycle for cotton items.

Casual

Select this Auto Dry cycle for cottons and blends with a

no-iron finish.

Delicates (on select models)

Select this Auto Dry cycle for knits and delicate items.

Timed Dry Cycles

FIRE HAZARD

To avoid fire hazard, do not use heat to dry items

containing feathers or down, foam rubber, plastics

similarly textured, rubber-like materials. Use the Timed

Dry cycle and the Air Dry setting.

Quick Dry (on select models)

Select this timed cycle to quickly dry small loads in 25

minutes.

Timed Dry

To manually select the drying time for any load, turn

the knob to Timed Dry. Drying times from 15 to 90

minutes can be selected by continuing to turn the

knob. Drying time will be displayed. You will not be able

to select a Dryness level.

Cycle Settings

/_ or best results

Followthe fabric care label instructions

on items to be dried.

Appropriate drying Temperature, Dryness Level and

Options will automatically be displayed for each cycle.

The settings can be changed before the cycle is started.

If changes are attempted after the cycle starts, the lights

will blink, the signal will beep and "Err" will be displayed.

Drying Temperature

To change the preset temperature, press the Temperature

button to scroll to the desired setting.

To protect your fabrics, not all temperatures are available

with every cycle.

The temperature selected for the cycle will be

remembered and recalled each time that cycle is selected

in the future. To return to factory settings, press the

Start/Pause and Select buttons at the same time and

hold until the signal sounds.

To change the Temperature after the cycle starts, press

Start/Pause, adjust the setting and press Start/Pause

Sanitize (on select models)

Recommended for durable fabrics and towels. Use

to remove harmful bacteria from your laundry. Usethis

option for clothing or other items where sanitization is

desired.

The Sanitize option has been certified by NSF

InternationaP, an independent third-party testing and

certification organization dedicated to public health,

safety and environmental protection.

NSF Protolcol P154

Sanitization Performance of

Residential Clothes Dryers

This option will kill 99.9% of bacteria with no carryover of

bacteria between loads. A higher temperatures is required.

Pleasecheck fabric care labels to prevent damage.

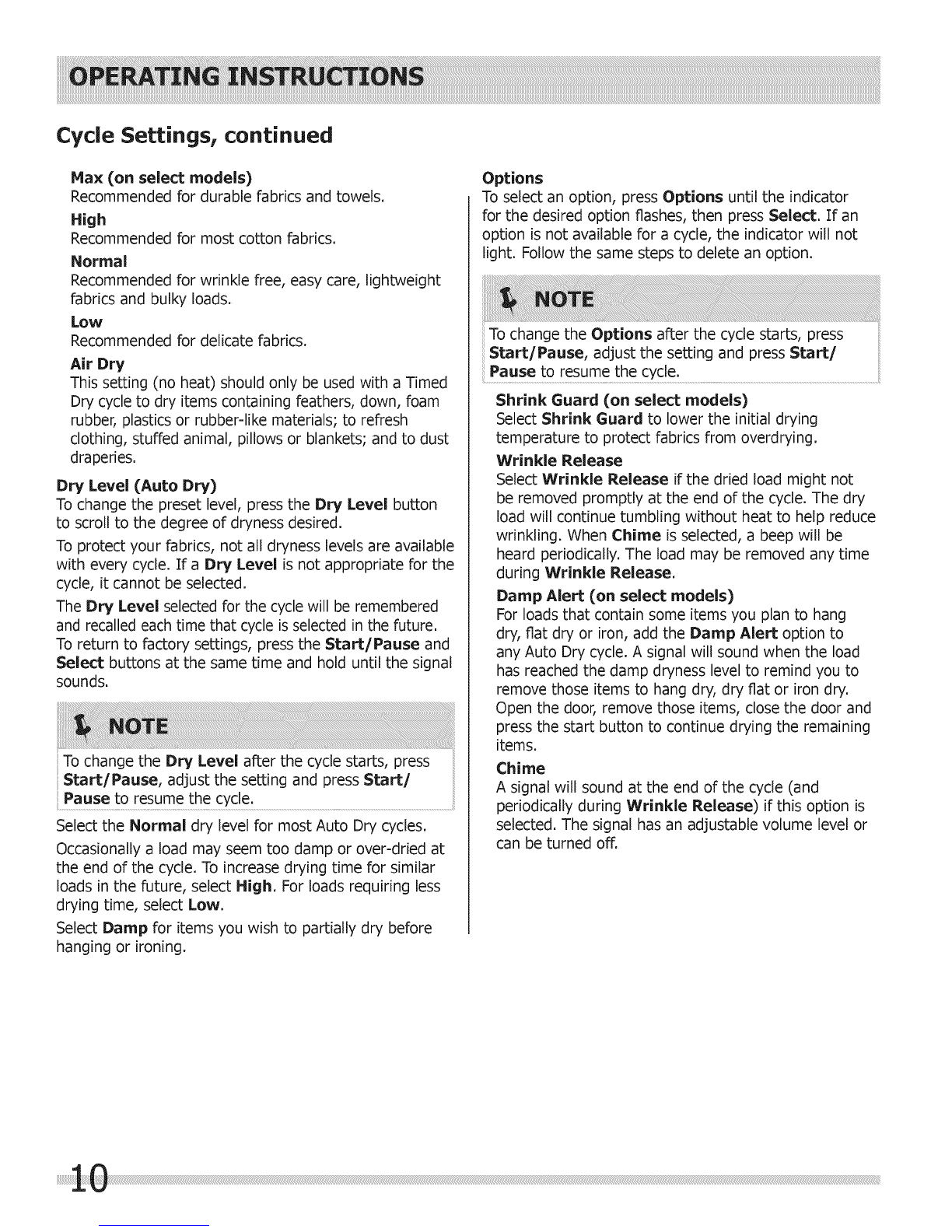

Cycle Settings, continued

Hax (on select models)

Recommended for durable fabrics and towels.

High

Recommended for most cotton fabrics.

Normal

Recommended for wrinkle free, easy care, lightweight

fabrics and bulky loads.

Low

Recommended for delicate fabrics.

Air Dry

This setting (no heat) should only be used with a Timed

Dry cycle to dry items containing feathers, down, foam

rubber, plastics or rubber-like materials; to refresh

clothing, stuffed animal, pillows or blankets; and to dust

draperies.

Dry Level (Auto Dry)

To change the preset level, press the Dry Level button

to scroll to the degree of dryness desired.

To protect your fabrics, not all dryness levels are available

with every cycle. If a Dry Level is not appropriate for the

cycle, it cannot be selected.

The Dry Level selected for the cyclewill be remembered

and recalled each time that cycle is selected in the future.

To return to factory settings, press the Start/Pause and

Select buttons at the same time and hold until the signal

sounds.

To change the Dry Level after the cycle starts, press

Start/Pause, adjust the setting and press Start/

Pause to resume the cycle.

Select the Normal dry level for most Auto Dry cycles.

Occasionally a load may seem too damp or over-dried at

the end of the cycle. To increase drying time for similar

loads in the future, select High. For loads requiring less

drying time, select Low.

Select Damp for items you wish to partially dry before

hanging or ironing.

Options

To select an option, press Options until the indicator

for the desired option flashes, then press Select. If an

option is not available for a cycle, the indicator will not

light, Followthe same steps to delete an option,

To change the Options after the cycle starts, press

Start/Pause, adjust the setting and press Start/

Pause to resume the cyc!e:.................................................................................................................................................................................

Shrink Guard (on select models)

Select Shrink Guard to lower the initial drying

temperature to protect fabrics from overdrying.

Wrinkle Release

Select Wrinkle Release if the dried load might not

be removed promptly at the end of the cycle. The dry

load will continue tumbling without heat to help reduce

wrinkling. When Chime is selected, a beep will be

heard periodically. The load may be removed any time

during Wrinkle Release.

Damp Alert (on select models)

For loads that contain some items you plan to hang

dry, fiat dry or iron, add the Damp Alert option to

any Auto Dry cycle. A signal will sound when the load

has reached the damp dryness level to remind you to

remove those items to hang dry, dry fiat or iron dry.

Open the door, remove those items, close the door and

press the start button to continue drying the remaining

items.

Chime

A signal wil! sound at the end of the cycle (and

periodically during Wrinkle Release) if this option is

selected. The signal has an adjustable volume level or

can be turned off.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Séchoir

Frigidaire

Frigidaire FEQ221CAS2 Manuel utilisateur

Frigidaire

Frigidaire 137196700A Manuel utilisateur

Frigidaire

Frigidaire FGFB9100E Manuel utilisateur

Frigidaire

Frigidaire FLSG72GCSB Manuel utilisateur

Frigidaire

Frigidaire LGQ6400FS1 Manuel utilisateur

Frigidaire

Frigidaire Affinity FAQG7001L B Manuel utilisateur

Frigidaire

Frigidaire GLGQ2152E Manuel utilisateur

Frigidaire

Frigidaire 27" Dryers with electronic controls Manuel utilisateur

Frigidaire

Frigidaire Affinity FAQG7001LW Manuel utilisateur

Frigidaire

Frigidaire GLEQ642AS2 Guide de démarrage rapide

Frigidaire

Frigidaire GLEQ442CE Manuel utilisateur

Frigidaire

Frigidaire Affinity FAQE7001L Manuel utilisateur

Frigidaire

Frigidaire FAQE7021LB0 Manuel utilisateur

Frigidaire

Frigidaire AGQ6000CE Manuel utilisateur

Frigidaire

Frigidaire DESF Manuel utilisateur

Frigidaire

Frigidaire FARE1011MW Manuel du propriétaire

Frigidaire

Frigidaire GLER341AS2 Manuel utilisateur

Frigidaire

Frigidaire FEFB9100E Manuel utilisateur

Frigidaire

Frigidaire GLGQ642CAS4 Guide de démarrage rapide

Frigidaire

Frigidaire FEQ1452H Manuel utilisateur

Frigidaire

Frigidaire 131842900 (9903) Manuel utilisateur

Frigidaire

Frigidaire FGQ221CA Manuel utilisateur

Frigidaire

Frigidaire 134818800 (0610) Manuel utilisateur

Frigidaire

Frigidaire CARE1011MW0 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
