Frigidaire AGQ6500CF Manuel utilisateur

Product No. AGQ6500CFG0

Series Frigidaire

Market Canada

Color glacier blue

Volts 120

Wiring Diagram 134682200

Owner's Guide 134760600

Installation Instructions 134760300

Operating Instructions 134598200

P16L0043.eps P16v0094.eps P16d0040.eps P16C0232.eps P16M0024.eps P16b0015.eps

134682200g.eps

Electrolux Major Appliances

North & Latin America

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V

3E4 Publication No.

5995472361

06/08/15

(EN/SERVICE/KC)

361

GAS DRYER

Model No.

AGQ6500CF

Publication No: 5995472361 AGQ6500CFG0

08/06 2

CABINET/DRUM

P16V0094

24 44

AGQ6500CFG0 Publication No: 5995472361

# Functional Parts 3 08/06

* Non-Illustrated Parts

CABINET/DRUM

POS. NO PART NO. DESCRIPTION

2 131168200 Screw, pan head, 8-18B x 0.31

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

7 134121200 Rack, drying

9 131793200 Panel, service access, rear

11 131363200 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131600500 Housing, gas heater assy, w/seal

17 3204254 Baffle, heater shield

18 131477000 Screw, 10-16AB x 0.375

20 134166500 Bracket, top panel mtg., rear

21 134122592 Drum, dryer, stnls stl back, painted wrap, service kit

24 131963900 Glide, drum

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5303201200 Vane, straight

31 # 134501200 Power Cord, electric svce

32 131777700 Shaft, drum support, ballhitch

32* 5303307893 Lubricant, high temp

33 # 5308015399 Thermostat, safety

34 131243700 Screw, pan head, 8-18AB x 0.375

37 131952100 Duct, heat

42 134154100 Screw, hex washer head, 10-32 x 0.375, ground

44 134344900 Leveling Leg, screw

64 134360100 Bracket, svce panel mtg.

* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32

* 134608030 Stacking Kit, dryer/washer, blue

Publication No: 5995472361 AGQ6500CFG0

08/06 4

FRONT PANEL/LINT FILTER

AGQ6500CFG0 Publication No: 5995472361

# Functional Parts 5 08/06

* Non-Illustrated Parts

FRONT PANEL/LINT FILTER

POS. NO PART NO. DESCRIPTION

1 134417000 Seal, air duct

6 134382900 Duct, air

8 # 131845845 Cover, lint housing, w/moist sensor

9 131633204 Plug, gray

16 134440100 Clip, U-nut

20 134440200 Seal, felt, upper

20* 5308027429 Adhesive, high temp

21 134134700 Seal, felt, lower

22 134684330 Panel, front, blue, w/lamp hole

25 134548045 Latch, door, gray, lower

26 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

26 # 131843145 Switch, door, with drum light

27 131450345 Trap, lint blade assy, gray

28 134440000 Clip, guide

33 134737245 Guide, door, gray

34 131243700 Screw, pan head, 8-18AB x 0.375

41 134680900 Hinge, door

43 134559300 Bracket, door glass

44 134720900 Gasket, door seal

45 134611800 Glass, inner door

46 134580300 Gasket, door glass, inner

47 134683940 Panel, inner door, gray

48 131168200 Screw, pan head, 8-18B x 0.31

48 134558410 Panel, outer door, platinum

48* 134554500 Pad, outer door

49 134548100 Door Strike

50 131303300 Screw, pan head, 10-16AB x 0.500, locking

52 134529600 Screw, indt pan head, 8-18AB x 0.375

53 134558600 Ring, door transition

56 134550600 Glass, outer door lens

58 # 131843500 Lamp Assy, drum light, w/mtg bracket

58*# 131862800 Lamp

60 134430300 Screw, indt pan head, 10-14 x 0.625, quadrex

62 134680710 Plug, hinge cutout, platinum

64 134601600 Nameplate, Affinity

66 134680801 T-Plug, hinge hole

68 134742001 Plug, hinge hole, gray

70 134417501 Plug, rectangular, gray

Publication No: 5995472361 AGQ6500CFG0

08/06 6

CONTROLS/TOP PANEL

AGQ6500CFG0 Publication No: 5995472361

# Functional Parts 7 08/06

* Non-Illustrated Parts

CONTROLS/TOP PANEL

POS. NO PART NO. DESCRIPTION

1 # 134557200 Control Board, printed circuit, with housing

3 134551210 Knob, program

4 134553100 Light Pipe, program

5 # 134556500 Interface Board, pc, auxiliary

6 134347700 Pin, program knob

8 134555510 Push Button, round, #1

9 134553410 Push Button, oval, #1

11 134595610 Push Button, oval, start

12 134553300 Spring, push button

13 134557501 Light Pipe, start group

15 134552800 Light Pipe, 5 x 4

16 134600000 Light Pipe, row of 5

19 134402900 Screw, phillips, 6-19 x 0.650

22 # 134602100 Wiring Harness, interface board

23 # 134720000 Wiring Harness, controls

23*# 134491500 Wiring Harness, main

29 134557020 Panel, control console, blue

39 134178901 Screw, 8-18AB x 0.455

53 134365030 Panel, work top, blue

55 134553200 Lens, digital display

56 134557300 Light Pipe, digital display

57 # 134503300 Display, digital

Publication No: 5995472361 AGQ6500CFG0

08/06 8

MOTOR

AGQ6500CFG0 Publication No: 5995472361

# Functional Parts 9 08/06

* Non-Illustrated Parts

MOTOR

POS. NO PART NO. DESCRIPTION

4 131435200 Lock, blower housing

7 131451600 Tube, exhaust, rear, w/mtg bracket

7* 131456800 Tube, exhaust, side/bottom, Optional Kit

10 # 131775600 Blower Assy, housing, w/cover & wheel

11 131749800 Spacer, idler

15 # 134587700 Thermistor, control

20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting

22 131601000 Spring, idler arm

23 # 131863007 Idler Arm Assy, w/pulley

25 # 134503600 Belt, dryer

27 134242400 Clamp, motor mtg.

28 # 131560100 Motor & Pulley Assy

34 131243700 Screw, pan head, 8-18AB x 0.375

46 134203400 Bracket, motor mtg

47 131633300 Seal, exhaust tube

48 131168200 Screw, pan head, 8-18B x 0.31

52 131202300 Screw, 10-16AB x 0.625

Publication No: 5995472361 AGQ6500CFG0

08/06 10

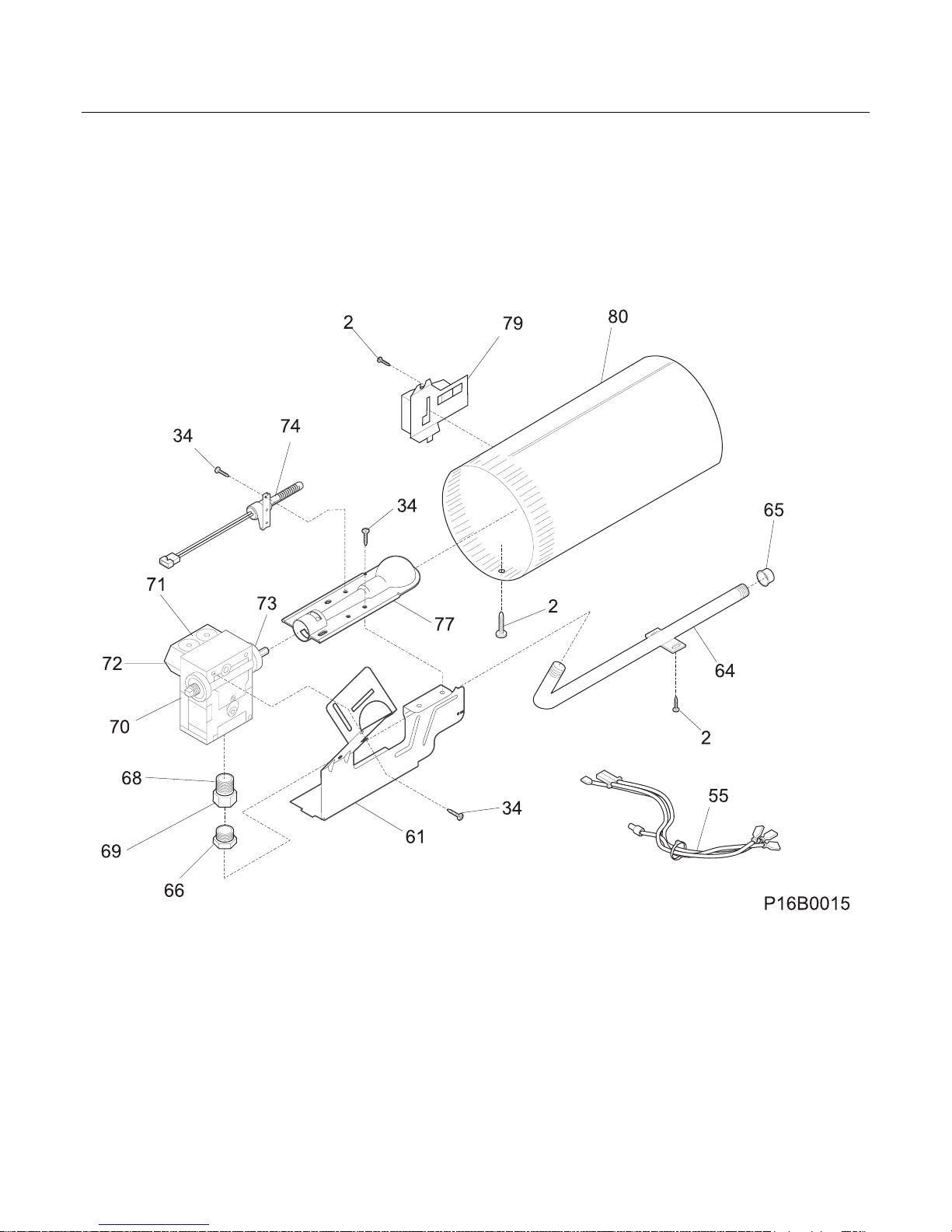

BURNER
