Signature Features

DrySense™ Technology

Dries your clothes more precisely,

reducing wrinkles.

Fits-More™ 7.0 Cu. Ft. Dryer

The largest capacity dryer in a stan-

dard size1lets you dry more at once.

Express-Select™ Controls

Easily select options and cycles with

the touch of a button.

Save Your Settings

Automatically saves your last dry

setting so you can save time when

doing laundry.

Classic

Black

(B)

Classic

Red

(R)

Classic

Blue

(N)

Classic

White

(W)

Powerful Performance

7 Cycles Including –

Quick Cycle (Fast 25-minute dry cycle)

Heavy Cycle

Ultra Delicates

12 Options

Shrink Guard Ultra

Extended Tumble Ultra

5 Temperature Selections Including –

Sanitize (NSF Certiﬁed in 3 Cycles)

4 Dryness Levels

3 Status Indicators

Electronic Moisture Sensor

6 Auto Dry Cycles

6 Timed Dry Cycles

Heater (20,000 BTU)

Performance-Driven Style

TimeWise™ Technology

Stainless Steel Drum

More Easy-To-Use Features

Estimated Time Remaining

Drying Rack

SilentDesign™

Interior Light

SpaceWise™ Design

Reversible Door

Optional 15" Largest Capacity2Drawer Pedestals

Classic White – PN# APWD15W

Classic Black – PN# APWD15E

Classic Red – PN# APWD15R

Classic Blue – PN# APWD15N

NSF® International

Certiﬁcation

Capacities

Total Capacity 7.0 Cu Ft.

Overall Exterior Dimensions

Height 36"

Width 27"

Depth 29-3/4"

Available in:

1Based on dryers 36" or less in height and 27" or less

in width.

2Based on manufacturer speciﬁcations.

Front Load Dryers

FAQG7077K W/B/R/N

7.0 Cu. Ft. Gas

Front Load Dryer Specifications

•Product Shipping Weight (approx.) – 140 Lbs.

•An electrical supply with grounded three-prong receptacle is

required. The power supply circuit must be installed in accordance

with current edition of National Electrical Code (ANSI/NFPA 70)

and local codes & ordinances. (Do not use same circuit as washer.)

•Voltage Rating – 120V / 60 Hz / 15 Amps

•Amps @ 120 Volts = 7 Amps

•Connected Load (kW Rating) @ 120 Volts = 0.5 kW

•Equipped with 120V 3-wire power supply cord, approx. 60" long.

•Always consult local and national electric & gas codes.

•Can be installed alone, with or without optional 15" Drawer Pedestal, or

stacked above matching Frigidaire® Affinity Washer, which requires

installation of optional Dryer Stacking Kit. (For installation details, refer

to instructions included with optional pedestal or stacking kit or on web.)

•Can be built in with matching Frigidaire® Affinity Washer in under-

counter, recessed or closet installation. (Refer to Built-In Installations

on this page for cutout dimensions. For additional installation details,

refer to Product Installation Guide on web.)

•Closet installation requires vented door with 2 unobstructed louvered

openings, minimum 60 sq. in. each, located 3" from top and bottom

of door. Full-length 120 sq. in. opening also acceptable. Allow

additional 1" clearance between fronts of units and closed door.

•Do NOT install in area exposed to dripping water or outdoor

weather conditions, or where gasoline or other flammables, including

automobiles, are kept or stored.

Front Load Laundry - Gas Dryers

Frigidaire Affinity

•Floor MUST be solid with 1" maximum slope. Do NOT install on

carpeted surface.

•Dryer MUST exhaust to outside of building, NOT into any

concealed space.

•Exhaust installation requires minimum 4"-diameter rigid or flexible

metal duct with approved vent hood having swing-out damper(s).

Do NOT use flexible plastic or metal foil duct and use shortest

run possible.

•Gas supply line should be 1/2" pipe and MUST have individual

shutoff valve.

•Leveling legs supplied to level dryer properly and reduce excessive

noise and vibration.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

Optional Accessories

•Dryer Stacking Kit – (PN # 134700600).

•15" Classic White Drawer Pedestal – (PN # APWD15W).

•15" Classic Black Drawer Pedestal – (PN # APWD15E).

•15" Classic Red Drawer Pedestal – (PN # APWD15R).

•15" Classic Blue Drawer Pedestal – (PN # APWD15N).

•Mobile Home Installation Kit – (PN # 137067200).

•LP Gas Conversion Kit – (PN # PCK4200).

•Drying Rack – (PN # 137067300).

Front Load Dryers

FAQG7077K W/B/R/N Gas

FRIGIDAIRE®

USA

•

250 Bobby Jones Expressway

•

Martinez, GA 30907

•

1-800-FRIGIDAIRE •frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Specifications

subject to change.

Autres manuels Frigidaire Séchoir

Frigidaire

Frigidaire Affinity FAQG7072L R Manuel du propriétaire

Frigidaire

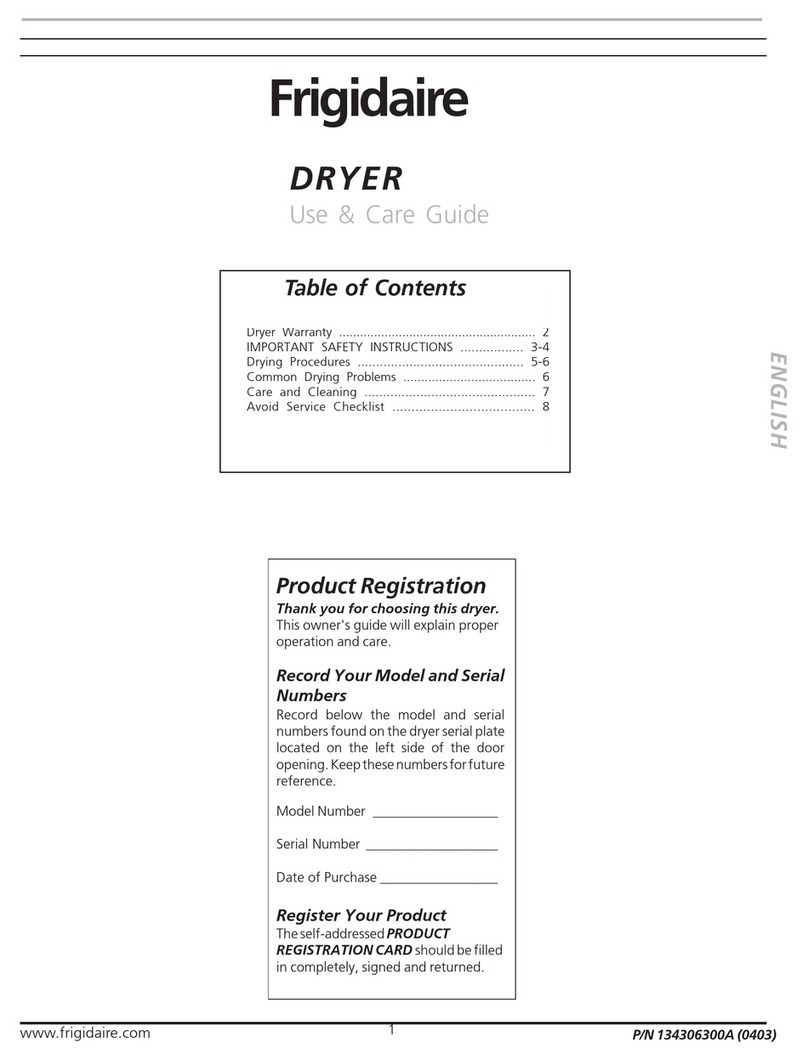

Frigidaire GLEQ942CS0 Manuel utilisateur
