Frigidaire Gallery GLD4355RF S Manuel utilisateur

P30L0078.eps P30C0157.eps P30B0044.eps P30U0023.eps P30M0036.eps P30F0022.eps

P30R0106.eps

Product No. GLD4355RFB0 GLD4355RFS0

Series Built-in 24" Built-in 24"

Color black white

Owner's Guide English 154580101 154580101

Owner's Guide Spanish 154580103 154580103

Owner's Guide French 154580102 154580102

Service Data Sheet 154580201 154580201

Energy Guide 154540031 154540031

Installation Instructions 154427301 154427301

Market North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995475877

06/10/05

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

GLD4355RF

Publication No: 5995475877 GLD4355RF

10/06 2

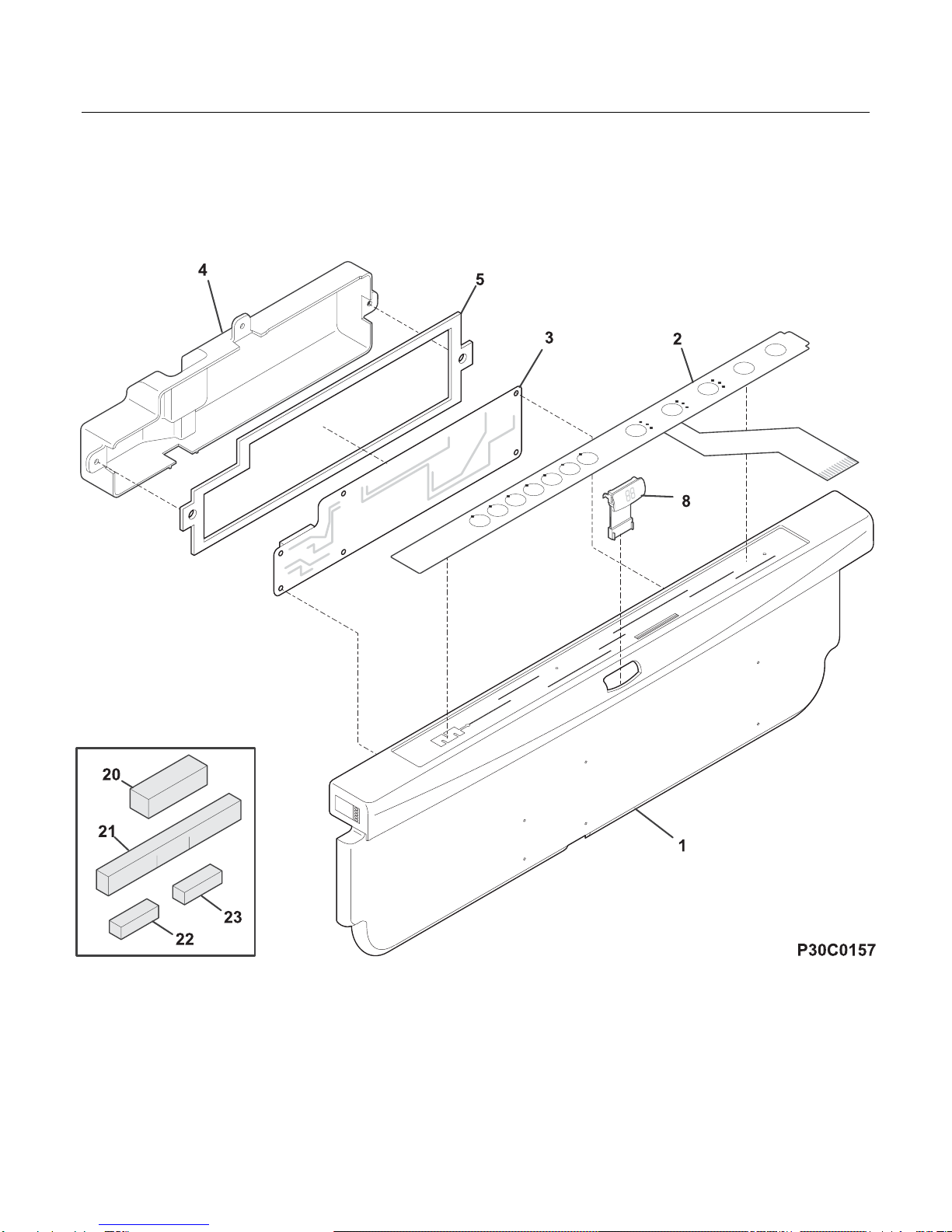

CONTROL PANEL

GLD4355RF Publication No: 5995475877

# Functional Parts 3 10/06

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLD4355RF (GLD4355RFS0)

BGLD4355RF (GLD4355RFB0)

POS. NO PART NO. DESCRIPTION

1 154543001 A - Panel, control, white

1 154543003 - B Panel, control, black

2 # 154590401 A - Overlay Assy, top switch, white

2 # 154590403 - B Overlay Assy, top switch, black

3 # 154543602 A B Board, control

4 154554601 A B Cover, control

5 154478901 A B Gasket, cover

8 # 154543401 A B Board, display

20 154593001 A B Insulation, foam, 2.542/.717/.8, switch tail

21 154596601 A B Insualtion, foam, 5.744/.717/.517, outer console

22 154592901 A B Insulation, foam, 1.5/.9/.09, console LH

23 154592902 A B Insulation, foam, 1.5/.9/.09, console RH

* # 154570901 A B Harness, wiring, main

* 154540031 A B Energy guide label

* 154200401 A B Screw, 6-10 x 3/8, pan plask

Publication No: 5995475877 GLD4355RF

10/06 4

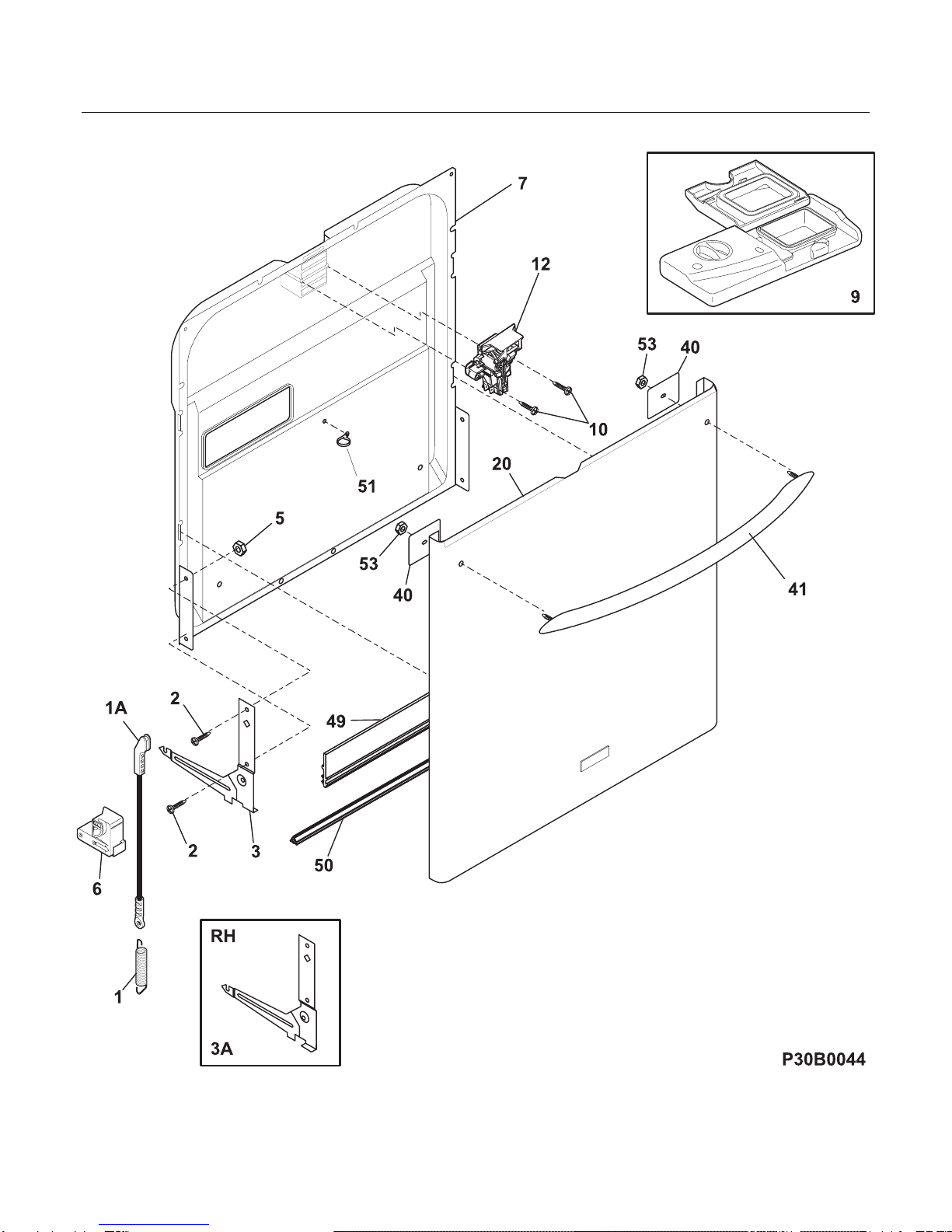

DOOR

GLD4355RF Publication No: 5995475877

# Functional Parts 5 10/06

* Non-Illustrated Parts

DOOR

Model Index: AGLD4355RF (GLD4355RFS0)

BGLD4355RF (GLD4355RFB0)

POS. NO PART NO. DESCRIPTION

1 154579101 A B Spring, friction pulley, (2)

1A 154578801 A B Cable, friction pulley, (2)

2 154093301 A B Screw, arm assy, (4)

3 154598201 A B Arm Assy, LH, w/foam

3A 154597701 A B Arm Assy, RH, w/foam

* 154529101 A B Pin, arm assy

5 154079601 A B Nut, arm assy, and handle mtg.

6 154579201 A B Pulley, friction, LH

6 154579202 A B Pulley, friction, RH

7 154494304 A B Liner, door assembly, grey, complete

9 154542104 A B Dispenser, det/rinse aid, w/read

9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B Screw, latch mtg, (2)

12 # 154543901 A B Latchassy, black

20 154580704 A - Door Assy, outer, white, w/badge

20 154580703 - B Door Assy, outer, black, w/badge

20* 5304428306 A B Screw, door mtg., (2)

40 154585001 A B Backer, handle mtg, (2)

41 154543701 A - Towel bar assy, white

41 154543703 - B Towel bar assy, black

49 154588201 A B Gasket, door wiper

50 154598501 A B Support, door hinge, w/foam

51 154320301 A B Clamp, drip loop, wire

53 154425001 A B Nut, Keps, (2), handle mtg.

* 154200601 A B Screw, #10-16 x 3/8

* 154409401 A B Screw, #8-18 x .375

Publication No: 5995475877 GLD4355RF

10/06 6

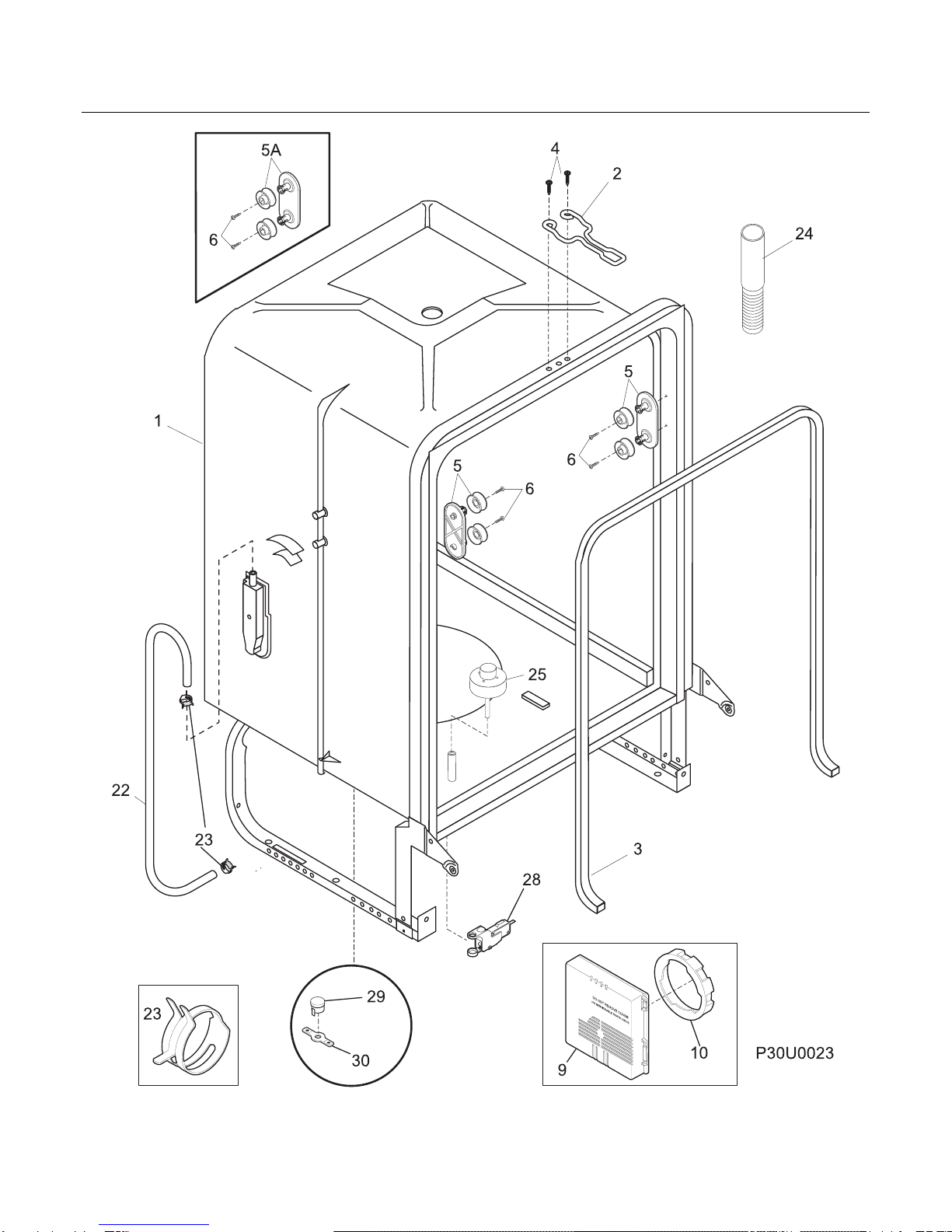

TUB

GLD4355RF Publication No: 5995475877

# Functional Parts 7 10/06

* Non-Illustrated Parts

TUB

Model Index: AGLD4355RF (GLD4355RFS0)

BGLD4355RF (GLD4355RFB0)

POS. NO PART NO. DESCRIPTION

1 # 154594101 A B Tub assy, w/frame parts

* 154598801 A B Foam, tub, (2)

2 154544601 A B Strike, door

3 # 154561001 A B Gasket, tub

4 154200602 A B Screw, 10-16 x 3/8, hex

5 154579402 A B Roller Assy, tub, front, (2)

5A 154581102 A B Roller Assy, tub, rear, (2)

6 154572801 A B Screw, tub roller, (8)

9 # 154562802 A B Vent assy, blower, grey

10 154562902 A B Bezel, vent, gray

22 154446002 A B Tubing, water inlet

23 5303318539 A B Clamp, tubing, (2)

24 # 154525301 A B Hose, drain

25 # 154209702 A B Float, grey

28 154408701 A B Switch Assy, float

29 # 154290204 A B Thermostat, re-settable

30 154241101 A B Retainer, thermostat

30* 154297701 A B Screw, retainer-thermo

* 154544701 A B Insulation, blanket

* 154580801 A B Insulation, back

* 154528701 A B Cabinet Seal Kit

* 154041001 A B Screw, plask #1, 10-10 x 9/16

* 5300807270 A B Screw, (2), countertop mtg.

Publication No: 5995475877 GLD4355RF

10/06 8

MOTOR & PUMP

GLD4355RF Publication No: 5995475877

# Functional Parts 9 10/06

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AGLD4355RF (GLD4355RFS0)

BGLD4355RF (GLD4355RFB0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B Heater, round

1* 154106201 A B Nut, heater, (2)

1* 154289801 A B Shield, heater terminal

2 154465101 A B Bracket, heater, (2)

10 154245501 A B Cover, volute

13 154246801 A B Gasket, sump

14 154461902 A B Housing, sump

16 154246502 A B Retainer, sump

24 154467702 A B Spray arm, grey, lower

24A 154468502 A B Spray arm, grey, center

24B 154478202 A B Spray arm, 3rd level, grey

32 154464101 A B Tube, delivery

32* 154491101 A B Screw, delivery tube

32A 154406401 A B Gasket, delivery tube

40 154106801 A B Clamp, hose, worm/drain

40* 154380601 A B Clamp, hose, worm/gear

54 154234401 A B Hose, connector

55 154595901 A B Bracket, motor

55* 5303316032 A B Screw, truss ss, 8 .625

58 154246402 A B Check ball

59 154246901 A B O-ring, rear

59A 154247001 A B O-ring, front

60 154491301 A B Pump, drain

60* 5303318719 A B Screw, mtg.

61 154463402 A B Grommet, delivery tube

62 154294102 A B Support, spray arm, grey, lower

63 154252201 A B Base, soil director

64 154252302 A B Filter, soil director, grey

65 154283005 A B Filter Assy, grey

66 154252702 A B Trap, glass, grey

70 # 154579701 A B Motor & Pump Assy, johnson

71 # 154473901 A B Sensor, turbidity

71* 154376001 A B O-ring, turbidity

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995475877 GLD4355RF

10/06 10

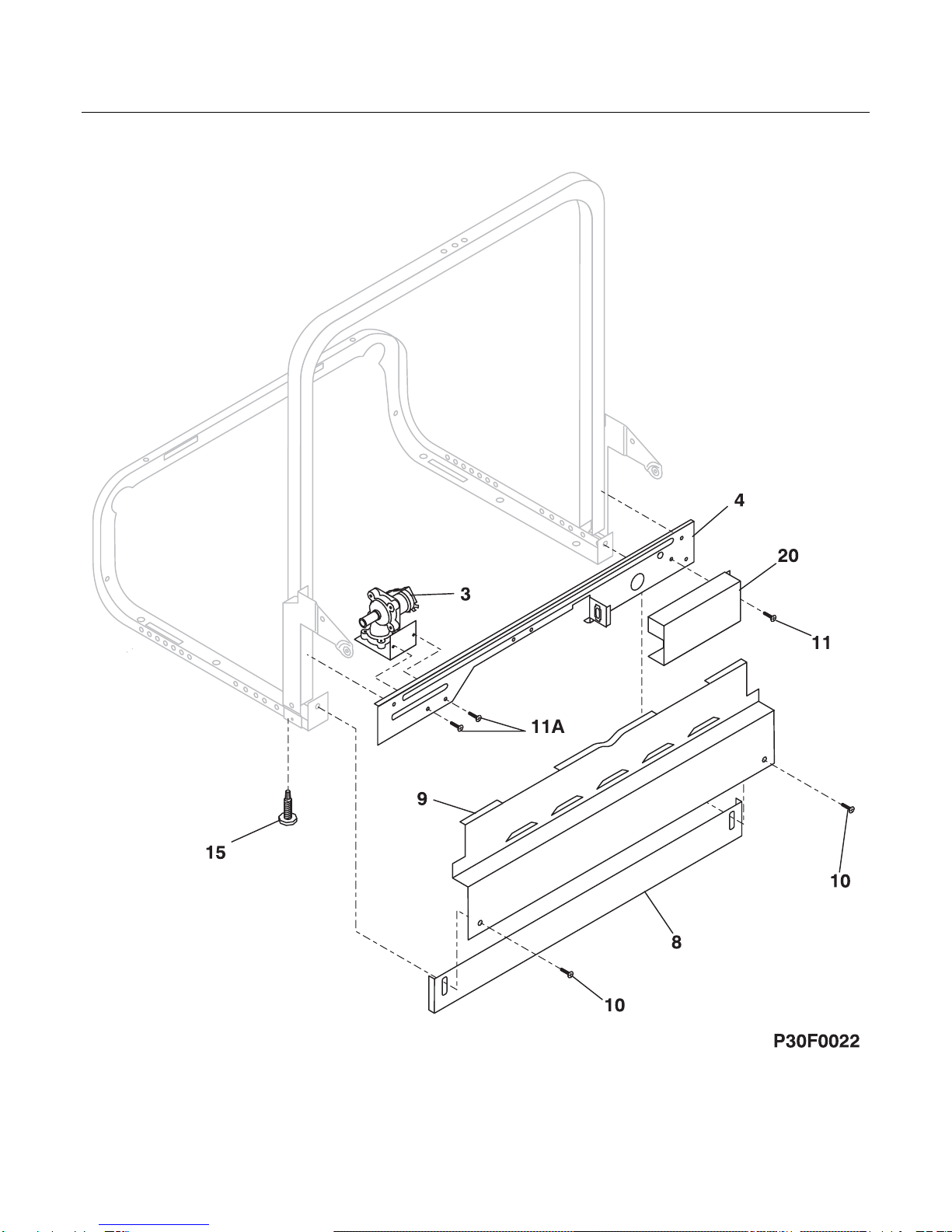

FRAME
