Friedrich D30 Instructions d'utilisation d'origine

Installation

Operation Guide

DEHUMIDIFIER

MODELS

115 Volts • D30 • D40 • D50

EPA DOE

(D40 / D50 Only)

Model information can be found on the name plate on the rear of

the unit behind the condensate bucket.

To register your dehumidifier, complete and mail the enclosed

registration card. or register on-line at www.friedrich. com (USA

only). For your future convenience, record the model information

here.

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

920-137-00 (01/02)

Inside you will find many helpful hints on how to use and

maintain your dehumidifier properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your dehumidifier.

You'll find many answers to common problems in the chart of

Troubleshooting Tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

READ THIS MANUAL

PRECAUTION

Safety Precautions.....3

Operating

Instructions.................5

Installation

Instructions.................8

Care and

Maintenance ..............9

Troubleshooting

Tips............................10

Warranty.....Back cover

Customer Assistance

Numbers ....Back cover

• Contact an Authorized Service Center for repair or

maintenance of this unit.

• The dehumidifier is not intended for use by young children

or invalids without supervision.

• Young children should be supervised to ensure that they do

not play with the dehumidifier.

WARNING

Safety Precautions

Read all instruction before using.

■To prevent property damage or injury to the user or others, the following instructions myst be followed.

■Incorrect operation due to ignoring instructions will cause harm or damage; the seriousness is classified by the

following indications.

■Meanings of symbols used in this manual are as shown below.

WARNING This symbol indicates the possibility of death or serious injury.

CAUTION This symbol indicates the possibility of injury or damage to properties only.

Never do this.

Always do this.

Complete all grounding and

installation requirements as

described on page 5.

•It could cause electrical shock

or fire.

Disconnect power cord from

receptacle before servicing or

cleaning.

•It could cause electrical shock

or fire.

Do not use flammable fluids, solvents,

abrasive cleaners, or strong detergents

to clean the dehumidifier.

•It could cause fire or product

damage hazard.

Do not plug the dehumidifier

in until the outside of unit is

completely dry.

•It could cause electrical shock

and personal injury hazard.

Do not use the water collected

in the bucket for drinking

purposes.

•It is not sanitary and could

cause illness or personal injury

hazard.

Do not clean the dehumidifier

while it is plugged in.

•It may cause electrical shock.

CAUTION

Be sure to block the wheels to

prevent unit from falling when

installed on a table or shelf.

•It may damage the dehumidifier

or cause other damage or

injury.

Be sure to replace bucket

properly after emptying to

prevent water from collecting

on the floor.

Make sure the dehumidifier is

the correct size for the area

you want to dehumidify.

Do not operate switches with

wet hands.

•It may cause electrical shock.

Install the dehumidifier

properly on a floor, table, or

shelf that is level and strong

enough to support it with a full

bucket of water.

•It should withstand around

90 lbs (40kg) of weight.

Do not install dehumidifier in

an area where temperatures

will fall below 65°F (18°C.)

•Low temperatures could cause

coils to frost and unit may not

start.

Close all doors, windows and other outside

openings to the room.

•The dehumidifier must be operated in an enclosed

area to be most effective.

Do not put a pet or house plant where it will be

exposed to direct air flow.

•This may injure the pet or plant.

Air Filter

Fan Speed

Humidistat

Cabinet

Bucket

Auto

Shut-Off

Light

Front

Grille

3-prong

grounding

plug

Ground

prong

Power

supply

cord

3-prong

grounding

type wall

receptacle

Operating Instructions

Features

This section contains captioned illustrations of your dehumidifier. Use the drawings to become familiar

with all parts and features and what they look like.

Electrical requirements

OBSERVE ALL LOCAL CODES AND ORDINANCES.

DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE

THE POWER SUPPLY CORD GROUND PRONG.

Electrical ground is required on this appliance.

A 115-volt 60 Hz, AC only, 15A fused and properly

grounded electrical supply is required. A time delay

fuse or time delay circuit breaker is required.

Use a dedicated circuit, serving only this appliance.

Do not use an extension cord.

Recommended grounding method

For your personal safety, this appliance must be grounded. This appliance has a power supply cord

with a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a

mating grounding type wall receptacle, grounded in accordance with the latest edition of the National

Electrical Code (ANSI/NFPA 70) and all local codes and ordinances. If a mating wall receptacle is not

available, it is the personal responsibility and obligation of the customer to have a properly grounded

3-prong wall receptacle installed by a qualified electrician.

Operating your dehumidifier

Control

Your dehumidifier has a control panel containing an indicator and two controls —

Auto Shut-Off, Fan Speed, and Humidistat.

Auto Shut-Off ---This lamp glows when the bucket is full or is missing.

Fan Speed --- This controls the speed of the airflow.

Humidistat --- This controls the moisture in the room.

Unit operation

1.Turn the Humidistat to Off. Plug the power supply cord into an electrical outlet.

2.The Humidistat can be set anywhere between Off and Max for normal operation.

If you need more dehumidification, turn the Humidistat toward Max. If you need less dehumidification,

turn the Humidistat toward Off.

3.Turn the Humidistat to Off to stop the unit.

4.If you want to control the speed of air flow, turn the Fan Speed toward Low or High.

NOTE: The Fan and compressor will not operate for about two minutes to protect the compressor

when you turn the unit off and immediately back on.

De-icer control (invisible)

The Defrost Control senses frost build-up on the evaporator coil and automatically shuts off the

compressor. The fan continues to run, drawing air across the coil, and melting the frost. When the coil is

defrosted, the compressor automatically restarts, and dehumidifying resumes.

NOTE: Do not operate the dehumidifier at temperature below 65°F (18°C.) If your dehumidifier runs when

the temperature and humidity conditions of room are low, frost can form on its evaporator coil. This

interferes with proper operation. Therefore, dehumidifying performance may be reduced.

Drill

Water level

control switch

Automatic shut off

The dehumidifier will turn off automatically when the bucket is

full, removed or not replaced in the proper position.

The bucket must be replaced in the proper position for the

dehumidifier to work. The light will be on and the dehumidifier

will not run if the bucket is not in the proper position.

Disposing of collected water (3 methods)

1.Empty the bucket manually.

When the bucket is full, pull out and

empty it into a large sink or tub and

then replace it properly.

NOTE: The bucket must be

positioned properly making sure

slots on the back of bucket are

positioned correctly.

NOTE: Do not overtighten the hose

when connecting it to the bucket.

Use a rubber washer and tighten

by hand firmly without stripping

the plastic threads.

2. Place the dehumidifier directly

over drain.

The bucket has a threaded hose

connection which can be left open.

Drill a 1/4" (6.4 mm) hole in the

center of the hose connection.

Once opened, the hose connection

will continually drain water from the

bucket.

NOTE: The nozzle cannot be fixed

after puncture. Use an ordinary

garden hose cap to reclose if

necessary.

3. Attach a length of garden hose

to the threaded bucket drain

hose connection to carry water

to the drain.

When being attached to the bucket

drain hose connection, be sure the

hose doesn’t kink or bend. It should

lie flat from the dehumidifier to the

drain.

NOTE: The hose attachment will

accept a standard garden hose

filling. You can attach a screw-on

cap to use the bucket without a

hose.

12"

Installation Instructions

Installing the dehumidifier properly

1.Allow at least 12 inches of space on all sides of the unit for good air circulation.

2.Install your dehumidifier on a floor, table, or shelf. When installing the dehumidifier on a table

or shelf, make sure the table or shelf is strong enough to support the weight of the dehumidifier

with a full bucket. Do not sit or stand on the dehumidifier.

NOTE: The height of a table or shelf might provide a better position from which to handle the

bucket and help prevent icing of the coils due to colder air near the floor (such as in a

basement.)

3.Lift the bucket and place it in the dehumidifier, making sure the slots on both sides of the

bucket are positioned correctly.

4.Rollers let you move the dehumidifier easily.

Choosing the proper location for your dehumidifier

•Use the dehumidifier in a

basement to help prevent

moisture damage.

•Use the dehumidifier in

laundry drying, bathing, and

dishwashing areas which have

excessive moisture.

•Use the dehumidifier to

prevent moisture damage

anywhere books are stored.

Care and Maintenance

Your dehumidifier is designed to serve you year-

round. It needs practically no attention. However,

you should check your dehumidifier and inspect the

coils annually.

You may want an Authorized Service Center to

perform this annual checkup. (Cost of the inspection

is the owner’s responsibility.)

If you are familiar with electrical appliances and their

functions, listed below are instructions which would

allow you to perform the inspection and

maintenance for yourself.

Cleaning the front grille and case

Clean the front grille and the cabinet with a soft

cloth, warm water, and a mild detergent.

Do not use bleach or abrasives.

Cleaning the air filter

1-1.First, flex the filter at the lower right corner.

Second, slide the upper right side to the left.

Then, release all of the tabs and remove

the filter.

1-2.Wash air filter with warm water and a mild

detergent. Rinse and dry it.

Replace dry air filter.

Cleaning the coil

2-1.Remove air filter from the cabinet (see step

1 above).

2-2.Brush the coil gently like arrow in the figure,

if necessary, with warm water and a mild

detergent. Rinse and dry them thoroughly.

Be careful not to spray the coil with a

water hose.

Be careful! Sharp edges!

Electrical Shock Hazard

•Disconnect power supply cord from receptacle before

performing any maintenance.

•Be careful when cleaning the coils.

Fins are sharp.

Failure to follow the above precautions could result in

electrical shock or personal injury.

Troubleshooting Tips

Before you call for service, review this list. It may save time and money.

The list includes common occurrences that are not the result of defective workmanship or materials in this

appliance.

FIND YOUR PROBLEM HERE

DEHUMIDIFIER DOES NOT

OPERATE

DEHUMIDIFIER RUNS TOO

MUCH

FROST APPEARS ON

COILS

FAN NOISE

Plug is disconnected from outlet.

The fuse is blown/circuit breaker is

tripped.

The dryness level you selected has

been reached.

The Auto Shut-Off light is on.

Dehumidifier is not turned on.

Humidistat is set too high.

Windows or doors near dehumidifier

are open to outdoors.

Area to be dehumidified is too large.

Air movement through dehumidifier

is blocked.

Humidistat is set at Max.

Room temperature is too low.

Room temperature is below 65°F

(18°C.)

Air is moving through the

dehumidifier.

Push plug firmly into wall outlet.

Check the house fuse/circuit breaker box

and replace fuse or reset the breaker.

Dehumidifier automatically shuts off

when the selected amount of moisture

has been removed from the air. If you

want to remove more moisture, turn the

Humidistat to Max. After the dehumidifier

starts, reset the control to the desired

setting.

Dehumidifier automatically shuts off

when the bucket is full. Empty the bucket

and replace.

Turn on the Humidistat.

Turn the Humidistat to a lower setting.

Close all windows or doors to outside.

Check with your dealer to see if capacity

is adequate.

Front grille may be dirty.

Use a soft cloth, warm water, and a mild

detergent to clean the grille.

Dehumidifier's coils on the back of unit

may be dirty. Clean the soil on the coils

on the back of the unit.

Dehumidifier must be placed in a space

that does not restrict air flowing into the

rear coil or out of the front grille.

Dehumidifier will not turn off if Humidistat

is at Max.

Frost will usually disappear within 60

minutes.

This is a normal sound.

POSSIBLE CAUSES WHAT TO DO

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Friedrich Déshumidificateur

Friedrich

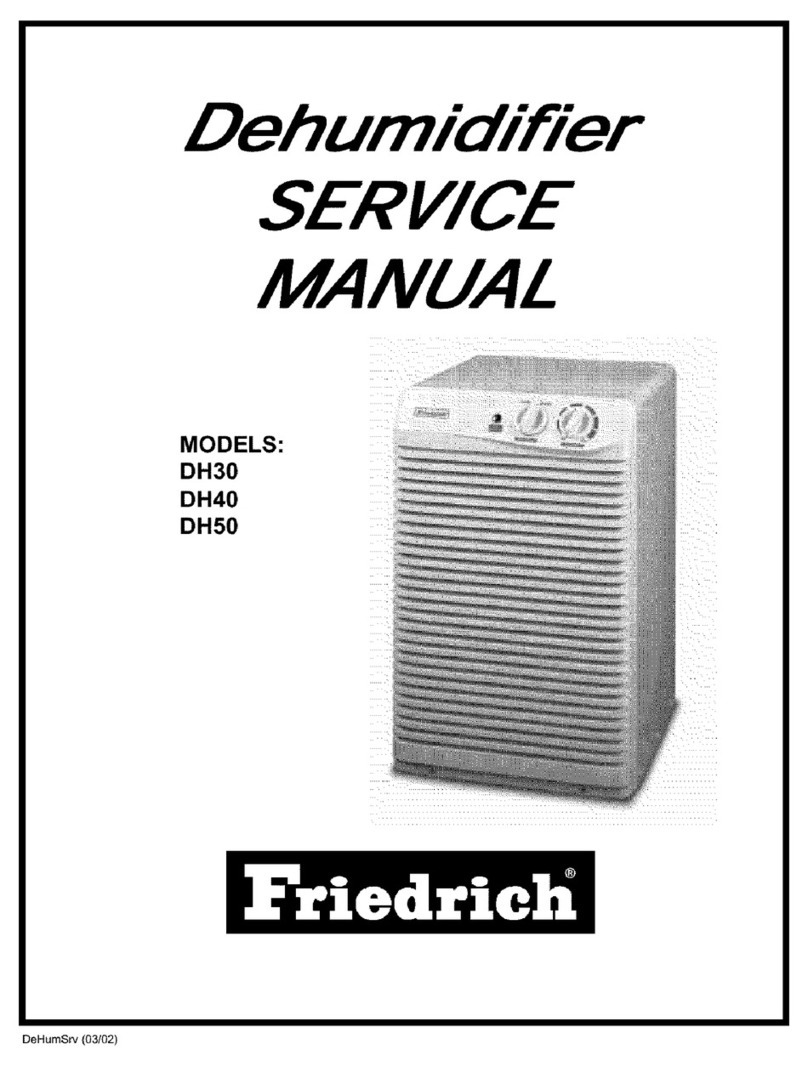

Friedrich DH30 Manuel utilisateur

Friedrich

Friedrich D25ANP Manuel utilisateur

Friedrich

Friedrich D25ANP Manuel utilisateur

Friedrich

Friedrich D30C Instructions de construction

Friedrich

Friedrich D30A Instructions de construction

Friedrich

Friedrich D25D Manuel utilisateur

Friedrich

Friedrich D30C Guide de dépannage

Friedrich

Friedrich D25ANP Manuel utilisateur

Friedrich

Friedrich D25BNP Manuel utilisateur

Friedrich

Friedrich D30B Manuel utilisateur

Friedrich

Friedrich D25D Manuel utilisateur

Friedrich

Friedrich D70D Mode d’emploi

Friedrich

Friedrich D30A Instructions d'utilisation d'origine

Friedrich

Friedrich D25ANP Manuel utilisateur

Friedrich

Friedrich D25ANP Manuel utilisateur

Friedrich

Friedrich D25ANP Manuel utilisateur

Friedrich

Friedrich D70BP Manuel utilisateur

Friedrich

Friedrich D25ANP Manuel utilisateur

Manuels Déshumidificateur populaires d'autres marques

Daitsu

Daitsu CD031IU-DFA Manuel utilisateur

Fehom

Fehom PDGT701BE Manuel utilisateur

Hitachi

Hitachi RD-190GX Manuel utilisateur

Westpoint

Westpoint MDF1-30AE Manuel utilisateur

SOLIS

SOLIS easy dry compact Manuel utilisateur

ENVIROBOSS

ENVIROBOSS EB240 Manuel utilisateur

Sinclair

Sinclair R-9112 Manuel utilisateur

Kenmore

Kenmore 580.54701 Manuel utilisateur

Demargo

Demargo DM828NF Manuel utilisateur

Altrad Lescha

Altrad Lescha LDH 600 Manuel utilisateur

BOMANN

BOMANN LE 1150 CB Manuel utilisateur

SPT

SPT SD-46 Manuel utilisateur

REMKO

REMKO SLN 40 Manuel utilisateur

Haier

Haier HD458 Manuel utilisateur

Logik

Logik L20DHW12 Manuel utilisateur

Frigidaire

Frigidaire FDR30S1 - 30 Pint Capacity Dehumidifier Guide de démarrage rapide

Blitz

Blitz HHD Series Manuel utilisateur

Prem-I-Air

Prem-I-Air PD14DEN Manuel utilisateur
