Friedrich Uni-Fit UE10 Instructions d'utilisation d'origine

J_' m Jl' m II'

Installation & Operation Guide

Thru-the-Wall Series

115 Volts •UE08

230 Volts oUE10 oUE12

Model information can be found on the name plate on the front of the unit.

To register your application, complete and mail the enclosed registration card, or

For your future convenience, record the model information here.

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

920-136-01 (01/05)

READ THIS MANUAL

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the trouble

shooting section. First review the trouble shooting section

beforecalling service. Your question may already be

answered.

CAUTION

• Contact an authorized Service technician for repair or

maintenance of this unit.

• The air conditioner is not intended for use by young

children without supervision.

m__

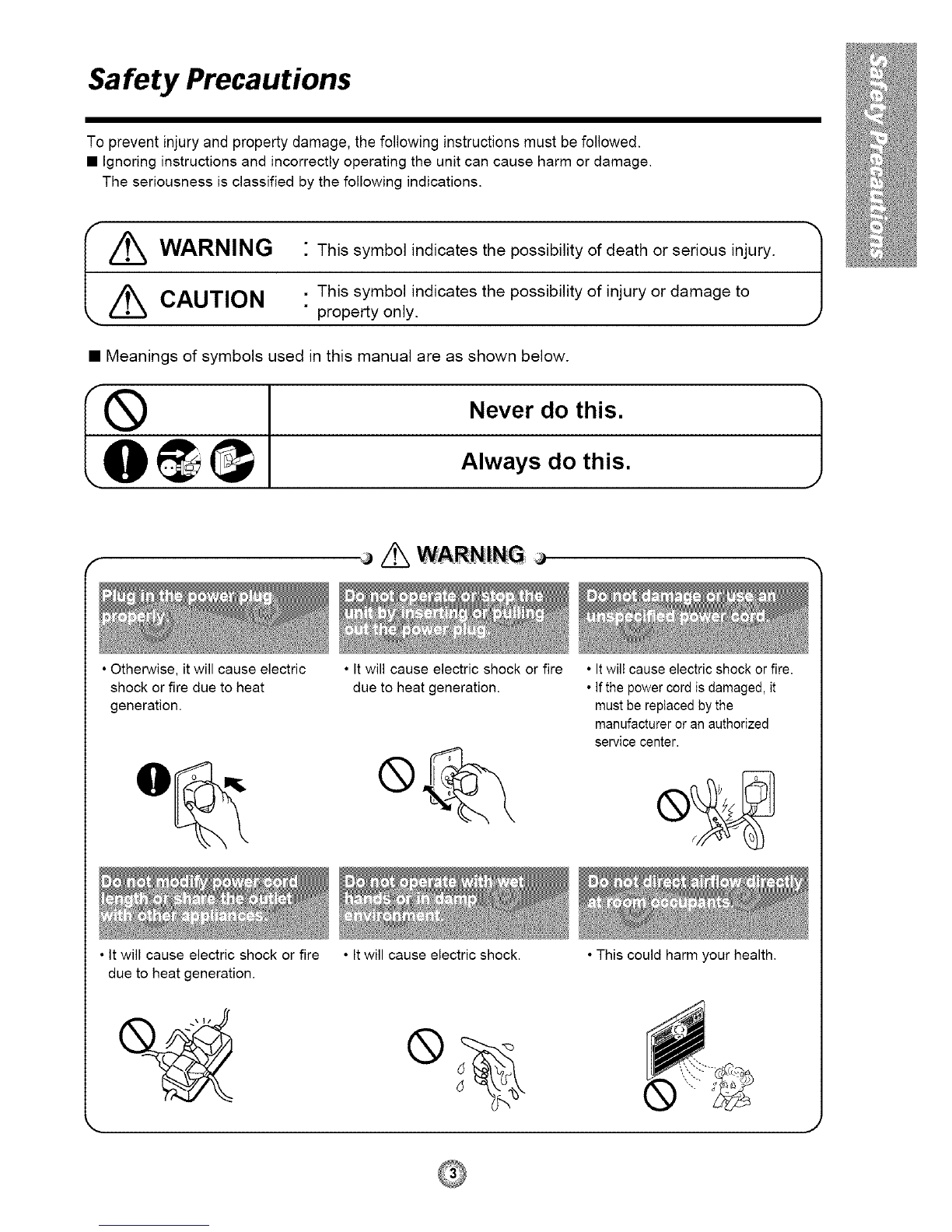

Safety Precautions

To prevent injury and property damage, the following instructions must be followed.

• Ignoring instructions and incorrectly operating the unit can cause harm or damage.

The seriousness is classified by the following indications.

,/_ WARNING "This symbol indicates the possibility of death or serious injury. /

//_ CAUTION .This symbol indicates the possibility of injury or damage to

•property only.

• Meanings of symbols used in this manual are as shown below.

I everOot s1

• Otherwise, it will cause electric

shock or fire due to heat

generation.

• It will cause electric shock or fire

due to heat generation.

• It will cause electric shock or fire

due to heat generation.

• It will cause electric shock.

• It will cause electric shock or fire.

• If the power cord is damaged, it

must be replaced by the

manufacturer or an authorized

service center.

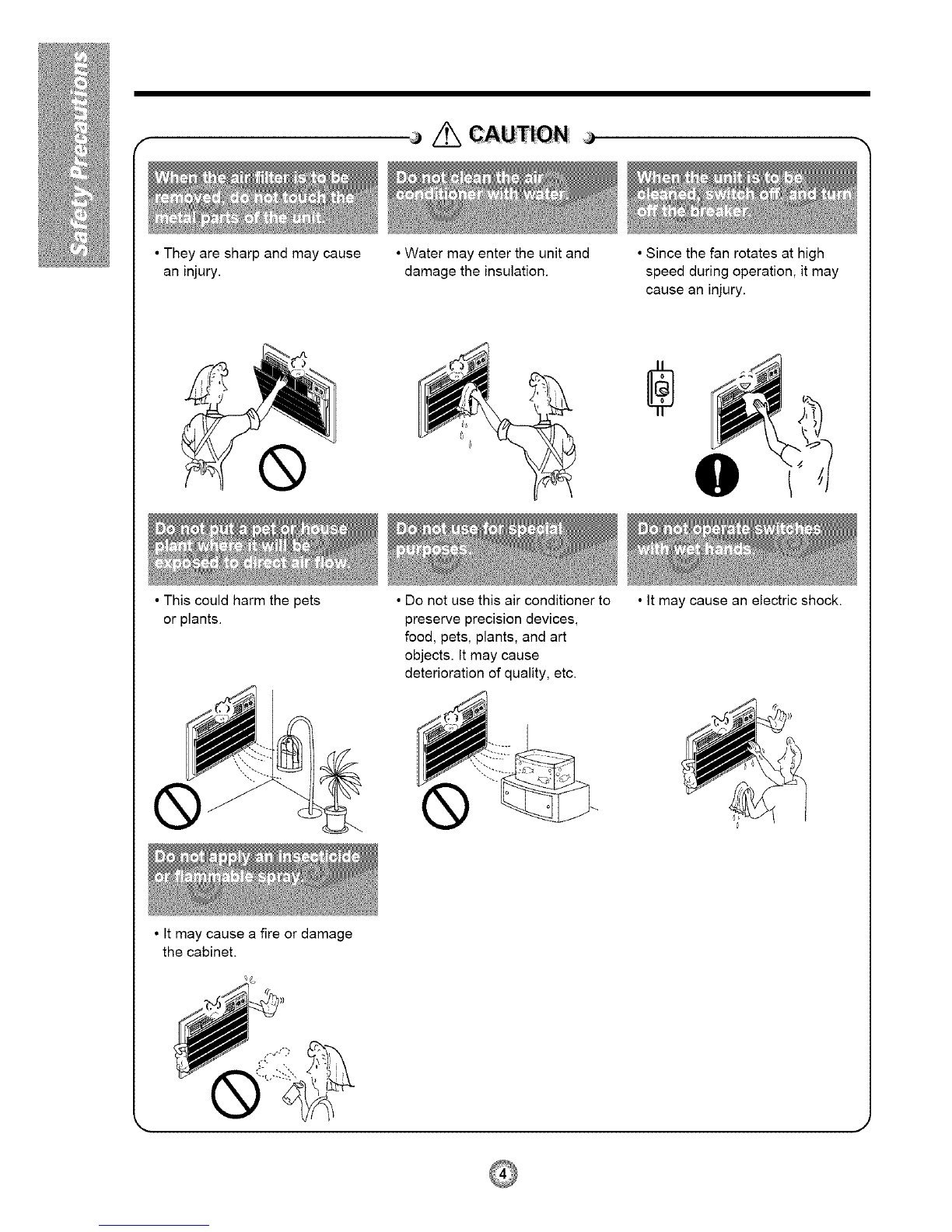

• This could harm your health.

• They are sharp and may cause

an injury. • Water may enter the unit and

damage the insulation. • Since the fan rotates at high

speed during operation, it may

cause an injury.

• This could harm the pets

or plants.

• It may cause a fire or damage

the cabinet.

• Do not use this air conditioner to

preserve precision devices,

food, pets, plants, and art

objects. It may cause

deterioration of quality, etc.

• It may cause an electric shock.

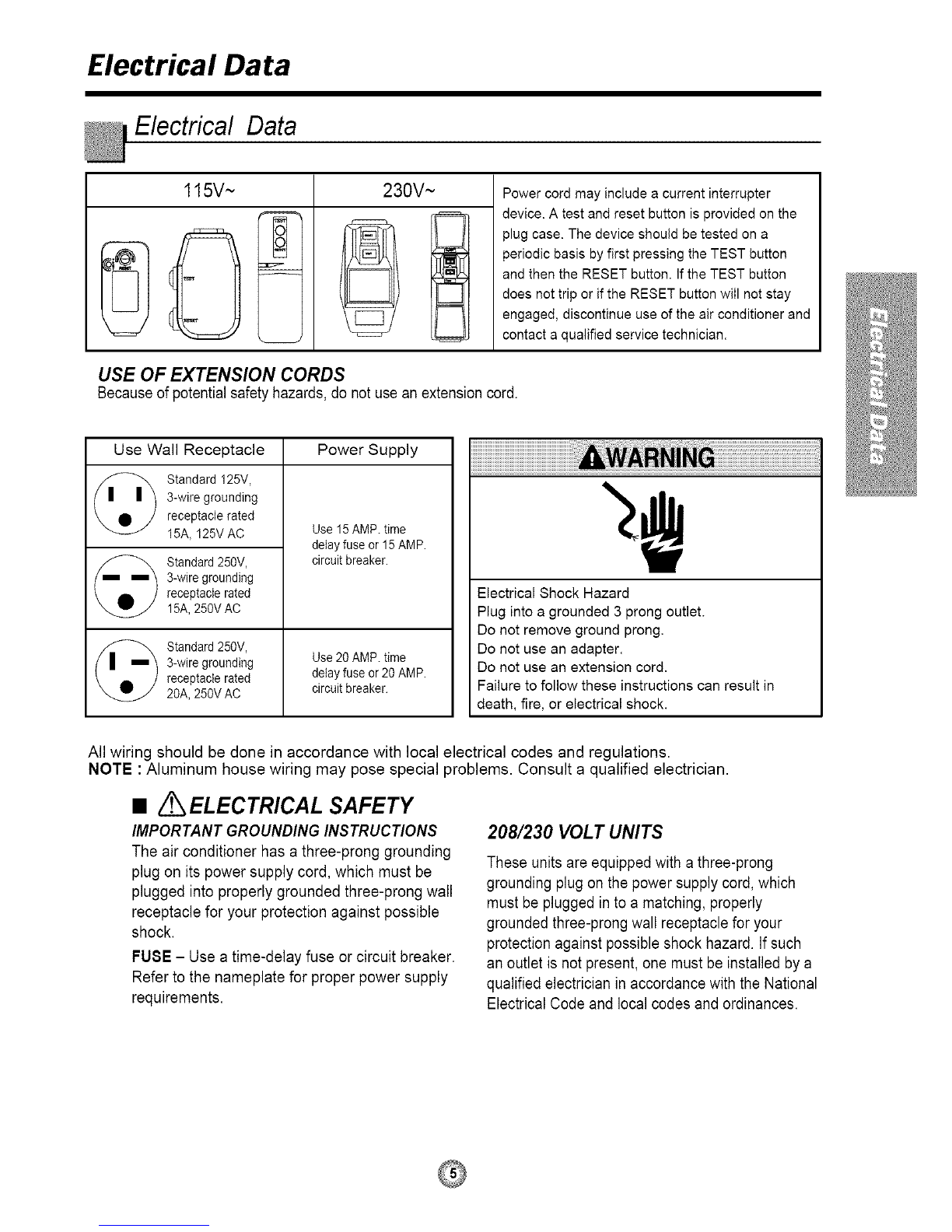

Electrical Data

115V~

230V~ Power cord may include a current interrupter

device. A test and reset button is provided on the

plug case. The device should be tested on a

periodic basis by first pressing the TEST button

and then the RESET button. If the TEST button

does not trip or if the RESET button wilI not stay

engaged, discontinue use of the air conditioner and

contact a qualified service technician.

USE OF EXTENSION CORDS

Becauseof potentialsafetyhazards,do not usean extensioncord.

Use Wall Receptacle Power Supply

Standard 125V,

3-wire grounding

receptacle rated

15A, 125V AC

Standard 250V,

3-wire grounding

receptacle rated

15A, 250V AC

Standa_ 250V,

3-wire grounding

receptacle rated

2gA, 250V AC

Use 15 AMP. time

delayfuse or 15AMP

circuit breaker

Use 20 AMP. time

delayfuse or 20AMP

circuit breaker

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock.

All wiring should be done in accordance with local electrical codes and regulations.

NOTE : Aluminum house wiring may pose special problems. Consult a qualified electrician.

•/ ELECTRICAL SAFETY

IMPORTANT GROUNDING INSTRUCTIONS

The air conditioner has a three-prong grounding

plug on its power supply cord, which must be

plugged into properly grounded three-prong wall

receptaclefor your protectionagainst possible

shock.

FUSE - Use a time-delay fuse or circuit breaker.

Refer to the nameplate for proper power supply

requirements.

208/230 VOLT UNITS

These units are equippedwith a three-prong

grounding plugon the powersupplycord, which

must be pluggedin to a matching,properly

groundedthree-prongwall receptaclefor your

protectionagainstpossibleshock hazard.If such

an outlet is notpresent,one mustbe installed bya

qualifiedelectricianin accordancewith the National

ElectricalCodeand localcodes and ordinances.

Operating Instructions

The controls will look like one of the following:

Controls- Cooling Only Models

Fan

OFF

Cool

Lo_Cool

|_ ivtI '-] ::1:!:_1 |lJ ;;

Warmer Cooler

Off

Med Fan Only

Low Fan Only

High Cool

Med Cool

Low Cool

- Turns air conditioner off.

- Med speed fan operation without cooling.

- Low speed fan operation without cooling.

- Cooling with high speed fan operation.

- Cooling with med speed fan operation.

- Cooling with low speed fan operation.

This automatically controls the temperature of the indoor air.

Turn the knob clockwise for greater cooling.

Turn the knob counter-clockwise for more moderate cooling.

•FOR NORMAL COOLING

1.Turn the MODE Knob to the Med Cool setting.

2. Setthe Temperature Knob to the desired temperature (the mid-point is a good starting position).

If the room temperature is not satisfactory after a reasonable time, adjust the control to a cooleror warmer

setting, as appropriate.

•FOR MAXIMUM COOLING

1.Turn the MODE Knob to the High Cool setting.

2. Setthe Temperature Knob to the coolest temperature setting all theway to the right.

•FOR QUIETER OPERATION

1.Turn the Operation Knob to the Low Cool setting.

2. Setthe Temperature Knob as needed.

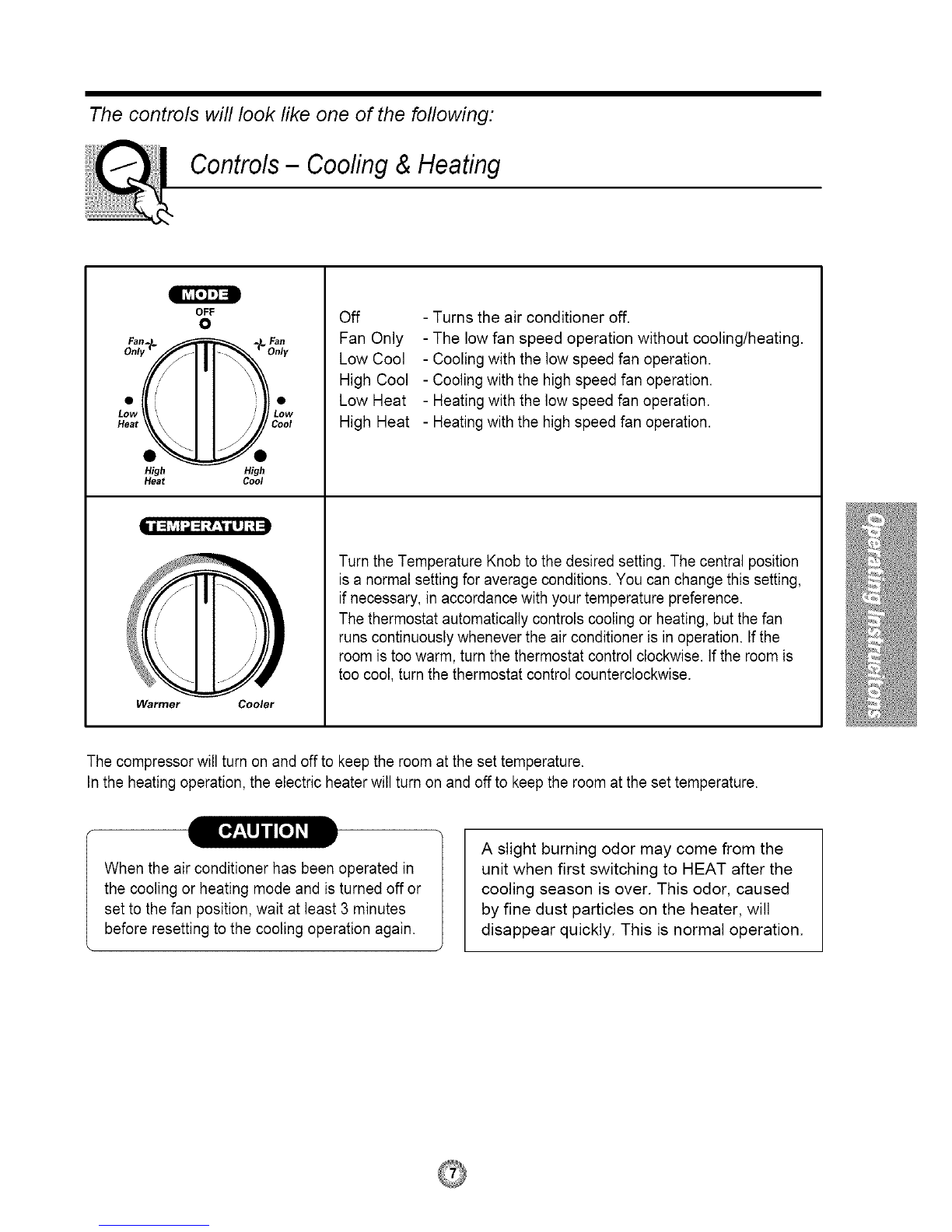

The controls will look like one of the following:

Controls- Cooling & Heating

OFF

High High

Heat Cool

i =1,';1;.1=_5E,'_iJ] _1

Warmer Cooler

Off

Fan Only

Low Cool

High Cool

Low Heat

High Heat

- Turns the air conditioner off.

- The low fan speed operation without cooling/heating.

- Cooling with the low speed fan operation.

- Coolingwith the high speed fan operation.

- Heating with the low speed fan operation.

- Heatingwith the highspeed fan operation.

Turnthe TemperatureKnob to thedesired setting.The central position

is a normalsettingfor average conditions.You can changethis setting,

if necessary,in accordancewith yourtemperature preference.

Thethermostat automaticallycontrols coolingor heating, but thefan

runs continuouslywhenever the air conditioner is in operation. Ifthe

roomis toowarm, turn thethermostat controlclockwise. If the room is

too cool,turn the thermostatcontrol counterclockwise.

Thecompressorwill turn on and off to keepthe roomat theset temperature.

Inthe heatingoperation, the electricheaterwill turnon and off to keepthe roomat the set temperature.

When the air conditioner has been operated in

the coolingor heating mode and isturned off or

set to the fan position, wait at least 3 minutes

beforeresetting to the cooling operation again.

A slight burning odor may come from the

unit when first switching to HEAT after the

cooling season is over. This odor, caused

by fine dust particles on the heater, will

disappear quickly. This is normal operation.

Additional controls and important information.

Ventilation Control

Push the lever to the "CLOSE" position to cool, heat or recirculate

room air only.

Pull the lever to the "OPEN" position to exhaust smoke or stale air

from the room.

This feature is best used in conjunctionwith the FAN ONLY position.

PULL OPEN/PUSH CLOSE

AirDirecfion

Thedirectionof air canbe controlledbyadjustingthe horizontaland

verticallouvers.

•HORIZONTAL AIR-DIRECTION CONTROL

Thehorizontalair directionisadjusted bymovingthe verticallouver.

Theleverforthe verticallouverislocated inthe rightand left sideof

theair discharge.

• VERTICAL AIR-DIRECTION CONTROL

Theverticalair directionisadjusted bymovingthe horizontallouver.

Care and Maintenance

TURN THE AIR CONDITIONER OFF AND REMOVE THEPLUG FROM THE POWER OUTLET.

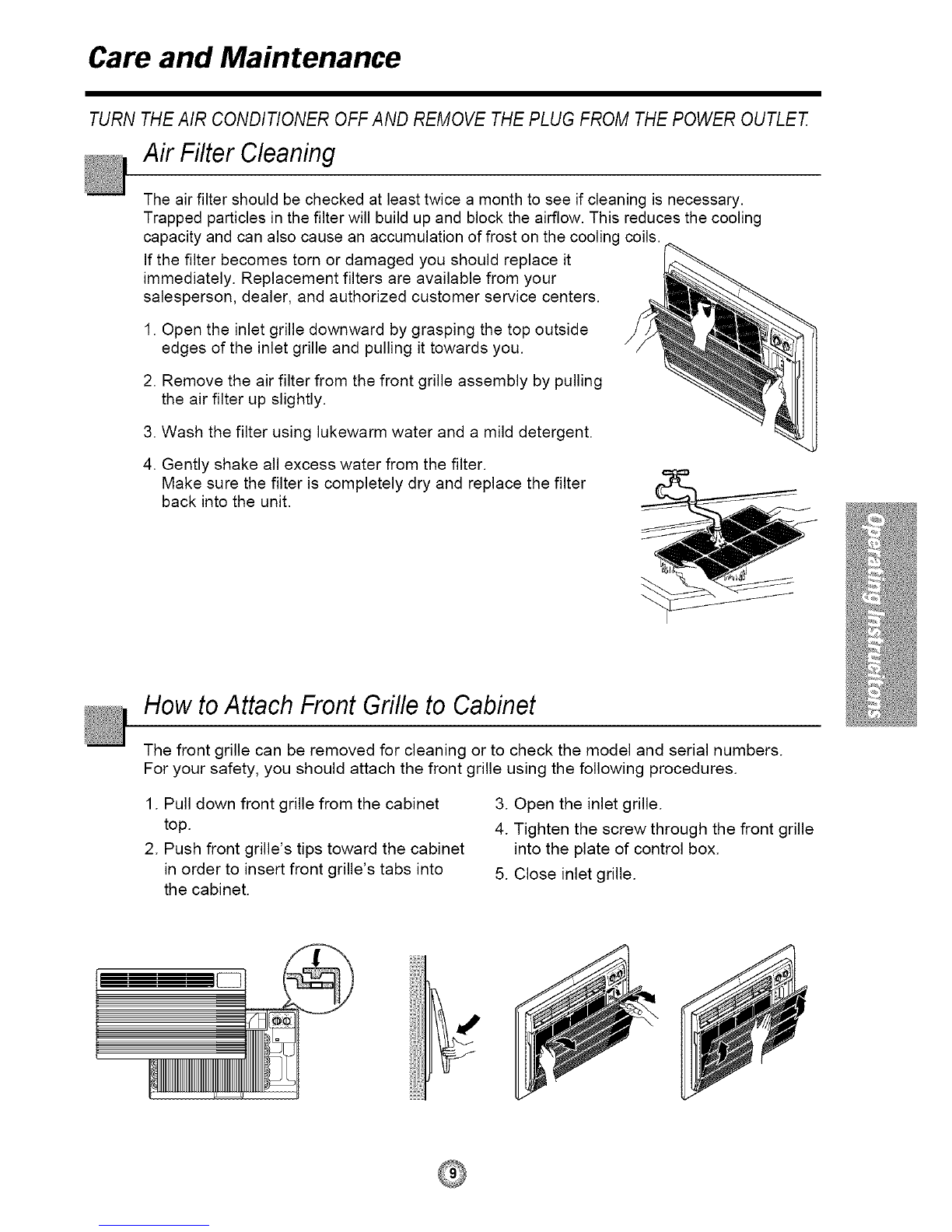

Air Filter Cleaning

The air filter should be checked at least twice a month to see if cleaning is necessary.

Trapped particles in the filter will build up and block the airflow. This reduces the cooling

capacity and can also cause an accumulation of frost on the cooling coils.

If the filter becomes torn or damaged you should replace it

immediately. Replacement filters are available from your

salesperson, dealer, and authorized customer service centers.

1. Open the inlet grille downward by grasping the top outside

edges of the inlet grille and pulling it towards you.

2. Remove the air filter from the front grille assembly by pulling

the air filter up slightly.

3. Wash the filter using lukewarm water and a mild detergent.

4. Gently shake all excess water from the filter.

Make sure the filter is completely dry and replace the filter

back into the unit,

How to Attach Front Grille to Cabinet

The front grille can be removed for cleaning or to check the model and serial numbers.

For your safety, you should attach the front grille using the following procedures.

1. Pull down front grille from the cabinet

top.

2. Push front grille's tips toward the cabinet

in order to insert front grille's tabs into

the cabinet.

3. Open the inlet grille.

4. Tighten the screw through the front grille

into the plate of control box.

5. Close inlet grille.

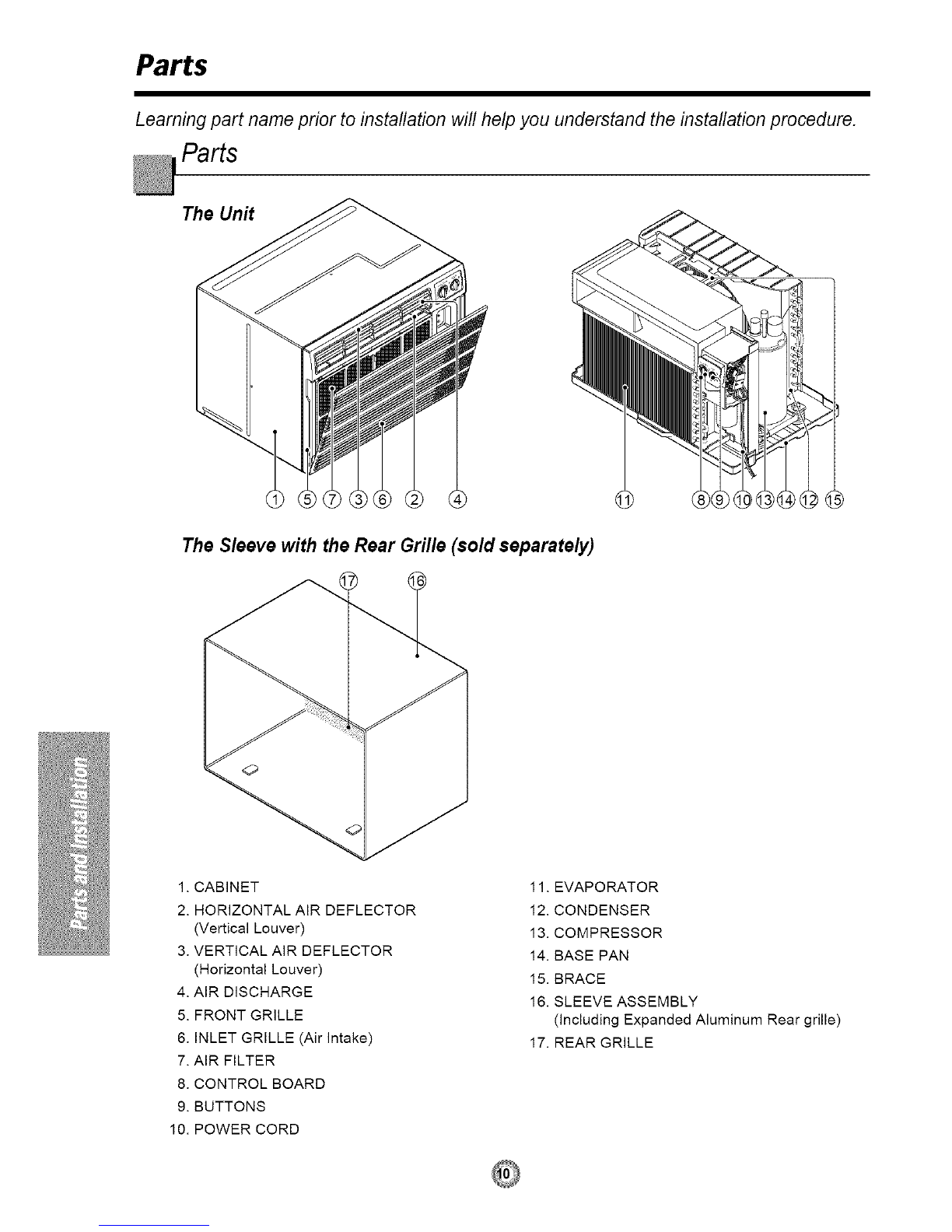

Parts

Learning part name prior to installation will help you understand the installation procedure.

Parts

The Unit

The Sleeve with the Rear Grille (sold separately)

1. CABINET

2. HORIZONTAL AIR DEFLECTOR

(Vertical Louver)

3. VERTICAL AIR DEFLECTOR

(Horizontal Louver)

4. AIR DISCHARGE

5. FRONT GRILLE

6. INLET GRILLE (Air intake)

7. AIR FILTER

8. CONTROL BOARD

9. BUTTONS

10. POWER CORD

11. EVAPORATOR

12. CONDENSER

13. COMPRESSOR

14. BASE PAN

15. BRACE

16. SLEEVE ASSEMBLY

(including Expanded Aluminum Rear grille)

17. REAR GRILLE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Friedrich Climatiseur

Friedrich

Friedrich M18YH Manuel utilisateur

Friedrich

Friedrich OES Series Instructions d'utilisation d'origine

Friedrich

Friedrich QUIETMASTER 2008 Manuel utilisateur

Friedrich

Friedrich CP06E10 Instructions de construction

Friedrich

Friedrich SV08A10A Instructions de construction

Friedrich

Friedrich MR24C3F Manuel utilisateur

Friedrich

Friedrich ZQ08A10C Instructions de construction

Friedrich

Friedrich Kuhl KCL36 Manuel utilisateur

Friedrich

Friedrich CP10 Manuel utilisateur

Friedrich

Friedrich SS08 Manuel utilisateur

Friedrich

Friedrich QuietMaster KS12 Manuel utilisateur

Friedrich

Friedrich P/N9368987060-01 Manuel utilisateur

Friedrich

Friedrich X-Star XQ05L10A Manuel utilisateur

Friedrich

Friedrich FPHMR18A3A Instructions de construction

Friedrich

Friedrich MWM24Y3J Manuel utilisateur

Friedrich

Friedrich OHS Series Manuel utilisateur

Friedrich

Friedrich 9315342973 Manuel utilisateur

Friedrich

Friedrich MR09C1F Manuel utilisateur

Friedrich

Friedrich PDH15K5 Instructions d'utilisation d'origine

Friedrich

Friedrich CP05C10 Instructions de construction

Friedrich

Friedrich MC12Y3JM Manuel utilisateur

Friedrich

Friedrich M18CJ Manuel utilisateur

Friedrich

Friedrich MR36Y3J Manuel utilisateur

Friedrich

Friedrich MD36Y3J Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
