Friedrich SV10A10A Manuel utilisateur

Room Air Conditioner

Installation and Operation

Manual

Slider Casement

115 Volts • SV08A10A •SV10A10A •SV12A10A

_P_To_II._olo] [_LJ_I]

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

• Staple your receipt to this page in the event you need it

to prove date of purchase or for warranty issues.

aO READ THIS MANUAL

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may net need to call for

service at all.

CAUTION

•Contact the authorized service technician for repair

or maintenance an this unit.

•Contact an installer for installation of this unit.

•The air conditioner is not intended for use by young

children or invalids without supervision.

• Young children should be supervised to ensure that

they do not play with the air conditioner.

• When the power cord is to be replaced, replacement

work shall be performed by authorized personnel only

using only genuine replacement parts.

•Installation work must be performed in accordance

with the National Electric Code by qualified and

authorized personnel only.

2 Room Air Conditioner

To prevent injury and property damage, follow these instructions.

Safety Precautions

• Incorrect operation due to ignoring instructions may cause harm or damage, the

seriousness of which is indicated by the following symbols.

,_W,8,,RN_NG This symbol indicates the possibility of death or serious injury. |

&CAUTION This symbol indicates the possibility of injury or damage to properties only.

• Meanings of other symbols used:

Never do this.

Be sure to follow the instruction.

;¢;_%y

•Installation ILWARNING>

• No installation may cause fire or electric shock

accident. • Doing so may cause fire or electric shock.

• Doing so may cause explosion or fire.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i!

• Doing so may cause failure or electric shock.

Owner's Manual 3

Safety Precautions

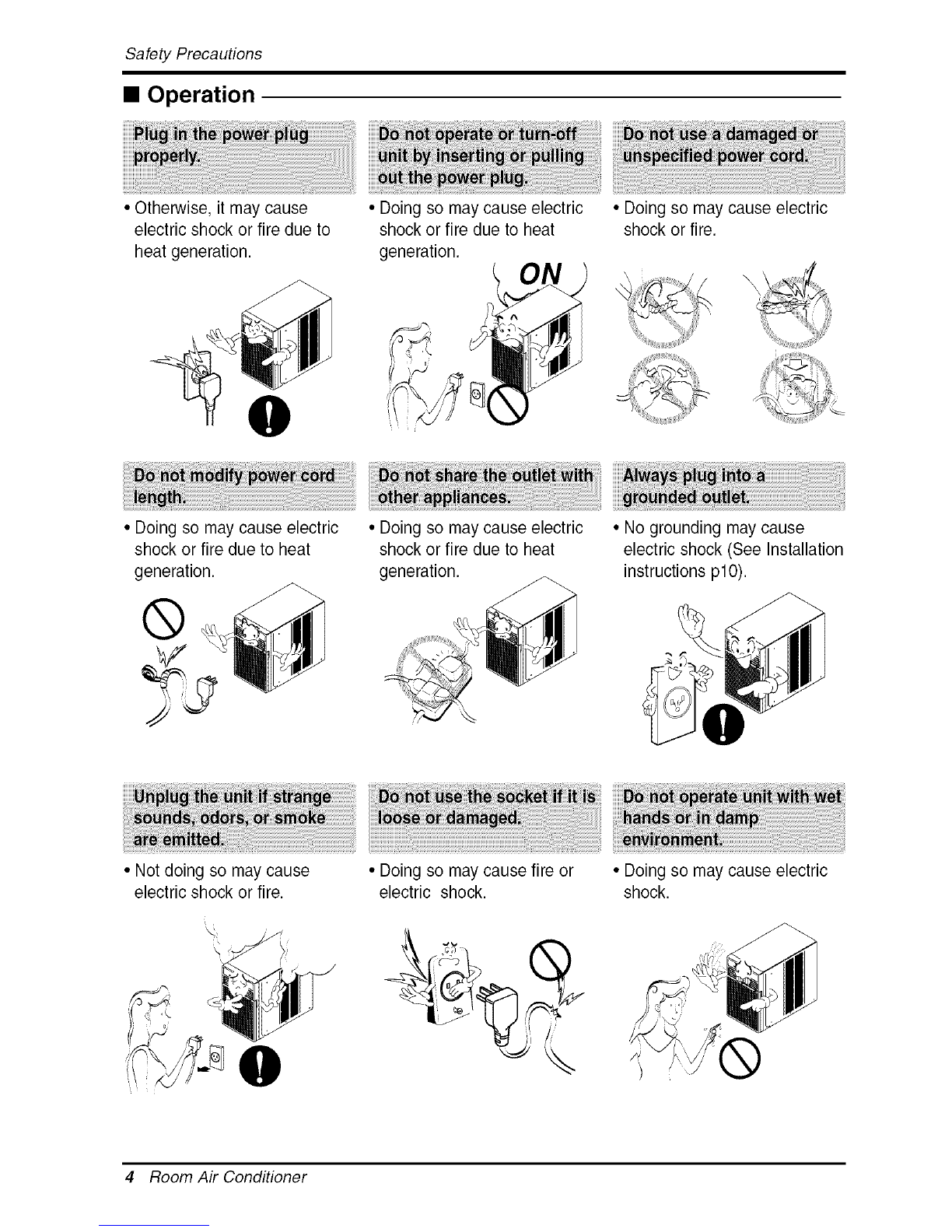

• Operation

• Otherwise, it may cause

electric shock or fire due to

heat generation.

• Doing so may cause electric

shock or fire due to heat

generation.

• Doing so may cause electric

shock or fire due to heat

generation.

• Not doing so may cause

electric shock or fire.

• Doing so may cause electric

shock or fire due to heat

generation.

• Doing so may cause fire or

electric shock.

• Doing so may cause electric

shock or fire.

• No grounding may cause

electric shock (See Installation

instructions plO).

• Doing so may cause electric

shock.

4 Room Air Conditioner

• Doing so may cause failure of machine or

electric shock.

Safety Precautions

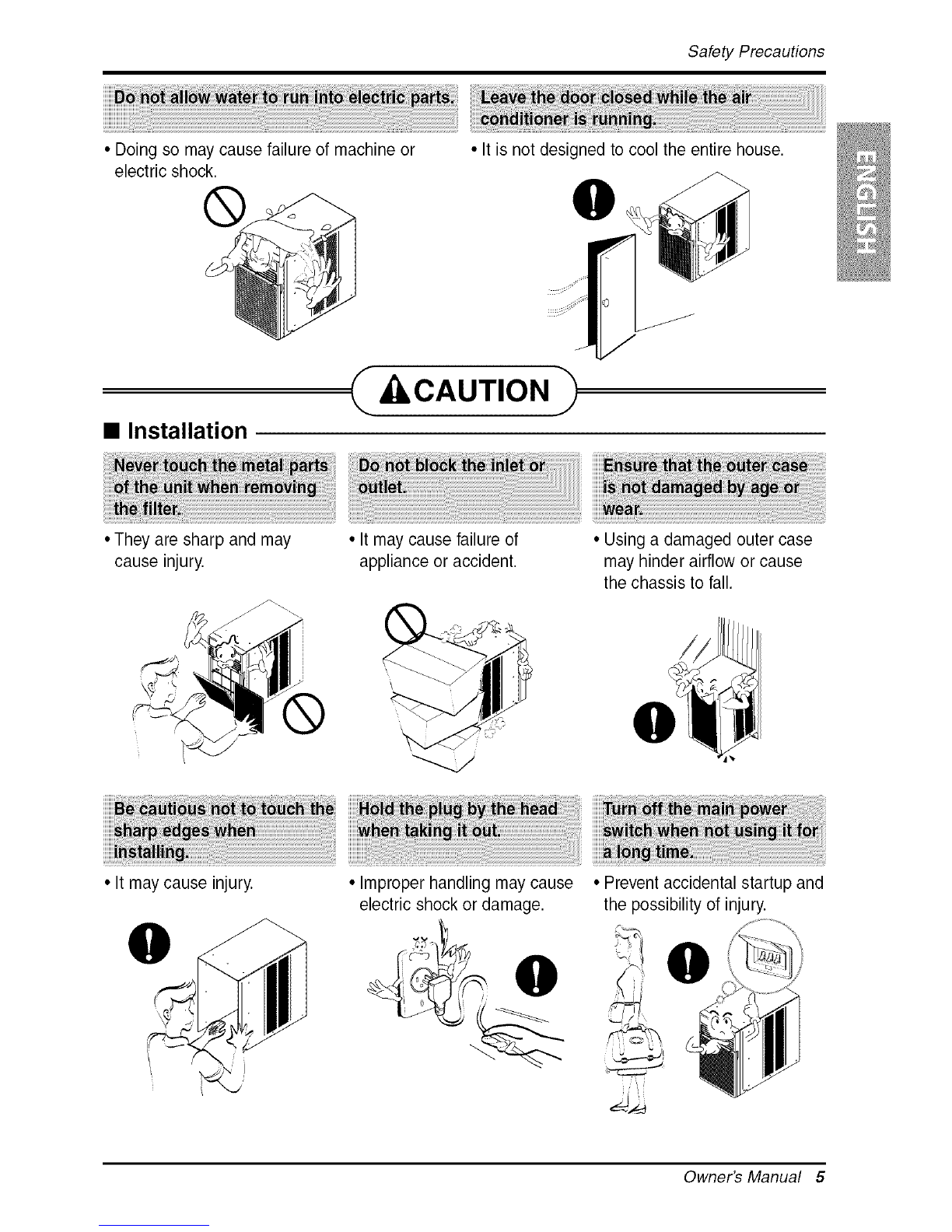

•Installation

• They are sharp and may

cause injury.

• It is not designed to cool the entire house.

• It may cause injury.

• It may cause failure of

appliance or accident. • Using a damaged outer case

may hinder airflow or cause

the chassis to fall.

• Improper handling may cause

electric shock or damage. • Prevent accidental startup and

the possibility of injury.

Owner's Manual 5

Safety Precautions

• Operation

• There is danger of fire or

electric shock. • Water may enter the unit and

degrade the insulation. It may

also cause an electric shock.

• Since the fan rotates at high

speed during operation, it may

cause injury.

• This could injure the pet or

plant.

• It is an air conditioner, not a

precision refrigeration system.

i.....

• Operation without filters will

cause failure.

• The appearance of the air

conditioner may deteriorate,

change color, or develop

surface flaws.

• It contains containments that

would make you sick. /This

could harm your health.

6 Room Air Conditioner

PriortoOperation

1. Contact an installation specialist for installation.

2. Plug in the power plug properly.

3. Use a dedicated circuit.

4. Do not use an extension cord.

5. Do not start/stop operation by plugging/unplugging the power cord.

6. If the cord/plug is damaged, only replace it with an authorized replacement

part.

1. Being exposed to direct airflow for an extended period of time could be

hazardous to your health. Do not expose occupants, pets, or plants to direct

airflow for extended periods of time.

2. Due to the possibility of oxygen deficiency, ventilate the room when used

together with stoves or other heating devices.

3. Do not use this air conditioner for non-specified special purposes (e.g.

preserving precision devices, food, pets, plants, and art objects). Such usage

could damage the items.

1. Do not touch the metal parts of the unit when removing the filter. Injuries can

occur when handling sharp metal edges.

2. Do not use water to clean inside the air conditioner. Exposure to water can

destroy the insulation, leading to possible electric shock.

3. When cleaning the unit, first make sure that the power and breaker are turned

off. The fan rotates at a very high speed during operation. There is a

possibility of injury if the unit's power is accidentally triggered on while

cleaning inner parts of the unit.

For repair and maintenance, contact your authorized service dealer.

Owner's Manual 7

Introduction

_k_ This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that could cause harm to

the air conditioner.

This symbol indicates special notes.

AWARNING

This appliance should be installed in accordance with the National Electric Code.

AIRFILTER VERTICALAIRDEFLECTOR

(HORIZONTALLOUVER)

(INLETGRILLE) --AIR DISCHARGE

BRACE

_ COMPRESSOR

POWERCORD

8 Room Air Conditioner

ElectricalSafety

115V~ 230V-

[ ill

Power cord may include a current

interrupter device. A test and reset button is

provided on the plug case. The device

should be tested on a periodic basis by first

pressing the TEST button and then the

RESET button. If the TEST button does not

trip or if the RESET button will not stay

engaged, discontinue use of the air

conditioner and contact a qualified service

technician.

The shape may be different according to its model.

Use Wall Receptacle Power Supply

Standard 125V, 3-wire grounding

receptacle rated 15A, 125V AC

Standard 250V, 3-wire grounding

receptacle rated 15A, 250V AC

Standard 250V, 3-wire grounding

receptacle rated 20A, 250V AC

ELECTRICAL SAFETY

Use 15 AMP. time

delay fuse or 15 AMP.

circuit breaker.

Use 20 AMP. time

delay fuse or 20 AMP.

circuit breaker.

IMPORTANT GROUNDING INSTRUCTIONS

Air conditioner has a three-prong grounding plug on

its power supply cord, which must be plugged into

properly grounded three-prong wall receptacle for

your protection against possible shock hazard.

230/208 VOLTUNITS

These units are equipped with a three-prong

grounding plug on the power supply cord, which

must be plugged into a matching properly grounded

three-prong wall receptacle for your protection

against possible shock hazard. If such an outlet is

Use of extension cords

Because of potential safety hazards, we

strongly discourage the use of an extension

cord. However, if you wish to use an

extension cord, use a CSA certified/UL-listed

3-wire (grounding) extension cord, rated 15A,

125V.

All wiring should be made in accordance with

local electrical codes and regulations.

Aluminum house wiring may pose special

problems.Consult a qualified electrician.

not present, one must be installed by a qualified

electrician in accordance with the National Electrical

Code and local codes and ordinances.

DO NOT USE AN EXTENSION CORD on 230/208

Volt units.

Owner's Manual 9

ElectricalSafety

IMPORTANT

(PLEASE READ CAREFULLY)

FOR THE USER'S PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED

A. SITUATIONS WHEN THE APPLIANCE WILL BE DISCONNECTED OCCASIONALLY:

Because of potential safety hazards, we strongly discourage the use of an adapter plug. However, if you wish to

use an adapter, a TEMPORARY CONNECTION may be made. Use UL-listed adapter, available from most local

hardware stores.

The large slot in the adapter must be aligned with the large slot in the receptacle to assure a proper polarity

connection.

CAUTION

Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless

the cover screw is metal, and not insulated, and the wall receptacle is groundedthrough the house wiring.The

customer should have the circuit checked by a qualified electrician to make sure the receptacle is properly

grounded.

Disconnect the power cord from the adapter, using one hand on each. Otherwise, the adapter ground terminal

might break. DO NOT USE the appliance with a broken adapter plug.

B. SITUATIONS WHEN THE APPLIANCE WILL BE DISCONNECTED OFTEN.

Do not use an adapter plug in these situations. Unplugging the power cord frequently can lead to an eventual

breakage of the ground terminal. The wall power outlet should be replaced by a three-slot (grounding) outlet

instead.
