Friedrich QuietMaster KM18L30 Manuel utilisateur

QuietMaster

Room Air Conditioners

PURCHASER P.O. # DATE

PROJECT LOCATION

ENGINEER ARCHITECT

SUBMITTED BY FOR APPROVAL FOR REFERENCE

ITEM PLAN DESIGNATION QUANTITY COOLING BTU/H VOLTAGE FRIEDRICH MODEL

QUITEMASTER_SUBMITTAL_08

DELUXE FEATURES

• Ultraquiet operation

• MoneySaver® setting saves energy by cycling the fan with

the compressor

• 4 cooling speeds, plus fan-only setting

• Heat anticipating thermostat

• 8-way air ow control

• Fresh air intake and stale air exhaust

• Rotary controls

• Slide-out chassis for more permanent window or wall

installation

• Washable, antimicrobial lter for protection against

fungal and bacterial growth

• Largest capacity AHAM certied unit available

MONEY SAVER

FEATURE

ANTIMICROBIAL

FILTER

SLIDE-OUT

CHASSIS

FI TS W IN D O W S – M I NI M UM : 27 7/ 8 ”* W I D E . M A X I MU M : 4 2” W I D E

* S L m o d el s fi t w in d o ws a m in i mu m o f 2 9 7/ 8 ” w i d e .

FULL SIZE FOR MORE PERMANENT INSTALLATION | 11,600 to 36,000 BTU/h EERs up to 11.0

The consumer- through the AHAM Room Air Conditioner Certification Program- can be certain that the AHAM Certification Seal accurately

states the unit’s cooling and heating capacity rating, the amperes and the energy efficiency ratio.

 As an ENERGY STAR® partner, Friedrich Air Conditioning Co. has determined that the selected ENERGY STAR®() models meet the ENERGY STAR®guidelines for energy efficiency.

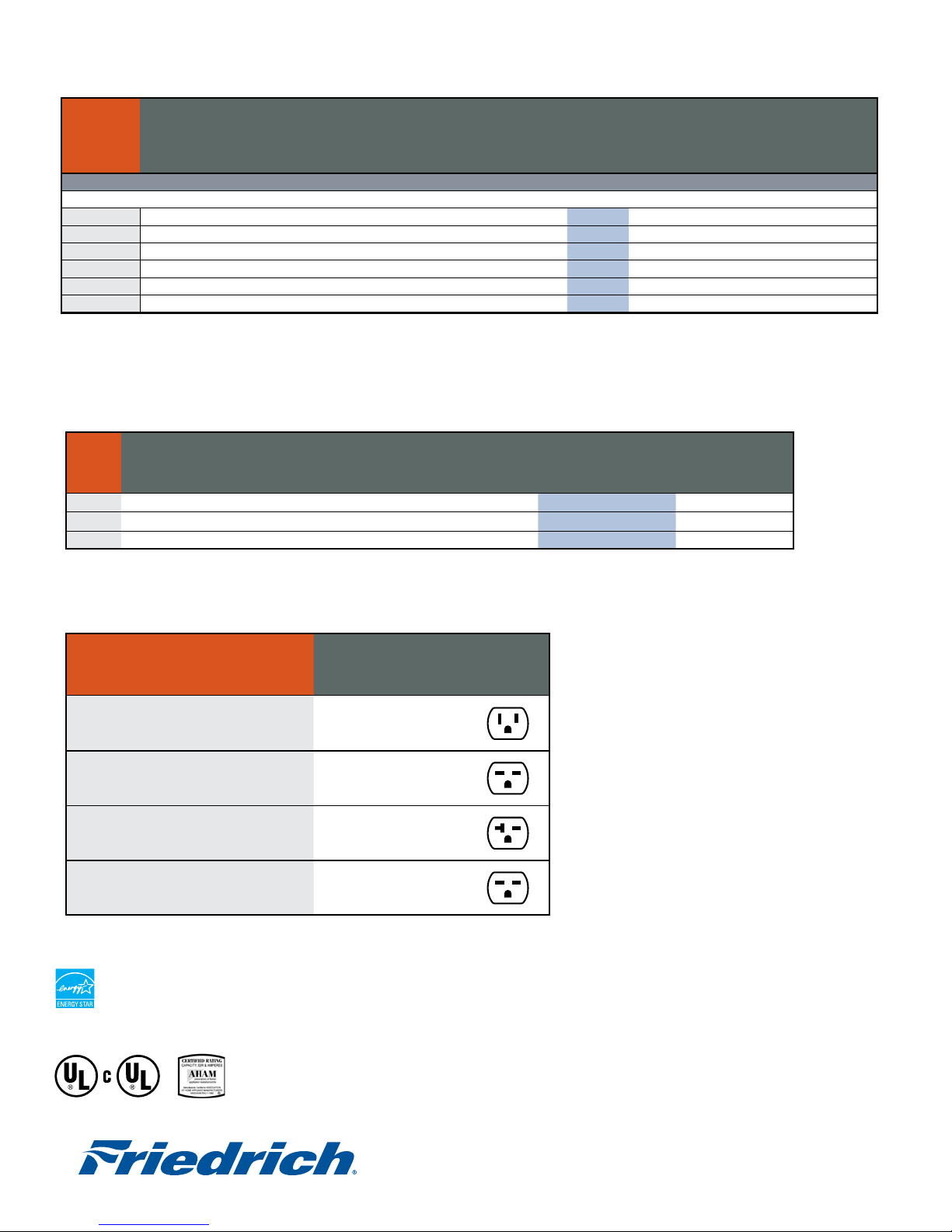

Model

Circuit Rating

Breaker or

T-D Fuse

Plug Face

(NEMA#)

Wall Outlet

Appearance

KS12L10 and KS15L10 125V - 15A 5 - 15P

KM18L30 250V - 15A 6 - 15P

KM24L30, SL28L30 250V - 20A 6 - 20P

SL36L30A 250V - 30A 6 - 30P

Installation Information / Sleeve Dimensions

Circuit Rating/ Breaker

Due to continuing research in new energy-saving technology, specifications are subject to change without notice.

Sleeve Height Width

Depth

with Front

Depth

Hood to

Louvers

Minimum

Extension

Into Room

Minimum

Extension

Outside

Window Width

Thru-the-wall

Finished Hole

Minimum Maximum Height Width

S15 15∕16" 25 15∕16" 27 3∕8" 8 ¾" 3 1∕16" 16 15∕16" 27 7∕8" 42" 16 3∕16" 26 3∕16"

M17 15∕16" 25 15∕16" 27 3∕8" 8 ¾" 3 1∕16" 16 15∕16" 27 7∕8" 42" 18 3∕16" 26 3∕16"

L20 3∕16" 28" 33 5∕8" 16 ½" 3 3∕16" 18 15∕16" 29 7∕8" 42" 20 3∕8" 28 ¼"

Cooling

Capacity

BTU/h

Heating

Capacity

Rated

Electrical Characteristics (60 Hertz) Energy

Efficiency

Ratio

EER

Moisture

Removal

Pints/Hr.

Room Side

Air Circulation

CFM Sleeve*

Net

Weight

Lbs.

Model

Volts

Rated

Cooling

Amps

Cooling

Watts

Heating

Amps

Heating

Watts

COMMERCIAL GRADE

QUIETMASTER

KS12L10 11600 — 115 9.0 1055 — — 11.0 2.5 356 S 114

KS15L10 14500 — 115 12.0 1343 — — 10.8 3.5 377 S 128

KM18L30 17800/17600 — 230/208 8.1/8.8 1780/1760 — — 10.0/10.0 4.4 400 M 161

KM24L30 23500/23000 — 230/208 11.2/12.1 2479/2421 — — 9.5/9.5 7.0 490 M 154

SL28L30 28000/27700 — 230/208 13.0/14.2 2947/2916 — — 9.5/9.5 8.8 600 L 201

SL36L30A 36000/35700 — 230/208 18.0/19.6 4235/4200 — — 8.5/8.5 11.0 725 L 220

Specications ENERGY STAR® Models
