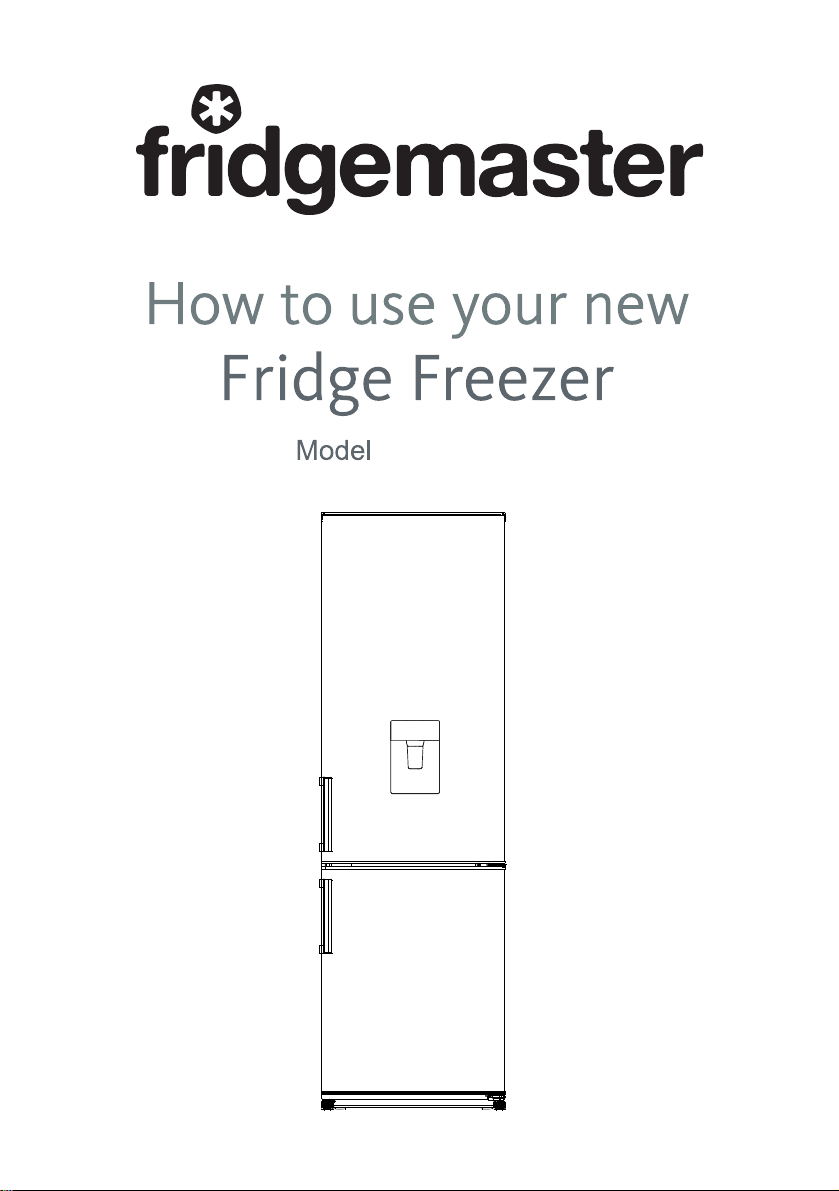

Fridgemaster MC55264DS Manuel utilisateur

MC55264DS

MC55264DB

MC55264DS

Safety and warning information_ _ _ _ _ 2

Description of the appliance _ _ _ _ _ _

Operation_ _ _ _ _ _ _ _ __ _ _ _ _ _ _

Helpful hints and tips _ _ _ _ _ _ _ _ _ _

Cleaning and care _ _ _ _ _ _ _ _ _ _ _

Installing your new appliance_ _ _ _ _ _

Reversing the door _ _ _ _ _ _ _ _ _ _ _

Troubleshooting_ _ _ _ _ _ _ _ _ _ _ _ _

Disposal of the appliance_ _ _ _ _ _ _ _

Safety for children and others

who are vulnerable people

For your safety and correct

usage, before installing and

first using the appliance,

read this user manual

carefully, including its hints

and warnings.

To avoid unnecessary

mistakes and accidents, it is

important to make sure that

all people using the appliance

are thoroughly familiar with its

operation and safety features.

Save these instructions and

be sure that they remain

with the appliance if it is

moved or sold, so that

anyone, using it throughout

its life, will be properly

informed on usage and

safety notices.

For the safety of life and

property, keep the precautions

of these user's instructions

as the manufacturer is not

responsible for damages

caused by omission.

This appliance can be used

by children aged from 8

years and above and

persons with reduced

physical, sensory or mental

capabilities or lack of

experience and knowledge

if they have been given

supervision or instruction

concerning use of the

appliance in a safe way and

understand the hazards

involved. Children shall not

play with the appliance.

Cleaning and user

maintenance shall not be

made by children without

supervision.

Keep all packaging away

from children as there is risk

of suffocation.

If you are discarding the

appliance, pull the plug out

of the socket, cut the

This appliance is in accordance with the following EU guidelines:

2014/35/EU and EMC 2014/30/EU and 2009/125/EC and EC 643/2009

and EU.1060/2010 and 2011/65/EU

LVD

Using your appliance _ _ _ _ _ _ _ _ _ _ 13

connection cable (as close

to the appliance as you

can) and remove the door

to prevent children playing

from suffering an electric

shock or from closing

themselves inside it.

If this appliance, featuring a

magnetic door seals, is to

replace an older appliance

having a spring lock (latch)

on the door or lid, be sure

to make the spring lock

unusable before you

discard the old appliance.

This will prevent it from

becoming a death trap for a

child.

General safety

WARNING - This

appliance is intended

to be used in household and

similar applications such as

-staff kitchen areas in

shops, offices and other

working environments;

-farm houses and by

clients in hotels, motels

and other residential type

environments;

-bed and breakfast type

environments;

-catering and similar non-

retail applications.

WARNING - Do not store

explosive substances

such as aerosol cans with

a flammable propellant in

this appliance.

WARNING - If the supply

cord is damaged, it must be

replaced by the

manufacturer, its service

agent or similarly qualified

persons in order to avoid a

hazard.

WARNING - Keep

ventilation openings, in the

appliance enclosure or in

the built-in structure, clear

of obstruction.

WARNING - Do not use

mechanical devices or other

means to accelerate the

defrosting process, other

than those

recommended by the

manufacturer.

WARNING - Do not damage

the refrigerant circuit.

WARNING - Do not use

electrical appliances inside

the food storage

compartments of the

appliance, unless they are

of the type recommended

by the manufacturer.

WARNING - The refrigerant

and insulation blowing gas

are flammable.

When disposing of the

appliance, do so only at an

authorized waste disposal

center. Do not expose to

flame.

power plug is not crushed

or damaged. A crushed or

damaged power plug may

overheat and cause a fire.

3. Make sure that you can

access the main plug of the

appliance.

4. Do not pull the main

cable.

5. If the power plug socket

is loose, do not insert the

power plug. There is a risk

of electric shock or fire.

6.You must not operate the

appliance without the

interior lighting lamp cover.

7.The fridge is only applied

with power supply of single

phase alternating current of

220~240V/50Hz. If

fluctuation of voltage in the

district of user is so large

that the voltage exceeds the

above scope, for safety

sake, be sure to apply A.C.

Automatic voltage regulator

of more than 350W to the

fridge. The fridge must

employ a special power

socket instead of common

one with other electric

appliances. Its plug must

match the socket with

ground wire.

The refrigerant isobutene

(R600a) is contained within

the refrigerant circuit of the

appliance, a natural gas

with a high level of

environmental compatibility,

which is nevertheless

flammable. During

transportation and

installation of the appliance,

ensure that none of the

components of the

refrigerant circuit becomes

damaged.

The refrigerant (R600a) is

flammable.

Refrigerant

If the refrigerant circuit

should be damaged:

-Avoid opening flames and

sources of ignition.

-Thoroughly ventilate the

room in which the appliance

is situated.

It is dangerous to alter the

specifications or modify this

product in any way.

Any damage to the cord

may cause a shortcircuit,

fire, and/or electric shock.

Caution:risk of

Electrical safety

1.The power cord must not

be lengthened.

2. Make sure that the

Daily use

Do not store flammable gas

or liquids in the appliance,

There is a risk of

an explosion.

Do not operate any

electrical appliances in the

appliance(e.g.electric ice

cream makers, mixers etc.).

When unplugging always

pull the plug from the mains

socket, do not pull on the

cable.

Do not place hot items near

the plastic components of

this appliance.

Do not place food products

directly against the air outlet

on the rear wall.

Store pre-packed frozen

food in accordance with the

frozen food manufacture’s

instructions.

The appliances

manufactures storage

recommendations

should be strictly adhered

to. Refer to relevant

instructions for storage.

Do not place carbonated or

fizzy drinks in the freeze

compartment as it creates

pressure on the container,

which may cause it to

explode, resulting in

damage to the appliance.

Frozen food can cause frost

burns if consumed straight

from the freezer

compartment.

Do not place the appliance

in direct sunlight.

Keep burning candles,

lamps and other items with

naked flames away from the

appliance so that do not set

the appliance on fire.

The appliance is intended

for keeping food stuff and/or

beverages in normal

household as explained in

this instruction booklet The

appliance is heavy. Care

should be taken when

moving it.

Do not remove or touch

items from the freezer

compartment if your hands

are damp/wet,as this could

cause skin abrasions or

frost/freezer burns.

Never use the base,

drawers, doors etc. to

stand on or as supports.

Frozen food must not be

refrozen once it has been

thawed out.

Do not consume ice

popsicles or ice cubes

straight from the freezer as

this can cause freezer burn

to the mouth and lips.

To avoid items falling and

causing injury or damage to

the appliance, do not

overload the door racks or

put too much food in the

crisper drawers.

leads to overheating. To

achieve sufficient

ventilation, follow the

instructions relevant to

installation.

Wherever possible the back

of the product should not be

close to a wall to avoid

touching or catching warm

parts (compressor,

condenser) to prevent the

risk of a fire, follow the

instructions relevant to

installation.

The appliance must not be

locate close to radiators or

cookers.

Make sure that the mains

plug is accessible after the

installation of the appliance.

For electrical connection

carefully, follow the

instructions given in this

manual.

Unpack the appliance and

check if there are damages

on it. Do not connect the

appliance if it is damaged.

Report possible damages

immediately to the place

you bought it. In this case

retain packing.

It is advisable to wait at

least four hours before

connecting the appliance

to allow the oil to flow

back in the compressor.

Adequate air circulation

should be around the

appliance, lacking this

Installation Important!

caution!

Care and cleaning

Before maintenance, switch

off the appliance and

disconnect the mains plug

from the mains socket.

Do not clean the appliance

with metal objects, steam

cleaner, ethereal oils,

organic solvents or abrasive

cleansers.

Do not use sharp objects to

remove frost from the

appliance. Use a plastic

scraper.

Service

Any electrical work required

to do the servicing of the

appliance should be carried

out by qualified electrician

or competent person.

This product must be

serviced by an authorized

Service Center, and only

genuine spare parts must

be used.

1)If the appliance is Frost

Free.

2)If the appliance

contains freezer

compartment.

In order to improve

efficiency of the cooling system and

save energy, it is necessary to maintain

good ventilation around the appliance. For

this reason, sufficient clear space should

be available around the refrigerator.

It is advisable for there to be at least

(50~70)mm of space from the back to the

wall, at least 100mm from its top,at last

100mm from its side to the wall and a

clear space in front to allow the doors to

open 135°. Please see the following

diagrams.

Installing your new appliance

Ventilation of appliance

Before using the appliance for the first

time, you should review the following tips.

Note:

This appliance performs well within the

climate class from SN to T showed in the

table below.

It may not work properly if left at a

temperature above or below the indicated

range for a long period.

●

Climate class Ambient temperature

+10°C to +32°C

+16°C to +32°C

+16°C to +38°C

+16°C to +43°C

Stand your appliance in a dry place to

avoid moisture damage.

Keep the appliance out of direct sunlight,

rain or frost. Stand the appliance away

from heat sources such as stoves, fires or

heaters.

●

1800

966

100 100

653~673

1130~1150

For sufficient leveling and air circulating in

the lower rear section of the appliance,

the bottom feet may need to be adjusted.

You can adjust them manually using a

suitable spanner.

To allow the doors to self-close, tilt the top

backwards by about 10mm.

Leveling of appliance

●

≤10mm

50~70

The side at which the door opens can be

changed, from the right side (as supplied)

to the left side, if trequired.

Warning! When reversing the door, the

appliance must not be connected to the

mains. Ensure that the plug is removed

from the mains socket.

Tools you will need

Left Hinge Cover

8mm wrench

8mm socket wrench

Monkey wrench

Thin-blade

screwdriver

Cross-shaped

screwdriver

2. Use a putty knife or thin-blade

screwdriver to prize the screw hole cover

which is at the top left corner of the

refrigerator, and the upper hinge cover

which is at the top right corner of the

refrigerator.

Reversing the door

Note: If required you may lay the

refrigerator on its back in order to gain

access to the base, you should rest it

on soft foam packaging or similar

material to avoid damaging the

backboard of the refrigerator. To reverse

the door, the following steps are

generally recommended.

1. Stand the refrigerator upright. Open

the upper door to take out all door

racks and tank(to avoid damage) and

then close the door.

Water tank

Door racks

Putty knife

3. Unscrew the special flange self-tapping

screws which are used for fixing the right

upper hinge part by a 8mm socket driver

or a spanner (please support the upper

door with your hand when doing it) .

right upper hinge part

special flange

selftapping screws

4.Remove the upper hinge axis, transfer it

to reversed side and tighten securely, then

put it in a safe place.

① ② ③

5. Remove the upper door from the

middle hinge by carefully lifting the door

straight up.

NOTE: When removing the door, watch

for washer(s) between the center hinge

and the bottom of the freezer door that

may stick to the door. Do not lose.

Reversing the door

upper hinge

cover (right)

screw hole cover

①

① Lower hinge part (right)

② Front feet fixed board

②

④

④ Self-tapping screws

③

③ Adjustable bottom feet part

6. Place the upper door on a smooth

surface with its panel upwards. Loose

screw ② and part ①, then Install

them to the left side and tighten securely.

7. Unscrew the two special flange self-

tapping screws which are used for fixing

the middle hinge part, then remove the

middle hinge part that hold the lower door

in place.

① Stop block

①

② Self-tapping screw

②

NOTE: When removing the door, watch

for washer(s) between the center hinge

and the bottom of the freezer door that

may stick to the door. Do not lose.

middle hinge part

special flange

selftapping screws

8. Place the lower door on a smooth

surface with its panel upwards. Loose

screw ② and part ①, then Install

them to the left side and tighten securely.

9. Change screw hole covers on middle

cover plate from left to right (as shown in

figure below).

① Stop block

② Self-tapping screw

①

②

screw hole covers

10. Lay the refrigerator on soft foam

packaging or similar material. Remove

both adjustable bottom feet parts, and

remove the front feet board and the lower

hinge part by unscrewing the special

flange self-tapping screws.

washer

Note: washer may stick to lower door

14.Upturn the middle hinge part the

direction 180 degree, transfer it and adjust

its position, make the middle hinge axis

into the upper hole of the lower door, tight

the bolts.

16. Transfer the upper hinge part and

make the upper hinge axis into the upper

hole of the upper door, and adjust the

position of the upper door (please support

the upper door with your hand when doing

it), fixing the upper hinge part with the

special flange self-tapping screws.

12.Replace the lower hinge part to the left

side and fixing it with the special flange

self-tapping screws. Replace the front feet

fixed board to another side and fixing it

with the special flange self-tapping

screws. Install the adjustable bottom feet

parts.

Lower hinge part (left)

front feet fixed board

13.Transfer the lower door to the property

position, adjust the lower hinge part, make

the hinge axis into the lower hole of the

lower door, then tight the bolts.

11. Unscrew the bottom hinge axis and

remove it to the hole which is side by side

and screw it.

15. Transfer the upper door to the

appropriate position. Secure the door’s

level, make the middle hinge axis into the

lower hole of the upper door.

middle hinge part

selftapping screws

upper hinge part

17. Install the screw hole cover on the top

right corner of the refrigerator. Install the

upper hinge cover (which is in the plastic

bag) on the left corner. Put the other

upper hinge cover into the plastic bag.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fridgemaster Réfrigérateur

Fridgemaster

Fridgemaster MC55274DF/SA Mode d'emploi

Fridgemaster

Fridgemaster MS91518FBS Mode d'emploi

Fridgemaster

Fridgemaster MS91500IFB Manuel utilisateur

Fridgemaster

Fridgemaster MS91518FFS Mode d'emploi

Fridgemaster

Fridgemaster MBUR60121MF Manuel utilisateur

Fridgemaster

Fridgemaster MBC54242F Mode d'emploi

Fridgemaster

Fridgemaster MTTR4442 Manuel utilisateur

Fridgemaster

Fridgemaster MC60283DFFB Manuel utilisateur

Fridgemaster

Fridgemaster MC55174FF Manuel utilisateur

Fridgemaster

Fridgemaster MUR49100 Manuel utilisateur

Fridgemaster

Fridgemaster MC55251MB Manuel utilisateur

Fridgemaster

Fridgemaster MTM48120R Manuel utilisateur

Fridgemaster

Fridgemaster MBC54260F Manuel technique

Fridgemaster

Fridgemaster MUL4892E Manuel utilisateur

Fridgemaster

Fridgemaster MTL55249 Manuel utilisateur

Fridgemaster

Fridgemaster MTRR102A Manuel utilisateur

Fridgemaster

Fridgemaster MUL4892MF Mode d'emploi

Fridgemaster

Fridgemaster MC55274AFS/SA Mode d'emploi

Fridgemaster

Fridgemaster MTL55250 Mode d'emploi

Fridgemaster

Fridgemaster MC55224D Manuel utilisateur

Fridgemaster

Fridgemaster MBC55249 Mode d'emploi

Fridgemaster

Fridgemaster MS83430BFF Manuel utilisateur

Fridgemaster

Fridgemaster MC55196 Manuel utilisateur

Fridgemaster

Fridgemaster MUR4996 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
