Francis Searchlights L480 Manuel utilisateur

User Instruction & Installation Manual

L480 Remote Control

Tungsten Halogen Searchlight

Product Reference Number:

A7116 –L480RC 1Kw 115/240v

A7118 –L480RC 2Kw 115/240v

A7117 –L480RC Remote Focus 1Kw 115/240v

A7119 –L480RC Remote Focus 2Kw 115/240v

Manufacturer’s details: Distributor details:

Manual Part Number: C27447

11.2.17 Issue: 2

Francis Searchlights Ltd

Union Road, Bolton

Lancashire, BL2 2HJ, UK

Tel: +44 (0) 1204 558960

Fax: +44 (0) 1204 558979

http://www.francis.co.uk

E-mail: sales@francis.co.uk

CONTENTS

- Introduction

- Safety Precautions

- Technical Information

- Unpacking and Installation Instructions

- Electrical Installation

- Operating Instructions

- Fault Finding

- Maintenance and Servicing

- Wiring Diagram & General Assembly

- Spare Parts List

1 - Introduction

It is imperative that this manual is read carefully and understood before

installing your equipment. For your future reference please keep this

manual in a safe place.

Thank you for specifying a product from the Francis Searchlights range. All Francis products

are designed to give complete customer satisfaction and are manufactured to the highest

engineering standards in order to ensure optimum performance and service life.

The Francis Lite range combines features proven over many years service in the most

hazardous conditions in both marine and land installations.

In order to prolong the life and performance of your product, we recommend that you only

specify Francis Searchlights spare parts. This will also ensure that any warranties on your

equipment will not be invalidated. Information on spares ordering and parts is provided in this

manual.

Should you ever need to contact Francis Searchlights Ltd. regarding your equipment, please

quote the Product Serial Number at all times.

2 - Safety Precautions

The following instructions must be adhered to, in order to ensure a safe working environment

and the safety of the user.

Note: When unpacking or manoeuvring the searchlight into its fixing position, suitable

lifting points must be used in order to prevent damage to the equipment or personal

injury.

Prevent rain, snow, condensation and water droplets from contacting the lamp as this may

cause bulb failure and possible shattering;

Quartz halogen bulbs run with a high internal pressure in excess of atmospheric. Whilst the

construction is inherently strong, there is a slight risk of the bulb shattering;

Never look directly into an illuminated searchlight as this may cause severe damage to

eyesight. If it is necessary to inspect a lamp whilst in operation, always wear suitable

protective goggles;

Should it be necessary to examine the lamp with the front bezel removed, always use a

protective shield and wear goggles to ensure a safe working environment;

Never attempt to clean a lamp whilst in use;

Searchlights get hot. Never touch the unit when lit and always allow 15 to 20 minutes for

cooling down after turning the searchlight off;

Never place anything on or cover the searchlight when in use;

Ensure the lamp has cooled sufficiently before removal;

If undue force appears necessary to remove the lamp, the equipment should be inspected

by a competent person or contact the manufacturer;

When breaking a lamp for disposal, care must be taken to ensure the glass fragments are

safely contained. This operation must be performed out of doors in free air. In all

circumstances refer to the lamp manufacturers instructions packed with the lamp;

Due to the vast range of lamps available it may appear possible that more powerful lamps

can be used in the equipment than for which it was designed. Even when the unit will

physically accept a higher wattage or voltage lamp, this substitution is not recommended

and is dangerous. This action will also void any warranties on the equipment.

Always refer to the lamp manufacturer’s technical data when dealing with lamps.

3 - Technical Information

This product has been designed to operate in accordance with the product specification. The

L480RC searchlight has the following features:

All marine grade materials and fixings;

Parabolic formed aluminium reflector;

Powder coated & Stove enamel paint finish;

385° horizontal rotation;

Vertical movement + 30˚ to -35˚;

Variable speed 1-23°/sec (Pan), 1-8°/sec (Tilt);

RS485 connectivity & auto home positioning;

Effective weather sealing to IP66;

Toughened front glass;

The searchlight also performs to the following optical data:

1000 Watt T/H 2000 Watt T/H

Supply voltage 220/240v or 110/115v 220/240v or 110/115v

Peak Beam Candlepower 2,078,000 lux 2,701,000 Lux

Range 1441 metres 1643 metres

Divergence 4.5° 6.5°

Temperature range -20°C to +50°C -20°C to +50°C

In order that the searchlight operates correctly it is imperative that competent personnel are

responsible for the installation, operation and servicing of this equipment. Failure to adhere to

this advice may cause premature failure or incorrect operation of the searchlight, which may

damage the equipment or cause personal injury.

4 - Unpacking and Installation Instructions

The following instructions should be read and fully understood prior to installing the equipment

to ensure that the correct procedures are followed, and all safety precautions are observed.

Note: If the equipment has been in storage for a considerable amount of time, it is

advisable to conduct a routine maintenance check on all parts before installation.

Safety Precautions

This equipment should not be connected to an electrical supply before being installed.

Installation procedures should be adhered to in order to ensure a safe working environment

and reduce the risk of damage or personal injury.

Preparing the Mounting Position

Mark out and drill the fixing holes through the deck (refer to drawing C21501). If anti-vibration

mounts are to be fitted, the fixing holes for the mounts should also be marked out and drilled.

Prior to manoeuvring the searchlight into its’ fixing position, the AV mounts should be fitted to

the base. When in the desired position, bolt the searchlight firmly down. On an uneven surface

it may be necessary to use a suitable sealant such as silicone, in order to ensure a

weatherproofed joint.

5 - Electrical Installation

Note: ~

When the main power is first applied to the searchlight, the searchlight will carry out a

self-test, it will Pan to the left limit and Tilt down to the limit, once this is complete, the

searchlight will then move to the centre and horizontal, during this please do not try and

operate the searchlight while this test is being carried out. Once the searchlight is back

at centre the searchlight can then be operated normally, by pressing the Panel button on

the control panel.

For safety purposes, only competent personnel should perform the electrical installation. All

equipment should be installed to current Electrical Regulations and Standards.

In order to obtain the maximum light output from the searchlight, it is essential that the full

operating voltage of the lamp fitted be applied to the lampholder contacts.

Method of Electrical Connection

1) Disconnect the supply before working on the electrical system;

2) The searchlight must be connected to a fused electrical supply, using suitably sized cable;

3) If the searchlight is located a considerable distance from the supply, provision must be

made in the cable size in order to overcome the voltage drop.

The following table below indicates the maximum length of cable to be used for the AC

supply cable:

Searchlight

120v 1Kw

120v 2Kw

230v 1Kw

230v 2Kw

Cable Size (mm²)

Distance Max

1.5

18 MTRS

9 MTRS

68 MTRS

34 MTRS

2.5

30 MTRS

15 MTRS

111 MTRS

55 MTRS

48 MTRS

24 MTRS

176 MTRS

88 MTRS

74 MTRS

37 MTRS

275 MTRS

137 MTRS

125 MTRS

62 MTRS

460 MTRS

230 MTRS

4) Whenever possible cable terminations should be made below deck and with approved

terminal devices;

5) If a spare auxiliary fuse or circuit breaker is not available, one of the correct type and rating

should be fitted and connected to a positive supply. It is advisable to locate a bus bar or

main connection and avoid any direct connection to the supply:

6) For 110/220v AC products, the following colour coding system should be used for the

customer supply cable:

Brown - Live

Blue - Negative

Green/Yellow - Earth

Note: This equipment must be earthed.

Installation Guidelines

A typical installation and connection routine for the L480RC searchlight is as follows:

Referring to wiring diagram C27425 a supply is fed to the junction box which then provides a

common feed to the motor gearbox, searchlight and joystick panel.

The searchlight has been pre-wired with 3 meters of cable from the motor gearbox to junction

box provided. The searchlight head is pre-wired along with the connecting cable to the motor

gearbox.

Cables required to be connected by the customer: -

2 pair twisted 0.22mm 100 ohm screened cable from the joystick panel to the junction box.

Supply cable to the junction box.

6 - Operating Instructions

This equipment is designed for use out of doors, in free air. Never place anything on or cover

the searchlight when in use as this may present a hazard.

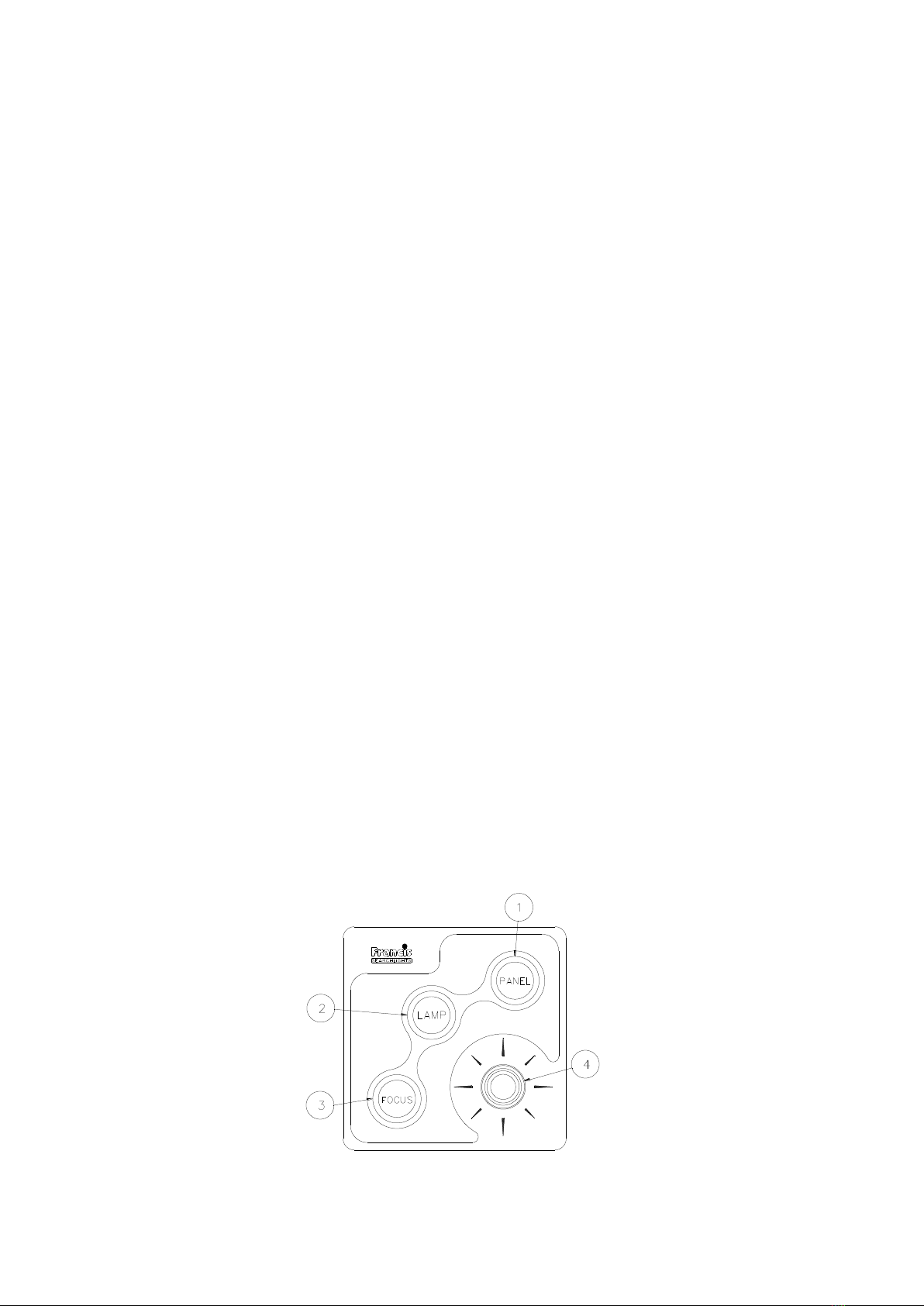

The searchlight can be remotely positioned via the joystick control panel, with the facility for

movement up, down, left and right. (See Fig 1 below for aid to instructions)

To operate the panel, press panel button (1), the button will light up & the joystick (4) is now

operational. To switch the lamp on or off press the lamp button (2)

The speed of movement depends on the more pressure applied to the joystick (4) the faster the

searchlight moves. When in the desired position the joystick should be released so that it

returns to dead centre.

On remote focus models the beam of the searchlight can be adjusted to give a variety of beam

types. Using the focus button (3) on the joystick panel, the desired beam can be achieved for

any particular application. The beam will move continuously through ‘spot’ to ‘flood’. In order to

fix the beam type, simply release the focus button at the desired position.

To return the searchlight to Factory set auto home position (forward and horizontal) simply

switch off the joystick panel using the panel button (1) and then press the lamp button (2), the

searchlight will then move to the pre-programed home position.

To set a new Home position, move the searchlight to the desired home position, switch off the

panel (1), move the joystick to the downward position ↓ and simultaneously press the Lamp

button (2).

There is the option for added slave panels, the slave panel has all the features of the main

control panel i.e. joystick, focus and on/off.

When the lamp is switched on, this will illuminate the Lamp button (1) on both the Main & Slave

Control panel, also when the Focus button (3) is pressed, both Focus buttons will be

illuminated.

The brightness of the panel can be increased or decreased by holding the panel switch (1)

down and moving the joystick left and right, left to decrease right to increase.

Fig 1

When fitting the lamp:

-Always isolate the equipment from the supply when inserting a lamp;

-Ensure the circuit is suitably fused;

-Ensure the lamp is of the correct power rating and type;

-Check lampholder is in good condition. If the contacts show any sign of corrosion, replace

the lampholder;

-Check the lampholder is in a good dry condition. Never allow water to collect in the lamp

fitting or come into contact with the lamp.

To fit the lamp:

-Remove the front bezel assembly by operating the safety catch and lifting the latch body;

-For easier access the light shield/spill ring may be removed by undoing the fasteners;

-Position the two pins above the holes in the lampholder;

-Gently push the lamp into the lampholder;

-Replace the light shield/spill ring and front bezel assembly, ensuring the safety catch is

engaged.

Testing

Upon correct installation and connection to an electrical supply, the equipment can be tested in

order to ensure its’ correct performance. A competent person with some knowledge of electrical

equipment must carry out this work.

Equipment required: Multi-meter with leads

Ammeter

Using the equation P=VI, the approximate power output of the equipment can be calculated in

the following way:

-Using the multi-meter, take a voltage reading across terminals 3 & 7 in the searchlight;

-Using the ammeter, take an amp reading from the live cable to the lamp;

-Multiply these figures together to give an approximate wattage (Power output).

For example:

Using a 240v 1000w Tungsten halogen lamp:

Voltage reading = 240v; Amps reading = 4 amps

Therefore, Wattage = 240 x 4 = 960 watts

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Francis Searchlights Équipement d'éclairage

Francis Searchlights

Francis Searchlights L300RC Manuel d'utilisation

Francis Searchlights

Francis Searchlights VX500RC Mode d’emploi

Francis Searchlights

Francis Searchlights L300RC Manuel d'utilisation

Francis Searchlights

Francis Searchlights A7179-L300RC Manuel utilisateur

Francis Searchlights

Francis Searchlights L230RC Instructions d'installation

Francis Searchlights

Francis Searchlights FX380RC Mode d’emploi

Francis Searchlights

Francis Searchlights L480RC Manuel d'utilisation

Francis Searchlights

Francis Searchlights LX480RC Mode d’emploi

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
