Framery O Mode d’emploi

Framery O VCR

Troubleshooting instructions English

Version 2.0

Contents

1 Safety............................................................................................................ 5

2 The door is leaking sound or does not seal properly..............................7

3 The body covers do not fit.......................................................................23

4 Power issues..............................................................................................26

4.1 There is no electricity in the pod or the electricity goes on and off...................... 26

4.2 The power outlet does not work.......................................................................... 37

5 Fans and lights.......................................................................................... 41

5.1 There is no power to the fans and light............................................................... 41

5.2 The ceiling light does not switch on.....................................................................47

5.3 The display light does not switch on....................................................................52

5.4 The control panel does not work......................................................................... 55

5.5 When you adjust the ceiling light, the display light is also adjusted..................... 58

5.6 One or both fans do not work..............................................................................60

5.7 The fans are noisy............................................................................................... 66

5.8 The air inside the pod does not feel fresh........................................................... 72

6 Door handle and lock................................................................................82

6.1 The door handle is loose..................................................................................... 82

6.2 The door handle is tight....................................................................................... 86

6.3 The lock latch is stiff or gets stuck...................................................................... 89

1 Safety

This chapter outlines important safety matters concerning the installation and maintenance

of the pod. It is important that these instructions are followed to recognize and prevent

potential risks before they occur.

Note: All personnel must understand and observe these instructions prior to

installation or maintenance of the pod.

Restrictions

• Non-conventional use

• Installation or maintenance of the pod without reading and understanding the

instructions

• Use of the pod beyond the limits of use

• Making alterations to the pod

• Using the pod in spite of obvious defects or damage

• Using the pod outdoors

Making alterations to the pod

Warning: To prevent risks and ensure optimal performance, rebuilding or making

any alterations to the pod may not be carried out without the manufacturer’s explicit

prior permission.

Safety considerations

Warning: Always disconnect the pod from the power outlet before performing any

maintenance. To disconnect, remove plug from outlet.

Note: Read these instructions before installation or maintenance.

Note: Use safety boots and cut-resistant gloves during installation and

maintenance.

Note: The use of the pod is only permitted after it has been properly installed.

Note: When installing or performing maintenance, obey all the local requirements

for safety issues, lifting, and other special tasks.

Note: Keep the installation or maintenance area clean.

Note: After installation or maintenance, clean up the surroundings of the pod.

Note: Do not cover the ventilation channels.

Note: Never drop or insert any object into any opening unless instructed.

Note: Do not place heavy objects on the roof of the pod.

Note: Do not attach or hang extra weight from the door.

Framery O VCR Troubleshooting instructions

[email protected]

Installation environment

The pod is intended to be used in the following conditions.

• Ambient temperature: +15°C ... +30°C (59°F ... 86°F)

• Humidity: max. 50%

6Framery O VCR Troubleshooting instructions

[email protected]

2 The door is leaking sound or does not seal properly

Condition

When you are standing outside the pod you can hear what a person inside the pod is

saying and the person inside the pod can hear noises from outside the pod.

Cause: The door is too low.

The door is not vertically in the middle of the door opening.

Solution: Adjust the door height.

1. Remove the caps from the hinges.

Framery O VCR Troubleshooting instructions

[email protected]

2. Open the door and loosen the set screws.

3. Close the door.

4. To raise the door, insert the hex key into the top of the upper hinge and turn clockwise.

To lower the door, turn counter-clockwise.

Note: After the initial installation, the door normally does not have to be

lowered, but raised.

8Framery O VCR Troubleshooting instructions

[email protected]

5. Adjust the height setting of the lower hinge accordingly so that the load on both hinges

is the same. Turn clockwise to raise and counter-clockwise to lower the setting.

6. Make sure that the door is aligned correctly.

7. Test with a flashlight from the inside of the pod.

If the flashlight shines through the door seams, adjust the door.

8. Repeat steps 4–6 if needed.

9. Close the door.

Framery O VCR Troubleshooting instructions

[email protected]

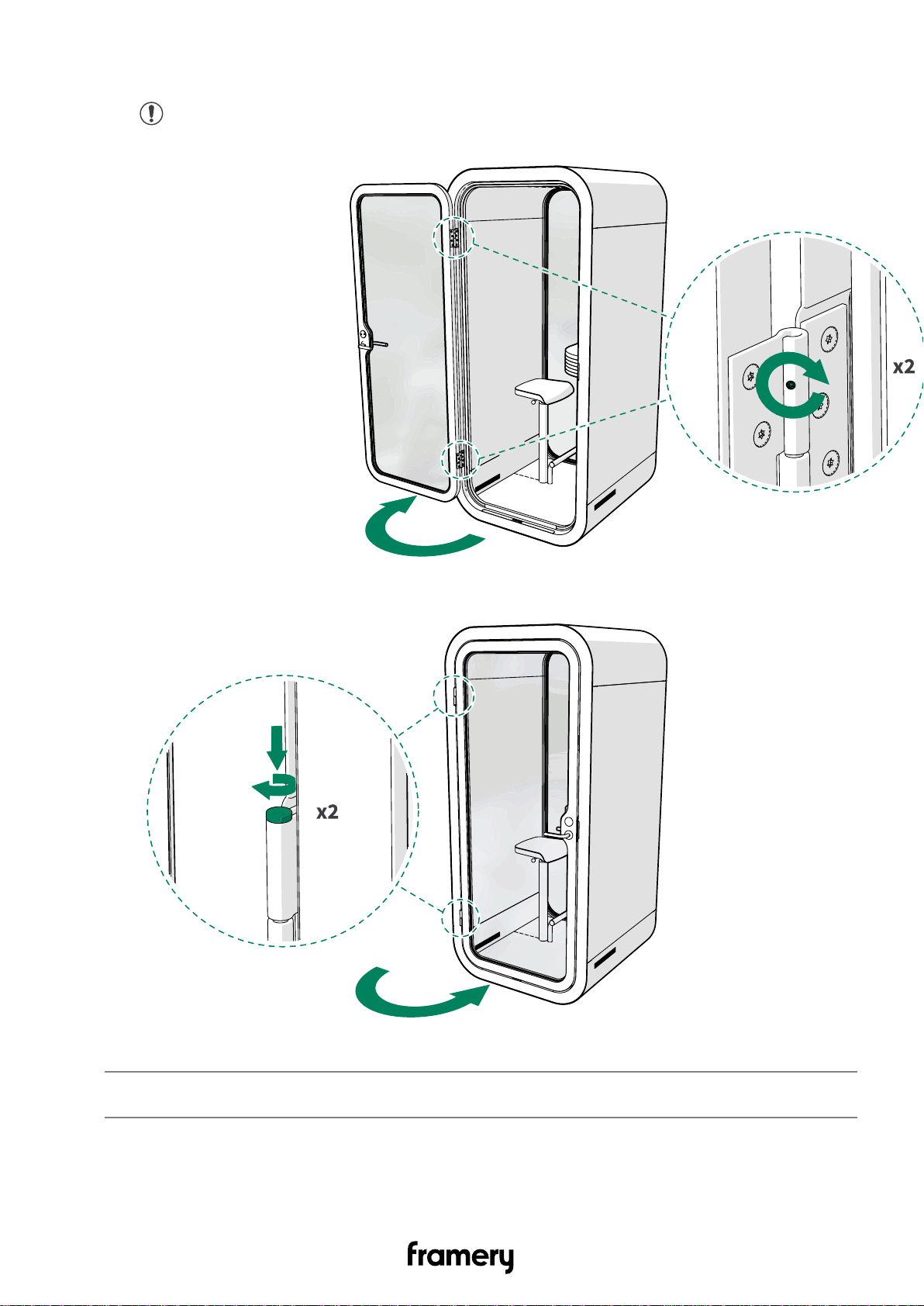

10. Open the door and tighten the set screws when the adjustment is complete.

Note: Make sure that both hinges have the same height setting.

11. Install the caps.

Cause: The floor of the pod is not leveled.

Solution: Level the floor.

1. Pull the carpet out from under the wall felts and remove (the carpet) from the pod.

10 Framery O VCR Troubleshooting instructions

[email protected]
