Foxwell BT100 Manuel utilisateur
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00 1
1
Safety Information
For your own safety and the safety of others, and to prevent damage to the equipment and
vehicles, read this manual thoroughly before operating your tester. The safety messages
presented below and throughout this user’s manual are reminders to the operator to exercise
extreme care when using this device. Always follow all BCI (Battery Council International) safety
recommendations. Read, understand and follow all safety messages and instructions in this
manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment damage. Below are
signal words we used to indicate the hazard level in a condition.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury to the operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor
injury to the operator or to bystanders.
Important Safety Instructions
And always use your tester as described in the user’s manual, and follow all safety messages.
Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals
know to the state of California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
2
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00
Table of Contents
SAFETY INFORMATION ........................................................................................................................1
SAFETY MESSAGE CONVENTIONS USED ................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS .......................................................................................................1
1 USING THIS MANUAL ........................................................................................................................ 3
1.1 BOLD TEXT ..................................................................................................................................... 3
1.2 SYMBOLS AND ICONS ....................................................................................................................... 3
1.2.1 Solid Spot .............................................................................................................................. 3
1.2.2 Arrow Icon ............................................................................................................................. 3
1.2.3 Note and Important Message ................................................................................................ 3
2 INTRODUCTIONS ................................................................................................................................ 4
2.1 TESTER DESCRIPTIONS ................................................................................................................... 4
2.2 ACCESSORY DESCRIPTIONS ............................................................................................................ 5
2.3 SPECIFICATIONS ............................................................................................................................ 5
3 OPERATIONS .................................................................................................................................... 6
3.1 CONNECTING THE TESTER ............................................................................................................. 6
3.2 BATTERY TEST .............................................................................................................................. 7
4 LANGUAGE ....................................................................................................................................... 11
3
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00 3
1 Using This Manual
We provide tool usage instructions in this manual. Below is the conventions we used in the
manual.
1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
Press the ENTER button to select.
1.2 Symbols and Icons
1.2.1 Solid Spot
Operation tips and lists that apply to specific tool are introduced by a solid spot ●.
Example:
When System Setup is selected, a menu that lists all available options displays. Menu options
include:
● Languages
● Unit
● Beep
● Keypad Test
● LCD Test
● About
● Shortcuts
1.2.2 Arrow Icon
An arrow icon indicates a procedure.
Example:
To change menu language:
1. Scroll with the arrow keys to highlight Language on the menu.
2. Press the ENTER button to select.
1.2.3 Note and Important Message
Note
A NOTE provides helpful information such as additional explanations, tips, and comments.
4
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00
Example:
NOTE
Test results do not necessarily indicate a faulty component or system.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage to the test
equipment or vehicle.
Example:
IMPORTANT
Do not soak product as water might find its way into the tester.
2 Introductions
The latest BT100 12 Volt Automotive Battery Analyzer from is dedicatedly developed to test
6V & 12V regular flooded, AGM flat plate, AGM spiral and gel batteries. It provides a quick,
easy and affordable solution for technicians to view battery charging status, check battery health
and detect faults.

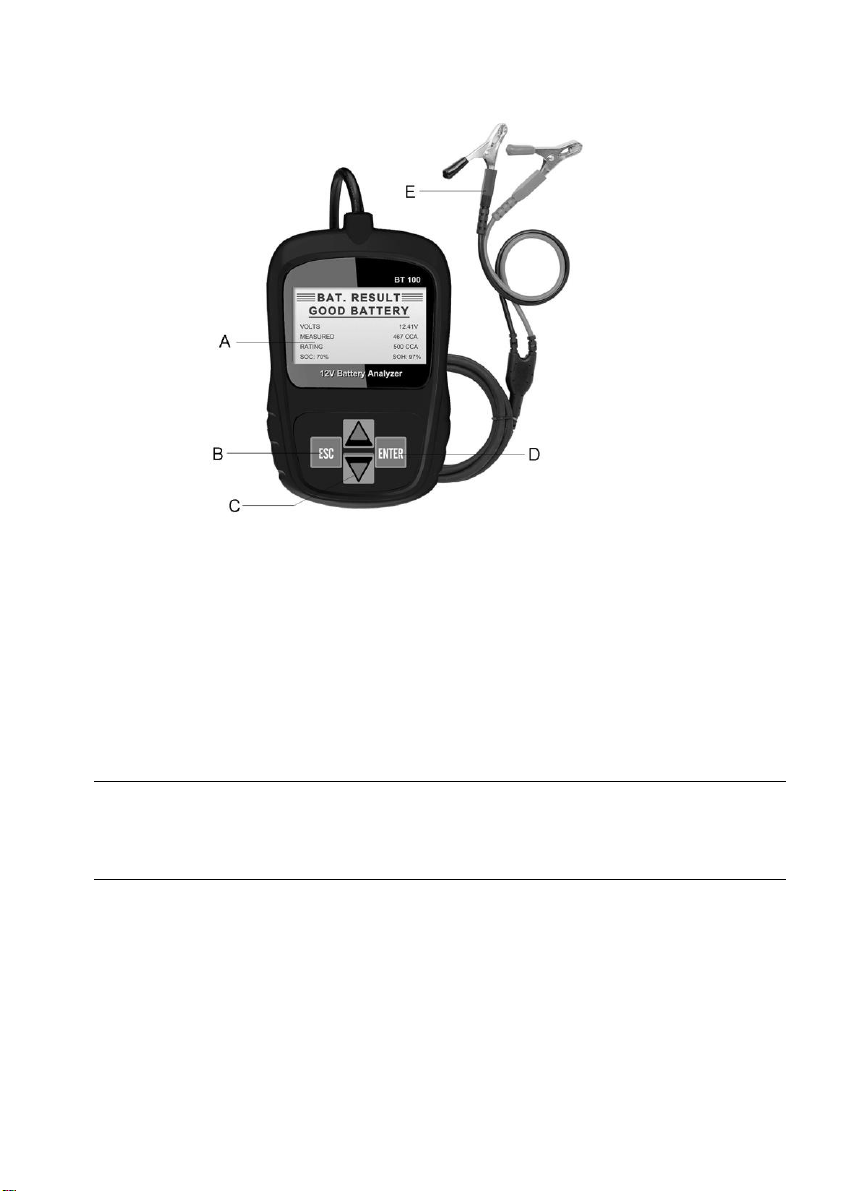

2.1 Tester Descriptions
This section illustrates external features, ports and connectors of the tester.
5
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00
A LCD Display - shows menus, test results and operation tips.
B ESC Button - exits a screen and generally returns to previous screen.
C UP and Down Buttons - scroll to select an option or change the values. UP Button is also
used to call up the language setup menu when starting the tester.
D ENTER Button - executes a selected option and generally goes to the next screen.
E Test Cable - Connects the tester to battery for testing.
IMPORTANT
Do not use solvents such as alcohol to clean keypad or display. Use a mild nonabrasive
detergent and a soft cotton cloth.
2.2 Accessory Descriptions
This section lists the accessories that go with the tester. If you find any of the following items
missing from your package, contact your local dealer for assistance.
1 BT100 12 Volt Automotive Battery Analyzer main unit
2 User’s Guide - provides operation instructions for the usage of the tester.
6
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00
2.3 Specifications
Display: 128 * 64 pixels, backlit display screen
Working Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F )
Dimensions (L*W*H): 103*75*20mm
Gross Weight: 0.2 KG
Gross Weight: 0.35KG
3 Operations
This section describes how to use the tester to perform tests on car batteries. The menu-driven
display will guide you step by step through the test process.
3.1 Connecting the Tester
The tester powers on automatically when it is correctly connected to the battery. The preferred
test position is at the battery terminals. If the battery is not accessible, you may test at the jumper
post; however, the power measurement may be lower than the actual value.
To connect the tester:
1. Clean the battery posts or side terminals.
2. Connect the red clamp to the positive (+) terminal and the black clamp to the negative (-)
terminal.
3. Rock the clamps back and forth to make sure the clamps are firmly connected.
4. When the tester is correctly connected, it boots up automatically and shows the voltage of the
battery.
7
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00
NOTE
Do not connect the tester to a voltage source greater than 18V DC; otherwise you may damage
the tester.
NOTE
If you are testing inside a vehicle, make sure all accessory loads are cut off, the key is not in the
ON position and the doors are closed.
3.2 Battery Test
BT100 12 Volt Automotive Battery Analyzer allows you to analyze the battery healthy status and
view battery charging status.
To start a battery test:

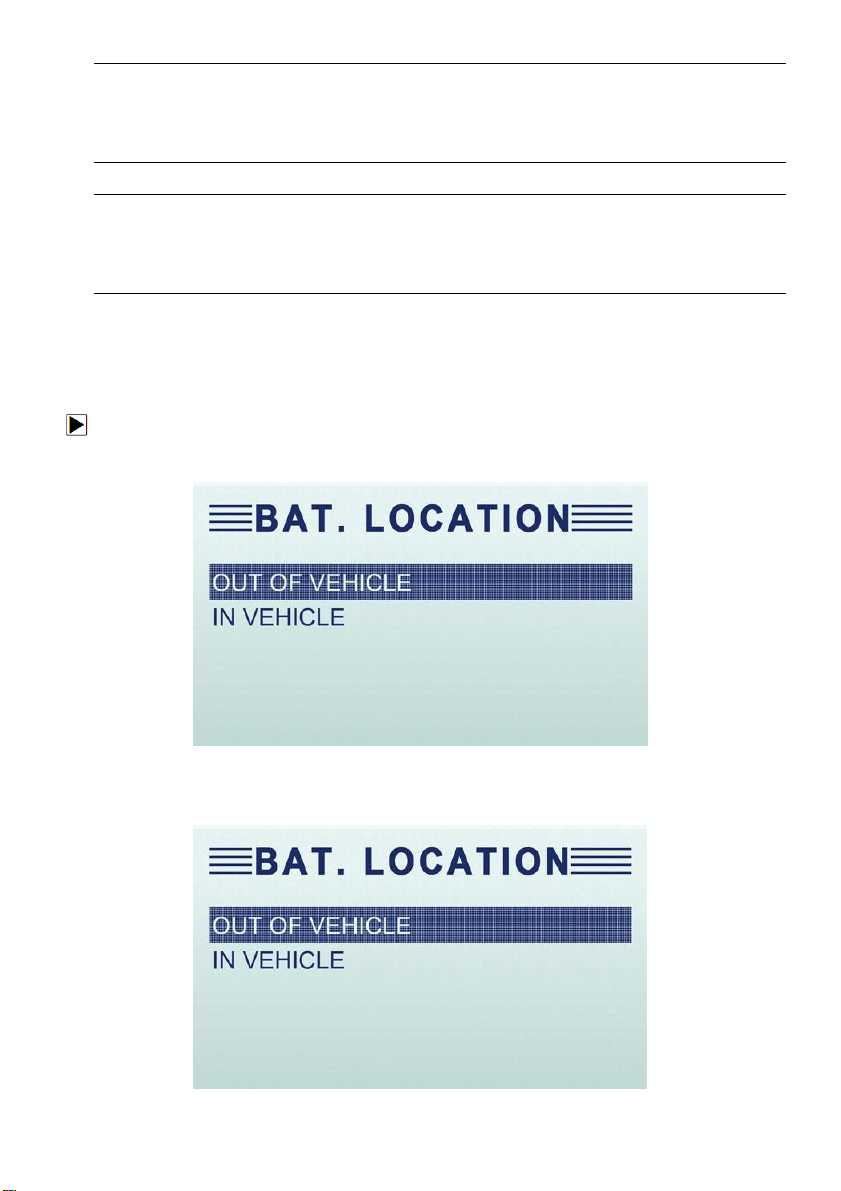

1. Press the ENTER button to start the test. BAT. LOCATION Menu will display.
2. Scroll with the UP or DOWN button to highlight OUT OF VEHICLE or IN VEHICLE from
BATTERY LOCATION menu and press ENTER to select the battery location.
8
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00
3. Scroll with the UP or DOWN button to select the battery type from BATTERY TYPE menu and
press ENTER to confirm.
4. Scroll with the UP or DOWN button to select the battery standard from BATTERY
STANDARD menu and press ENTER to confirm. Not all rating systems are available for each
application.
You may find the battery type and battery rating label on every battery.
Global Rating Systems
No.
Standard
Description
BT100 Testing Range
1
CCA
Cold Cranking Amps, as specified by SAE.
The most common rating for cranking
batteries at 0°F (-18°C )
100-1100
2
BCI
Battery Council International standard
100-1100
3
CA
Cranking Amps standard. The effective
starting current value at 0°C (32°F).
100-1100
9
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00
4
MCA
Marine Cranking Amps standard. The
effective starting current value at 0°C
(32°F).
100-1100
5
JIS
Japanese Industry Standard, shown on a
battery as a combination of numbers and
letters
26A17--245H52
6
DIN
Deutsche Industrie-Norm
100-1100
7
IEC
International Electrotechnical Commission
100-1100
8
EN
Europa-Norm
100-1100
9
SAE
Society of Automotive Engineers
100-1100
10
GB
China National Standard
100-1100

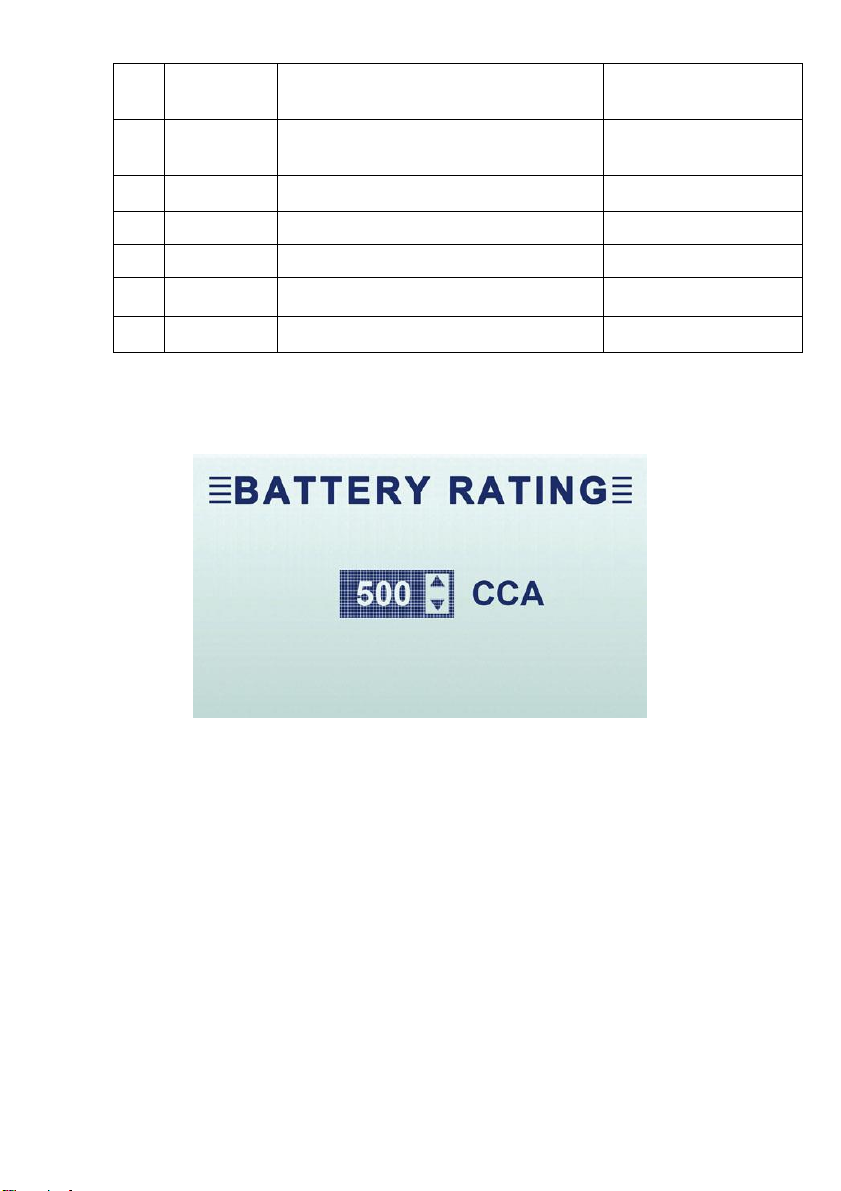

5. Use UP or DOWN button to change measure range till you enter the correct range of your
battery. Press ENTER to start the test.
If the battery belongs to CCA standard, just select the corresponding CCA standard value and
press ENTER to start the testing.

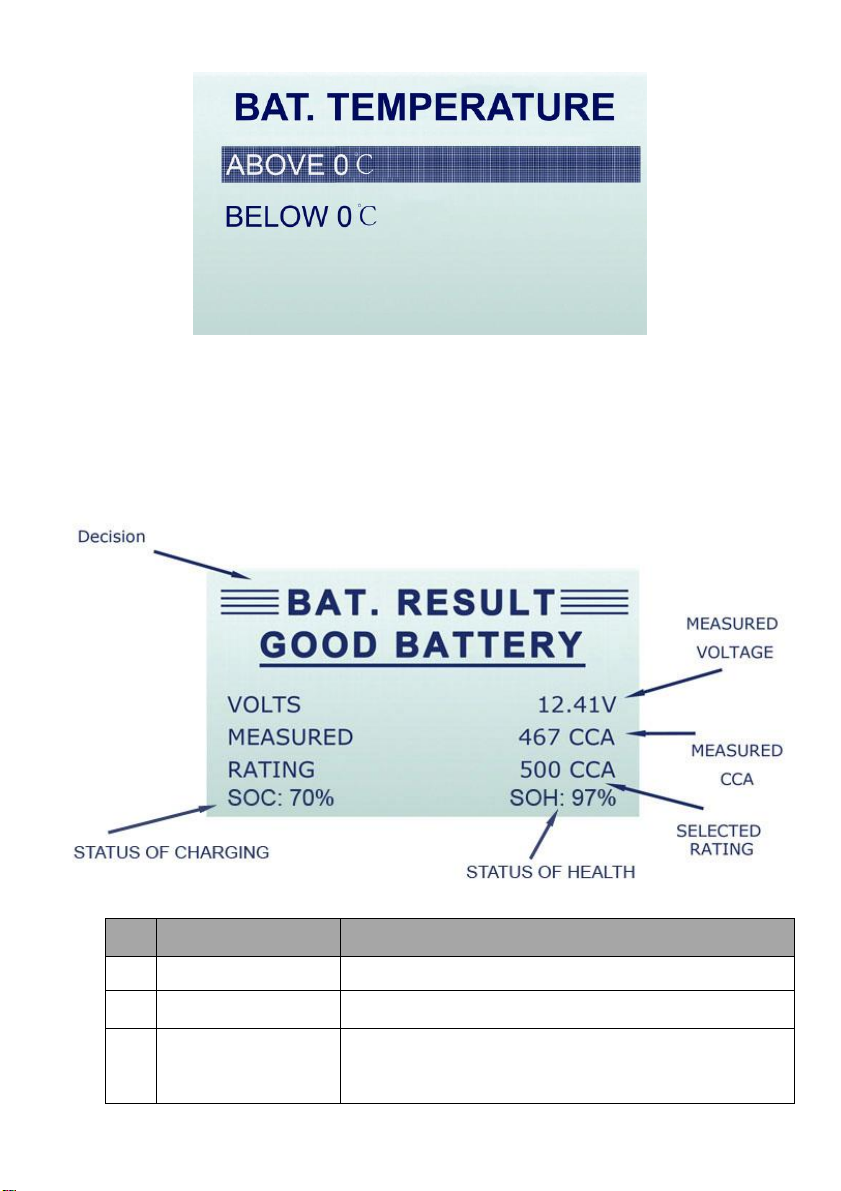

6. The BAT. TEMPERATURE menu will display to make sure the battery test result more
accurate. Scroll with the UP and DOWN button to select the right battery temperature to
confirm.
10
BT100 12 Volt Automotive Battery Analyzer User’s Guide - English Version_V1.00
7. View test results on the screen. Depending on battery status, one of the following test results
may display.
No.
Test Results
Interpretation
1
GOOD BATTERY
The battery is in good condition.
2
GOOD-RECHARGE
The battery is in good condition but low current. Fully charge
the battery and return it to service.
3
CHARGE & RETEST
Fully charge the battery and retest. Failure to fully charge the
battery before testing may result in inaccurate results. If you
still get CHARGE & RETEST message after you fully charge
the battery, replace it.
