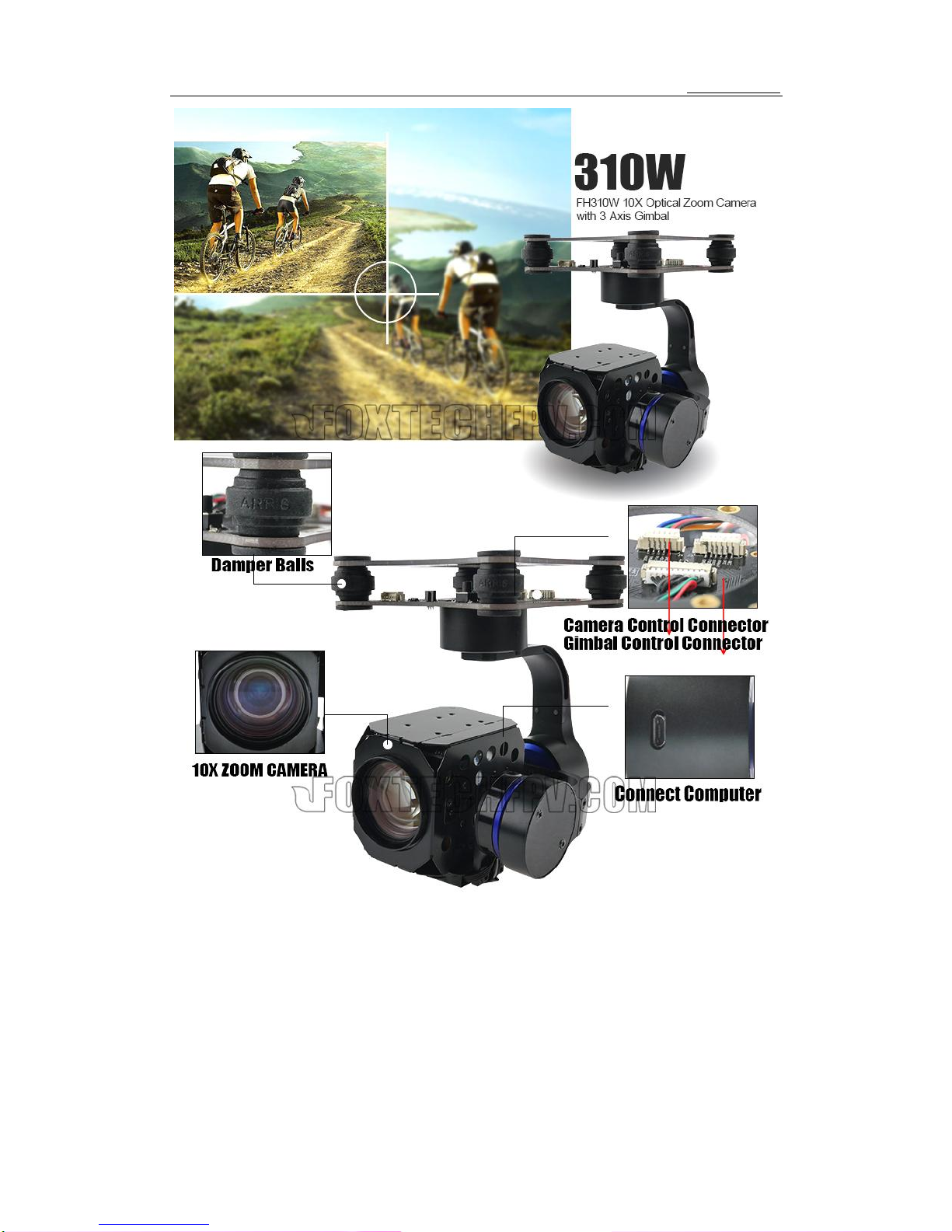

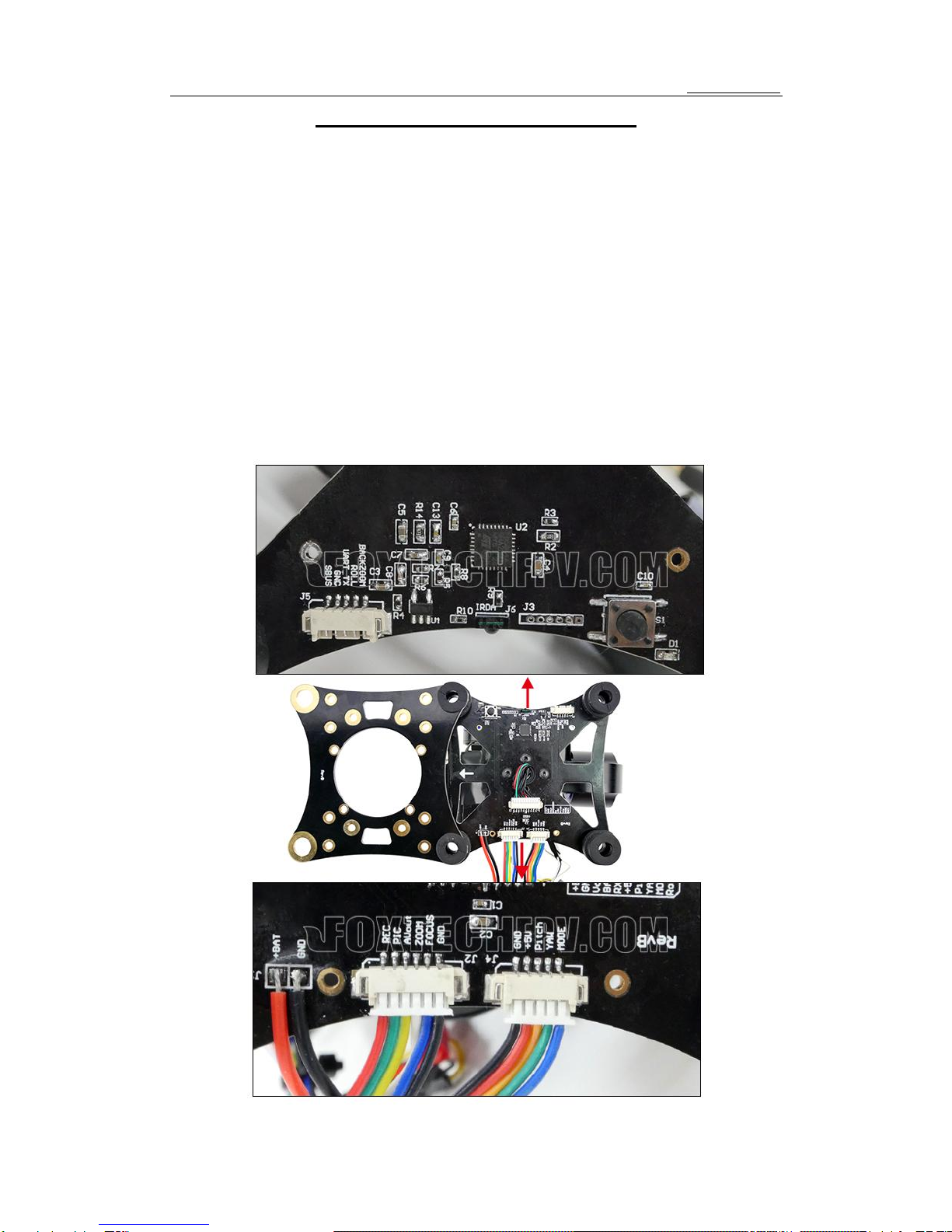

1 step: Wire Connections
Instruction of Wire of Gimbal Controlling:
Connecters Radio Controller
CMD------------------------------Connect Three Options Switch
Y (YAW) -------------------------Connect Port of Stick
P (PITCH) -----------------------Connect Port of Stick
5V -------------------------------Power for Receiver
GND------------------------------Connect GND of Receiver
Instruction of Wire of Camera Controlling:
GND -----------------------------GNG of Analog Video Output, Connect GND of Analog Transmitter Video
Focus----------------------------Focus Manually, Connect Port of Stick
Zoom----------------------------Zoom Chnaging, Connect Port of Three Options Switch / Stick
Video----------------------------Analog Video Output,ConnectAnalog Transmiter Video Input
PIC ----------------------------Photography/Recoding, Connect Port of Three Options Switch / Knob
REC ----------------------------Recstart/stop, Connect Port of Three Options Switch / Knob
Step 2: Gimbal self-test
Keep the lens in level and in the same direction with camera before power on. After power on, 5
beeps and beautiful melody, and then pass self-test and can be working well.
