Fountaine Pajot ISLA 40 Manuel utilisateur

OWNER’S

MANUAL 40

ISLA

This manual has been drawn up

to help you enjoy using your craft

in complete safety. It contains the

details of the craft, the equipment

supplied or fitted, its installation

and information relating to use and

maintenance. Please

read it carefully and familiarise

yourself with the boat before using it.

If this is your first boat or if you have

changed to a type of boat that you

are not familiar with, for your comfort

and safety ensure that you acquire

expe-rience in handling and using the

boat before taking command of it.

Your dealer,

national sailing federation or yacht

club will be very happy to advise you

on local sailing schools or competent

instructors.

KEEP THIS MANUAL IN A SAFE

PLACE AND HAND IT OVER TO

THE NEW OWNER

IF YOU SELL THE BOAT.

It consists of 3 booklets:

USER GUIDE

SAFETY INFORMATION

LISTE OF DRAWINGS

Contents

1Technical specification page 5 /

V Manufacturer’s plate 6

V Identity sheet 6

V Design category 6

V Characteristics 7

2Sailing page 9 /

V Entrance door 10

V Leaving the harbour 10 - 12

V Starting the engines 13 - 14

V Sailing 15 - 16

V Arriving in a harbour 17

V Anchorage 17 - 18

V Mooring and towing 19

3Equipments page 21 /

VDeck 22 - 24

V Hull/saloon 25 - 29

4Systems page 31 /

V Steering system 32

V Electricity 33 - 37

V Gas circuit 38 - 39

V Water 40 - 46

5Manoverboard prevention 5

and man recovery page 49 /

6Fire protection page 53 /

Preparing the winter season

7& Handling page 57 /

VWater circuit 58

V Outside 58

V Engines 58

V Preparation 58

V Craning 58

8Maintenance page 61 /

V Drainage 62

V Running rigging, sheets and ropes 63

V Periodic maintenance chart 64 - 66

ISLA

Technical

Specifications

V Manufacturer’s plate .......................................................6

V Identity sheet......................................................................6

V Design category.................................................................6

V Characteristics ...................................................................7

OWNER MANUAL / ISLA 40

Technical Specifications

DESIGN CATEGORIES NAVIGATION TYPE WIND FORCE

(BEAUFORT SCALE) WIND SPEED WAVE HEIGHT TO TAKE INTO

CONSIDERATION

A Ocean-going > 8 ≤ 28 m/s > 4 m

BOff the coast ≤ 8 ≤ 21 m/s ≤ 4 m

CNear the coast ≤ 6 ≤ 17 m/s ≤ 2 m

DProtected water ≤ 4 ≤ 13 m/s ≤ 0,5 m

DESIGN CATEGORY

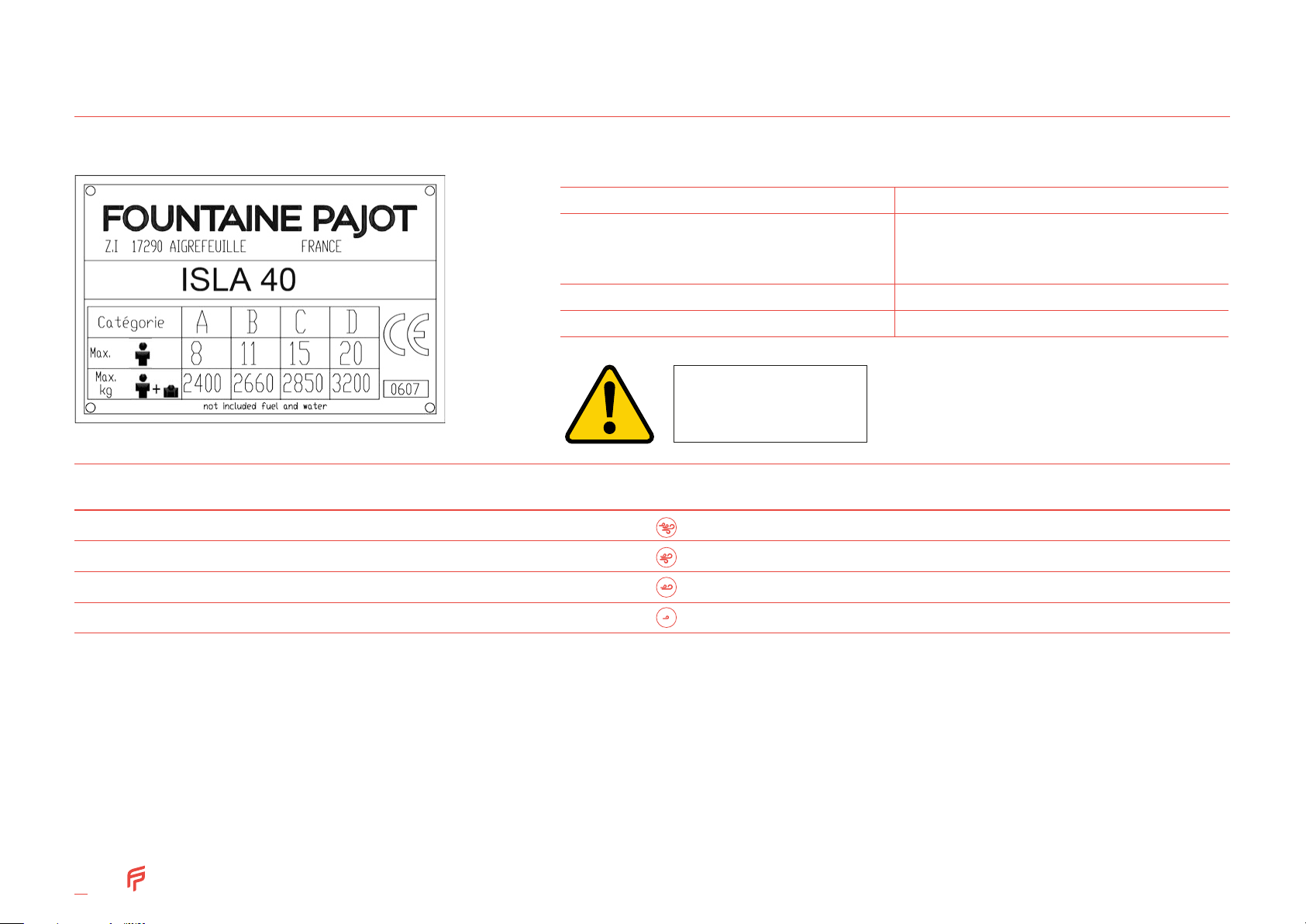

MANUFACTURER’S PLATE IDENTITY SHEET

Your ISLA 40 belongs to the « OCEAN-GOING » category (category A).

Apleasure boat of design category A is considered as designed for winds which

can exceed force 8 (in the Beaufort scale) and for waves which can exceed a

heightof 4metres, excluding exceptional conditions such as thunderstorms, violent

storms, tornadoes and extreme maritime conditions or huge waves.

Be very careful before going to sea. Fountaine Pajot cannot guarantee the perfect

ope-ration of the boat in exceptional sea conditions (violent storms, hurricanes,

cyclones, tornadoes, etc.)

The ISLA 40 is a boat susceptible to capsize and to stay inverted if there are exces-

sive sails. This is why it is important to respect the sail reduction table.parfait

fonctionnement du navire dans des conditions de mer exceptionnelles (orage violent,

ouragan, cyclone, trombe...).

CIN NUMBER 057

BUILDER

FOUNTAINE PAJOT

Zone industrielle

17 290 Aigrefeuille d'Aunis

TYPE OF BOAT CATAMARAN

SERIES ISLA

Risk of capsizing!

People in the cabin can

be trapped.

OWNERS MANUAL / ISLA 40 7

CHARACTERISTICS

General

LENGTH (LH) 11,925 m / 39,1 ft

HULL WIDTH (BH) 6,63 m / 21,7 ft

DRAUGHT 1,20m / 4,1 ft

AIR DRAUGHT 19,45 m / 63,8 ft

LIGHT DISPLACEMENT 9 525 kg

MAXIMUM LOAD DISPLACEMENT 12 970 kg

The maximum load recommended includes the weight of all members on board, the provisions and personal

belongings, all equipment not included in the weight of the light displacement of the boat, the cargo and the

all consumable liquids (water, fuel, etc.)

Weight

DESIGNATION WEIGHT

Fuel weight 255 kg – 300 L

Fresh water weight 530 kg – 530 L

Black and grey water weight 180 kg

Liquids total weight 965 kg

Surface of sails

MAINSAIL GENOA GENAKER (OPTIONAL)

58 m2/ 624,3ft237 m2/ 398,26 ft268 m2/ 233,09 ft2

Inboard engines

BRAND REFERENCE POWER CRUISING RATE MAX. RATE

Volvo D1-20 2x20 cv / 2x13,8 kW 2 300 tr/min 3 000 tr/min

Volvo D1-30 2x30 cv / 2x20,9 kW 2 300 tr/min 3 000 tr/min

Yanmar 3YM20 220 cv / 2x13,8 kW 2 200 tr/min 3 200 tr/min

Yanmar 3YM30 AE 2x30 cv / 2x20,9 kW 2 000 tr/min 3 200 tr/min

Electricity

STARBOARD ENGINE/

SERVICE BATTERY PACK 12 V 3 x 115 Ah + 1 x 115 Ah (Optional)

PORT ENGINE BATTERY PACK 12 V 1 x 50 Ah

Dinghy

MAXI DINGHY LENGTH 3,10 m

MAX. LOAD PER DAVIT 100 kg

Life raft

MAX. LIFE RAFT DIMENSIONS 800 x 500 x 310 cm

ISLA

Sailing

V Entrance door .................................................................. 10

V Leaving the harbour ...........................................10 - 12

V Starting the engines ........................................... 13 - 14

V Sailing........................................................................15 - 16

V Arriving in a harbour........................................................ 17

V Anchorage................................................................17 - 18

V Mooring and towing ........................................................19

OWNER MANUAL / ISLA 40

ENTRANCE DOOR

LEAVING THE HARBOUR

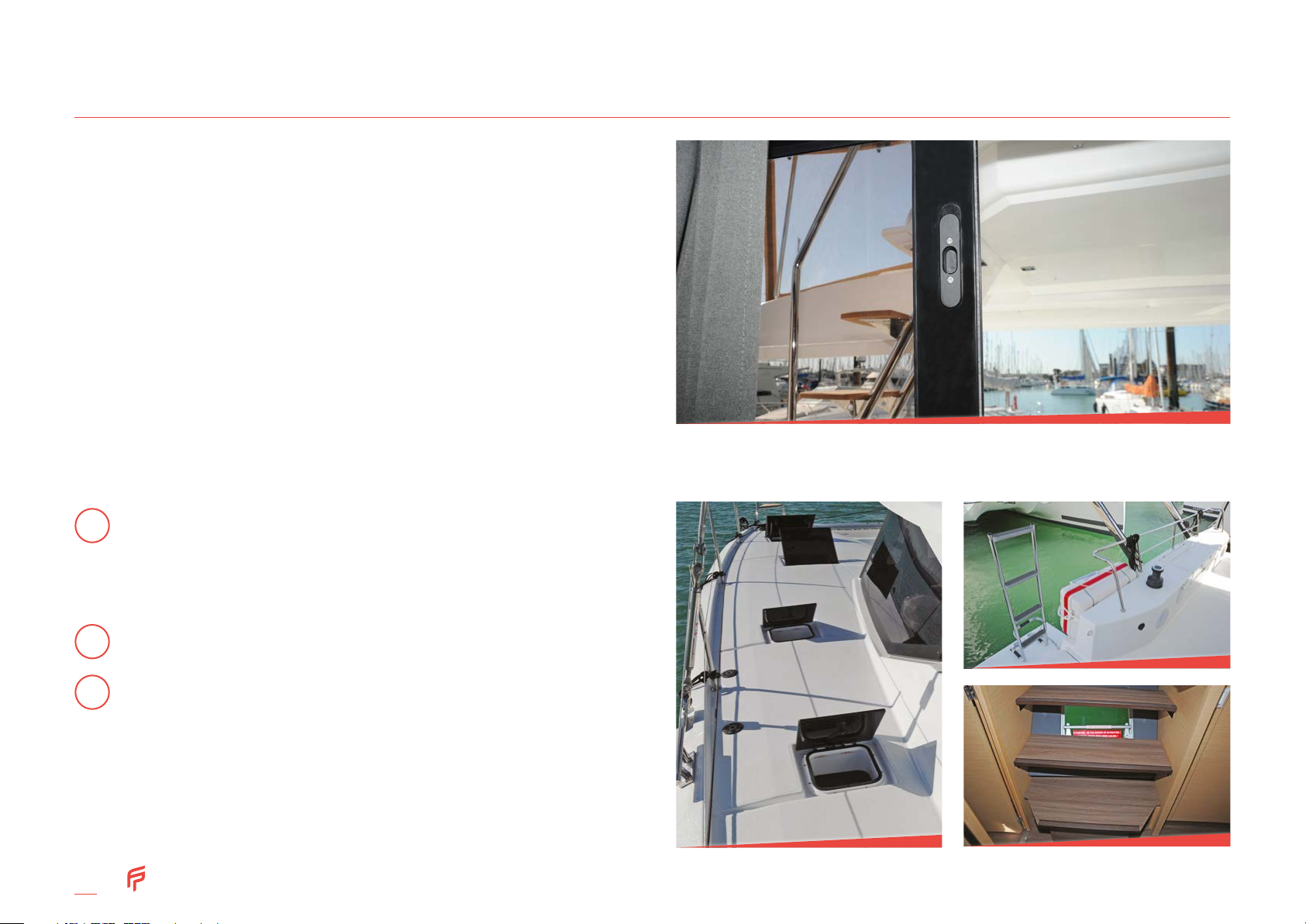

The sliding door used as the entrance door has a locking system in the open

posi-tion. It is possible to lock it from the inside with a latch on the frame.

The locking from the outside is done with a 1/4 turnkey.

Close all the hull portholes (safety hatches included), covers, deck hatches

and windscreen panels.

The safety hatches are mentioned « NEVER OPEN WHEN SAILING »

always respect this warning. Sailing means that the boat is neither

anchored, moored or grounded.

Unlock all the doors and lockers. Then check that the bilges are empty

of water.

Check that the life raft is installed (accessible at the starboard aft of the

cockpit) and hang outside the security fittings (buoy…). A second life raft

can be installed at the port aft of the cockpit.
