Foscam FI8910W Manuel utilisateur

support@foscam.us Page | 0 1-800-930-0949

Foscam Digital Technologies LLC

FI8910W User Manual

IP Wired / Wireless Camera

www.foscam.us

[email protected]s Page | 1 1-800-930-0949

Thank You for Your Purchase!

Foscam IP Cameras are designed and equipped primarily for local and

remote purposes such as home or office security surveillance. We provide

a variety of products suitable for any type of surveillance system setup,

including wired/wireless IP outdoor bullet cameras, IP outdoor dome PTZ

cameras, and IP Indoor PT cameras.

Please check the packaging to make sure you have received all items

including the camera accessories as follows:

- Foscam IP Camera

- Wi-Fi Antenna (If Wi-Fi compatible)

- Network Cable

- Warranty Card

- Quick Installation Guides

- Power Supply

- Installation / Driver CD

- Mounting Bracket

Note: Please contact us immediately if there are any damaged items or if

the package is short of any of the accessories listed above.

If you have any additional questions or concerns, please feel free to contact

us at support@foscam.us or call us at 1-800-930-0949.

[email protected]s Page | 2 1-800-930-0949

Table of Contents

1. Product Introduction..................................................................................................................................4

2. Product Specifications...............................................................................................................................4

3. Product Views ...........................................................................................................................................5

4. Software Installation..................................................................................................................................7

5. Hardware Installation ................................................................................................................................9

5.1 - IP Camera Tool...........................................................................................................................10

5.2 - Camera Login .............................................................................................................................15

5.3 - Device Status..............................................................................................................................20

5.4 - Surveillance Window...................................................................................................................21

6. Configuring Settings in Device Management......................................................................................2929

6.1 –Device Status.............................................................................................................................29

6.2 –Alias Settings .............................................................................................................................30

6.3 –Date & Time Settings...............................................................................................................300

6.4 –User Settings............................................................................................................................311

6.5 –Multi-Device Settings ...............................................................................................................322

6.6 –Basic Network Settings............................................................................................................344

6.7 –Wireless Settings .....................................................................................................................366

6.8 –ADSL Settings..........................................................................................................................411

6.9 –UPnP Settings..........................................................................................................................422

6.10 –DDNS Service Settings..........................................................................................................422

6.11 –Mail Service Settings..............................................................................................................444

6.12 –MSN Settings .........................................................................................................................455

6.13 –FTP Service Settings .............................................................................................................477

6.14 –Alarm Service Settings.........................................................................................................4949

6.15 –PTZ Settings ..........................................................................................................................511

[email protected]s Page | 3 1-800-930-0949

6.16 –Upgrade Device Firmware .....................................................................................................522

6.17 –Backup & Restore Settings....................................................................................................533

6.18 –Restore Factory Settings........................................................................................................533

6.19 –Reboot Device........................................................................................................................533

6.20 –Log .........................................................................................................................................544

7. Phone App ..............................................................................................................................................55

7.1 –App for Android Phones.............................................................Error! Bookmark not defined.5

7.2 –App for iPhones..........................................................................Error! Bookmark not defined.3

8. Video Setup Guides................................................................................................................................69

8.1 –For Windows ..............................................................................................................................69

7.2 –For Mac......................................................................................................................................69

9. Frequently Asked Questions...................................................................................................................70

10. Technical Support...............................................................................................................................700

[email protected]s Page | 4 1-800-930-0949

1. Product Introduction

The Foscam FI8910W Wireless Pan/Tilt Indoor IP Camera features high quality video and audio, wireless

N connectivity, pan/tilt, remote internet viewing, motion detection, night vision, embedded IR-Cut filter, as

well as a built in network video recording system. In addition, it is also smartphone compatible (iPhone,

Android & Blackberry) as well as viewable over the internet using standard web-browsers. The camera

functions well as an iPhone baby monitor or as part of a home or office security system with remote

monitoring. It is also compatible with Synology, Blue Iris, and most other surveillance software programs

and NVRs which accept standard MJPEG streams.

2. Product Specifications

- Powerful high-speed video protocol processor

- High definition color CMOS sensor

- 300k Pixels (640 x 480 maximum resolution)

- IR Night vision (Range of 8 meters)

- Panning ability of 300 degrees, Tilt ability of 120 degrees

- Optimized MJPEG video compression for transmission

- Multi-level user management and password definition

- Wi-Fi compliant with wireless standards IEEE 802.11 b/g/n

- Supports an IR-Cut filter for true colored video (no discoloration)

- Supports Dynamic IP (DDNS, No-IP) and UPnP LAN and Internet (ADSL, Cable Modem)

- Features motion detection and alarm triggering, alarm notifications sent via e-mail

- Supports image snapshots

- Supports multiple network protocols: HTTP, TCP/IP, UDP, SMTP, PPPoE, Dynamic DNS,

DNS Client, SNTP, BOOTP, DHCP, FTP

- Supports WEP/WPA/WPA2 wireless encryption

- Supports Daylight Savings Time

- Support G-mail for e-mail notifications

- Supports apps for Android and iPhone (Live Cams Pro, TinyCam Monitor, Foscam IP Cam Viewer)

- Supports one-way audio on Firefox and Chrome, audio supported on Safari via third party apps

[email protected]s Page | 5 1-800-930-0949

3. Product Views

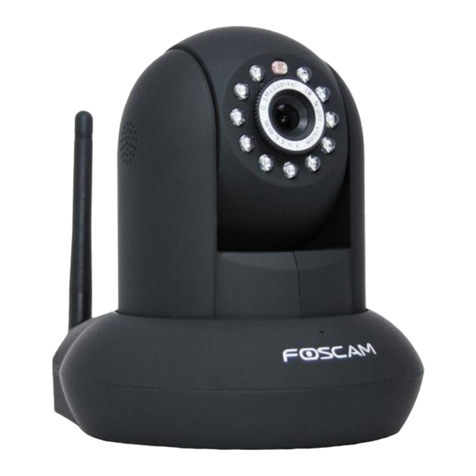

Front View

This model comes with 11 IR LEDs, a CMOS sensor, Wi-Fi antenna, Built-In Speaker and

Microphone

Rear View

The rear of the FI8910W includes a DC 5V/2A power supply port, RJ-45/10-100 Base T port, power

and network lights, and input/output audio jacks for external speakers or microphone.

[email protected]s Page | 6 1-800-930-0949

Bottom View

The bottom of the camera shows the wired/wireless MAC addresses of the camera. It also shows

the S/N number and has a reset button.

If you ever need to reset your camera to default settings, you can use the reset button. Use a pin to push

down the reset button for 10 seconds. Make sure the camera is plugged in and turned on. When the

camera hard resets, it will start to pan and tilt automatically, this signifies that the camera has reset

completely. You should be able to log in with the default username of “admin” with no password in the

password field.

Note: There are three stickers at the bottom of the camera; these stickers are an important feature of

original Foscam cameras. If your camera does not have any of these three stickers, it may be non-

genuine. Non-genuine cameras cannot use original firmware and are not eligible for warranty or technical

services. Please make sure you only purchase from an authorized Foscam reseller!

[email protected]s Page | 7 1-800-930-0949

4. Software Installation

Firstly, insert the CD into your CD drive, and then open the CD to see the files on your computer.

Double-click your CD/DVD Drive to browse the CD files

Double-click either the Windows OS or Mac OS folder, and then double-click the IP Cam Setup file

to install the software.

[email protected]s Page | 8 1-800-930-0949

Proceed in installing the IP Camera Tool software on your computer.

Once the installation is finished, the IP Camera Tool software icon installs to your desktop automatically,

look for it on your desktop. If you are using Windows 7 and cannot find the icon on your desktop after

installing the software, please check to see if the path of the camera is correct.

For example, the software may have installed to another folder such as

C:/Windows/System32/IPCamera.exe. If this is the case then fix this by moving or pointing the shortcut to

the correct path, which would be C:/Windows/SysWOW64/IPCamera.exe.

[email protected]s Page | 9 1-800-930-0949

5. Hardware Installation

Note: Before installing and using the Foscam IP camera, please remember to only use the power

adapter that was supplied with the camera. Using other power supplies could potentially damage

your IP camera. Make sure your IP camera is being installed in an indoor environment free from

any type of water or weather effects, such as rain and snow. The camera is built as an indoor

camera and thus cannot stand extremely high or low temperatures.

If you would like to use your IP camera outdoors under a covering such as an eve, make sure

there is no potential of rain or any other type of weather prone to hitting the camera. Also make

sure the temperature is within the camera’s operational temperature range. The camera may

malfunction if the temperature drops below 32 degrees F.

1. Install the Wi-Fi antenna by twisting the antenna connector clockwise to the camera’s antenna port (for

wireless models).

2. Plug the power adapter into the camera’s power supply port. This may be external (outdoor models) or

internal (indoor models) depending on which camera you purchased.

3. Plug the network cable into the RJ-45 connecter which is found either on the external wiring (for

outdoor cameras) or on the back of the camera (for indoor cameras), and plug in the other side of the RJ-

45 cable to a port on your router/switch.

4. It takes approximately 30 seconds to boot up the camera, you will see the camera swivel automatically

a few seconds after it is plugged in, this indicates the camera has successfully powered on.

5. When the camera is correctly powered on and the network cable is connected properly, the green LED

on either the RJ-45 connector of the camera (for outdoor models) or the connector on the back of the

camera (indoor models) will remain solid. The yellow LED should continue to flash.

Mount the antenna Plug in the network cable
