Foscam FI8908W Manuel utilisateur

IP Wireless / Wired Camera

Quick Installation Guide

(For Windows OS)

Model:FI8908W Model:FI8908W

Color: Black Color: White

ShenZhen Foscam Intelligent Technology Co., Ltd

FI8908W Quick Installation Guide

Quick Installation Guide

Packing List

1) IP CAMERAX 1 2) Wi-FiAntenna (only available for wireless model)

3) DC Power Supply X 1 4) Network Cable X 1

5) Mounting bracket ×1 6) CD X 1 (Include user manual、IP camera tool)

7) Quick Installation Guide X 1

QuickInstallationGuideFlowChart

Software Installation

Wireless LAN Settings

DDNS Service Settings

Hardware Installation

1HardwareInstallation

(1) Open the package

www.foscam.com

- 1 -

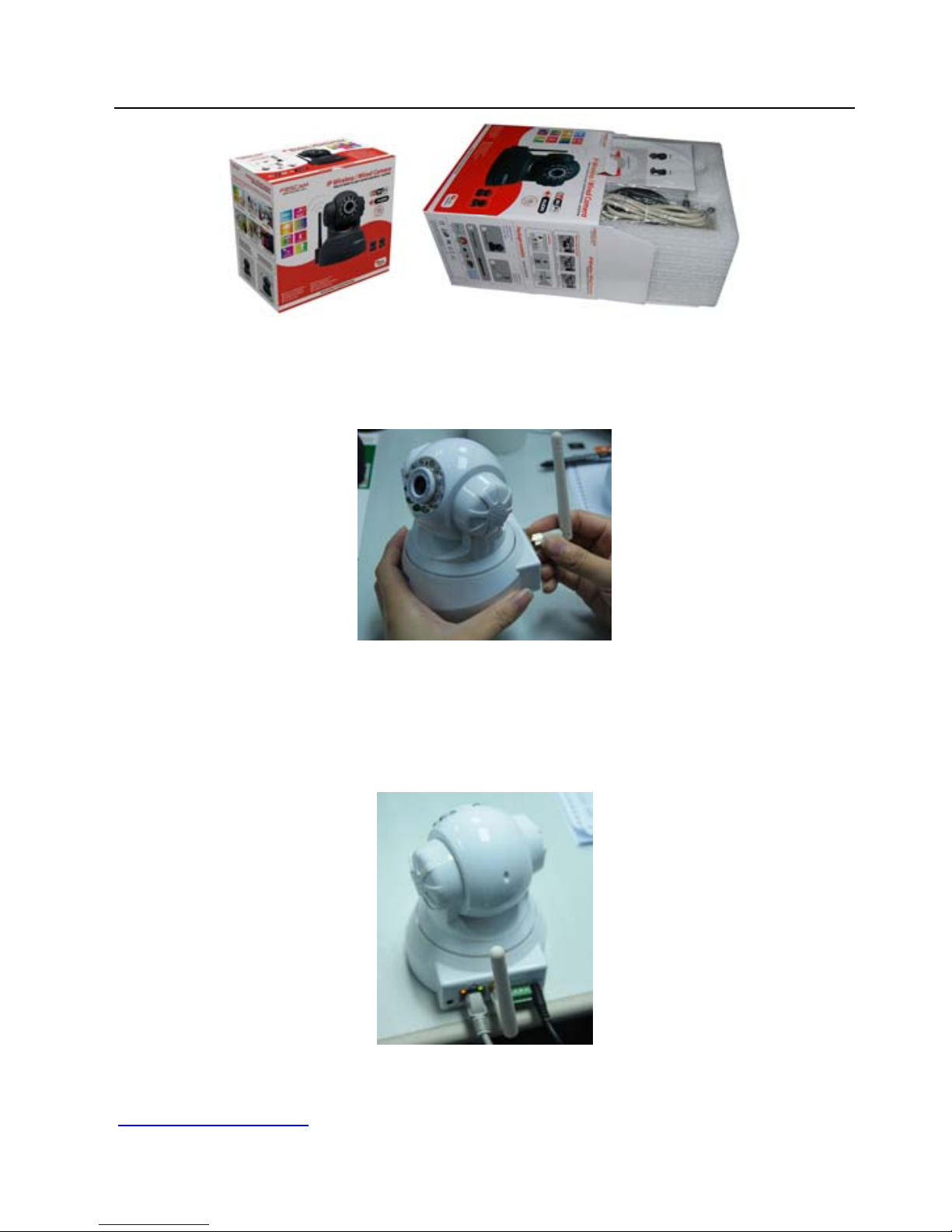

FI8908W Quick Installation Guide

Figure 1.0

(2) Connect the Antenna.

Screw the antenna to the back of the camera, make sure it attached well.

Figure 1.1

(3) Plug the network cable and power.

Use network cable connects with the camera and your router. Plug in the power.

The green network light under the lens will blink and the camera will pan/tilt.

Figure 1.2

www.foscam.com

- 2 -

FI8908W Quick Installation Guide

2SoftwareInstallation

Put the small CD in your CD driver of your computer and find the folder “For

Windows”, open it and choose IP Camera Tool. Double click IPCamSetup.exe

and install the software as instruction.

Figure 1.3

Only click Next, you will complete the software installation.

Figure 1.4

www.foscam.com

- 3 -

FI8908W Quick Installation Guide

Figure 1.5

You can find the icon on the desktop after you install the IP camera tool.

3 Login the camera

Dbclick the IP Camera Tool and you could see the following picture.

Figure 1.6

The IP camera tool could find the cam’s IP automatically after you plug the

network cable. If not, Please make sure that DHCP is enabled in your router.

Don’t enable MAC address filter. Or disable firewall or antivirus on your computer

to try.

Dbclick the IP address on the IP camera tool and you will enter the login UI.

www.foscam.com

- 4 -

FI8908W Quick Installation Guide

Figure 1.7

Note: If you use IE browser, please choose the first login mode (ActiveX Mode)

to login. If you use other browsers, such as Firefox, safari or Google chrome,

Please choose the second login mode (Server Push Mode) to login.

You can see living video after click login.

www.foscam.com

- 5 -

FI8908W Quick Installation Guide

Figure 1.8

If you could not see living video, Please make sure allow the activeX running

when it prompts you. (details: see user manual)

If you only see a black screen with a red cross in the center, Please change a port

number to try, do not use port 80. Use port 85, 8005.etc.

Or shut down firewall or anti-virus software on your computer to try again.

4 Wireless LAN Settings

(1) Please choose “For Administrator” and click “Wireless LAN Settings”.

Then choose “Using Wireless LAN”.

Click scan button and the camera will detect WIFI device around it.

It could also find your router and show it in the list. (Figure 1.9)

If the camera could not find some WIFI device, please click the scan button again.

Make sure that the time between the first scan and the second is more than 1~2

minute.

Click scan button to search WIFI device

Figure 1.9

(2) Click the SSID of your router in the list, the corresponding information (SSID &

Encryption) will be filled in the following boxes automatically.

You only need fill in share key. Make sure that SSID, Encryption and share key

you filled in for the camera are exactly the same with your router.

www.foscam.com

- 6 -

FI8908W Quick Installation Guide

Figure 2.0

Figure 2.1

www.foscam.com

- 7 -

FI8908W Quick Installation Guide

Figure 2.2

Please click Submit after finish these settings, the camera will reboot.

Plug out the network cable after you click submit about 10 seconds.

The camera will work on WIFI after reboot.

Note: If your camera could not connect WIFI, please see FAQ in user manual.

5 DDNS Service Settings

5.1 Static IP user

Static IP users need not set DDNS service settings for remote access. When

finished the connection of Camera in LAN and port forwarding. (Figure 3.6/3.7)

You can access the camera directly from Internet by the WAN IP and port number.

There are two ways to obtain your WAN IP.

zObtain the WAN IP from Website

Please enter these strings in your browser: http://www.whatismyip.com.The

webpage at this address will show you the current WAN IP.

Figure 2.3

zObtain the WAN IP address from the router

You can find the WAN IP in your router. Normally, it is in system status.

Take the WRT54G router of LINKSYS for example,

1) Obtain the IP address of the router(LAN gateway address),user

www.foscam.com

- 8 -

FI8908W Quick Installation Guide

www.foscam.com

- 9 -

name and password for login the router from the network administrator,

2) Enter the LAN IP address of the router (LINKSYS WRT54G, such as:

default LAN IP is 192.168.1.1) in the address bar of the IE to login the router;

Open the Status page to find out the WAN address of the router. In this

example, the address is 183.37.28.254.

Access the IP Camera from the Internet

You can access the IP Camera from the Internet. (remote access) Enter WAN IP

address and port number in IE browser or other browsers you use. For example,

Http:// 183.37.28.254:85

Note: Make sure the Port mapping is success. You can do port mapping by two

ways.

1) Enter setting page of the router which camera connect with to enable

UPNP function. Then login the camera as administrator, choose UPnP

Settings to enable UPNP and make sure the state is “UPnP success”.

2) Do port forwarding manually. (details: Figure 3.6/3.7)

If your router has Virtual server, it is used to do port mapping. Please add the

camera’s LAN IP and port which you set in basic network settings to the Virtual

map list.

Note: If you plug the camera in a router, it will have dynamic IP address and you

need set DDNS service settings to view it remotely.

5.2 How to do DDNS Service Settings (For dynamic IP user)

(1) Please first visit www.dyndns.com to get an account.

Choose Sign up FREE to get a free account.
