Foscam FI8906W Manuel utilisateur

User

User Manual

Manual

Model: FI8906W

Outdoor Wireless IP Camera

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 1

Table of Contents

1 Overviews................................................................................................................................................. 2

1.1 Key Features.......................................................................................................................................................................3

1.2 Read Before Use................................................................................................................................................................3

1.3 Packing Contents............................................................................................................................................................... 4

1.4 Physical Description.......................................................................................................................................................... 4

2 Surveillance Software GUI..................................................................................................................... 6

2.1 Login Window..................................................................................................................................................................... 6

2.2 Surveillance Window......................................................................................................................................................... 8

3 Advanced Camera Settings................................................................................................................. 13

3.1 Device Status................................................................................................................................................................... 13

3.2 Alias Settings.................................................................................................................................................................... 15

3.3 Date & Time Settings.......................................................................................................................................................15

3.4 User Settings.................................................................................................................................................................... 16

3.5 Multi-Device Settings.......................................................................................................................................................17

3.6 Basic Network Settings................................................................................................................................................... 23

3.7 Wireless Settings............................................................................................................................................................. 26

3.8 ADSL.................................................................................................................................................................................. 30

3.9 UPnP Settings.................................................................................................................................................................. 31

3.10 DDNS Service Settings.................................................................................................................................................32

3.11 Mail Service Settings..................................................................................................................................................... 36

3.12 MSN Setting................................................................................................................................................................... 39

3.13 FTP Service Settings.................................................................................................................................................... 41

3.14 Alarm Service Settings..................................................................................................................................................43

3.15 Upgrade Device Firmware........................................................................................................................................... 49

3.16 Backup & Restore Settings.......................................................................................................................................... 51

3.17 Restore Factory Settings.............................................................................................................................................. 51

3.18 Reboot Device................................................................................................................................................................52

3.19 Log................................................................................................................................................................................... 52

3.20 Back................................................................................................................................................................................. 52

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 2

4 APPENDIX............................................................................................................................................. 53

4.1 Frequently Asked Questions.......................................................................................................................................... 53

4.2 Default Parameters..........................................................................................................................................................57

4.3 Specifications................................................................................................................................................................... 57

5 OBTAINING TECHNICAL SUPPORT............................................................................................... 58

1Overviews

Overviews

FI8906W is an integrated wireless IP Camera with a color CMOS sensor. It combines a high

quality digital video camera, with a powerful web server, to bring clear video to your desktop from

anywhere on your local network or over the Internet.

The IPCAM supports IR-CUT, when light conditions turns poor, the IR cut filter will be

automatically removed to accept IR illumination. Meanwhile, the camera switches itself

automatically from color to black and white, assuring optimal image quality at all times.

The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support

Internet Explore. Therefore the management and maintenance of your device is simplified by

using the network to achieve the remote configuration, start-up and to upgrade the firmware.

This camera is designed for outdoor surveillance applications such as gardens, courtyards or

parks. Controlling the IPCAM and managing images are simplified by using the provided web

interface across the network utilizing wireless connectivity.

FOSCAM provides Phone APPs for Android and iPhone users, please search “Foscam ip cam

viewer” and install it through APP Store, then you can view your camera directly as a computer.

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 3

1.1

1.1 Key

Key Features

Features

● Powerful high-speed video protocol processor

● High Definition Color CMOS Sensor

● 300K Pixels

● IR night vision (Range: 30m)

● Optimized MJPEG video compression for transmission

● Multi-level users’ management and passwords definition

● Embedded Web Server for users to visit by IE

● Wi-Fi compliant with wireless standards IEEE 802.11b/g/n

● Supports IR_CUT and the filter change automatically

● Supports Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)

● Embedded FOSCAM DDNS (dynamic domain name service ) Service

● Motion detection activates alarm

● Supports image snapshot

● Supports multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP

● Supports WPS(Wi-Fi Protected Set-up)

● Supports WEP/WPA/WPA2 encryption

● Supports Daylight Saving Time

● Supports MSN

● Supports Gmail as sender on mail service settings

● Providing Phone APPs for Android and iPhone users

● Providing Central Management Software to manage or monitor multi-cameras

1.2

1.2 Read

Read Before

Before Use

Use

Please first verify that all contents received are complete according to the Package Contents

listed below. Before the Network Camera is installed, please carefully read and follow the

instructions in the Quick Installation Guide to avoid damage due to faulty assembly and

installation. This also ensures the product is used properly as intended.

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 4

1.3

1.3 Packing

Packing Contents

Contents

● IPCAM×1 ● CD×1

● Wi-Fi Antenna×1 (only available for wireless

model)

● Quick Installation Guide×1

● DC Power Supply×1 ● Warranty Card×1

● Mounting bracket×1(option)

● Network Cable×1

1.4

1.4 Physical

Physical Description

Description

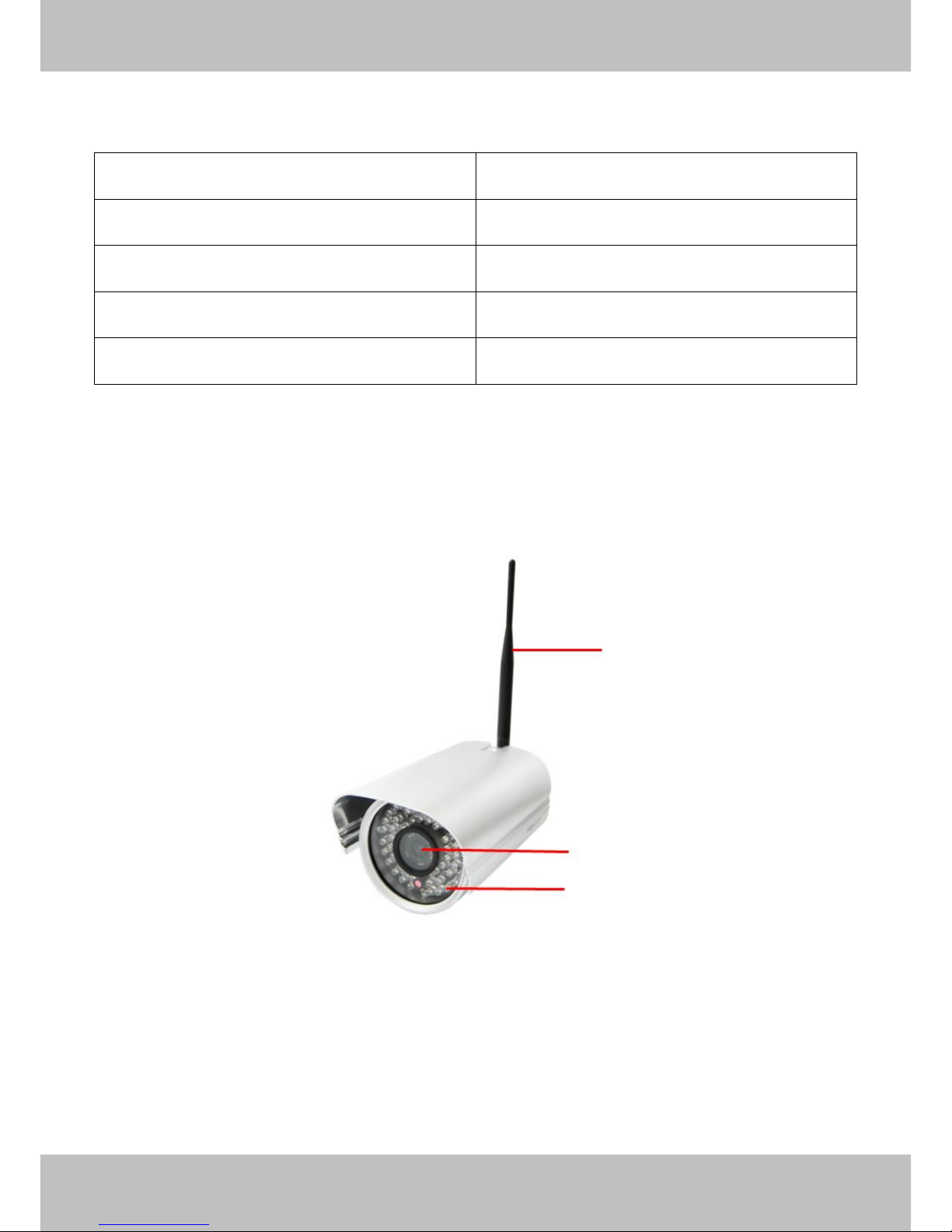

Front Panel

Figure 1.1

1 WIFI Antenna: Wireless Antenna

2 LENS: CMOS sensor with fixed focus lens

3 Infrared LED: 60 IR LEDs

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 5

Back View

Figure 1.2

LAN: RJ-45/10-100 Base T

Power: DC 5V/2A Power supply

RESET BUTTON:

1) Press and hold down the RESET BUTTON for 10 seconds. Release the power button and IP

camera will be reset back to the factory default parameter.

2) Press and hold down the RESET BUTTON about 4 seconds, then press the WPS button on

the router, then you can use the WPS function. (For more details: please read Wireless Settings

in the User Manual)

Bottom View

There are up to three labels located on the body of the camera; this is an important feature of

original Foscam cameras. If your camera does not have labels as shown in Figure 1.3 ,it may be

a clone one. Cloned Foscam cameras can not use original firmware and are not eligible for

warranty or technical services.

Figure 1.3

RJ45 Port

DC 5V Power Jack

Reset

MAC Address of

wireless connection

MAC Address of

wired connection

FOSCAM domain

name

S/N of FOSCAM

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 6

2Surveillance

Surveillance Software

Software GUI

GUI

Please refer to the Quick Installation Guide if you install the camera at first time. After finishing

quick installation, you can take time to learn the operation of the software.

2.1

2.1 Login

Window

Figure 2.1

Please check the login window above, it was divided to 6 sections from no. 1 to 6.

Section1 Select Language

FOSCAM camera supports multi-languages, such as English, Spanish, Deutsch and so on. You

can select the language you need via pull down the dropdown toolbar and click on the language

to switch.

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 7

Section2 FOSCAM Website Link

There is an access link to Foscam website homepage, if you need tech support you can contact

Foscam directly.

Section3 ActiveX Mode

If your PC is windows based OS, such as Windows XP, Windows7, Windows Vista and you are

using IE-based browsers like IE6, IE7, IE8, please choose IE ActiveX Mode login mode.

Section4 Server Push Mode

If you are using non-IE based browser, like Firefox, Safari, Google Chrome please choose

Server Push Mode.

Section5 Mobile Phone

If you are using the Mobile to access the camera, here you need to select Mobile Phone login

mode.

Section6 Note

Note that when you login the camera, please select the corresponding login mode.

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 8

2.2 Surveillance Window

Select the ActiveX mode and you will enter the surveillance window.

Figure 2.2

Section1 Device Name

Default device name is Anonymous. You can define a name for your camera as you like (Please

go to chapter 3.1 and read how to set it)

Section2 Multi-Device Window

The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the

same time. You can add other cameras in multi-device setting (read chapter 3.5).

www.foscam.

ww.foscam.com

com

Shenzhen

Shenzhen Foscam

Foscam Intelligent

Intelligent Technology

Technology Co.,

Co., Limited

Limited

Tel:

Tel: 86

86 755

755 2674

2674 5668

5668 Fax:

Fax: 86

86 755

755 2674

2674 5168

5168 9

.Figure 2.3

Section3 Image Parameters Settings

OSD

OSD is used to add timestamp on the video. There are five text colors to choose from: Black, red,

yellow, white, blue.

Autres manuels pour FI8906W

Table des matières

Autres manuels Foscam Caméra IP

Foscam

Foscam FI9900EP Manuel utilisateur

Foscam

Foscam C1 Lite Manuel utilisateur

Foscam

Foscam FI8903W Manuel utilisateur

Foscam

Foscam FI8907W Manuel utilisateur

Foscam

Foscam FI9805P Manuel utilisateur

Foscam

Foscam FI8918W Manuel utilisateur

Foscam

Foscam FI9803P Manuel utilisateur

Foscam

Foscam FI9804P Manuel utilisateur

Foscam

Foscam FI8903W Manuel utilisateur

Foscam

Foscam FI9803EP Manuel utilisateur

Foscam

Foscam FI9803EP Manuel utilisateur

Foscam

Foscam FI9803EP Manuel utilisateur

Foscam

Foscam R2 Manuel utilisateur

Foscam

Foscam FI8909W Instructions d'utilisation d'origine

Foscam

Foscam FI8916W Manuel utilisateur

Foscam

Foscam FI8918W Manuel utilisateur

Foscam

Foscam CGI Manuel utilisateur

Foscam

Foscam FI8905W Manuel utilisateur

Foscam

Foscam FI8908W Manuel utilisateur

Foscam

Foscam FI8910W Manuel utilisateur

Foscam

Foscam C2 Manuel utilisateur

Foscam

Foscam FI9803P Manuel utilisateur

Foscam

Foscam C1 Lite Manuel utilisateur

Foscam

Foscam C1 Lite Manuel utilisateur

Manuels Caméra IP populaires d'autres marques

FLIR

FLIR Exx series Manuel utilisateur

Avigilon

Avigilon H4A-BO1-IR Manuel utilisateur

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuel utilisateur

ShareTech

ShareTech AV1 Manuel utilisateur

Ezviz

Ezviz C6C Manuel utilisateur

Melchioni

Melchioni UCAM 2015 Manuel utilisateur

Geutebruck

Geutebruck G-Cam/ESD-4630 Manuel utilisateur

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manuel utilisateur

Mitel

Mitel 6800i Series Manuel de service

Vitek

Vitek VTC-IR403-212NP Manuel utilisateur

THOMSON

THOMSON DSC - 323W Manuel utilisateur

AVer

AVer FB2027 Manuel utilisateur

ENFORCER

ENFORCER EV-T5105-N2SQ Manuel utilisateur

Wansview

Wansview NC543 Manuel utilisateur

Eneo

Eneo MCB-64A0003M0A Manuel utilisateur

deView electronics

deView electronics CBDNI36F Manuel utilisateur

Swann

Swann SwannEye Manuel utilisateur

LevelOne

LevelOne IP CamSecure Manuel utilisateur
