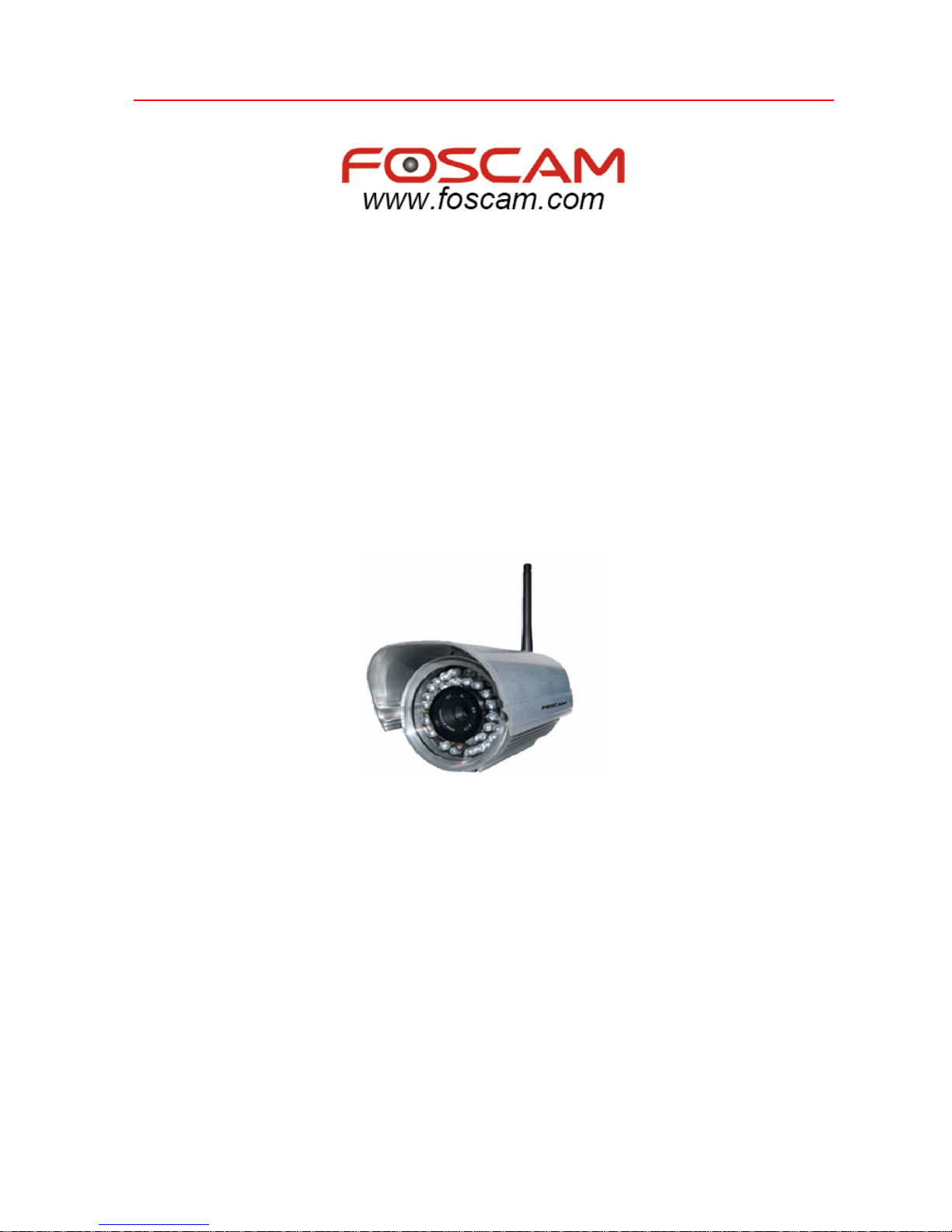

Foscam FI8601 Manuel utilisateur

V2.01

IP Wired / Wireless Camera

Quick Installation Guide

(For Windows OS)

Model: FI8601/FI8601W

ShenZhen Foscam Intelligent Technology Co., Ltd

FI8601/FI8601W Quick Installation Guide

www.foscam.com -1-

Quick Installation Guide

PackingList

1) IP CAMERAX 1 2) Wi-Fi Antenna (only available for wireless model)

3) DC Power Supply X 1 4) Network Cable X 1

5) Mounting bracket ×1 6) Quick Installation Guide X1

7) Warranty Card X 1 8) CD X 1 (Includes user manual、IP camera tool、

H.264 Camera Client)

Quick Installation Guide Flow Chart

1 Hardware Installation

(1) Open the package

Software Installation

Wireless Settings

Remote Access

Hardware Installation

FI8601/FI8601W Quick Installation Guide

www.foscam.com - 2 -

(2) Connect the Antenna.

Screw the antenna to the back of the camera, make sure it attached well.

Figure 1.1

(3) Plug the network cable and power.

Connect the network cable to your camera and to your router. Plug in the power.

The network lights on RJ45 will turn on.

Figure 1.2

2SoftwareInstallation

Insert the CD in your CD drive of your computer and find the folder “For Windows

OS”. Select the IP Camera Tool folder. Double click IPCamSetup.exe and install

the software per instructions.

FI8601/FI8601W Quick Installation Guide

www.foscam.com - 3 -

Figure 1.3

Click Next.

FI8601/FI8601W Quick Installation Guide

www.foscam.com - 4 -

Figure 1.4

Select the folder where setup will install and click Next.

FI8601/FI8601W Quick Installation Guide

www.foscam.com - 5 -

Figure 1.5

Click Install and an icon will appear on your desktop after the IP Camera Tool

software installation has successfully completed.

3Loginthecamera

Double click the IP Camera Tool icon and the following screen should appear.

Figure 1.6

The IP camera tool should find the camera’s IP automatically after you plug in the

network cable. Don’t enable MAC address filter or disable any firewall or antivirus

on your computer.

Double click the IP address on the IP Camera Tool and you will see the following

dialog box.

Figure 1.7

FI8601/FI8601W Quick Installation Guide

www.foscam.com - 6 -

Fill in the user name and password, click OK and it will display the login UI (Figure

1.8). Camera supports three-level users management: admin, user and guest.

The default “admin” user name and password are all “admin”, the default “user”

user name and password are all “user”, and the default “guest” user name and

password are all “guest”. Different user has different permission. Admin has the

highest authority. He can do any settings. Guest has the lowest authority.

Figure 1.8

Note: If you use PC, please choose the first login mode to login. If you use mobile,

please choose the login button under Mobile View to login.

You can see a living video after click login.

FI8601/FI8601W Quick Installation Guide

www.foscam.com - 7 -

Figure 1.9

If you are unable to see a live video, please make sure you have installed the

ActiveX and allow the activeX running when prompted. (for more details: see user

manual)

Note: If you are still unable to see a live video, try shutting down any firewall or

anti-virus software on your computer.

4WirelessSettings

Please choose “For Administrator” and click “Wireless Settings”.

Enable wireless. There are two modes below Wireless Settings: Infrastructure

and Point_to_Point. If you don’t have a wireless router, you should choose point

_to _point mode if you want to use the wireless function. If you have a wireless

router, you had better select infrastructure mode.

4.1 Infrastructure Mode

(1) Enable wireless and choose Infrastructure mode.

FI8601/FI8601W Quick Installation Guide

www.foscam.com - 8 -

Figure 2.0

Click the Search button and the camera will detect all WIFI devices around the

area.

It could also find your router and show it in the list. (Figure 2.1)

FI8601/FI8601W Quick Installation Guide

www.foscam.com - 9 -

Figure 2.1

(2) Click OK in the first column and the corresponding information (SSID, Security

mode, WPA Algorithm & WEP key index) will be filled automatically as the

following picture.

Figure 2.2

You only need fill in the key. Make sure that SSID, Security Mode, WPA Algorithm

and the key you filled in for the camera are exactly the same for your router.

Figure 2.3
