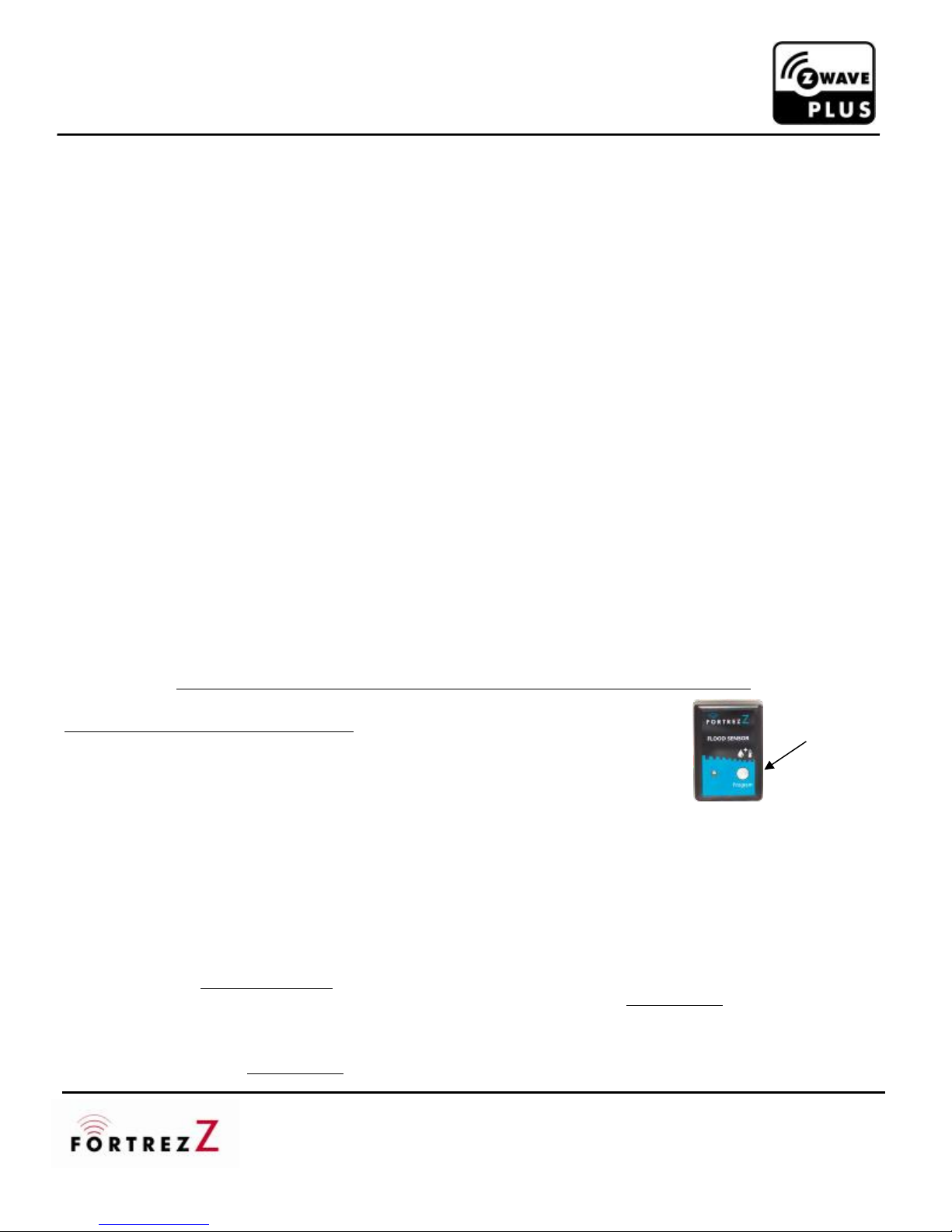

FTS05 / FTS05P - Wireless Flood and

Temperature Sensor, User Manual

www.fortrezz.com

Made in USA

060717

INTRODUCTION

The FTS05x sensor is a Z-WavePlusTM Security-enabled device that detects water leaks and measures temperature. In case of leak or high/low

temperature conditions it will send alerts on your Z-WaveTM network. The FTS05x is compatible with other Z-WaveTM and Z-WavePlusTM certified

products. The FTS05x sensor comes in four part numbers for each geographic region (where ‘yy’ below indicates, for example, US or EU):

•FTS05LB-yy and FTS05LW-yy (Battery only version with black and white cases)

•FTS05PLB-yy and FTS05PLW-yy (Battery/AC version with water/temperature probe and black and white cases)

For the latest User Manual, go to www.fortrezz.com

SPECIFICATIONS

Power: Two AA alkaline batteries (and AC Adapter, FTS05P version)

Battery Life: Calculated to be 1 to 2 years depending on battery capacity/quality and no alarms and default Z-Wave network settings

Frequency Range: 908.4MHz (US); 868.4MHz (EU)

Distance Range: Max 100ft line of sight in unobstructed environment

Enclosure Size (LxWxD): 3" (76 mm) x 2.1" (53mm) x 1.1" (30mm)

Weight: 0.25 lb (110 g)

Operating Temperature: -10⁰C (14F) to +70⁰C (158F)

WARNINGS AND PRECAUTIONS

•Do not store highly flammable items such as oily rags or other combustibles near your FTS05x.

•Do not apply electrical power to the unit unless the unit is fully assembled.

•Install unit in accordance with electrical codes and regulations. In case you are unsure about any parts of these instructions consult an

electrician or Z-WaveTM home automation specialist.

•FTS05x functionality is based on wireless (RF) transmissions. Any wireless transmission can be subject to RF interference or loss of

communication. This interference or loss of communication may cause the unit to not operate as intended. You, the end-user, are

responsible for ensuring that the FTS05x functionality and installation meets your desired requirements.

oWARNING - The FTS05x must not be used in life support and / or safety applications.

•Do not place FTS05x on or near metal objects. This decreases range and/or blocks wireless transmissions.

•Information provided in this manual is for your convenience and may be superseded by updates. This manual is subject to change

without notice. It is your responsibility to ensure that the FTS05x functionality meets your needs and specifications.

Using the FTS05x in a Z-WaveTM Network

Program Switch for Network Add/Remove The switch is used for adding into or removing from a Z-WaveTM

network. Refer to your controller’s User Manual for specific details. A Security-Enabled controller must be

used to fully utilize the FTS05x.

Add (Inclusion) into a network: 1) Set up the Add/Inclusion mode at the controller; 2) Briefly press the switch once and the controller will indicate

the unit has been added into the network. Also, the LED will blink when complete. Add/Inclusion and Remove/Exclusion are always done at normal

transmit power mode. This product can be added and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers

and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the

network. The FTS05x can be added either securely (ZWave S0 Security) or non-securely depending on your controller settings.

Remove (Exclusion) from a network: 1) Set up the Remove/Exclusion mode at the controller; 2) Press and hold the switch for approx. 2 seconds

and then release. The controller will indicates the unit has been removed from the network. The LED will blink when complete.

Associations: Once in a network, a controller can be used to associate the FTS05x with other devices in the Z-WaveTM network, such as a light or

a remote audible alarm. Refer to your controller’s documentation on how to associate FTS05x with another device in your network. The FTS05x

supports eight association groups with a maximum of 2 devices in each group. Refer to the Association section below.

Node Info / Keep-Alive: While not in a network, the FTS05x will send the Z-WaveTM Node information frame when the switch is briefly pressed.

This is primarily used for adding as described above. The node information frame will also be sent while in network when the switch is pressed

and held for 2 seconds. In either case, the FTS05x will ‘stay awake’ for approximately 30 seconds after this to allow time for configuration

commands from the controller. Refer to Status indications below for LED feedback.

Wakeup Notification: The FTS05x will wake up and send a notification every 4 hours (default) to allow a controller to query and update the status

of the unit. A brief switch press while in network will also cause the FTS05x to wake up and send a notification. The device stays awake for 10

seconds during this time or longer if communicating with the controller.

FTS05 / FTS05P - Wireless Flood and

Temperature Sensor, User Manual

www.fortrezz.com

Made in USA

060717

Status LED or Buzzer Indications

Number of Blinks or Beeps

Meaning

Fast Blinks

(switch pressed; continually on while switch is pressed)

In-Network After Battery Replacement or Add/Inclusion (also, after button held while in-Network)

Out of Network After Battery Replacement or Remove/Exclusion (also given if Add was not completed)

Low Battery (repeated every approx. 40 seconds)

Slow Blinks

Firmware Update (OTA) mode has been started; continuous while waiting for update to start

Water Alarm

Heat Alarm (either high or low setpoint triggered)

An active alarm has been cleared (when a water alarm or a temperature alarm is no longer active)

Choosing a mounting location

The FTS05 is suitable for use in normally dry, interior locations only. The FTS05P (only) allows the water / temperature sensor in the external probe

to be submerged. Avoid placing the unit close to a metal frame, or other metal enclosures that may affect RF range. Place the unit so that any

leaks that may occur will not drip directly on the unit.

Recommended FTS05x uses: Under sink, Next to Sump pumps, Water Heaters, Laundry Room, Bathroom Floor, Storage Area, Garage, Utility Sink,

Vacation/Recreation homes, Boats, etc. Additionally, the FTS05P is intended for applications where a certain water level should be maintained.

During an alarm

This section describes the main Alarm/Notification functionality of the FTS00xx device. Refer to the Technical Appendix for details of all the alarms

(Notifications). If water is detected or missing (FTS05P only) at the monitoring location or an over/under-temperature condition is detected, the

unit will send an alert message(s) to the Z-WaveTM network (if added into the network). The type of alert message depends on how the FTS05x is

configured. If associations are configured, Basic Set messages will be sent as described below under Associations. If Water or Heat Alarms have

been configured (via the Notification Command Class), then the FTS05x will send alert messages to the Lifeline group (Association Group 1). Both

Association (Basic Set) messages and Alarm alert messages may be configured and sent. Drying or submerging (FTS05P only) the sensor contacts

will clear the Water Alarm. If an over/under temperature Alarm occurred and the temperature alarm conditions are no longer present, an ‘alarm

clear’ message is also sent.

Also, depending on your Z-WaveTM controller, it is possible to receive a remote alert. For example, with some gateway controllers, you can receive

an email or cell phone text message when an alarm is activated. Depending on your specific controller’s capabilities you will be able to remotely

check the status of any FTS05x in your network.

Initial Test of the FTS05x

Moisten a paper towel and place over both of the small metal pads on the FTS05 or around both metal prongs on the FTS05P probe until you

observe two quick LED blinks. The water alarm indication may take up to 4 or 5 seconds. If the LED fails to blink, your battery may be old or dead

or incorrectly installed, the sensor may not be moist enough, or the water sensor may be damaged. If you see the LED blink, remove the moistened

paper towel and clean the small metal pads of any water residue and the LED should blink four times. You can then add the FTS05x to your Z-

WaveTM network using your controller. Examples of Z-WaveTM controllers can be found on the FortrezZ website (www.fortrezz.com).

Battery / Low Battery

The FTS05x will send an alert on the Z-WaveTM network at regular intervals when it detects a low battery condition. (See the Lifeline description

in the Association section below.) These messages will initially be ‘Replace Battery Soon’ messages. When the battery gets low enough, the

message will change to ‘Replace Battery Now’. In addition, it will periodically blink the LED. Your controller may be able to be configured to

monitor the unit’s wake up notifications. If these stop, then this might also be an indication that the battery has died or that transmissions from

the FTS05x are no longer being received. After a water leak, please ensure that there is no moisture in the unit and around the battery. Do not

install batteries that appear damaged or unsealed. When replacing batteries, the water seal may be broken around the screws. After screwing

the parts back together, the use of some sealant, such as silicone caulk, around the screws is recommended.

FTS05 / FTS05P - Wireless Flood and

Temperature Sensor, User Manual

www.fortrezz.com

Made in USA

060717

Configuring the FTS05x

The high and low temperature setpoints in the FTS05x can be configured. The low temperature setpoint must always be set at least two degrees

below the high temperature setpoint. The low temperature setpoint cannot be set less than –10 degrees C and the high temperature setpoint

cannot be set greater than 70 degrees C. The temperature setpoints can be configured via a ‘smart’ controller after adding; details are provided

in the technical appendix. Additionally, the FTS05P can be configured for either water detect or water missing mode. In either model, the state

of the Basic Set (for association group 2) can be configured to send either ON (default) or OFF when a water alarm occurs.

ASSOCIATIONS

Once in a network, your controller can be used to associate the FTS05x inputs with other devices in the Z-WaveTM network, such as a light or

remote audible alarm. For example, when a water leak is detected, the FTS05x can be set up to automatically send a command to turn on a

device(s) associated with that alarm type. Refer to your controller’s documentation on how to associate the FTS05x with another device in your

network. The FTS05x supports eight association groups with a maximum of 2 associated devices in each group. The association groups and

functionality are listed in the table below. The Lifeline association should be automatically set up by your controller if it is Z-WaveTM Plus

compatible.

Note that association groups 5 through 8 allow the temperature to be sent to an associated device (such as the controller). The FTS05x allows

the sending rate of the reports to be optimized so that the battery life can be maximized by using the longest acceptable interval between

temperature updates. The temperature report was not included in the Lifeline so that you have the most flexibility for optimizing battery life

and getting updates for your specific application. If you want temperature updates, you should only select one of these association groups to

send to a particular device. Caution –More frequent notification will decrease battery life!

Association

Group (Name)

Max. Associations

per Group

Supported Events (Command Classes)

1 (Lifeline –the

controller should

automatically set

up this

association)

•Device Reset Locally (via 3 quick presses of the program switch)

•Battery Report (when calculated battery life percentage changes)

•Notifications

oWater (Type 5; Event Waterleak_Detected)

oHeat (Type 4; Event Underheat_Detected)

oPower (Type 8; Events Power_Applied, Replace_Soon, Replace_Now)

Basic Set Command ON (default, 0xFF) or OFF (0x00) is sent to the associated

nodes to indicate that a Water Alarm is active. This depends on the parameter 4

configuration value. When the water alarm is cleared, one additional report with

the opposite value is sent.

Basic Set Command with value = 0xFF is sent to the associated nodes to indicate

that a Temperature High condition has been detected. When the temperature is

back in the normal range, one additional report with value = 0x00 is sent.

Basic Set Command with value = 0xFF is sent to the associated nodes to indicate

that a Temperature Low condition has been detected. When the temperature is

back in the normal range, one additional report with value = 0x00 is sent.

Temperature report (Multilevel Sensor) when the temperature has changed (with

filtering/hysteresis to avoid continuous transmissions at a transition point).

Temperature report (Multilevel Sensor) every 5 minutes

Temperature report (Multilevel Sensor) every 20 minutes

Temperature report (Multilevel Sensor) every 60 minutes

FTS05 / FTS05P - Wireless Flood and

Temperature Sensor, User Manual

www.fortrezz.com

Made in USA

060717

OTHER PROGRAM BUTTON PRESS ACTIONS

Reset the device to factory Defaults - Press and hold the program button for longer than 15 seconds. When complete, the LED will flash

approx. 30 times. This can be done while the device is either in or out of a network. Please use this procedure only when the network primary

controller is missing or otherwise inoperable. Caution –When this is done in-network, the device will no longer be in the network and all

configurations and associations will be set to default.

Over-the-Air (OTA) Firmware Update mode –If running on batteries, a firmware update should only be done with new batteries. Quickly

press the program button 3 times while in-network and then activate your controller’s update mode. Caution –This should not be done unless

a firmware update will be immediately started at the controller. Do not allow the OTA mode to continue indefinitely without starting the

firmware update at your controller. Refer to your controller’s manual for update procedures. Press the button once to exit the OTA mode.

TROUBLESHOOTING

The FTS05x has been tested with various controllers from other vendors. However, it is not possible to test with every controller on the market.

For specific troubleshooting procedures, please refer to your controller instruction manual and/or contact your controller manufacturer. Also, check

the FortrezZ, LLC website www.fortrezz.com for helpful FAQs and updates to the User Manual / Technical Appendix.

REGULATORY INFORMATION

FCC Compliance Statement Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation. Contains

Transmitter Module FCC ID: WRD-FM5202

FCC Warning (Part 15.21). Changes or modifications not expressly approved by the party responsible for compliance could void he user’s

authority to operate the equipment.

FCC Interference Statement (Part 15.105 (b)). This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Statement per Section 4.0 of RSP-100

The term "IC:" before the certification/registration number only signifies that the Industry Canada technical specifications were met.

Section 7.1.5 of RSS-GEN. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This

device must accept any interference received, including interference that may cause undesired operation.

From section 5.2, RSS-Gen, Issue 2, June 2007 Equipment Labels: Contains IC: 8156A-FM5202; PN: Model: FM5202-US-SMT

From section 7.1.6, RSS-Gen, Issue 2, June 2007

Digital Circuits:

If the device contains digital circuitry that is not directly associated with the radio transmitter, the device shall also have to comply with ICES-

003, Class A or B as appropriate, except for ICEC-003 labeling requirements. The test data obtained (for the ICES-003 tests) shall be kept by the

manufacturer or importer whose name appears on the equipment label, and made available to Industry Canada on request, for as long as the

model is being marketed in Canada.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée

aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Note: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate

the equipment. HELPFUL WEB SITE: Industry Canada http://www.ic.gc.ca/

FTS05 / FTS05P - Wireless Flood and

Temperature Sensor, User Manual

www.fortrezz.com

Made in USA

060717

Europe

The FTS05x module has been tested for use in European countries. The following testing has been completed:

Test standard EN 300 220 ; (2012-05) Test standards ETSI EN 301 489-1 ; (2011-09)

A helpful document that can be used as a starting point in understanding the use of short range devices (SRD) in Europe is the European Radio

Communications Committee (ERC) Recommendation 70-03 E, downloadable from the European Radio Communications Office (ERO)

http://www.ero.dk. The end user is responsible for ensuring compliance with harmonized frequencies and labeling requirements for each

country the end device is marketed and sold. A Declaration of Conformity must be issued for each of these standards and kept on file as

described in Annex II of the R&TTE Directive.

The Waste Electrical and Electronic Equipment (WEEE) directive (2002AA/96/EC) was

approved by the European Parliament and the Council of the European Union in 2003. This

symbol indicates that this product contains electrical and electronic equipment that may

include batteries, printed circuit boards, liquid crystal displays or other components that

may be subject to local disposal regulations at your location. Please understand these

regulations and dispose of this product in a responsible manner.

Limited Warranty

THE PRODUCT IS PROVIDED WITH ONE YEAR LIMITED MANUFACTURER WARRANTY. FORTREZZ, LLC

warrants its products to be free from defects in material and workmanship under normal use for one year,

and is not responsible for consequential damages or installation costs of any nature. FORTREZZ, LLC.

expressly disclaims all implied warranties, including but not limited to the implied warranties of

merchantability and fitness for a particular purpose. FORTREZZ, LLC. does not warrant, guarantee, or make

any representations regarding the use or the results of the use of the products or any accompanying

materials in terms of their correctness, accuracy, reliability or otherwise. In no event shall FORTREZZ, LLC. be

liable to Purchaser hereunder or in respect of any products ordered or delivered to Purchaser, whether in

contract, tort including negligence or otherwise for a loss of profits or loss of use or for any incidental,

consequential, special or indirect damages howsoever caused whether or not FORTREZZ, LLC. has been

advised of the possibility of such loss or damage. FORTREZZ, LLC's maximum liability to Purchaser under

these conditions shall in no event exceed the amount paid by Purchaser for the products that are the subject

of the claim and in respect of all claims for products ordered from FORTREZZ, LLC. to which these conditions

apply to the amount paid by Purchaser for the products which are the subject of the claims. If you are not

comfortable with your limited warranty, or not completely satisfied with the MIMO, or the FTS05x does not

perform as expected we encourage you to return the FTS05x to your DISTRIBUTOR for an exchange or for a

full refund within 30 days of purchase. Or, you can return the FTS05x to FORTREZZ, LLC with an RGA number.

All products to be returned to FORTREZZ, LLC. must have a valid Returned Goods Authorization (RGA).

Send the returned unit to: FortrezZ, LLC Warranty Replacement, 5440 Highway 55, Lake Wylie SC 29710, postage prepaid with a payment of US$

9.95 to cover the cost of return shipping, postage and handling. You must use the original packaging and include a proof of purchase (photocopy

of receipt) along with the RGA # and the returned product.

FTS05 / FTS05P - Wireless Flood and

Temperature Sensor, User Manual

www.fortrezz.com

Made in USA

060717

TECHNICAL APPENDIX

Z-WaveTM INFORMATION

Node Information Frame (NIF): Always listening flag set, Optional functionality flag set

Manufacturer ID 0x0073 (FTS05, US), 0x00A3 (FTS05P, US)

Product ID varies

Device Type / Supported Command Classes

Generic Device Type: GENERIC_TYPE_SENSOR_NOTIFICATION

Specific Device Type: SPECIFIC_TYPE_NOTIFICATION_SENSOR

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

COMMAND_CLASS_VERSION_V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1

COMMAND_CLASS_ASSOCIATION_GRP_INFO (Info about Root Associations)

COMMAND_CLASS_NOTIFICATION_V3 (Power Management, System Fault, Water, and Heat

alarm handling)

COMMAND_CLASS_ASSOCIATION_V2 (Refer to Association Section)

COMMAND_CLASS_POWERLEVEL

COMMAND_CLASS_BASIC (for controlling associated nodes when Water and Heat alarms exist; Basic

commands to the water sensor are ignored)

COMMAND_CLASS_SENSOR_MULTILEVEL_V9 (Temperature value type)

COMMAND_CLASS_CONFIGURATION

COMMAND_CLASS_WAKE_UP

COMMAND_CLASS_BATTERY

COMMAND_CLASS_CONFIGURATION

Configuration Command Class Parameters

PARA-

METER

DESCRIPTION

DEFAULT

VALUE

SIZE

(bytes)

POSSIBLE

VALUES

Temperature low threshold

0x04

(4⁰C)

0xF6..0x45

(-10..69⁰C)

Temperature high threshold

0x46

(70⁰C)

0xF7..0x46

(-9..70⁰C)

Water Alarm Mode - can only be set in the

FTS05P (cannot be changed in the FTS05;

always returns 0 for ‘water detect’ mode)

0x00 (water

detect) or

0xF0 (water

level)

Water Alarm Association Mode (send Basic

Set ON or Basic Set OFF when alarm

detected)

0xF0 (send Basic

Set ON)

0x00 (send

OFF) or 0xF0

(send ON)

COMMAND_CLASS_NOTIFICATION

Notifications are sent for the following types and events:

Power Management

EVENT_INACTIVE 0x00

EVENT_POWER_HAS_BEEN_APPLIED 0x01

EVENT_AC_MAINS_DISCONNECTED 0x02 (FTS05P only)

EVENT_AC_MAINS_RECONNECTED 0x03 (FTS05P only)

EVENT_REPLACE_BATTERY_SOON 0x0A

EVENT_REPLACE_BATTERY_NOW 0x0B

Heat

EVENT_INACTIVE 0x00

EVENT_OVERHEAT_DETECTED 0x02

EVENT_UNDERHEAT_DETECTED 0x06

Water

EVENT_INACTIVE 0x00

EVENT_WATERLEAK_DETECTED 0x02

EVENT_WATERLEVEL_DROPPED 0x04 (FTS05P only)

System

EVENT_INACTIVE 0x00

EVENT_SYSTEM_HARDWARE_FAILURE 0x03

Parameter = 0x01, Probe disconnected / Thermistor open

Parameter = 0x02, Thermistor shorted

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels FortrezZ Accessoires

FortrezZ

FortrezZ FTS05US Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
