Fortinet FortiAP 222E Manuel utilisateur

FortiAP 222E

QuickStart Guide

1/31/2018

FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet,

Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be

registered and/or common law trademarks of Fortinet. All other product or company names

may be trademarks of their respective owners. Performance and other metrics contained

herein were attained in internal lab tests under ideal conditions, and actual performance and

other results may vary. Network variables, different network environments and other

conditions may affect performance results. Nothing herein represents any binding

commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied,

except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General

Counsel, with a purchaser that expressly warrants that the identified product will perform

according to certain expressly-identified performance metrics and, in such event, only the

specific performance metrics expressly identified in such binding written contract shall be

binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in

the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make

any commitment related to future deliverables, features, or development, and circumstances

may change such that any forward-looking statements herein are not accurate. Fortinet

disclaims in full any covenants, representations,and guarantees pursuant hereto, whether

express or implied. Fortinet reserves the right to change, modify, transfer, or otherwise

revise this publication without notice, and the most current version of the publication shall be

applicable.

Cautions and Warnings

Environmental specifications

Ambient operating temperature: 0C to 40C

Refer to specific Product Model Data Sheet for Environmental

Specifications (Operating Temperature, Storage Temperature,

Humidity, and Altitude).

Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales

(Température de fonctionnement, température de stockage, humidité et l'altitude).

Safety

Caution: This equipment is to be used in a Network Environment 0 per IECTR

62101. This product is connected only to PoE networks without routing to the

outside plant.

Attention: Ce matériel doit être utilisé dans un Environnement Réseau 0 par

IECTR 62101. Ce produit est uniquement connecté aux réseaux PoE sans

installation externe de routage.

QuickStart Guide

Box Includes

FortiAP device QuickStart Guide

PWR PoE LAN

SEN O

Mounting Hardware: Pole-Mount

Bracket, Wall Mount Base, and Mount

Kit: Mounting Screws (X8), Bolts (X4),

and Pole-Mount Straps (X2)

PoE injectorEPA5006GPR Antennae:

2.4G (X2),

5G(X2),

and BLE

(X1)

Grounding Screw Grounding cable

(X1) AC Power Cord (US)

Before YouBegin

Write down details typically provided by your network administrator or ISP.

Static IPaddress

IPaddress ___________________

Subnet Mask ___________________

Default Gateway ___________________

Primary/Secondary DNS ___________________

DHCP

It is normal to not require a hostname, but your ISP might require it.

Hostname ___________________

QuickStart Guide Video

https://video.fortinet.com/video/177/

fortigate-and-fortiap

FortiAP 222E - Device Front

FortiAP 222E

Device Guide

FortiAP 222E - Device Rear

2.4 GHz

Antenna

5.0 GHz

Antenna

5.0 GHz

Antenna

2.4 GHz

Antenna

FortiAP 222E - LED Definitions

O: Not connected

Green: Connected

Blinking: Transmitting and receiving data

LAN

O: No link detected or disabled

Green: 5GHz wireless radio enabled

Blinking: Transmitting and receiving data

5.0GHz

O: The unit is o

Green: The unit is on

Green Blinking: The unit is booting up

Power

O: No link detected or disabled

Green: 2.4GHz Wireless Radio enabled

Blinking: Transmitting and receiving data

2.4GHz

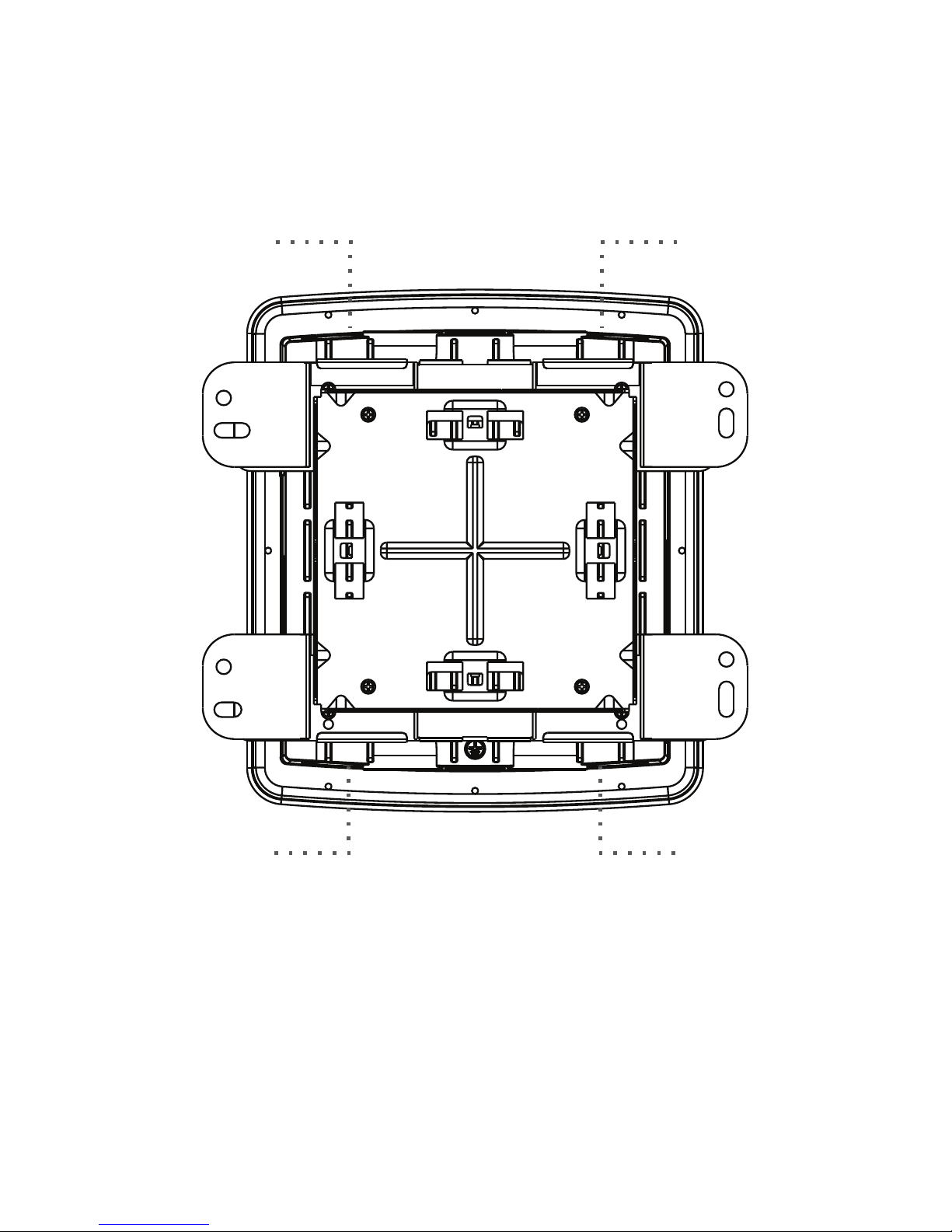

Installation

The unit can be mounted on a wall or ceiling using

the mounting hardware provided.

The electrical wall box must be pre-installed.
